Description
Vaddio RoboSHOT 20 Overview

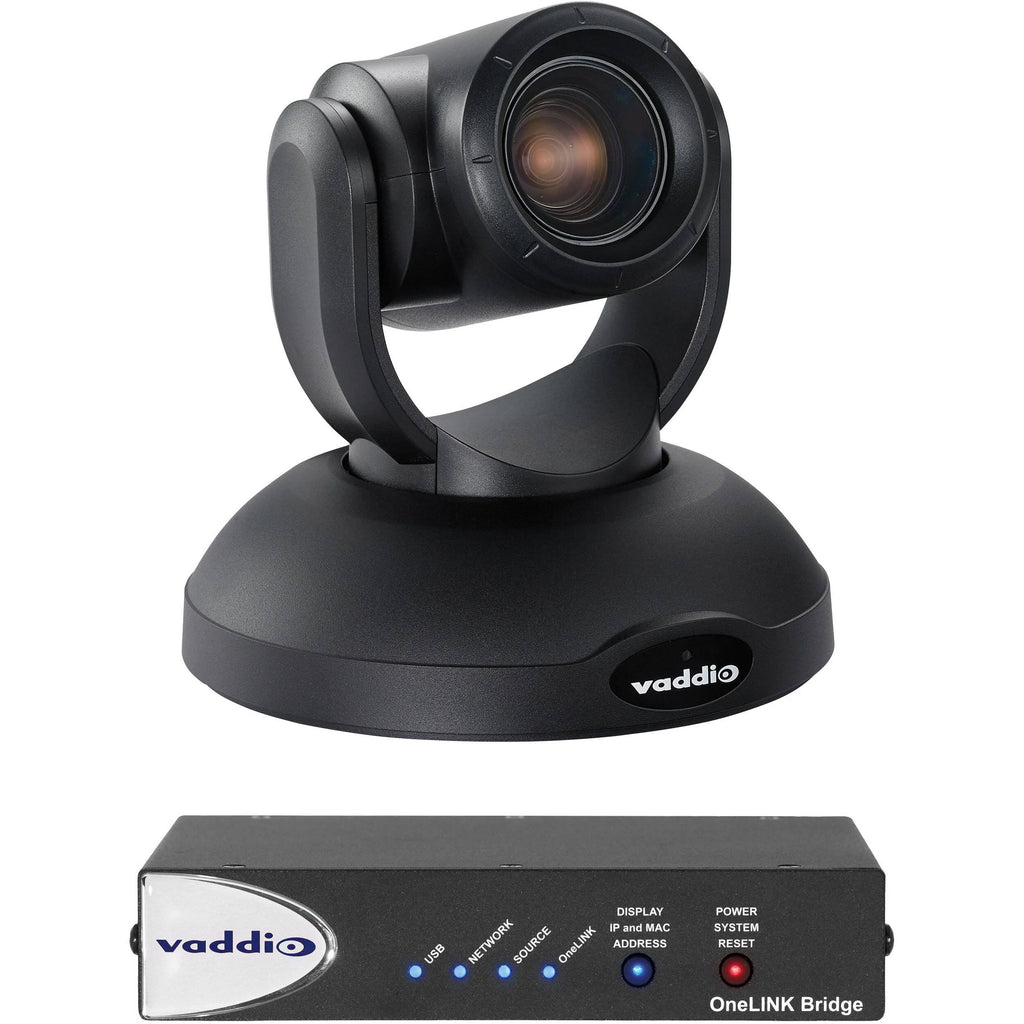

The RoboSHOT 20 UHD OneLINK Bridge System from Vaddio combines a black RoboSHOT 20 UHD PTZ camera and OneLINK Bridge interface. It is suitable for use in distance learning and corporate environments. The system captures 3840 x 2160 video at 30p from a single 1/2.3"-type Exmor sensor and transmits it up to 328' over CAT5e/6 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single cable.
The PTZ camera features a 20x total zoom range with 74° angle of view at wide, with a 4.8° angle of view at maximum zoom in. The OneLINK features HDMI, HDBaseT, IP, and HD-SDI video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.

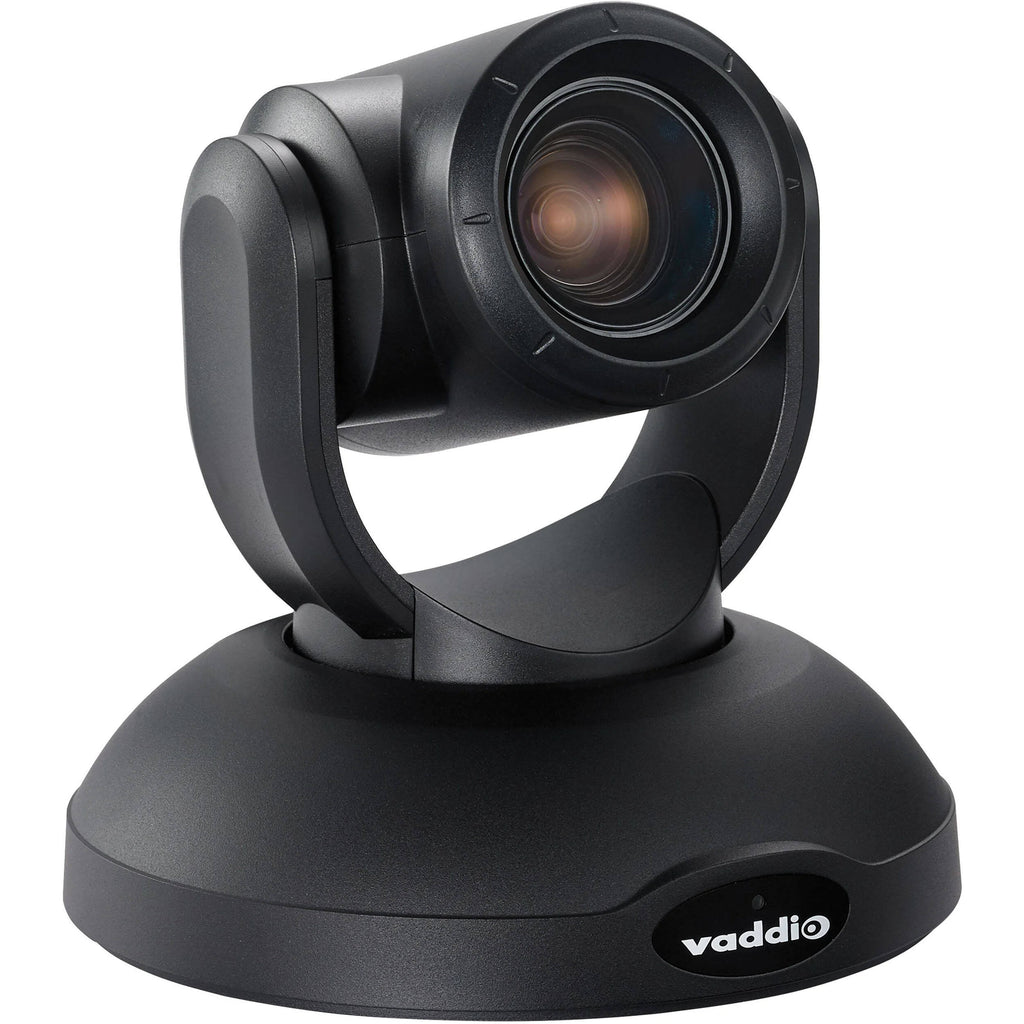

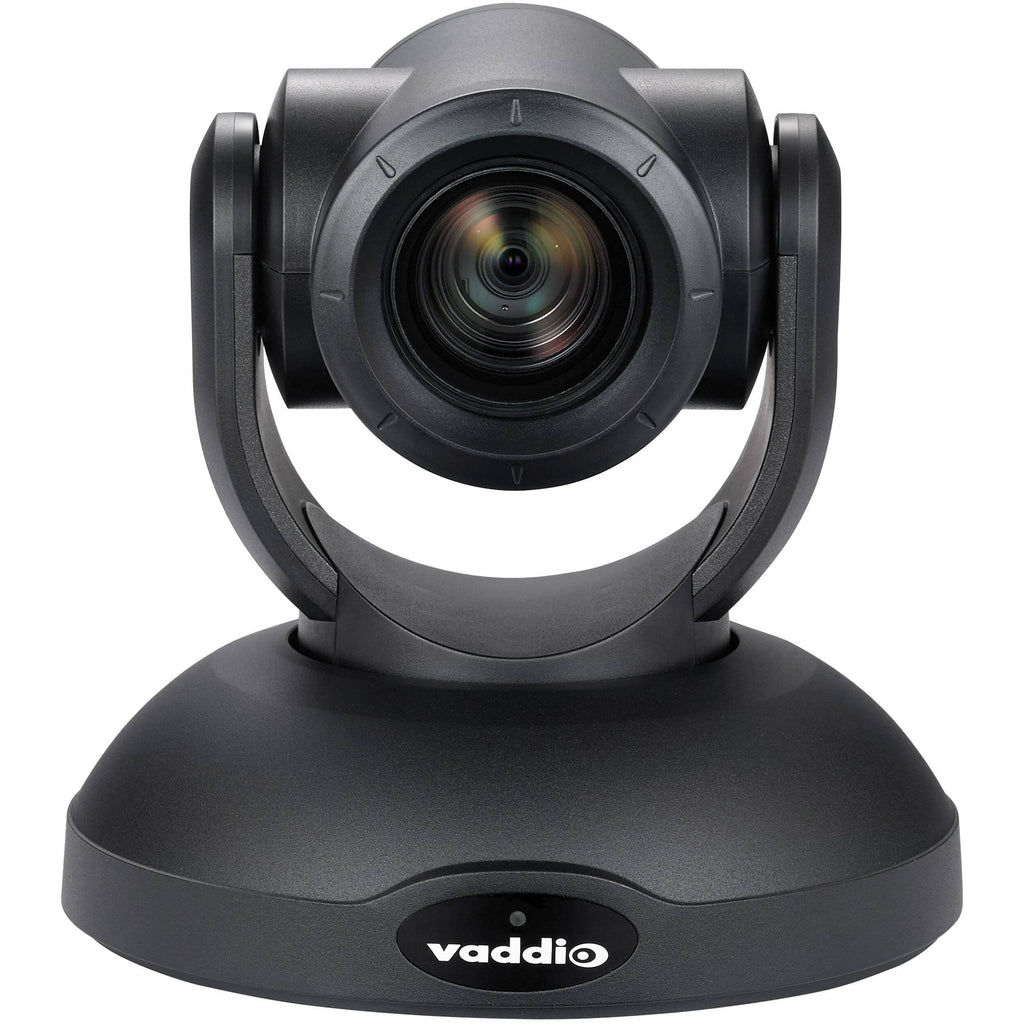

This black RoboSHOT 20 UHD Ultra High-Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate, and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3" type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.

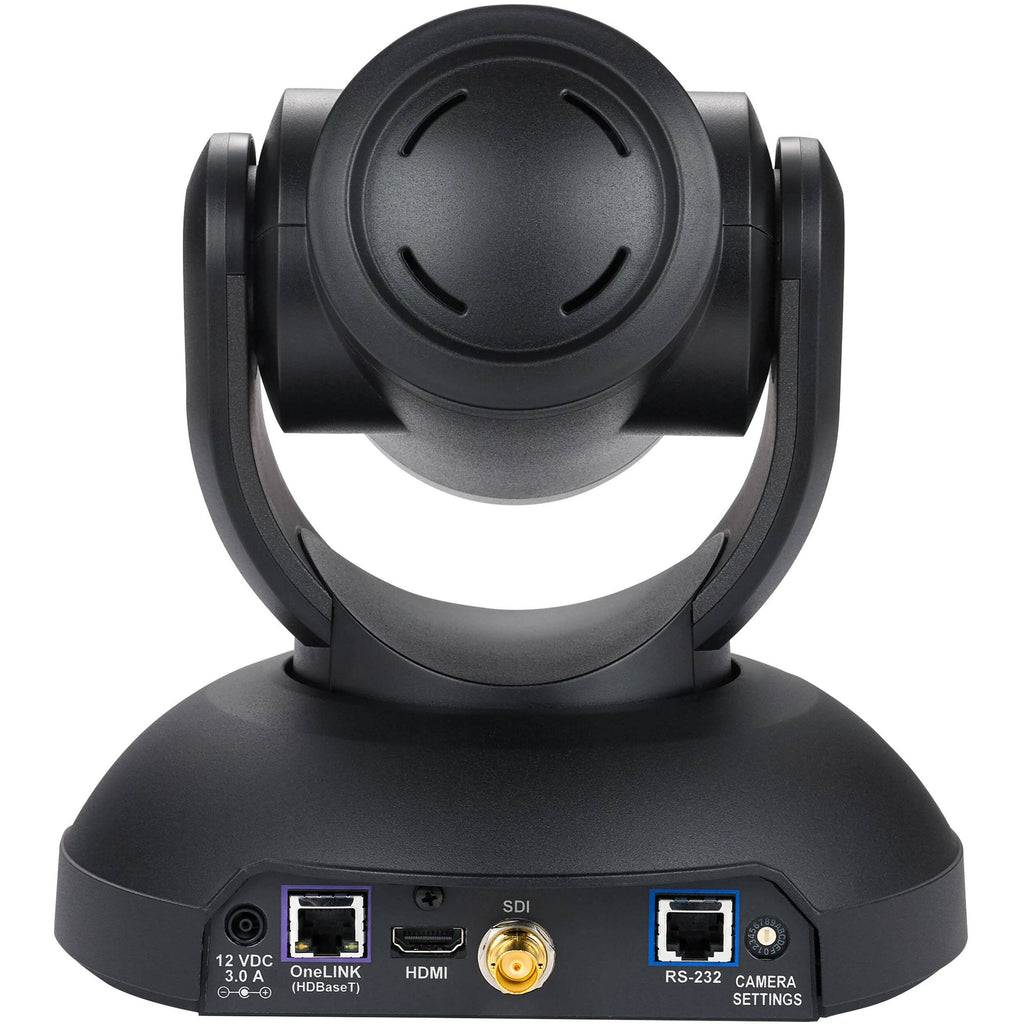

The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera.
- Purple: boot-up and Standby modes
- Blue: normal operation and is a power on, ready condition
- Blinking blue: the camera has received IR from the remote or other IR source
- Red: tally function shows that the camera is on-air
- Blinking red: fault condition
- Yellow: firmware update is in progress

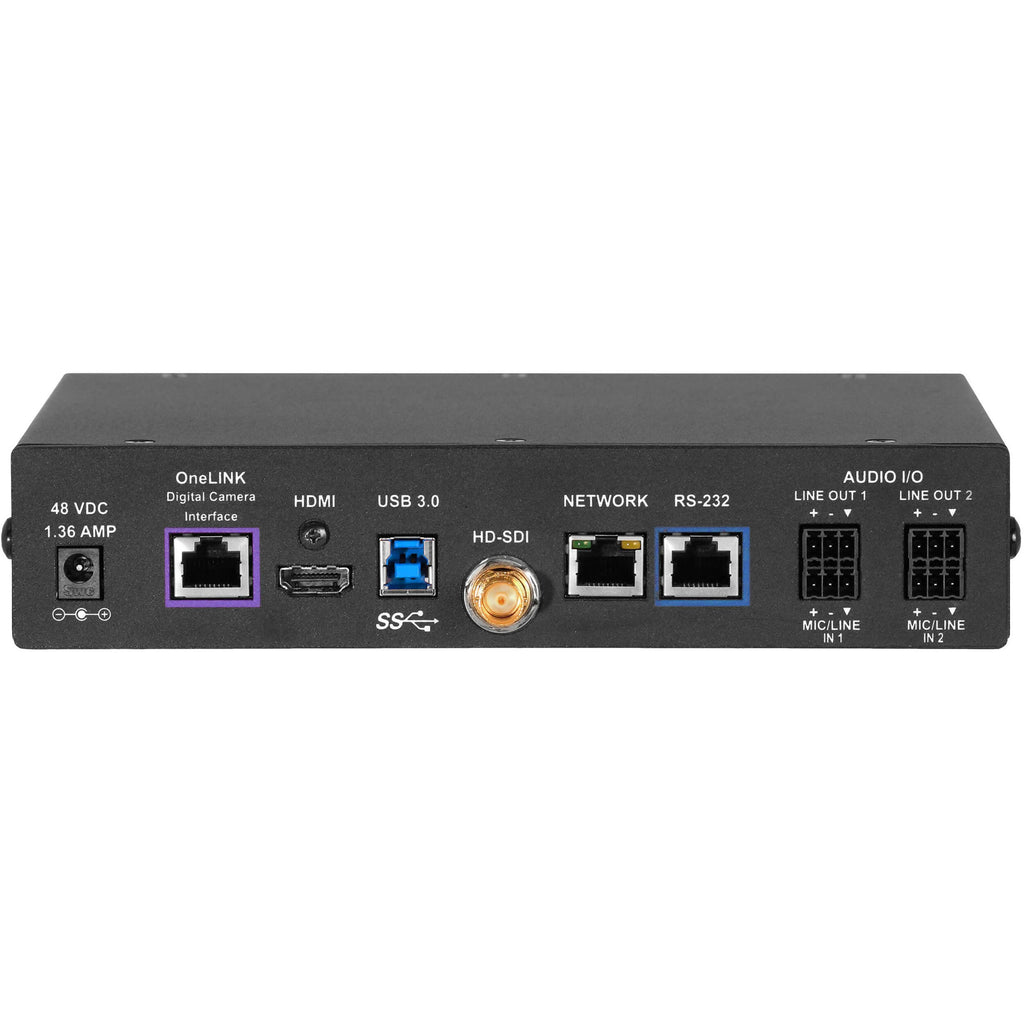

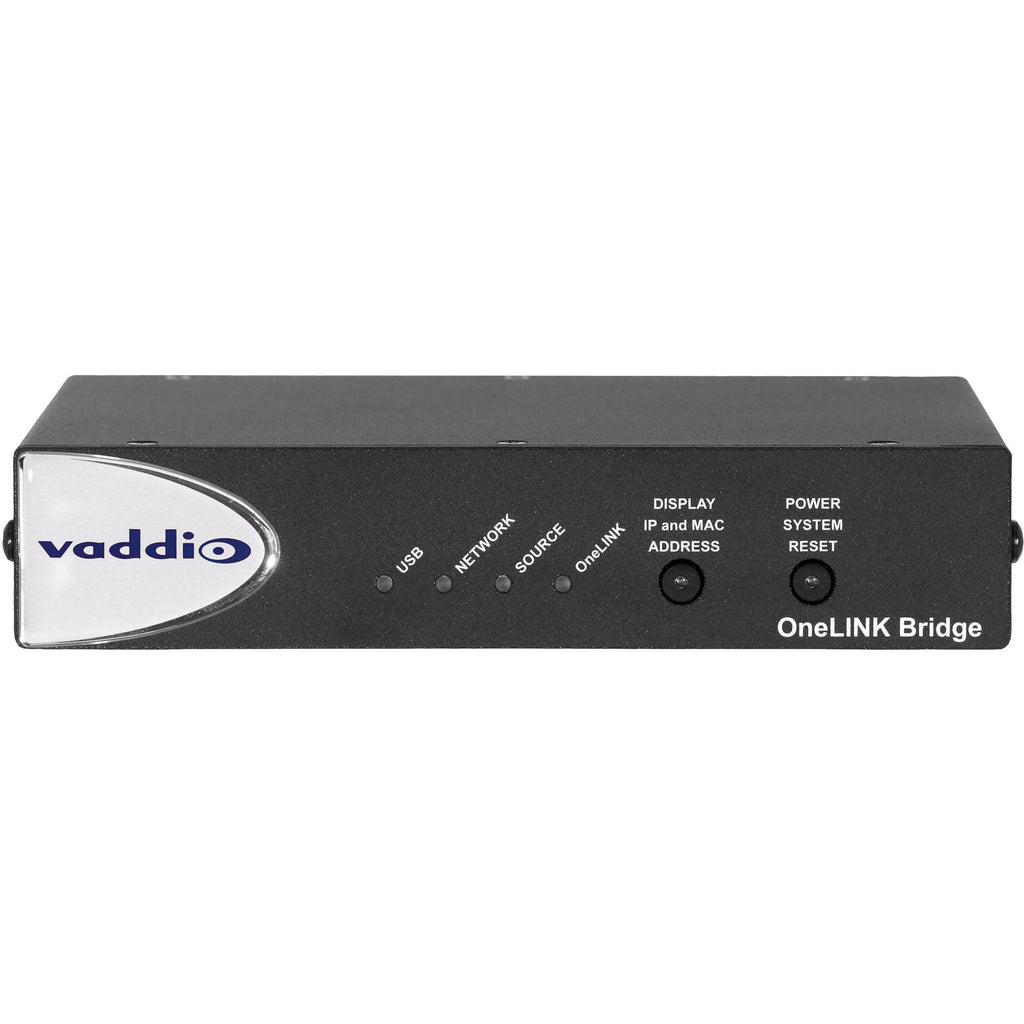

The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
In the Box
- Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black)
- Vaddio IR Remote Commander
- AC Adapter (12 VDC, 3 A)
- North American Power Cord Set

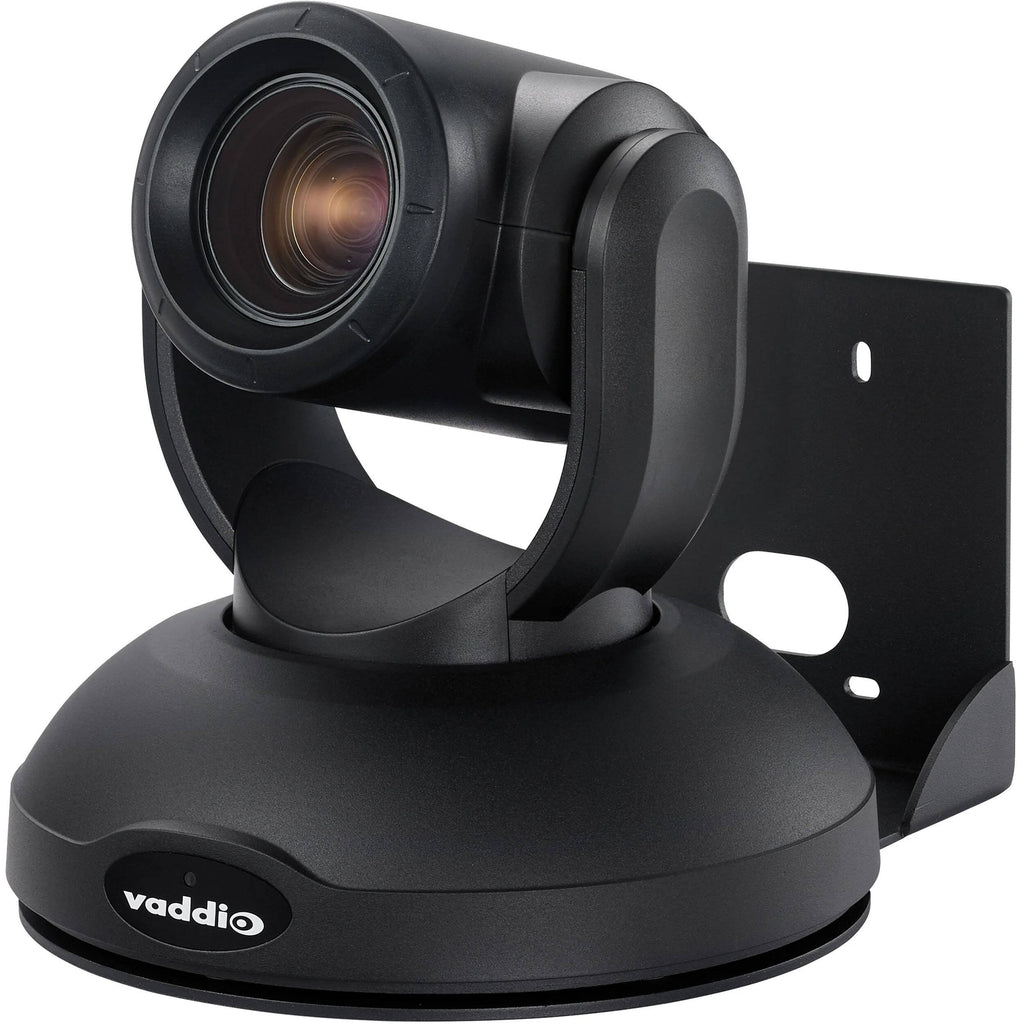

- Thin Profile Wall Mount
- EZCamera RS-232 Control Adapter
- Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB Cable (6')
- RS-232 Adapter
Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black) Specs
| Sensor Type | 3-Chip 2/3"-Type CMOS Sensor |
| Sensor Resolution | Actual: 9.03 Megapixel Effective: 8.93 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Minimum Illumination | 3 Lux |
| Flip / Mirror Support | Mirror (Vertical) |
| Focal Length | 10 to 120mm |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 1.7x |
| Field of View | Horizontal: 74 to 4.8° |
| External Recording Modes | SDI/BNC / HDMI 3840 x 2160 up to 29.97 fps |
| Broadcast Output | NTSC |
| Presets | 16 |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-232 |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Other I/O | 1 x RJ45 (RS-232) 1 x RJ45 (LAN) |
| Power Consumption | Power Supply: 12 VDC at 3 A |
| Certifications | CE, FCC, TAA, UL *as per Manufacturer |
| Dimensions (W x H x D) | 8 x 7.9 x 7.7" / 20.3 x 20.1 x 19.6 cm |
| Weight | 6 lb / 2.7 kg |
Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) Specs
| Cable Run | Max: 328' / 100 m |
| Resolution | Up to 1080p60 (Full HD) |
| Connectors | 1 x HD-SDI input 1 x HDMI input 2 x Mic/Line audio inputs 1 x USB 3.0, video output with PCM audio 2 x Line audio outputs 1 x OneLINK digital camera interface 1 x Network, IP streaming and control 1 x RS-232, control 1 x Power port |
| Control Features | Web interface for configuration via browser Telnet API for third-party external control USB Human Interface Device (HID) for room audio controls |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Power | 48 VDC, 1.36 A |
| Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm |
| Weight | 1.7 lb / 0.8 kg |
| Package Weight | 3.43 lb |
| Box Dimensions (LxWxH) | 12.3 x 9.3 x 3.2" |
