Description

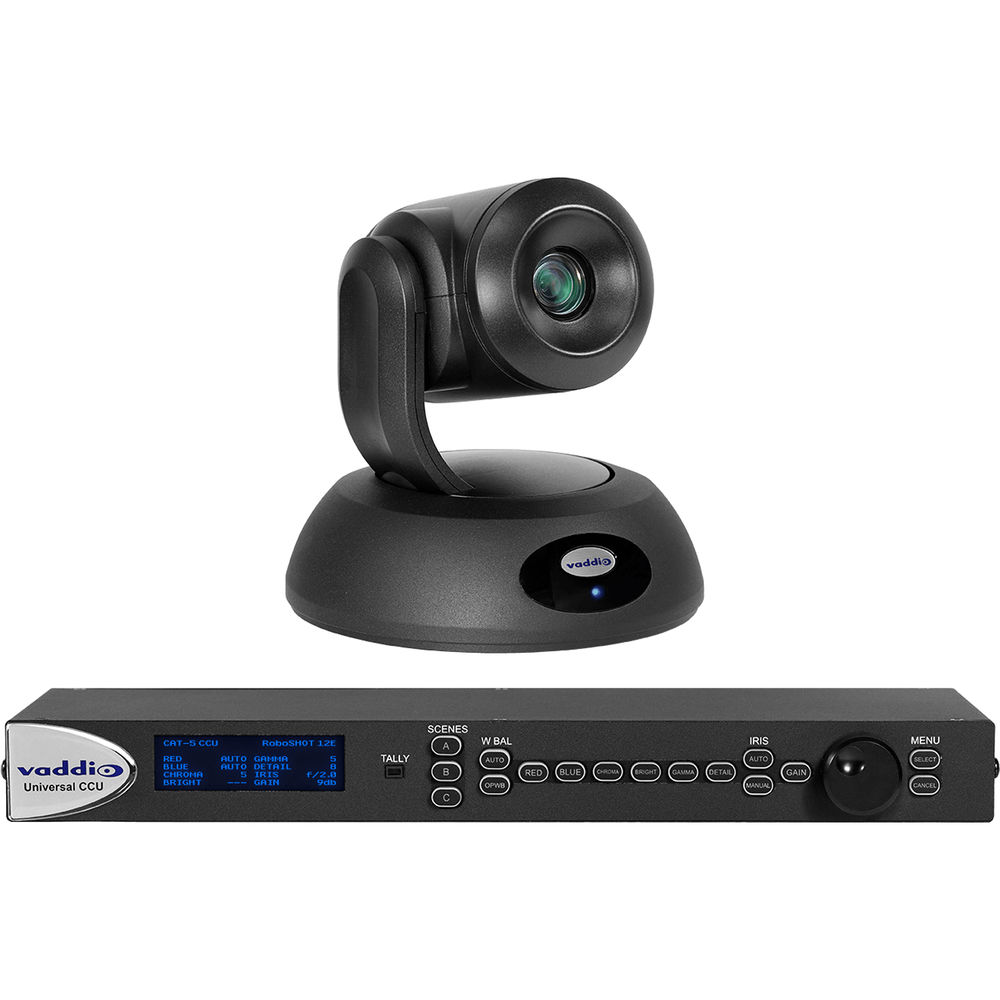

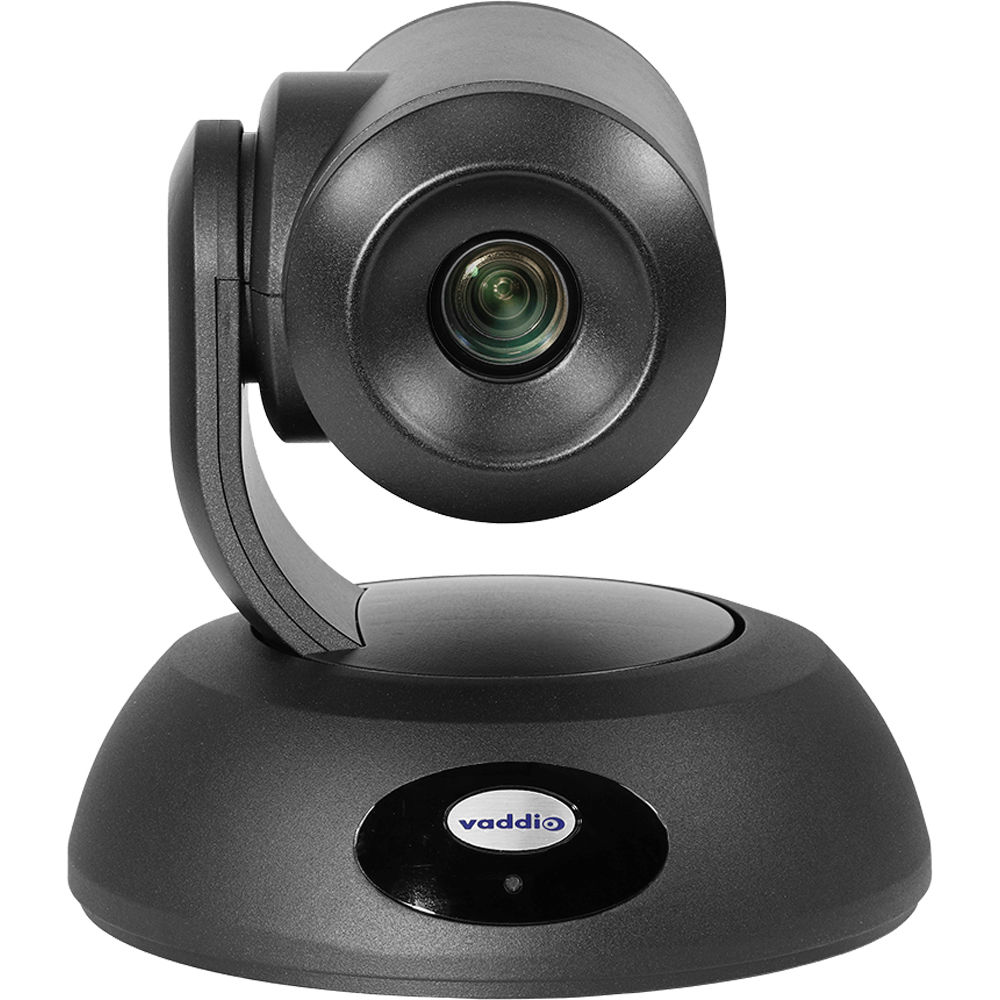

Capture full motion video in small-to-medium conference rooms, training rooms, and classrooms with the black RoboSHOT 12E QCCU Camera System from Vaddio . The PTZ camera features a 1/2.5 image sensor, a 12x optical zoom, and a wide dynamic range for enhanced lighting in dimly lit conditions. For smooth and natural motion, the camera features tri-synchronous motion technology allowing all three axes of the camera to move simultaneously. A web-based user interface allows configuration, management, and control from anywhere in the world over the IP network making this camera ideal for remote management. For added convenience, the camera can be controlled via integration-ready Telnet, serial RS-232 control, or an included IR remote control.

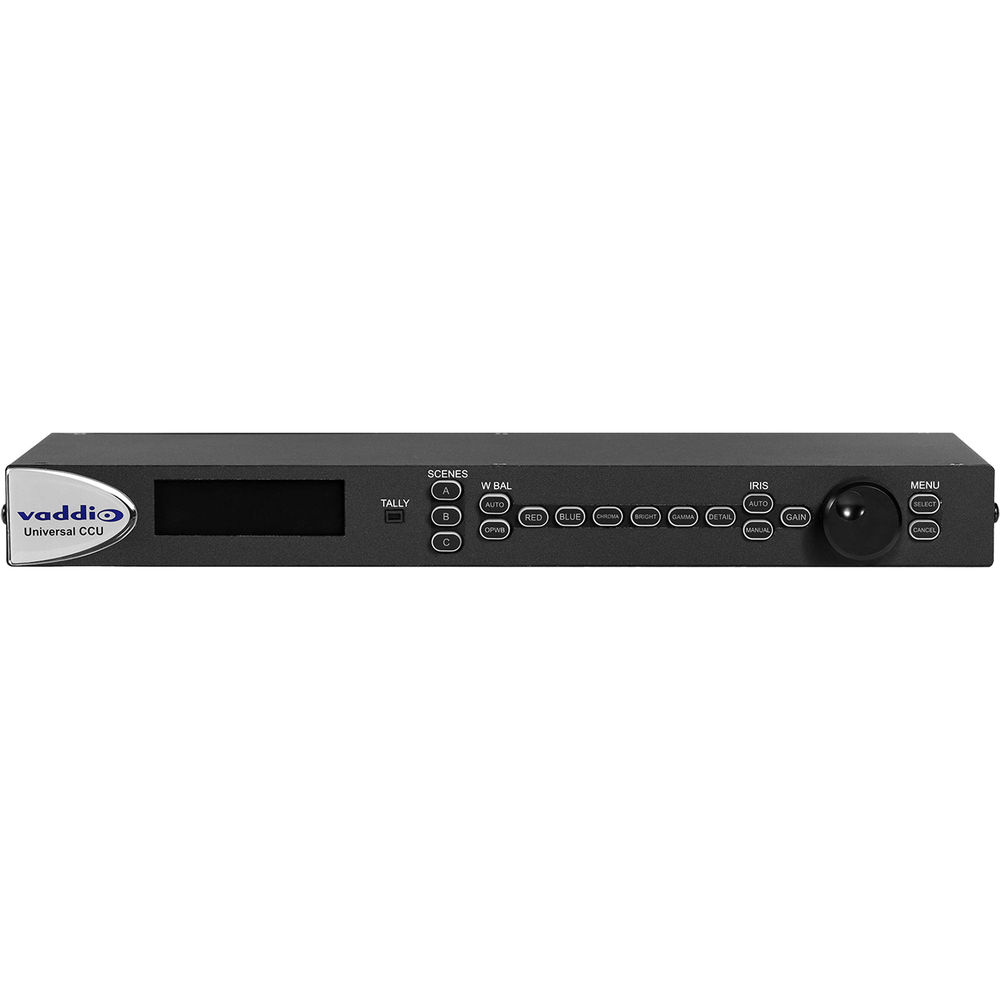

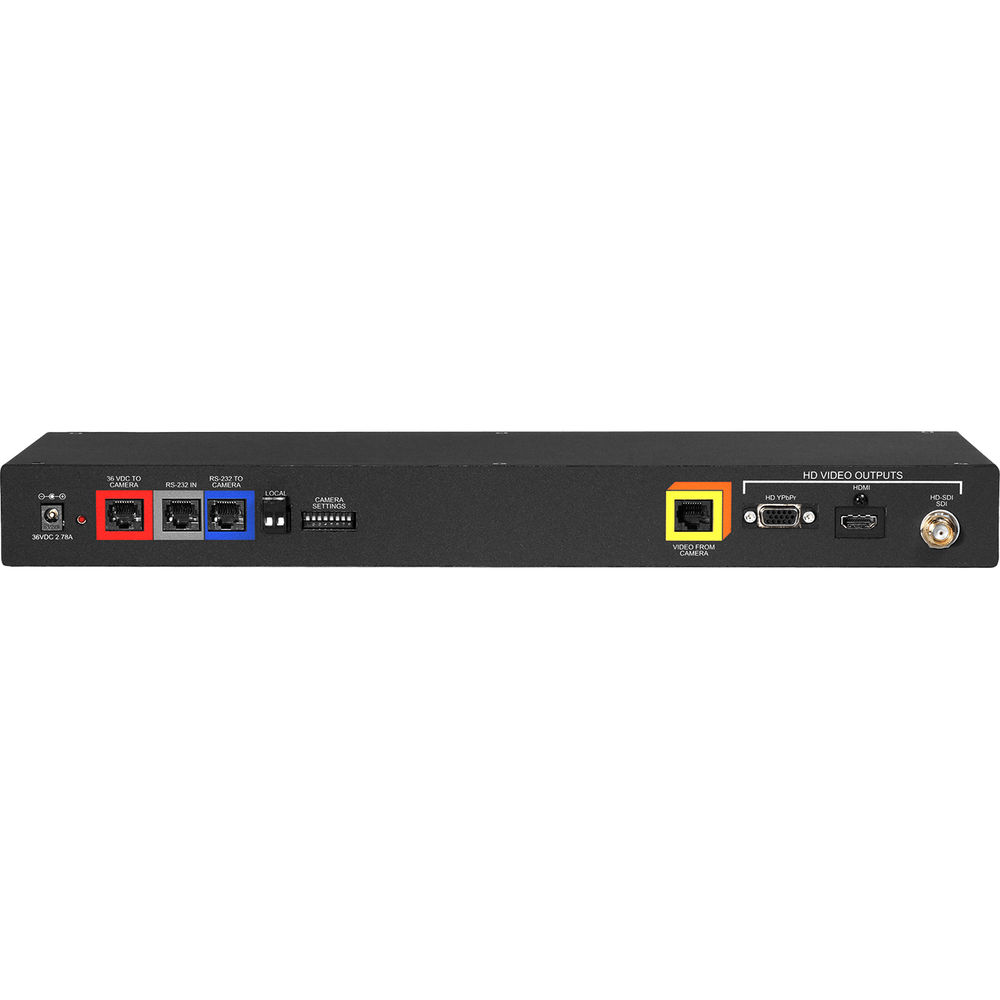

Paired with the camera, the Quick-Connect universal CCU Cat-5 interface (QCCU) enables the adjustment of AWB, red and blue gain, brightness, OPWB, gamma, chroma, detail, iris, and gain controls with a press of a button. The front-panel interface delivers easy touch control of the image that is being captured and the ability to color match and shade multiple cameras. User-defined adjustments can be stored on three Scene-Store buttons. The CCU uses three Cat-5 cables that reach up to 500' to transport HD video, power, and control to and from the camera. For flexible connectivity, the unit features simultaneous YPbPr, HDMI, and HD-SDI outputs.
Image Sensor | 1/2.5"-Type Exmor R CMOS |
Resolution | Full HD (1920 x 1080) at 60 fps |
Lens | 12x Optical Zoom |
Field of View | 70.2° Wide to 4.1° Tele |
Illumination | 1.0 lux, >100 lux Recommended |
Motors | Silent BLDC Direct Drive |
Pan & Tilt | Angles: Pan: ±160°, Tilt:90°, -30° Speeds: Pan/Tilt: 0.35 to 120°/sec |
Invertible | Yes |
Focus System | Auto and Manual |
Gain | Auto and Manual |
White Balance | Auto, Manual and One-Push |
Presets | 16 and Custom Home Position |
Power Type | CCU Power |
Control | Web UI, Telnet, RS-232, and IR Remote |
Certification | CE and FCC |
Operating Temperature | 32° to 104° F / 0° to 40° C |
Weight | 4.85 lb / 2.2 kg |
Dimensions | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.15 cm |
Color | Black |
Distance | >500' / 152 m |
Outputs | HDMI, HD-YPbPr, and 3G-SDI |
Inputs | HSDS |
Tally Light | Yes |
Control | RS-232, Optional Joystick |
Preset Positions | 3 Scenes |
Control Method | RS232 |
Power Type | CCU Power |
Power Supply | 36 VDC at 2.78 A |
Operating Temperature | 32° to 104° F / 0° to 40° C |
Certification | CE and FCC |
Weight | 4.1 lb / 1.86 kg |
Dimensions (W × H × D) | 18.93 x 1.72 x 7" / 48.08 x 4.37 x 17.78 cm |
Package Weight | 17.295 lb |
Box Dimensions (LxWxH) | 21.7 x 17.7 x 12.7" |
In the Box
- Vaddio RoboSHOT 12E QCCU Camera System (Black)
- Quick-Connect Universal CCU Cat-5 Interface
- Power Supply with AC Cord Set
- 2 x Rack Ears

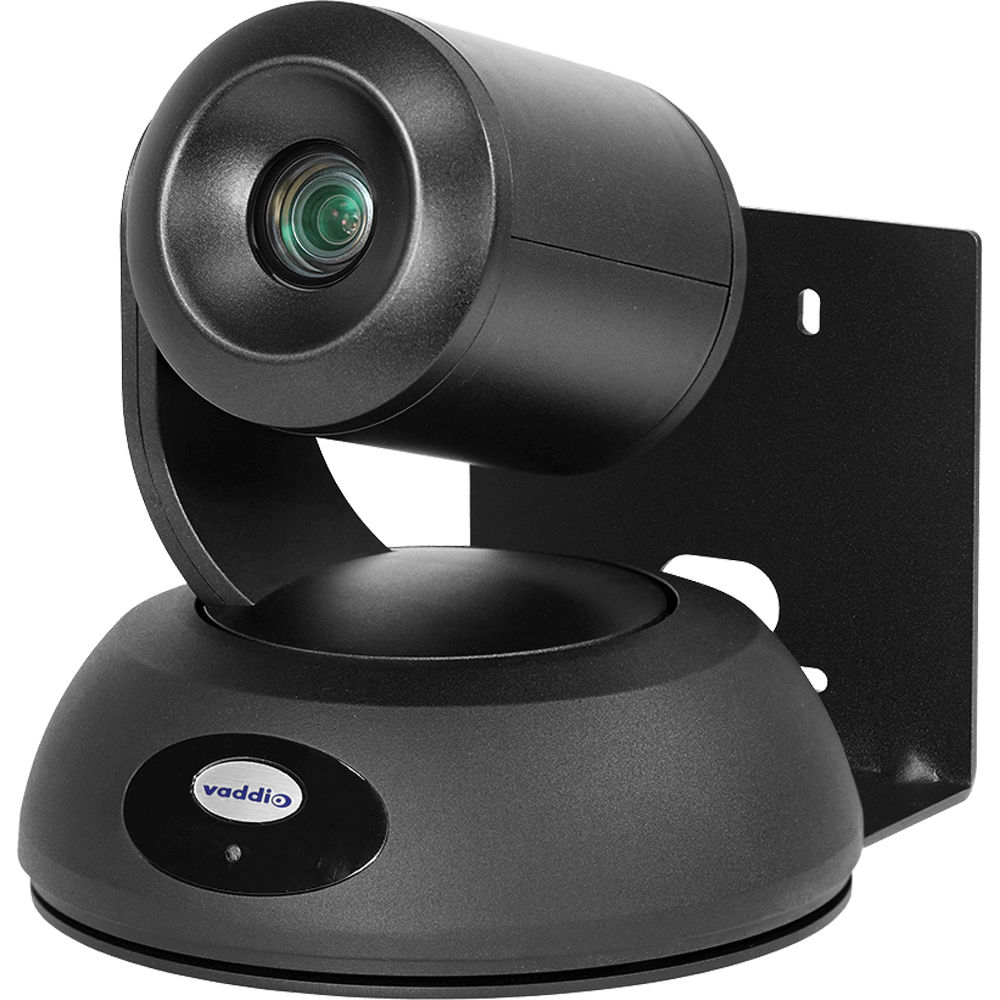

- Thin Black Profile Wall Mount with Mounting Hardware
- IR Remote Commander
- Limited 2-Year Warranty
