Description

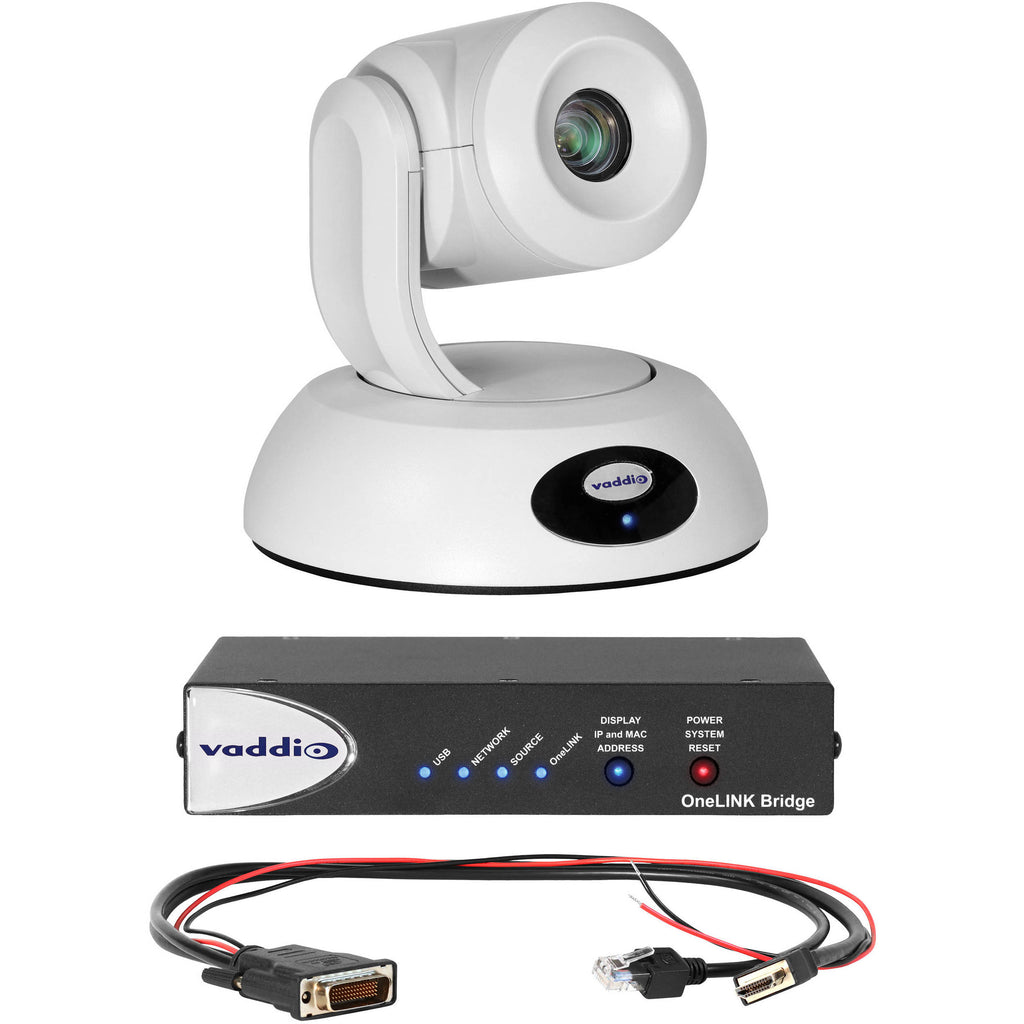

Vaddio RoboSHOT 12E Overview
Capture full motion video in conference rooms, training rooms, and classrooms with the white Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Polycom Codecs. The camera is designed with 12x optical zoom, a 1/2.5" CMOS sensor and delivers high-definition 1080p/60 video resolution. Paired with the OneLINK Bridge A/V Interface Receiver, you can bridge a non-USB camera and audio source to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. The system includes a 2' fan-out cable for compatible connectivity with a Polycom RealPresence codec.

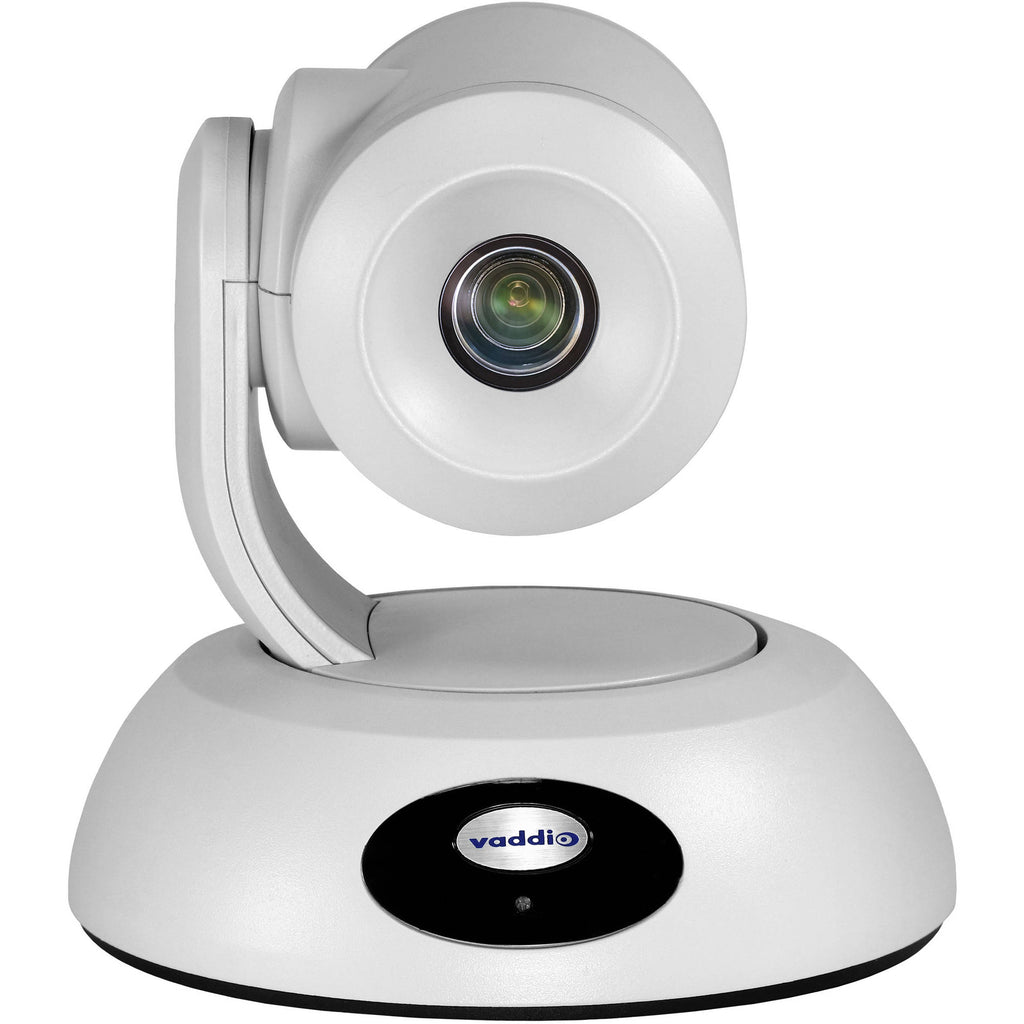

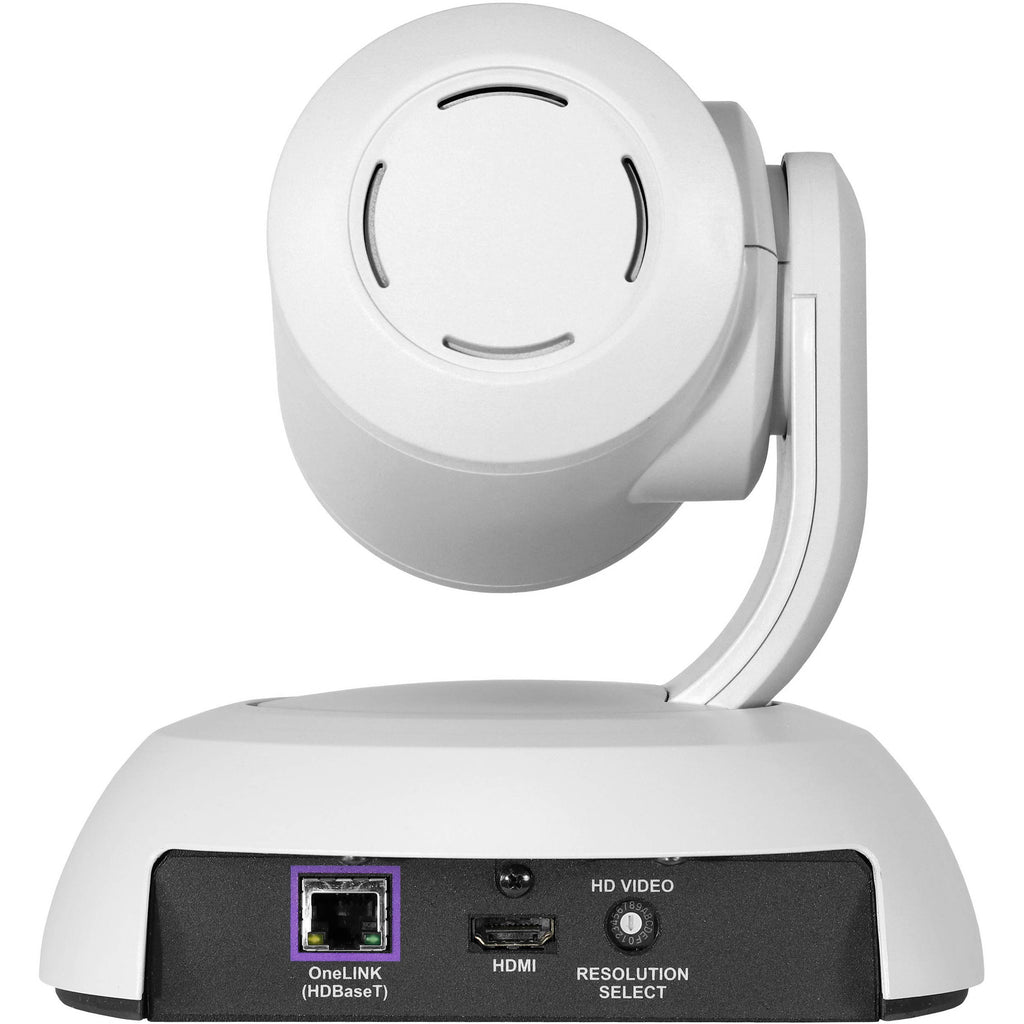

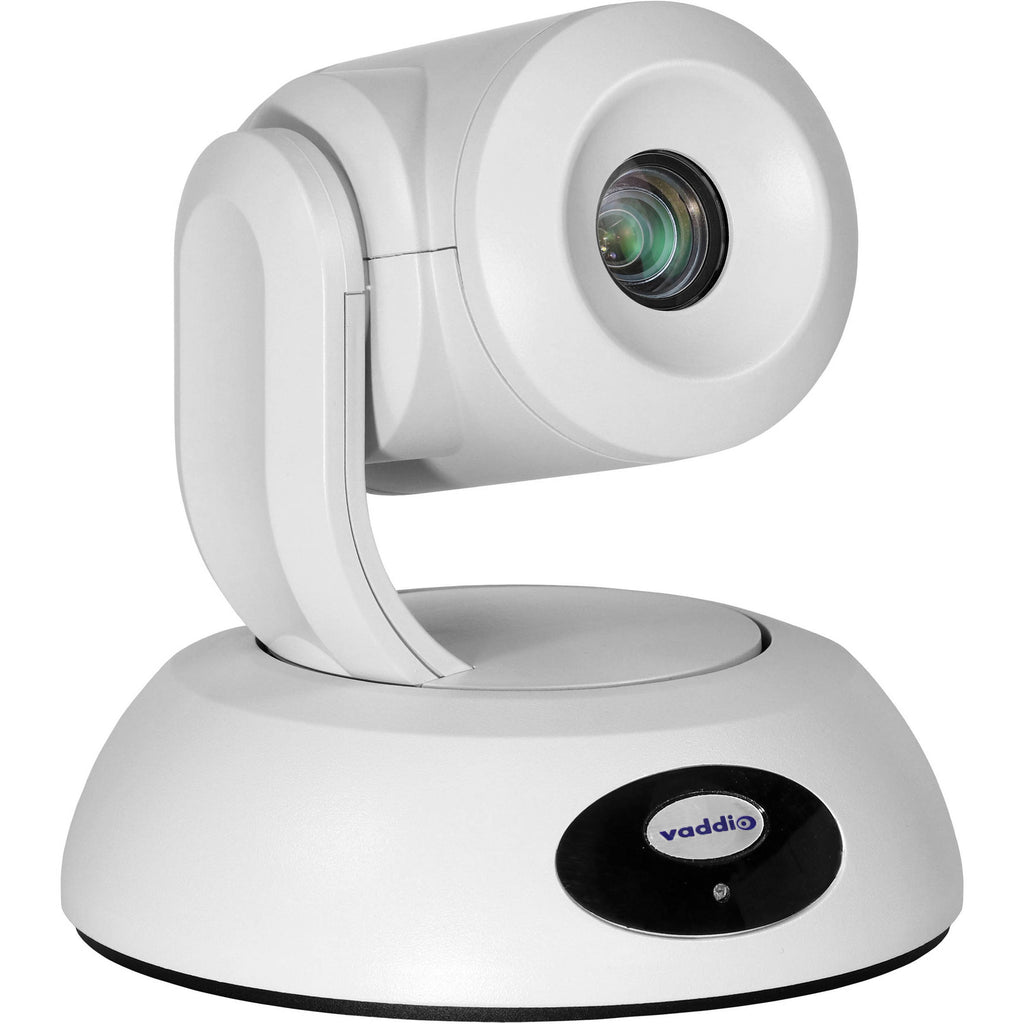

Vaddio RoboSHOT 12E HDBT IP Camera System (White)
Capture full motion video in conference rooms, training rooms, and classrooms with the white RoboSHOT 12E HDBT IP Camera System from Vaddio. Designed with 12x optical zoom and a 1/2.5" CMOS sensor, the camera delivers high-definition 1080p/60 video resolution. It features image signal processing and a wide dynamic range for enhanced lighting in dimly lit conditions. For smooth and natural motion, the camera features tri-synchronous motion technology allowing all three axes of the camera to move simultaneously. This camera can be controlled via integration-ready Telnet, serial RS-232 control, or an included IR remote control.
The RoboSHOT 12E provides a web-based user interface allowing configuration, management, and control from anywhere in the world over the IP network making this camera ideal for remote management, network operating centers, and overall IT control. Simply enter the camera's streaming URL into any standards-based H.264, RTSP format media player. This camera also allows you to simultaneously stream live events over YouTube, Livestream, and Facebook with the HDBaseT, HDMI, and IP video outputs. To simplify cabling and extend installation distance, you can connect it directly to HDBaseT-compatible devices or pair it with Vaddio OneLINK receivers.
Aspect Ratio
IP (H.264) streaming: 16:9, 3:2, and 4:3
White Balance

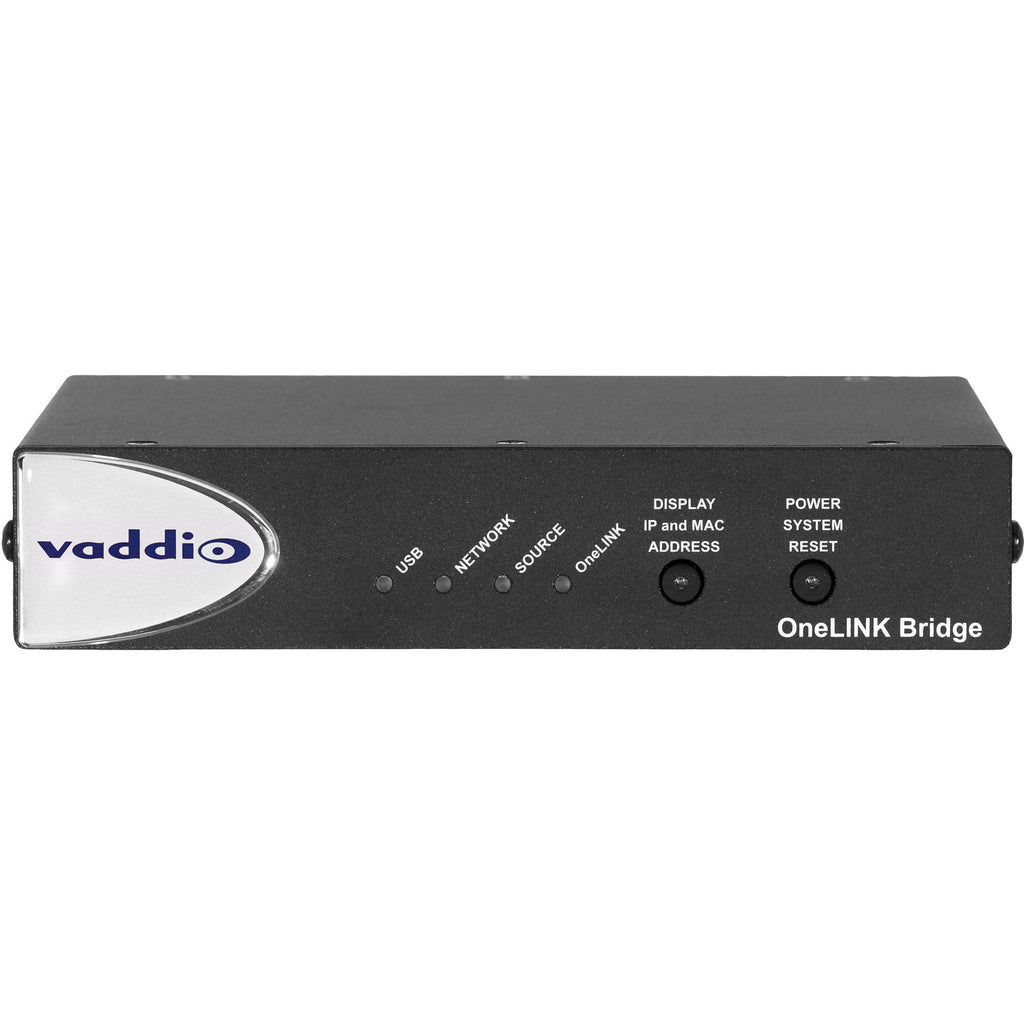

Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
In the Box
- Vaddio RoboSHOT 12E HDBT IP Camera System (White)
- PoE+ Midspan Power Injector
- Thin-Profile White Wall Mount with Mounting Hardware
- IR Remote Commander
- Limited 2-Year Warranty
- Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB Cable (6')
- RS-232 Adapter
- Limited 2-Year Warranty
- 2' Fan-Out Cable for Polycom, Codec Side
Vaddio RoboSHOT 12E HDBT IP Camera System (White) Specs
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution | 8.51 MP |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Optical Zoom Ratio | 12x |
| Focal Length | 4.4 to 88.4mm |
| Field of View | Horizontal: 70.2 to 4.1° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
| Output Formats | HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps HDMI: 1280 x 720p at 50, 59.94, 60 fps |
| Presets | 16 |
| Move Speed | Pan: 0.35 to 120°/sec Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP IR RS-232 |
| Video Output Connectors | 1 x RJ45 (HDBaseT) Male 1 x HDMI Type A Male |
| Control Interface | 1 x RJ45 (IP Control) Input |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions | 7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.14 cm |
| Weight | 4.85 lb / 2.2 kg |
| Package Weight | 10.375 lb |
| Box Dimensions (LxWxH) | 13.5 x 12.5 x 12" |

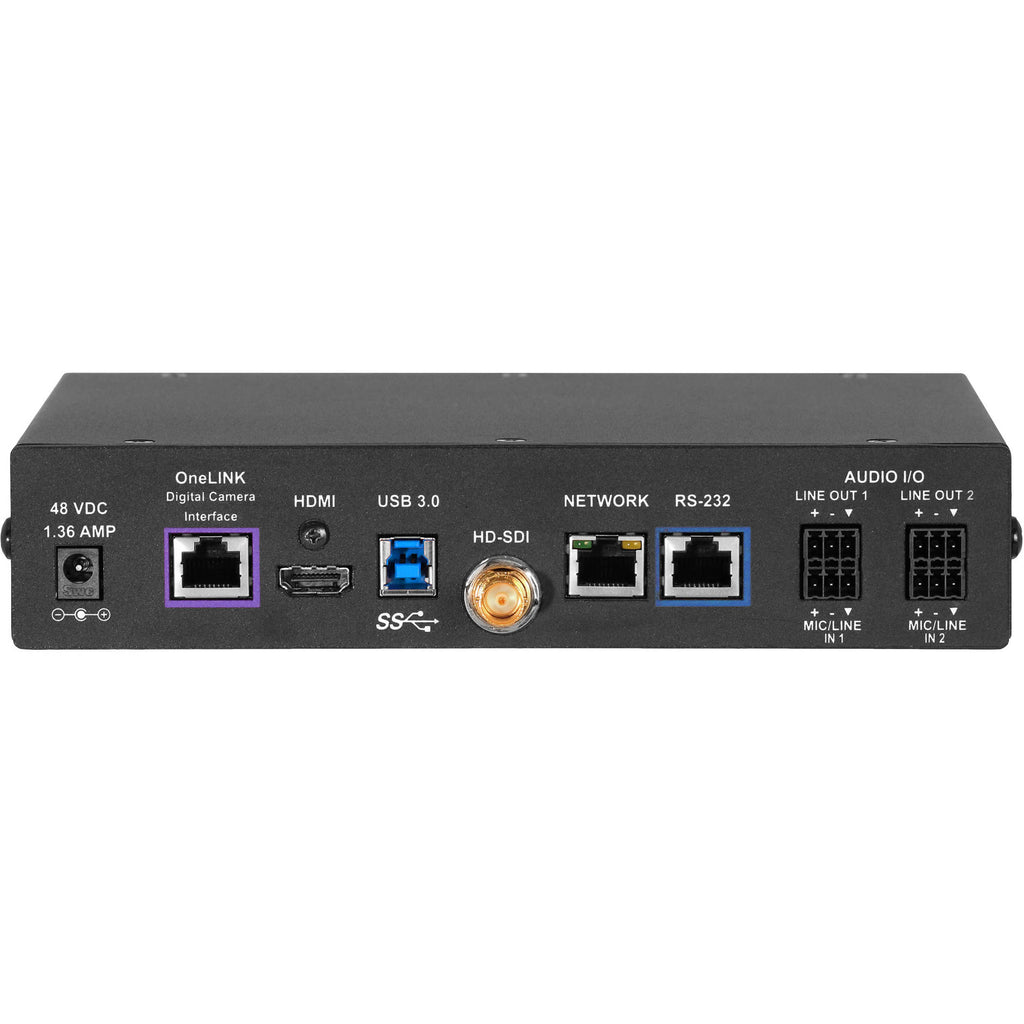

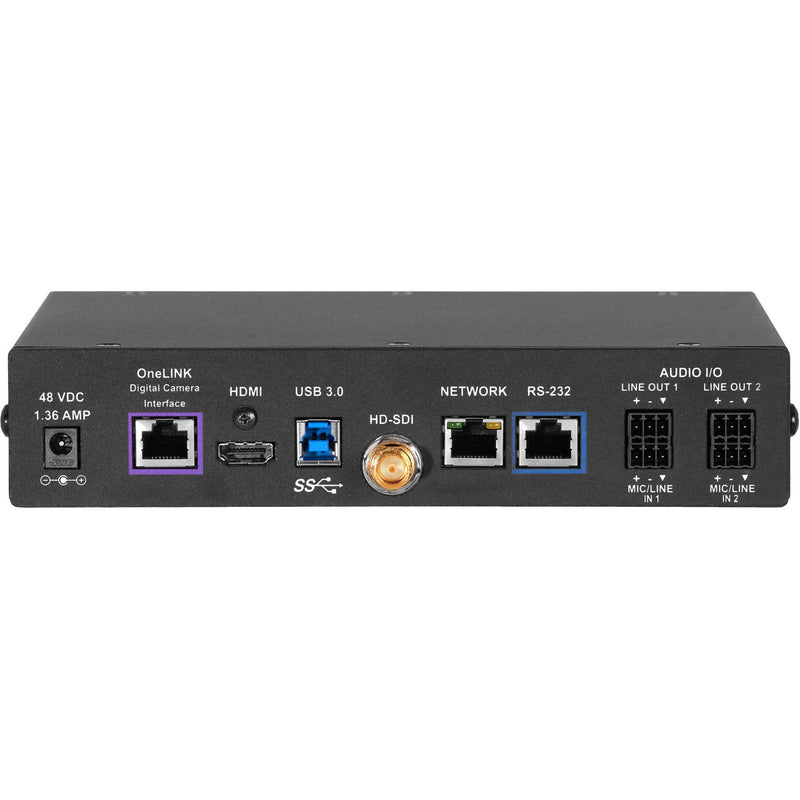

Vaddio OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) Specs
| Cable Run | Max: 328' / 100 m |
| Resolution | Up to 1080p60 (Full HD) |
| Connectors | 1 x HD-SDI input 1 x HDMI input 2 x Mic/Line audio inputs 1 x USB 3.0, video output with PCM audio 2 x Line audio outputs 1 x OneLINK digital camera interface 1 x Network, IP streaming and control 1 x RS-232, control 1 x Power port |
| Control Features | Web interface for configuration via browser Telnet API for third-party external control USB Human Interface Device (HID) for room audio controls |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Power | 48 VDC, 1.36 A |
| Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm |
| Weight | 1.7 lb / 0.8 kg |
| Package Weight | 3.43 lb |
| Box Dimensions (LxWxH) | 12.3 x 9.3 x 3.2" |
