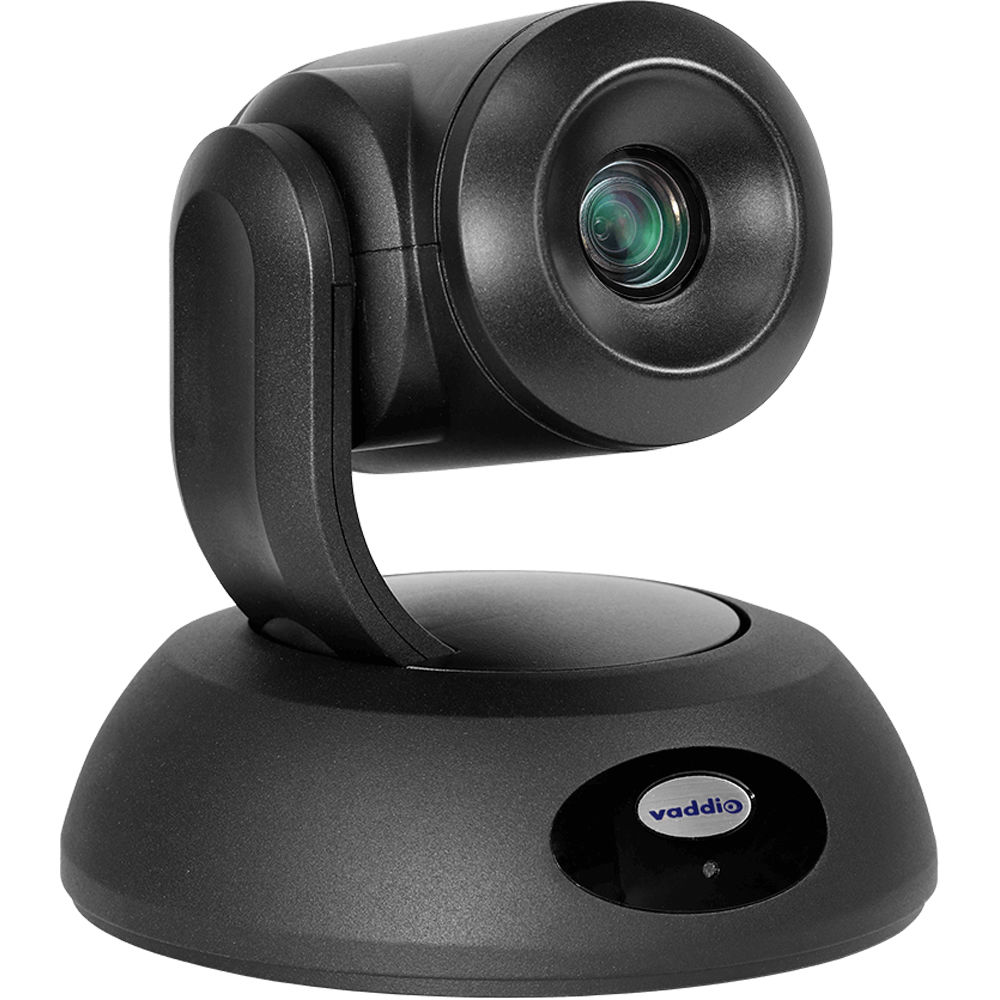

1080p Resolution at 60 fps4.4-88.4mm Varifocal Lens70.2-4.1º Horizontal Field of ViewHDMI Output The black RoboSHOT 12E 1080p PTZ Network Camera from Vaddio features a 1/2.5" Exmor R CMOS sensor that supports video at resolutions up to 1080p at 60 fps. This camera has a 4.4-88.4mm varifocal lens and a horizontal field of view of 70.2-4.1°. Video outputs include simultaneous HDMI and IP (H.264) streaming. This PTZ camera has a 160° pan, a -30 to 90° tilt, and a 12x optical zoom. It is powered via PoE+ and is designed for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view. A PoE+ midspan power injector with AC cord set, a thin profile wall mount with mounting hardware, and an IR remote commander are included.
Wide dynamic range IP streaming (RTSP or RTMP format with H.264 compression) to share live events like lectures or meetings over popular applications like YouTube, Livestream, and Facebook Web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network Tri-synchronous motion technology allows all three axes of the camera to move simultaneously for ultrasmooth, natural camera motion Cutting-edge image signal processing (ISP) UPC: 840077503536
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Sensor Resolution | 1920 x 1080 (8.51 MP) |
| Gain | 0 to 33 dB |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Optical Zoom Ratio | 12x |
| Focal Length | 4.4 to 88.4mm |
| Field of View | Horizontal: 70.2 to 4.1° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focusing Distance | Wide: 3.1" / 8.0 cm
Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus
Manual Focus |
| Output Formats | HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264, RTMP, RTSP: 1080p |
| Recording Modes | Not Specified by Manufacturer |
| Presets | 16 |
| Move Speed | Pan: 0.35 to 120°/sec
Tilt: 0.35 to 120°/sec |
| Movement Range | Pan: 160°
Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP
IR
RS-232 |

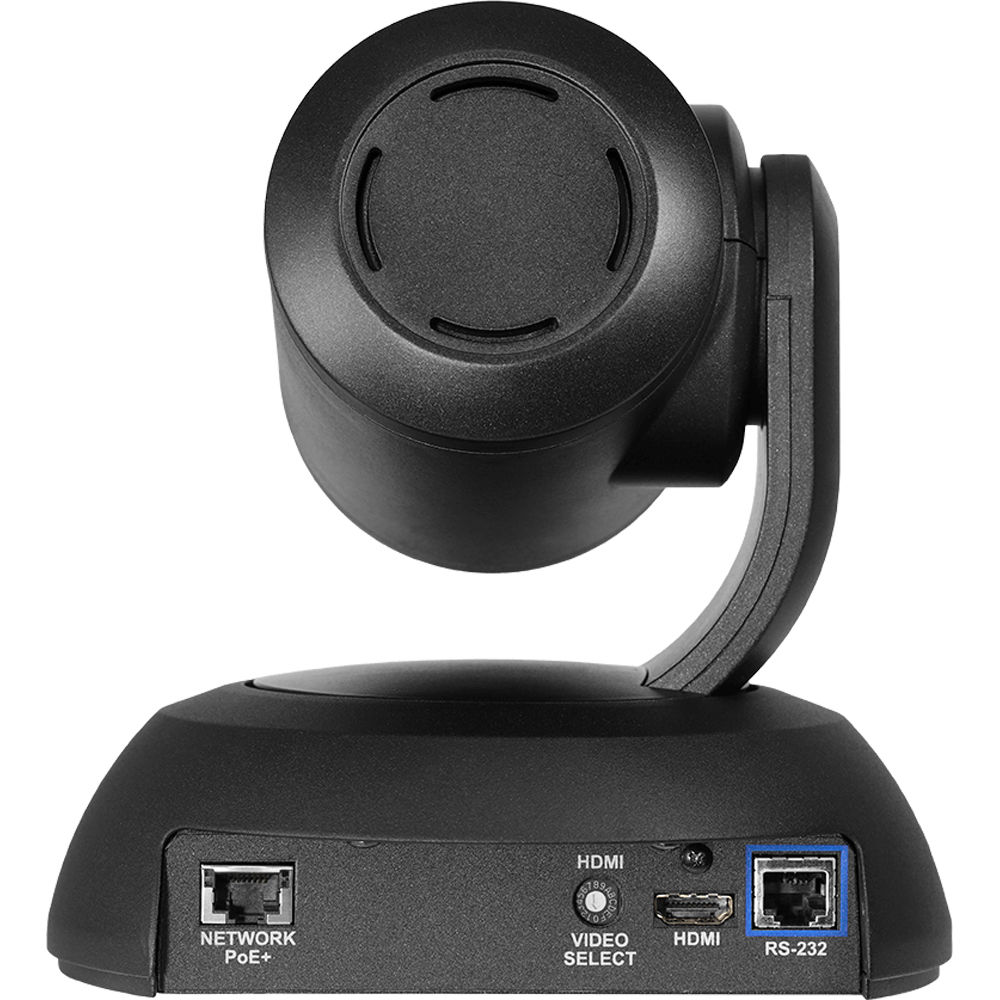

| Video Output Connectors | 1 x HDMI Type A |
| Control Interface | 1 x RJ45 (LAN) Input
1 x RJ45 (RS-232) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions | 6.94 x 7.05 x 6.75" / 17.63 x 17.91 x 17.14 cm |
| Weight | 4.85 lb / 2.2 kg |
| Package Weight | 10.67 lb |
| Box Dimensions (LxWxH) | 13.6 x 12 x 12" |
In the Box
- Vaddio RoboSHOT 12E 1080p PTZ Network Camera (Black)
- PoE+ Midspan Power Injector with AC Cord Set

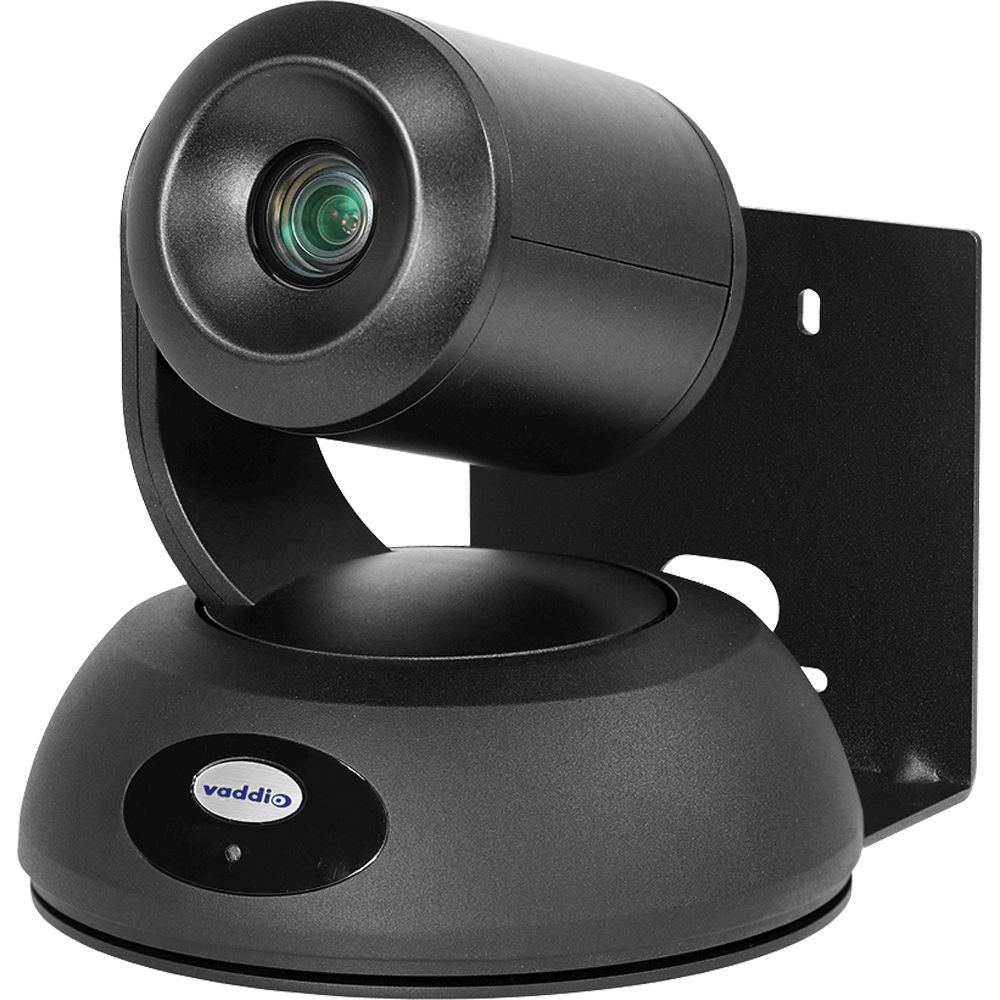

- Thin Profile Wall Mount with Mounting Hardware (Black)
- IR Remote Commander
- Limited 2-Year Warranty
