Description
Vaddio RoboFLIP 30 Overview

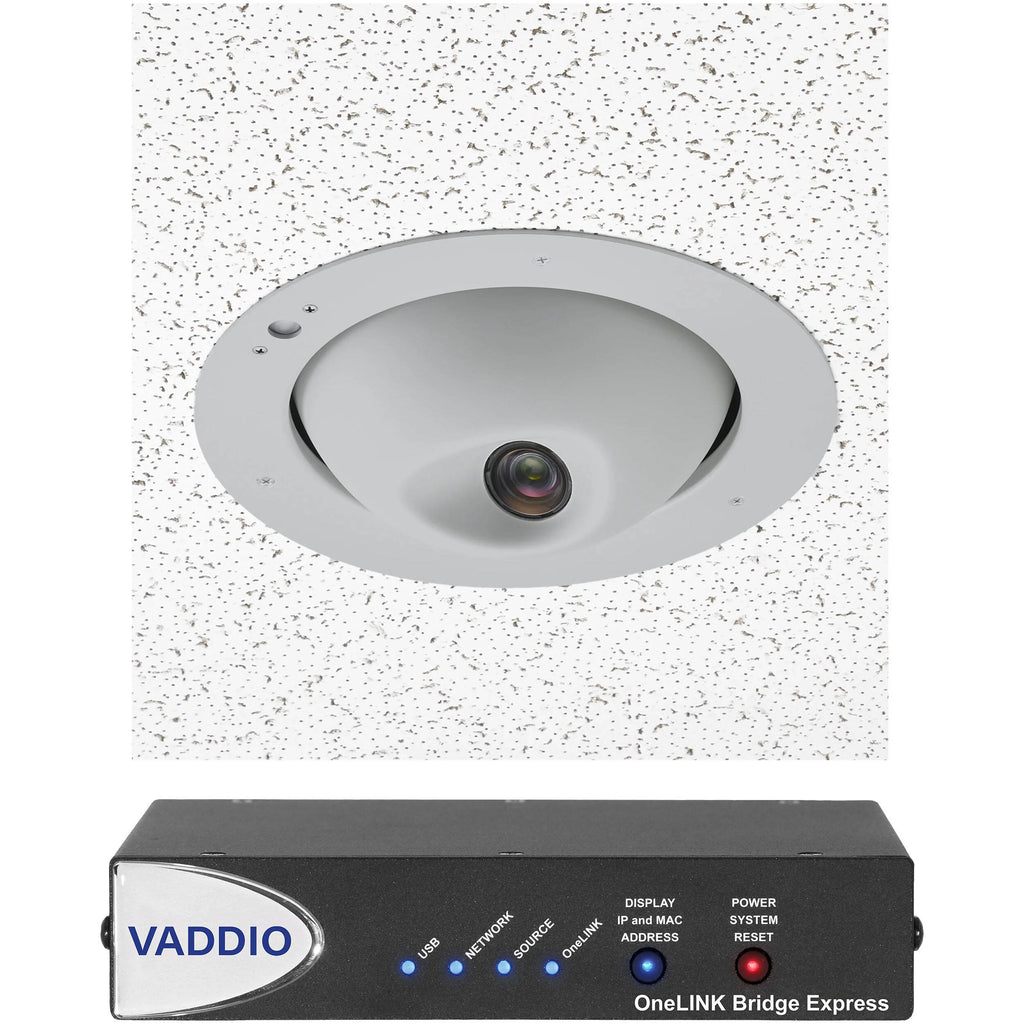

The RoboFLIP 30 HDBaseT OneLINK Bridge Express System from Vaddio combines a white RoboFLIP 30 HDBT camera with a OneLINK Bridge Express A/V interface. The system captures 1080p60 video from a single 1/2.5" type CMOS sensor and transmits it up to 328' over a Cat 5 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single cable.

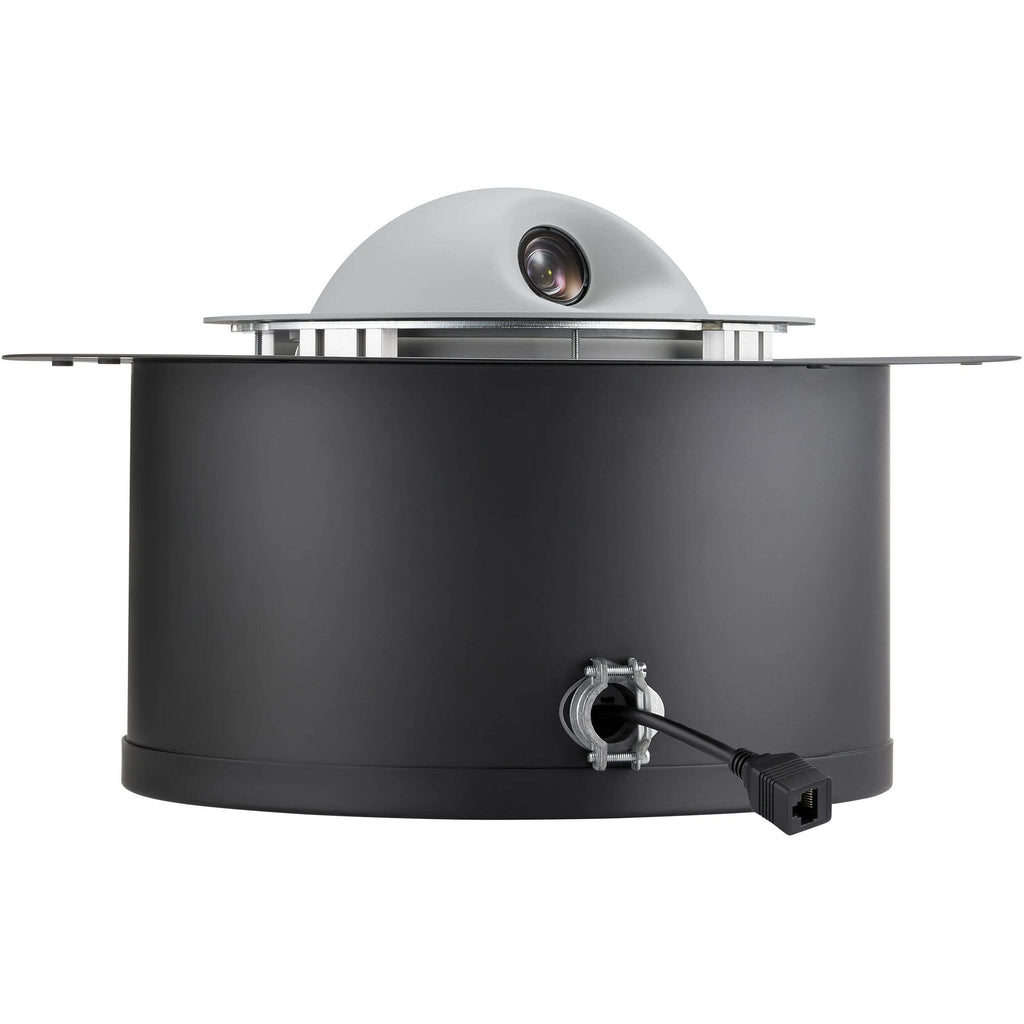

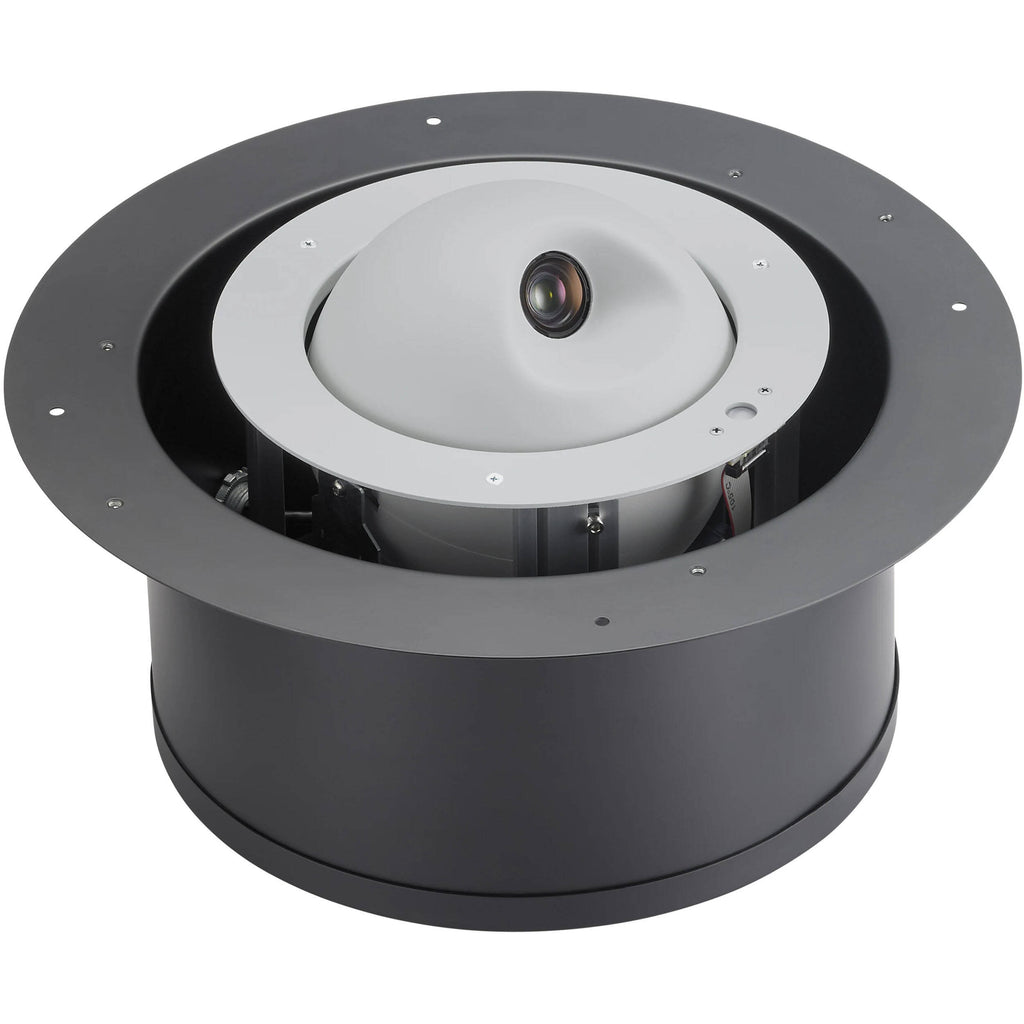

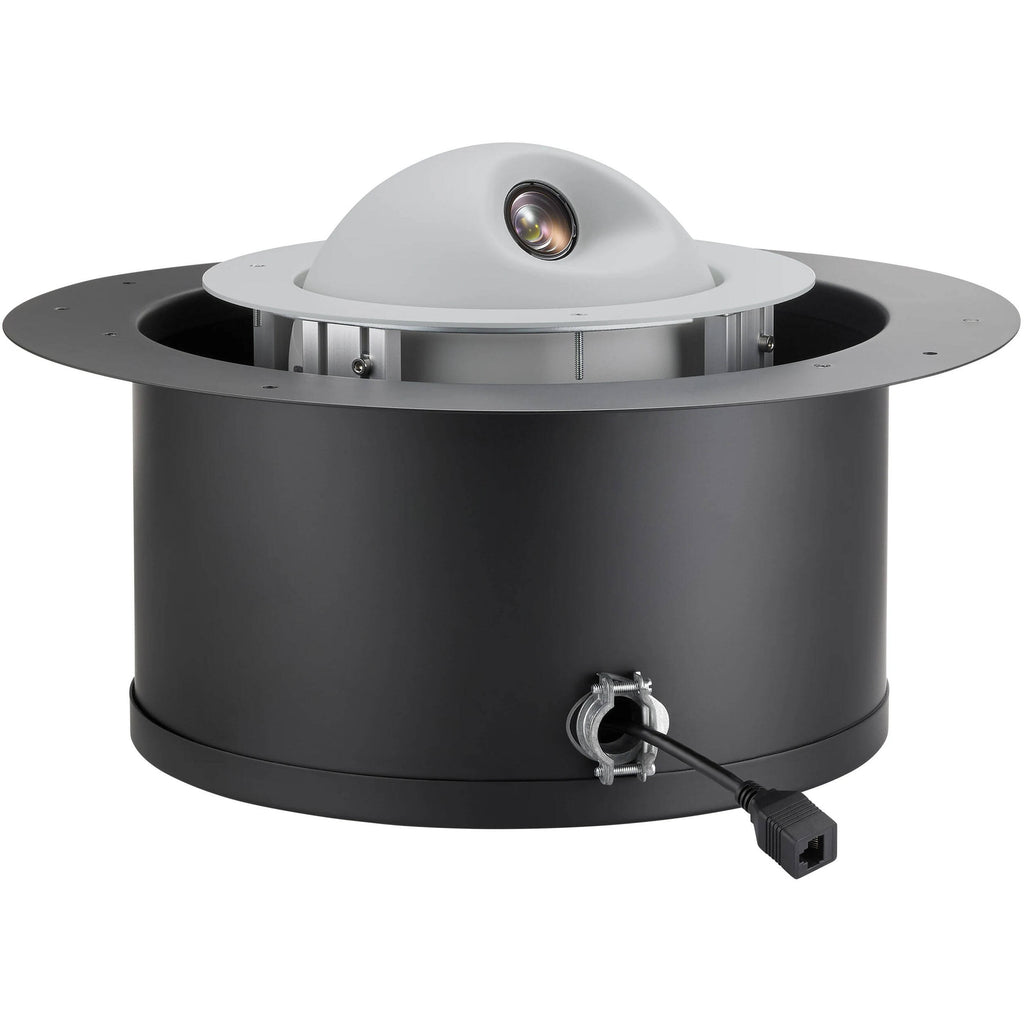

The ceiling-mounted PTZ camera features a recessed design, 30x optical zoom, and a 70.2° wide horizontal field of view. The OneLINK Bridge Express features HDMI, USB 3.0, and IP video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.
Minimalistic design with a "flipping" function and high-definition video performance make the Vaddio RoboFLIP 30 HDBT Camera ideal for capturing events or videoconferencing applications in which knowledge of video status is crucial. This ceiling mount, recessed camera fully rotates into its enclosure when in standby mode, which allows full assurance that video feeds are not active. Industry-leading Tri-Synchronous Motion technology allows the camera to silently rotate for ultra-smooth pan, tilt, and zoom up to 30x.
A single RJ45 port provides PoE++, video control, and network connection to the camera. Control for the camera can be achieved through Telnet, RS-232, or the included IR remote. Users can adjust 16 stored PTZ presets, color, white balance, focus, and access system diagnostic logs, streaming settings, and more through a modern web-based interface.

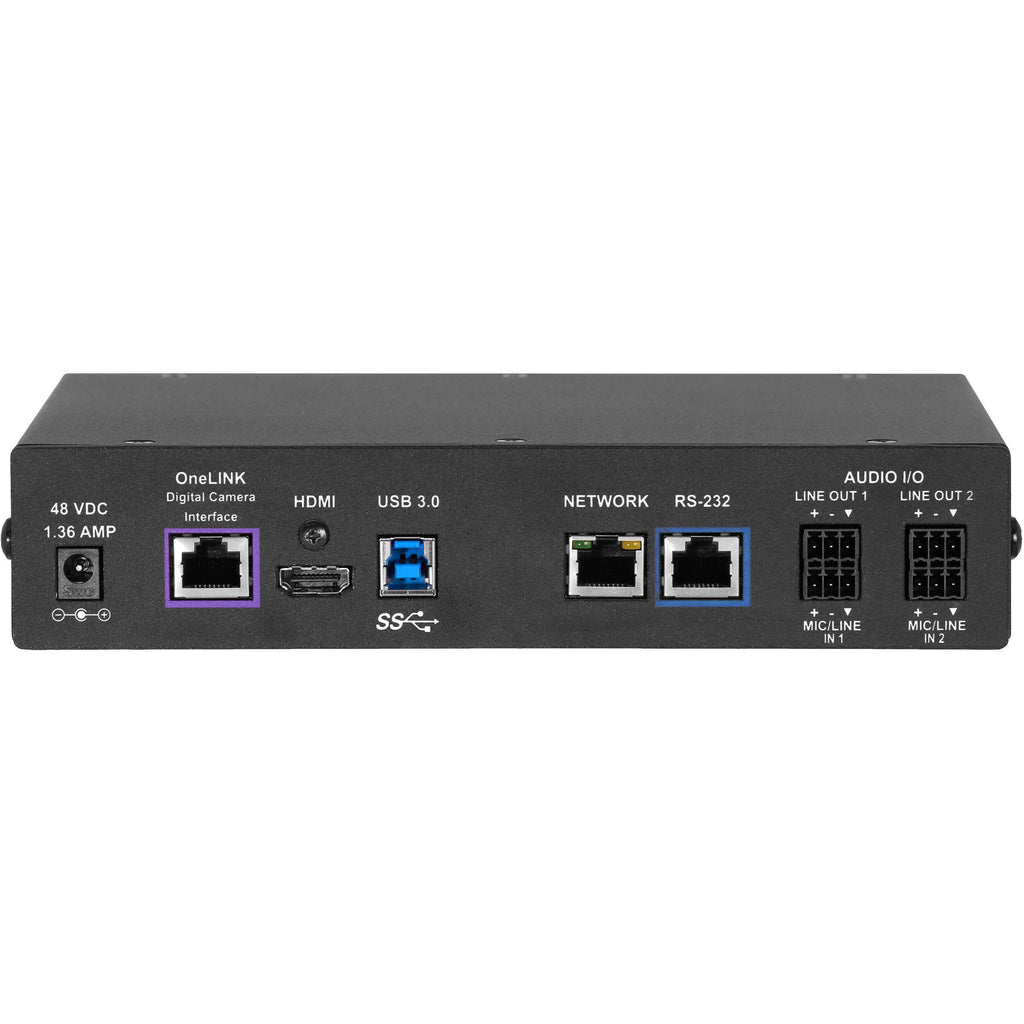

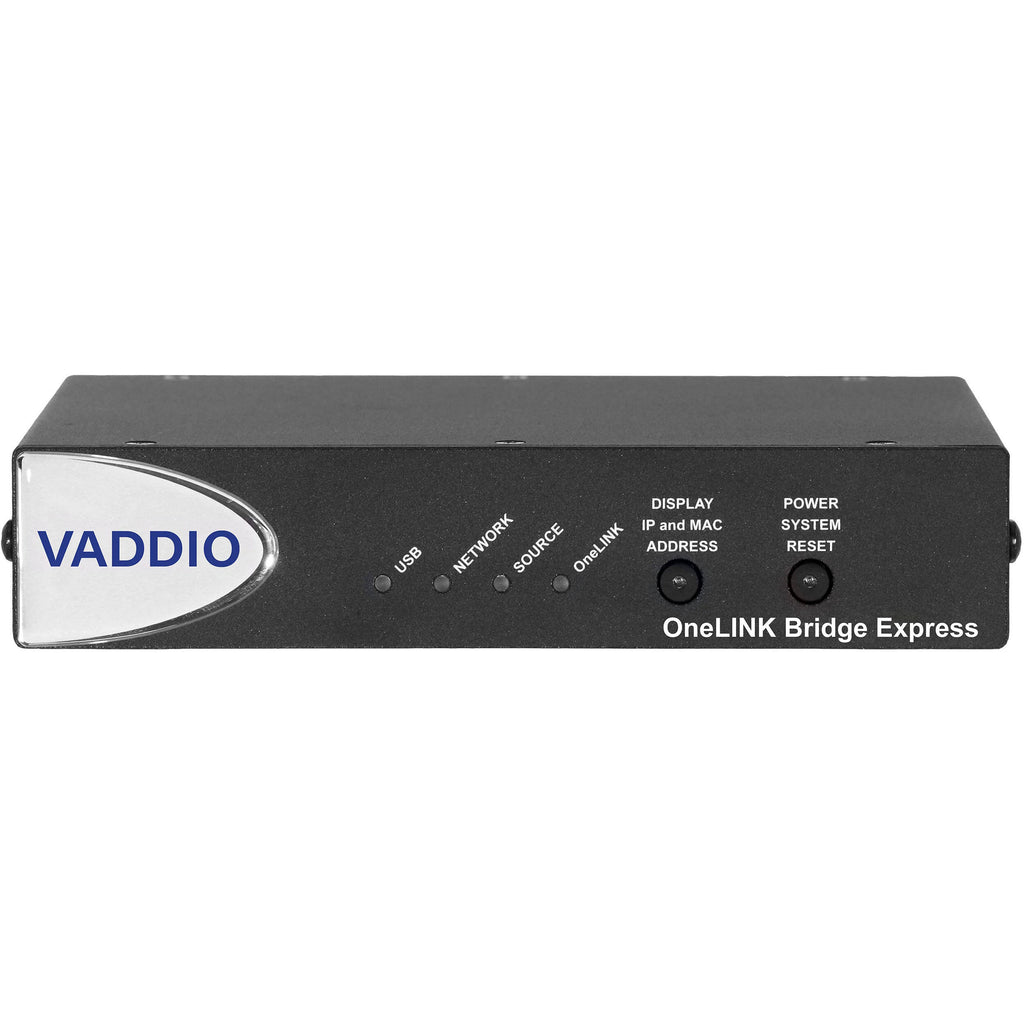

Connect your PTZ camera and analog audio source to a streaming application with the OneLINK Bridge Express from Vaddio. The bridge makes it easy to input PTZ camera video via HDBaseT and output up to 1080p60 video to a USB Type-B port. It can also output video via an HDMI port for monitoring. It also features audio mic/line input and output terminal blocks to input and output balanced analog audio.
The bridge can be used for video conferencing and IP meeting applications in an easy-to-use package. The bridge is powered using its included power adapter and it can input and deliver video over Cat 6 cable over 328' away. It can be controlled via RS-232, telnet, or IP.
In the Box
- Vaddio RoboFLIP 30 HDBT PTZ Ceiling Camera (White)
- White Trim Ring with IR Receiver and Courtesy Light Button
- 3 x Mounting Screw
- Tile Support Brace
- IR Remote
- Vaddio OneLINK Bridge Express
- Power Supply
- 4 x 3-Position 3.5mm Phoenix Plug
- USB 3.0 Type-A to Type-B Cable (6')
- RS-232 Adapter
Vaddio RoboFLIP 30 HDBT PTZ Ceiling Camera (White) Specs
| Sensor Type | 1/2.5"-Type CMOS Sensor |
| Sensor Resolution | Actual: 8.57 Megapixel Effective: 8.51 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Gain | 0 to 33 dB |
| Precise Scan Rate Control | No |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 1.6 Lux |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Focal Length | 4.4 to 88.4mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 30x |
| Field of View | Horizontal: 70.2 to 3.4° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
| External Recording Modes | RJ45 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Broadcast Output | NTSC |
| IP Streaming | H.264, RTMP, RTSP 1920 x 1080 at 59.94p |
| Presets | 16 |
| Move Speed | Pan: 0.4 to 120°/sec Tilt: 0.4 to 120°/sec |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Tally Light | No |
| Supported Control Protocols | IR RS-232 |
| Max Cable Length | 230' / 70.1 m (Cat 5e) 328' / 100 m (Cat 6) |
| Video I/O | 1 x RJ45 (HDBaseT) Output |
| Other I/O | 1 x RJ45 Control Input (Shared with Power Input, Video Output) |
| PoE Support | PoE++ 802.3bt |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Storage Humidity | 20 to 80% (Non-Condensing) |
| Certifications | CE, FCC *as per Manufacturer |
| Dimensions (W x H x D) | 16 x 9.3 x 16" / 40.6 x 23.6 x 40.6 cm |
| Weight | 15 lb / 6.8 kg |
Vaddio OneLINK Bridge Express Specs
| Compatibility | Vaddio PTZ Cameras Cisco PTZ Cameras Panasonic PTZ Cameras Polycom PTZ Cameras Sony PTZ Cameras Vaddio PTZ Cameras |
| USB I/O | 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Female Output |
| Video I/O | 1 x HDMI Output |
| Audio I/O | 2 x Block 3-Pin Line/Mic Input 2 x Block 3-Pin Line/Mic Output |
| Power Source | AC Input |
| DC Input Power | 48 VDC at 1.36 A |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Dimensions | 8.37 x 6.5 x 1.72" / 21.27 x 16.51 x 4.37 cm |
| Weight | 3.3 lb / 1.5 kg |
| Package Weight | 3.375 lb |
| Box Dimensions (LxWxH) | 12.1 x 9.1 x 3.3" |
