Description

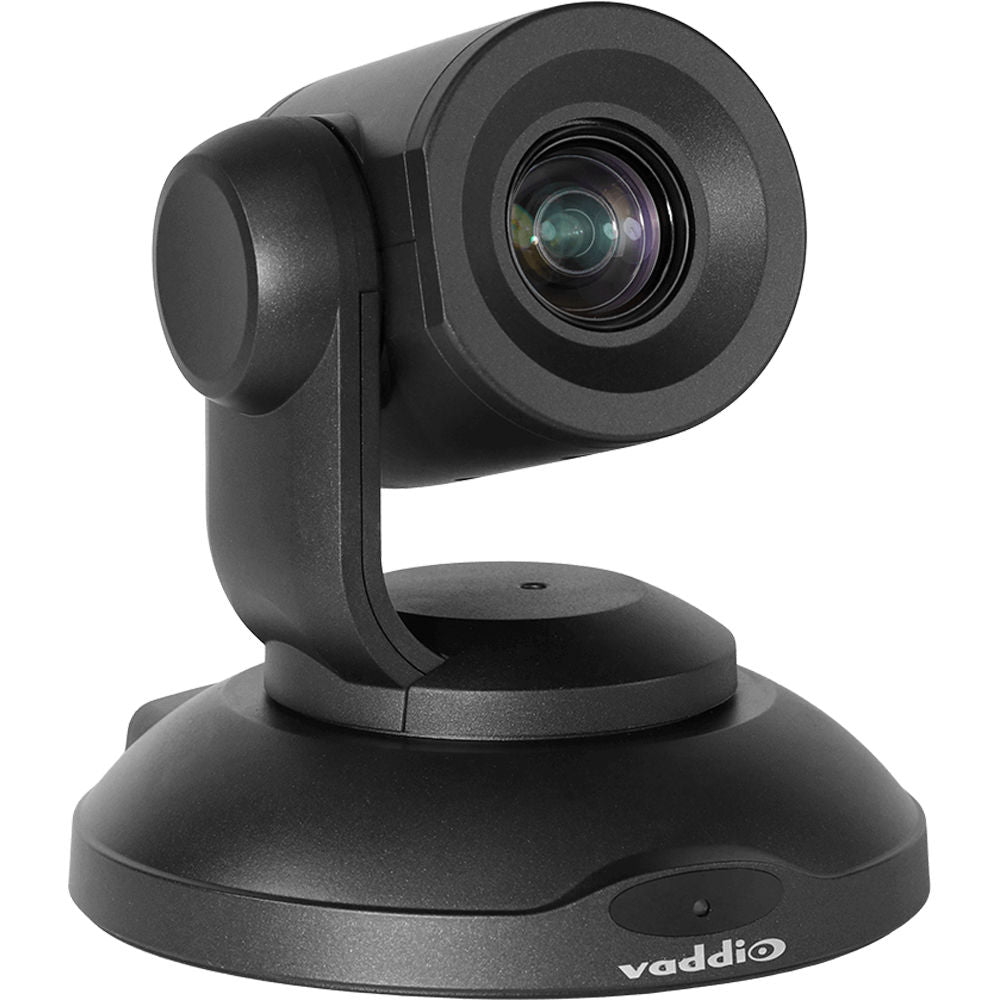

Vaddio PrimeSHOT 20 Overview
Stream live video in large meeting rooms or lecture halls with the black PrimeSHOT 20 HDMI Camera from Vaddio. This camera has 1080p resolution and features flexible output options like HDMI and S-Video. An easy-to-use web-based interface allows for configuration, management, and control from anywhere in the world, over the IP network. Enhanced pan/tilt and 20x optical zoom performance make moving from preset to preset smoother. For more visibility in dim lighting conditions, the camera features low-light performance .
Simultaneous HDMI 1.3, S-Video, and IP streaming outputs
Precise pan and tilt movements at up to 90° per second with smooth, silent, and direct-drive motors
HFOV 55.4° wide and 2.9° tele
Full administrative control via web interface to remotely manage the camera while separately monitoring the stream
Rotary switch to select the video output resolution
Minimum working distance of 19.6" wide and 59" tele
Internal sync system
Wide dynamic range
Back-light compensation
Focusing system
0 - 12 steps iris (close to F1.0)
0 - 10 steps of sharpness
Auto 2D+3D noise reduction
Web interface and Telnet remote management
IR remote with three settings
9600 & 38400 communication baud rate
Emissions of FCC Part 15
ICES-003, Issue 6 (Canada)
EN55032, 2015 (EU)
KN22 2008 (CISPR 22)
ICES-003, Issue 6 (Canada)
EN55032, 2015 (EU)
KN22 2008 (CISPR 22)
Immunity of EN55024, 2010 (EU)
KN24 2008 (CISPR 24)
KN24 2008 (CISPR 24)
IEC 60950: 2013 certified
UPC: 840077501068
In the Box
- Vaddio PrimeSHOT 20 HDMI Camera (Black)
- Thin Black Profile Wall Mount with Mounting Hardware
- IR Remote Commander
- 12V Power Supply with AC Cord Set
- Limited 2-Year Warranty
Vaddio PrimeSHOT 20 Specs
Image Sensor
| Image Sensor | 1-Chip 1/3" CMOS Sensor |
| Sensor Resolution | 1920 x 1080 |
| Effective Sensor Resolution | 2.12 MP |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
Camera
| Max Digital Zoom | 20x |
| Flip / Mirror Support | Image Flip |
Lens
| Optical Zoom Ratio | 20x |
| Focal Length | 4.7 to 94mm |
| Field of View | Horizontal: 55° |
| Maximum Aperture | f/1.6 to 3.5 |
| Minimum Focus Distance | Wide: 19.7" / 50.0 cm Telephoto: 59.1" / 1.5 m |
| Image Stabilization | Optical |
| Focus Control | Autofocus Manual Focus |
Video Output
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | RJ45: 1920 x 1080p at 25, 30 fps 1280 x 720p at 25, 30, 60 fps 704 x 480 at 25, 30, 60 fps 852 x 480p at 25, 30, 60 fps 640 x 480p at 25, 30, 60 fps 480 x 360 at 25, 30, 60 fps 352 x 240 at 25, 30, 60 fps HDMI: 1920 x 1080p at 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps |
| IP Streaming | H.264 and RTSP: 1080p, 720p, 480p |
Recording
| Recording Modes | Not Specified by Manufacturer |
Control
| Presets | 16 |
| Movement Range | Pan: 320° (-160 to 160°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP IR RS-232 VISCA |
Interfaces
| Video Output Connectors | 1 x HDMI Type A (HDMI 1.3) 1 x 4-Pin DIN (S-Video) 1 x RJ45 |
| Other I/O | 1 x RJ45 (RS-232) |
Power
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 3 A) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
General
| Dimensions | 7.25 x 7.1 x 6.5" / 18.41 x 18.03 x 16.51 cm |
| Weight | 3.4 lb / 1.54 kg |
Packaging Info
| Package Weight | 8.975 lb |
| Box Dimensions (LxWxH) | 13.7 x 12.1 x 11.7" |
