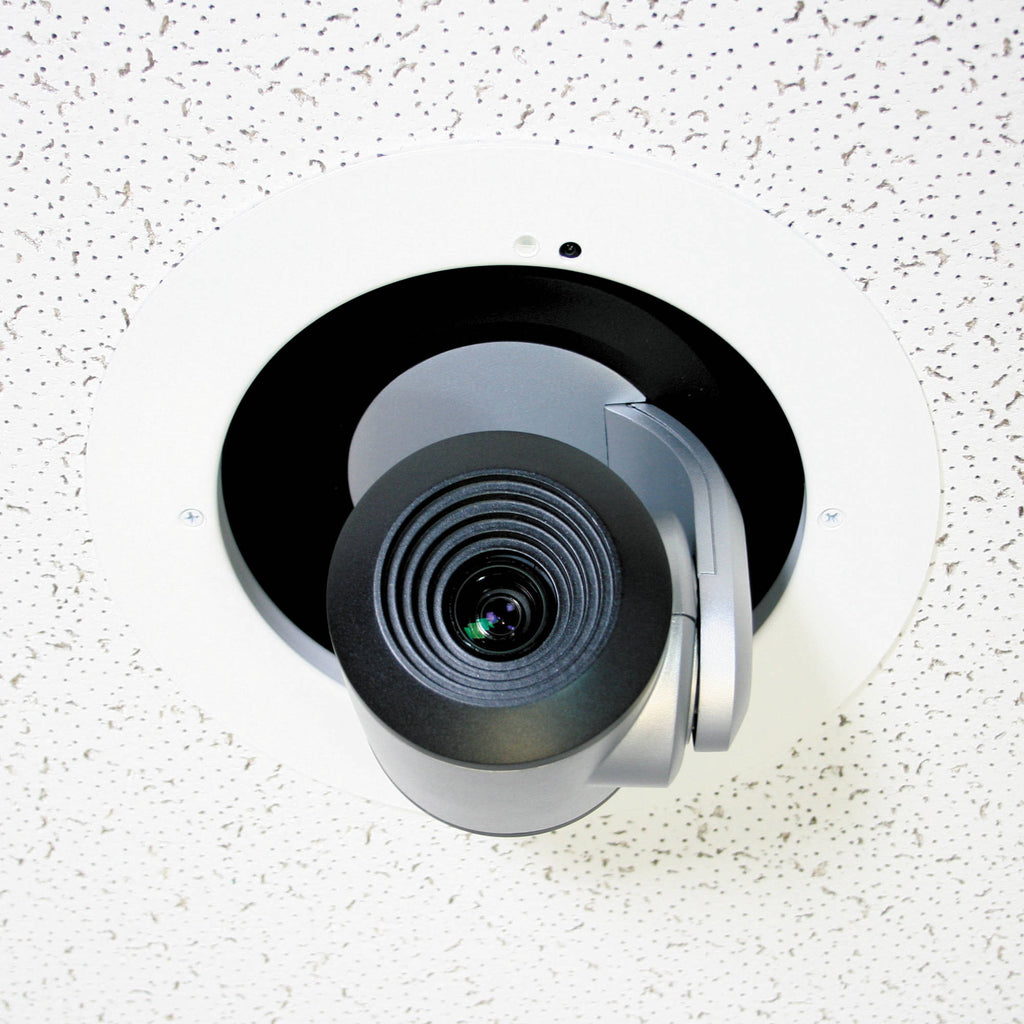

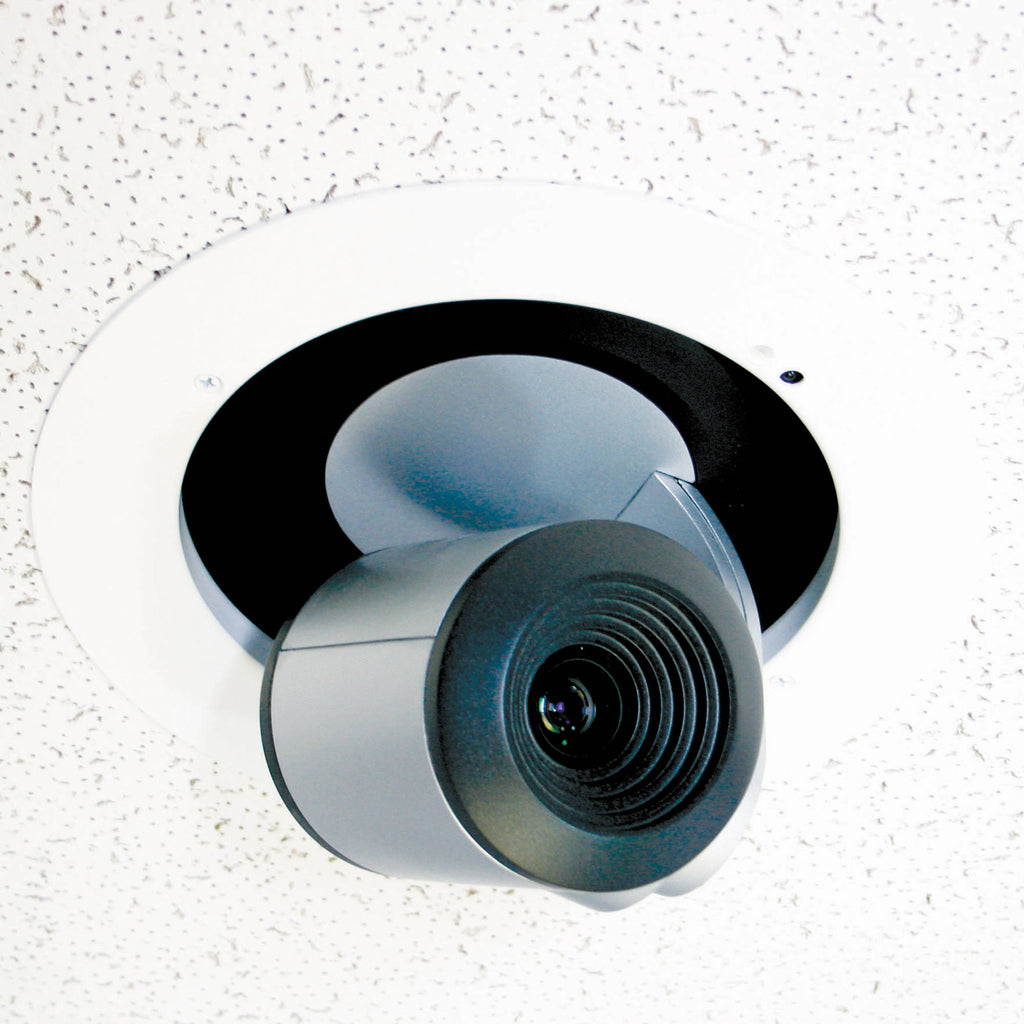

Metal Back Box and White Metal Trim RingActive IR Circuit in Trim RingTile Support Brace Included Vaddio's In-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras is a partially recessed inverted enclosure. Specifically designed for Vaddio's line of RoboSHOT PTZ camera, the enclosure includes a one-piece tile support brace with six hangar points, and a decorative white collar that incorporates an active IR receiver that allows you to use an optional Vaddio IR commander to control a Vaddio RoboSHOT camera (camera not included.)
The metal enclosure box installs within the ceiling, and features and active IR emitter board and power circuit board. Metal enclosure box features a Romex connector that secures your Cat5e cable and prevents it from moving against the enclosure. You can replace the Romex connector with optional conduit connectors, when use of optional conduit is preferred to exposed Cat5e cable. UPC: 840077501037
| Ceiling Panel Size | 2 x 2' or 2 x 4' / 61 x 61 cm or 61 x 122 cm |
| Package Weight | 11.05 lb |
| Box Dimensions (LxWxH) | 23.9 x 15.5 x 12.2" |
In the Box
- Vaddio In-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras
- 2.22" Tall Sealed Metal Back Box with Internal IR emitter and Power Circuit Board
- Back Box Lid with Collar Ring
- White Trim Ruing with IR Receiver Attached
- 18" IR Receiver Cable with Connectors
- 24" Cat-5e Patch Cable
- 2 x White 6-32 x .5 Flat Head Screws for Trim Ring
- 2 x 1/4"-20 x .625 Screws
- 4 x 6-32 x .25" Black Flat Head Screws
- One-Piece Tile Support Brace with 6 x Hangar Points
- 3/4" Clamp Down Conduit Connector (Romex Type)
- 1" Platform Spacer Block for HD-20, HD-22, HD-30 and HD-USB Camera
- 2 x 1/4" -20 x 1.125" Screws for Use with HD-20 Camera Spacer Block
- Limited 2-Year Warranty
