Description

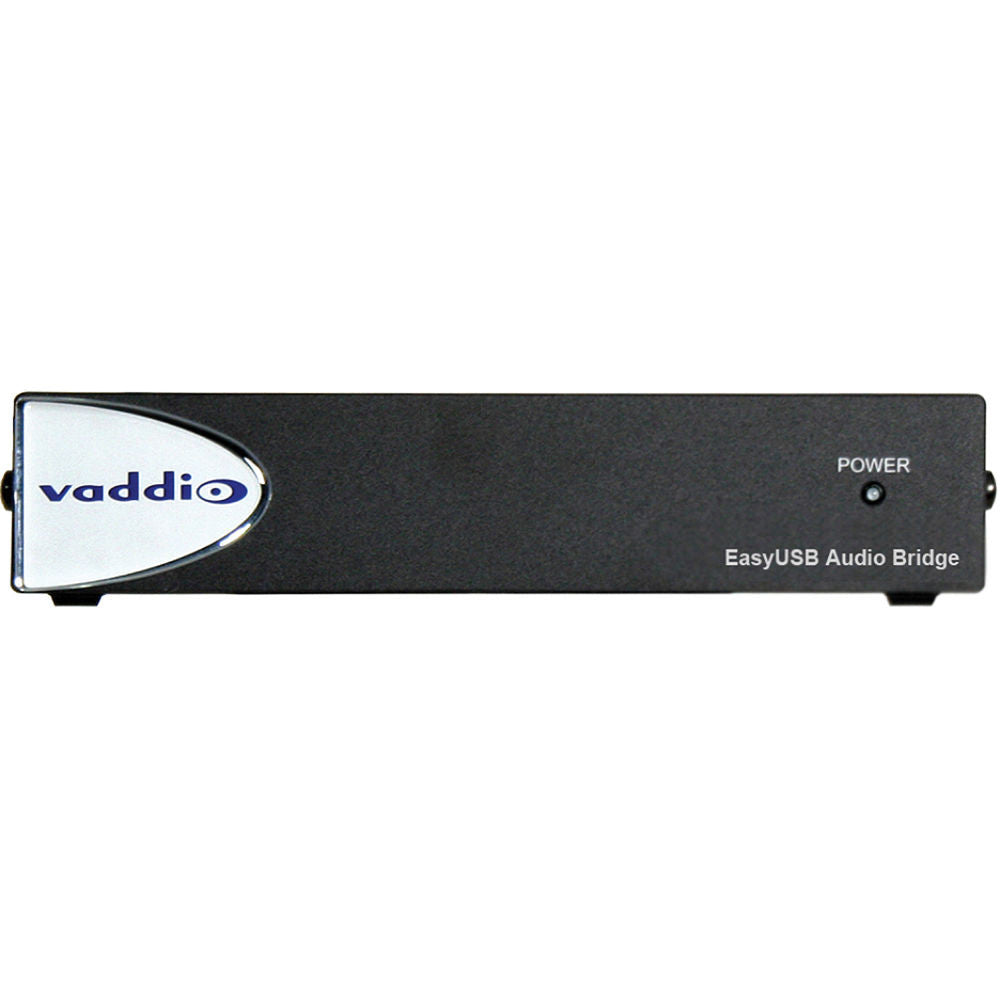

The EasyUSB AudioBRIDGE Analog Audio to USB Converter from Vaddio is a professional analog audio to digital audio USB 2.0 converter. The unit features a balanced and or an unbalanced audio source equipment input and output. The analog audio input is converted into a digital USB format making it compatible with common video conferencing software. The AudioBRIDGE is compatible with pro audio conferencing DSP mixers with echo cancellation as well as audio equipment without internal echo cancellation. The converter USB 2.0 port uses universal audio class (UAC) drivers and connects to any PC with UC client software. An 8-position DIP switch provides configuration settings of the unit.
The AudioBRIDGE includes independent USB and analog gain stages. The gain structures can be configured between the pro audio equipment without being impacted by PC volume controls. Additionally, the AudioBRIDGE includes an RS-232 serial control port for use with AMX/Crestron control systems.
- Balanced and Unbalanced line input and output
- Compatible with standard online video conferencing software
- 18 VDC, 1.0 Amp Switching Power Supple with AC clips
- 6' (1.83m) USB Type-A to Type-B Cable (Black)
- Control Adapter (DE-9-F to RJ-45-F)
- 4 x Rubber Feet
- Limited 2-Year Warranty
| Audio Bandwidth | 20 Hz - 20 kHz |
| Dynamic Range | > 90 dB |
| THD + N | < 0.2% |
| Audio Input | Balanced: Impedance; 10 K?, Nominal Level; +4 dBu Unbalanced: Impedance; 10 K?, Nominal Level; -10 dBV |
| Audio Output | Balanced: Impedance; 50 ?, Nominal Level; +4 dBu Unbalanced: Impedance; 10 K?, Nominal Level; -10 dBV |
| CE Compliance | FCC 47 CFR Part 15, Subpart B/Oct. 2009 Class A ICES-003, Issue 4: 2004 Class A EN-55011:2007 + A2: 2007 Class A EN 55022:2006 + A1: 2007 Class A CISPR 22:1997 Class A IEC 60950-1:2005 (Second Edition); Am 1:2009 Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety EMC Directive 2004/108/EC Class A |
| Compatibility | Software Client: Cisco Jabber(4.4), Web Ex(WBS 28.7), Skype(6.0), Adobe Connect (9.0.1), Microsoft Lync (4.0.7), Gotomeeting/Citrix(5.4), Vidyo Desktop(2.2.1), Polycom M100(1.0.4), Lifesize ClearSea(8.2.0), Google Plus, Panopto(4.2.5602), Quick Time Media Player(2.0.4), VLC Media Player(10.2), Real Player Unified Communications Client: IOCOM, Radvison Scopia, Apple FaceTime, Blackboard, Tegrity, Echo 360, USTREAM, Livestream, PresenterPro, Microsoft Expressions Encoder 3, VCON, AVAYA ONE |
| General | |
|---|---|

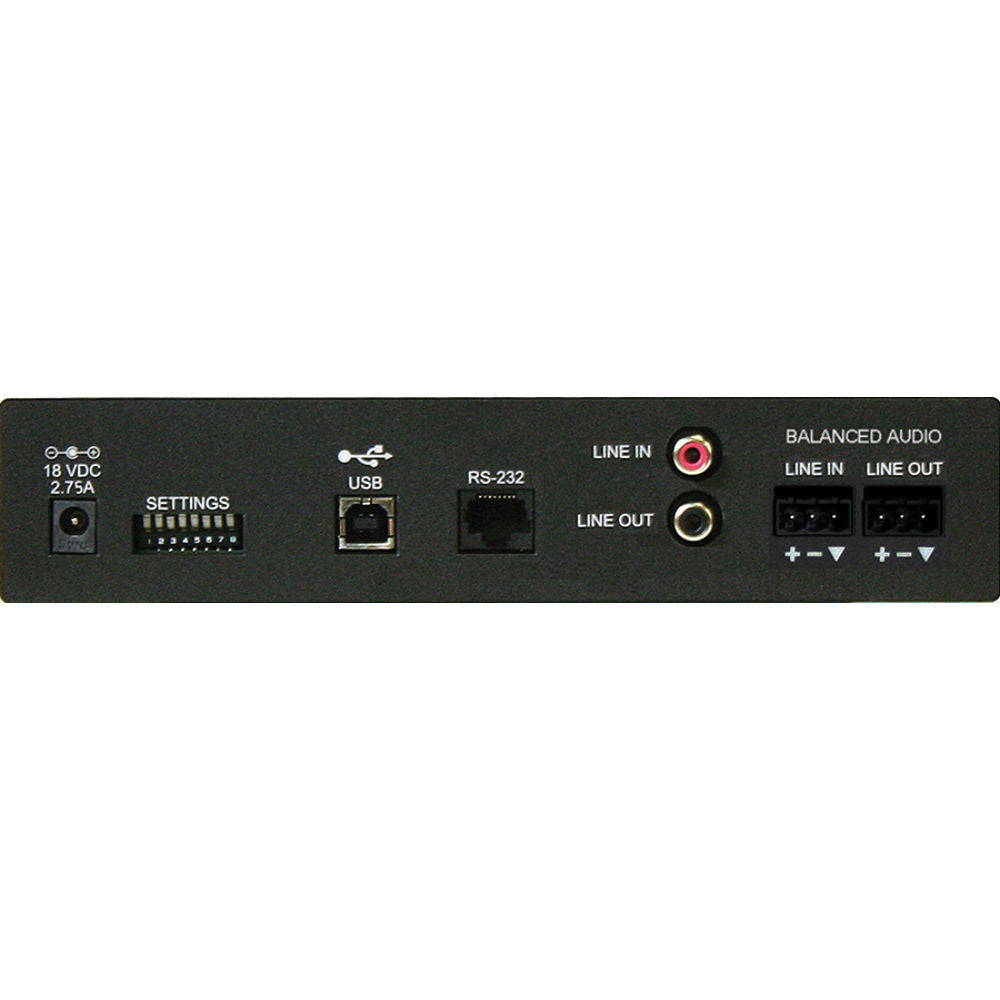

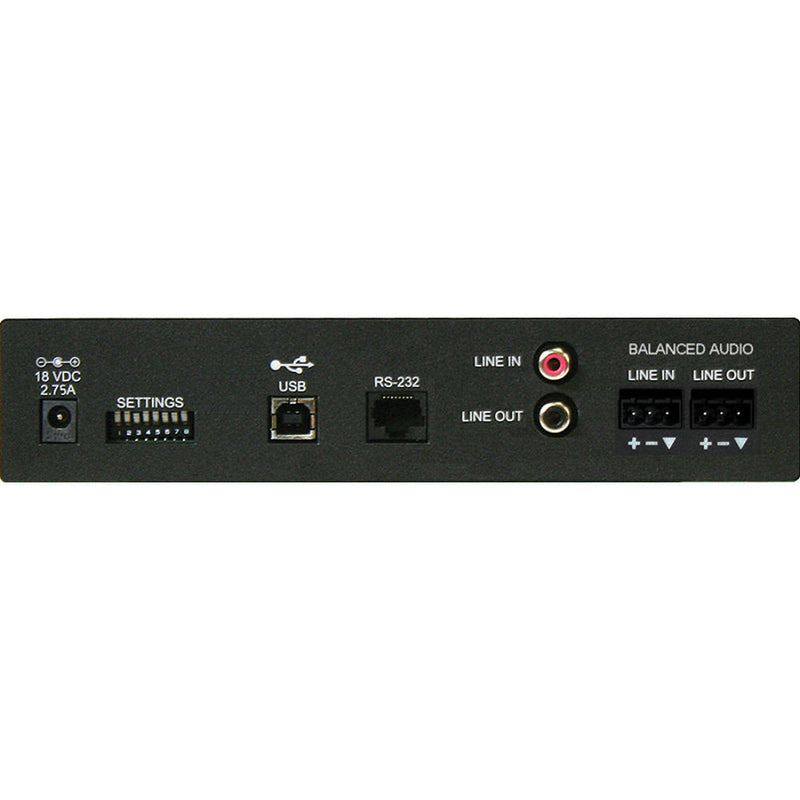

| Connectors | 1 x USB type B 1 x RJ-45, RS-232 serial port 38.4K baud 1 x RCA female, unbalanced audio input 1 x RCA female, unbalanced audio output 1 x 3-pin Euro terminal block, balanced audio input 1 x 3-pin Euro terminal block, balanced audio output 1 x DC barrel, 18 VDC, power input |
| Indicators | 1 x LED, power |
| Controls | 1 x 8-postition DIP switch, audio settings |
| Audio Interface | Type: USB 2.0 compliant PC Audio Controls: Mute & Volume PC HID Controls: On/Off Hook (application dependent) |
| Power Supply | 18 VDC, 1.0 A |
| Power Consumption | < 18 W |
| Operating Temperature Range | 32 to 104�F (0 to 40�C) |
| Humidity (Relative) | 20% to 80% |
| Dimensions (H x W x D) | 1.7 x 8.4 x 6.0" (4.4 x 21.3 x 15.2 cm) |
| Weight | 1.40 lb (0.64 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.7 lb |
| Box Dimensions (LxWxH) | 16.1 x 9.5 x 3.4" |
