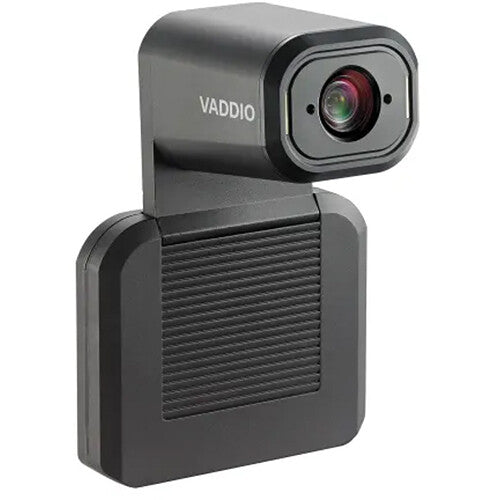

Vaddio EasyIP 30 Overview
Add a remotely controllable high-definition ePTZ camera to your IP network at your education, remote meeting room, lecture hall, or house of worship location with this black EasyIP 30 ePTZ Camera from Vaddio. The EasyIP 30 installs onto your existing network and it streams up to 1080p60 high-definition video over aLAN to a network switch, video switch, recorder, and/or display.
The camera features IP control over the RJ45 LAN port using a web configuration interface, and it is also powered via PoE+ over the same RJ45 interface. Up to 16 presets can be assigned and managed via the included IR remote controller. Other features include a 20x optical zoom with a total of 30x zoom using digital IntelliZoom image processing.
A wall mount with mounting hardware is included with the camera, and the camera supports image flip so it can be installed right-side up or upside down.
Note:
This camera requires a supported PoE+ network to operate.
An 8.51 MP, high-definition 1/2.5" Type Exmor R CMOS sensor delivers 1080p30 video
20x optical zoom extends to 30x zoom with digital IntelliZoom image technology
70.2 to 3.1° field of view
One EasyIP RJ45 Ethernet video output
Powered via PoE+ on a supported network
Plug and play with other Vaddio EasyIP collaboration endpoints
Advanced Intelligent Framing algorithms keep your participants in view
In the Box
- Vaddio EasyIP 30 ePTZ Camera (Black)
- IR Remote
- Wall Mount
- Mounting Hardware
- Cable Cover
- Cat 5e Cable (3.3')
Vaddio EasyIP 30 Specs
Sensor
| Resolution and Frame Rate |
1080p at up to 30 fps |
| Number of Lenses |
1 |
| Sensor Type |
1/2.5"-Type CMOS Sensor |
| Sensor Resolution |
8.51 MP |
| Field of View |
70.2°
3.1° |
| Zoom |
20x (Optical)
30x (Digital) |
General
| Additional I/O |
1 x RJ45 10/100 Mbps Ethernet Output |
| Focus Type |
Auto |
| Bluetooth |
None |
| Power Source |
Bus Powered |
| Low-Light Correction |
No |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
Physical
| Privacy Shutter |
No |
| Security |
None |
| Built-In Light |
No |
| Dimensions (W x H x D) |
8.3 x 6.0 x 4.5" / 21.2 x 15.2 x 11.4 cm |
| Weight |
68.1 oz / 1930 g |
Packaging Info
| Package Weight |
6.16 lb |
| Box Dimensions (LxWxH) |
13.8 x 11.7 x 7.7" |
