Vaddio ConferenceSHOT Overview
1st ConferenceSHOT ePTZ Video Ad
2nd ConferenceSHOT ePTZ Video Ad
3rd ConferenceSHOT ePTZ Video Ad
4th ConferenceSHOT ePTZ Video Ad

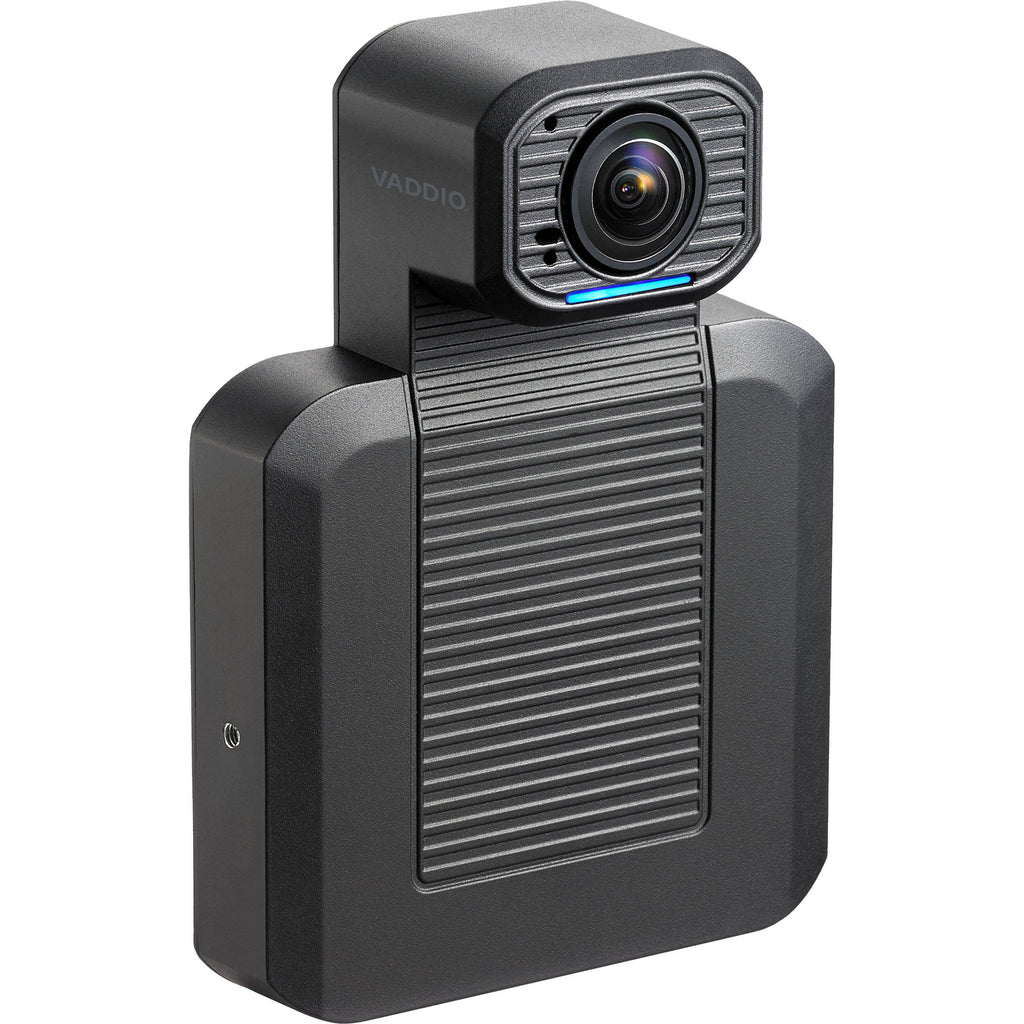

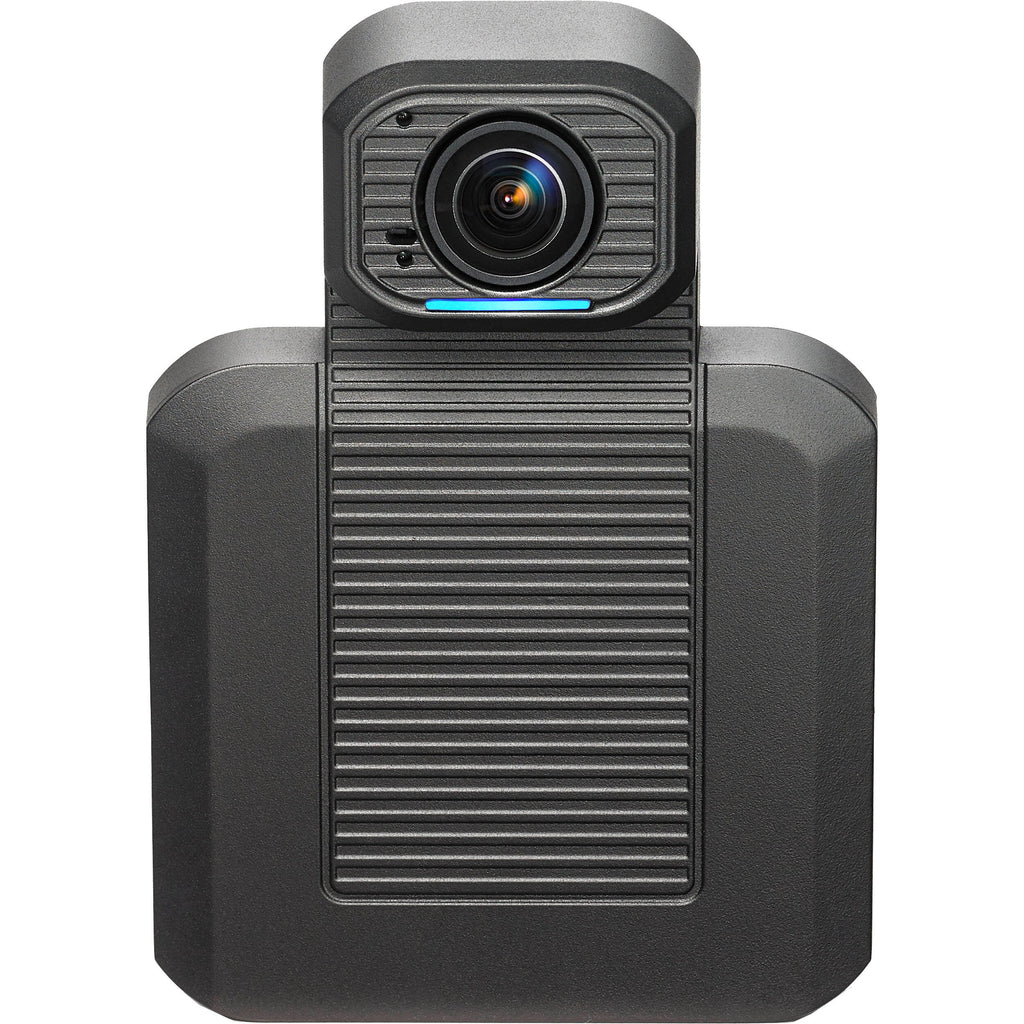

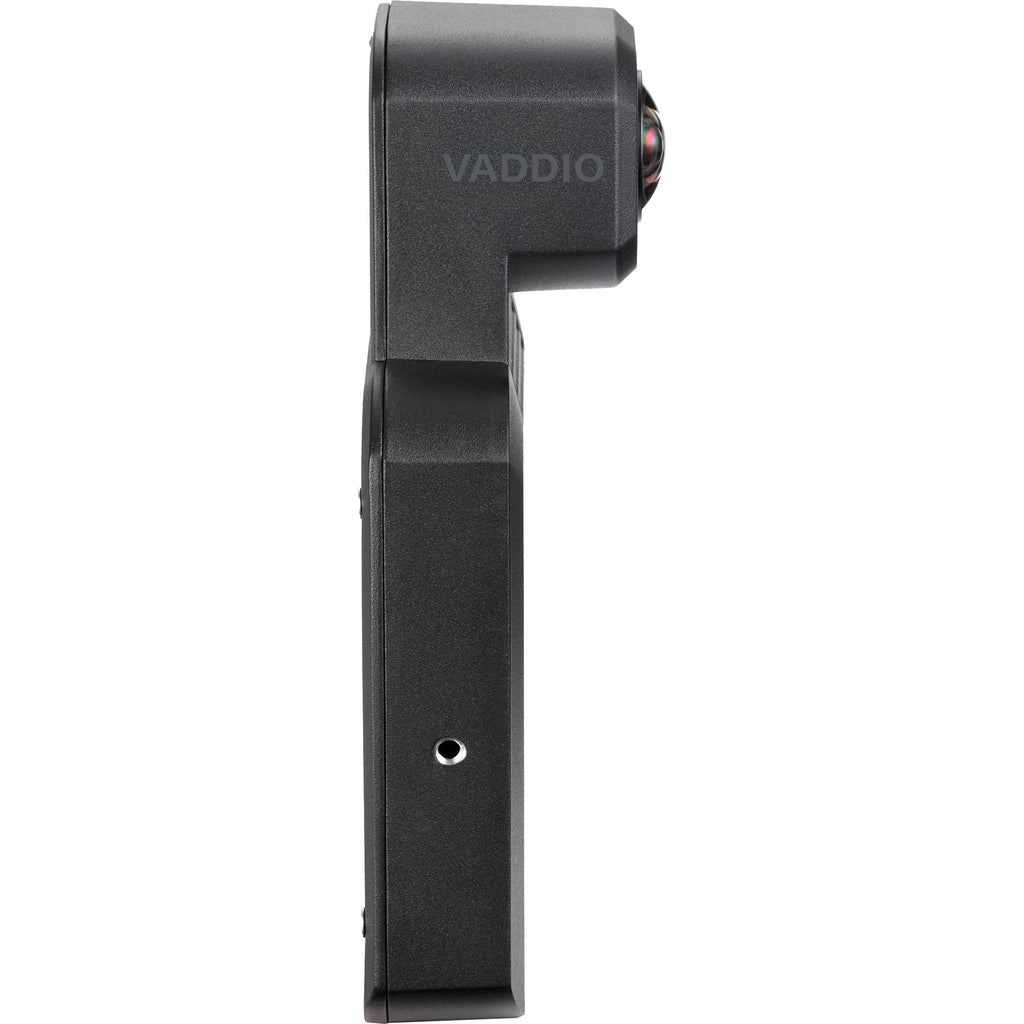

Add a remotely controllable high-definition ePTZ camera to your IP network at your small meeting room or classroom location with this ConferenceSHOT ePTZ Camera from Vaddio. The ConferenceSHOT ePTZ Camera installs onto your existing network and outputs up to 1080p30 high-definition video via IP RTSP/RTMP streaming. The camera can also connect to your computer and be used as a web camera using its USB 3.0 Type-C output, and it also features an HDMI output to a display.
Its wide 25.8 to 129° field of view using its 5x digital zoom allows you to capture your entire meeting room as well as zoom in for more detail. The balanced audio input and output ports allows you to embed audio into your feed, and also output to speakers. The camera features IP control over the RJ45 LAN port using a web configuration interface, and it's also powered via the same port using the included PoE injector. Up to 16 presets can be assigned and managed via the included IR remote controller, and it can also be controlled via telnet commands. A wall mount with mounting hardware is included with the camera.
Note:
This camera requires a supported PoE+ network to operate.
Intelligent Framing algorithms keep your participants in view
5x zoom with a 129° horizontal field of view

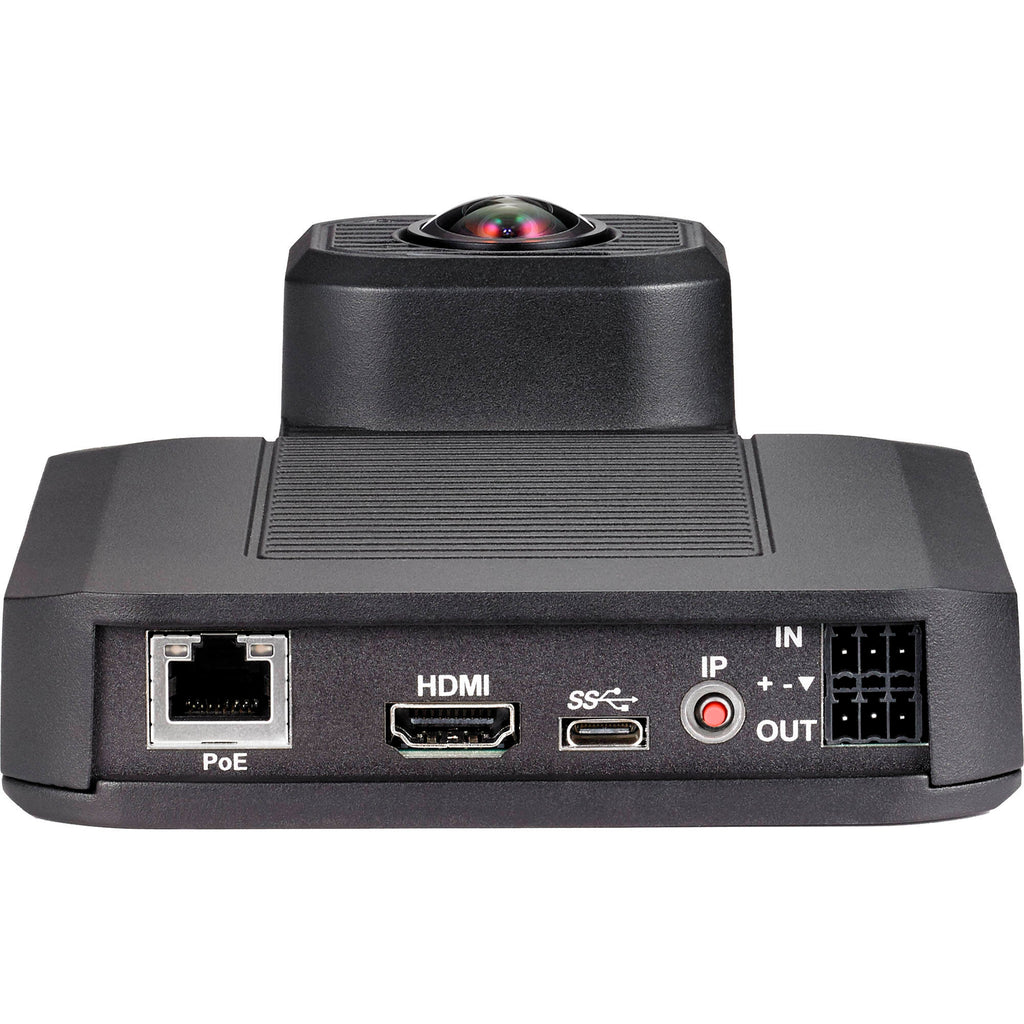

Simultaneous USB 3.0 Type-C, HDMI, and H.264 IP streaming (RTSP or RTMP) output
Integrated omnidirectional microphone with built-in Acoustic Echo Cancellation (AEC)
Balanced audio line in and out
Integration-ready Telnet control
Power via PoE using the included PoE injector
Auto-Framing Sensitivity Settings
Conservative Conference is designed for low-motion environments, where little tracking action is needed. This mode is perfect for locations with glass walls or near busy walkways with visual background noise.
Responsive Conference is the perfect option when you have teams that utilize the whole room - like collaborating on whiteboards or brainstorming at flipcharts and want their remote colleagues to stay right with the action. This mode quickly adjusts the image to include people entering and exiting the meeting space.
Default Conference is the sweet spot where most teams are happy with the system performance.
In the Box
- Vaddio ConferenceSHOT ePTZ Camera
- PoE Power Injector
- Cable Cover
- IR Remote

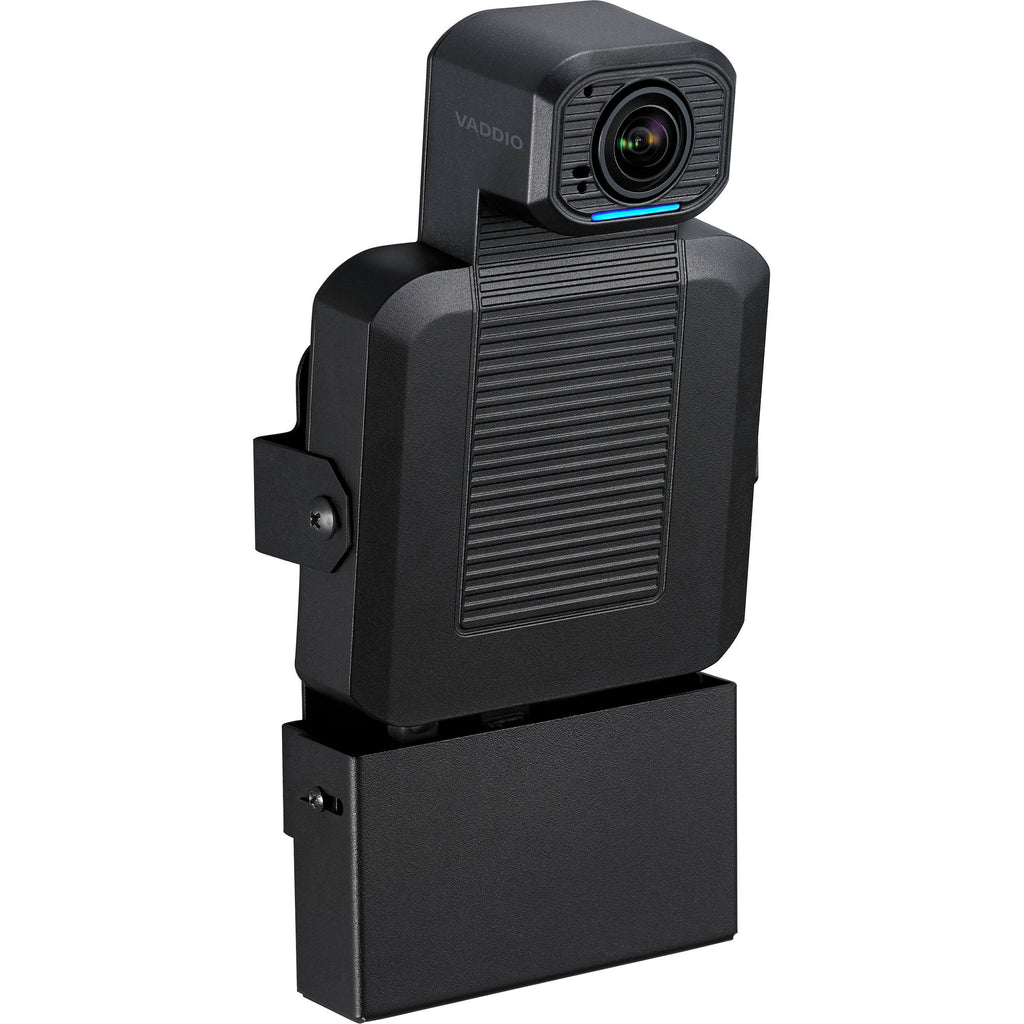

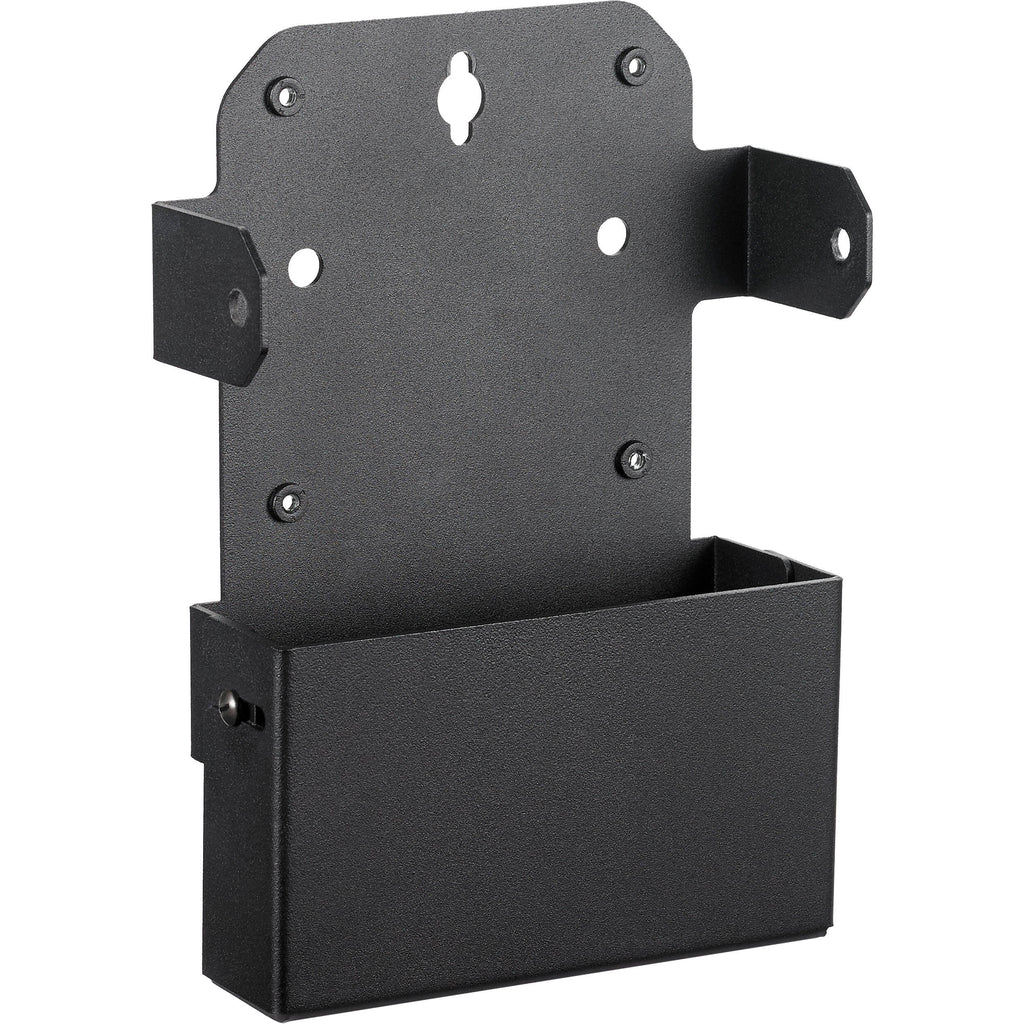

- Wall Mount
- Wall Mount Hardware
- USB 3.0 Type-C to Type-A Cable (6')
- Cat 5e Cable (3.3')
- Limited 3-Year Warranty
Vaddio ConferenceSHOT Specs
Sensor
| Resolution and Frame Rate |
1080p at up to 30 fps |
| Number of Lenses |
1 |
| Sensor Type |
1/1.8"-Type CMOS Sensor |
| Sensor Resolution |
8 MP |
| Field of View |
129° |
| Zoom |
5x (Digital) |
General
| System Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 |
| Additional I/O |
1 x RJ45 10/100 Mbps Ethernet Output
1 x HDMI Output |
| Focus Type |
Auto |
| Bluetooth |
None |
| Power Source |
Bus Powered |
| Low-Light Correction |
No |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
Physical
| Privacy Shutter |
No |
| Security |
None |
| Attachment Method |
Wall Mount |
| Built-In Light |
No |
| Dimensions (W x H x D) |
6.9 x 4.7 x 2.2" / 17.5 x 11.9 x 5.5 cm |
| Weight |
31.0 oz / 880 g |
Packaging Info
| Package Weight |
5.92 lb |
| Box Dimensions (LxWxH) |
15.1 x 11.4 x 7.7" |
