Description
Vaddio 999-8240-000 Overview

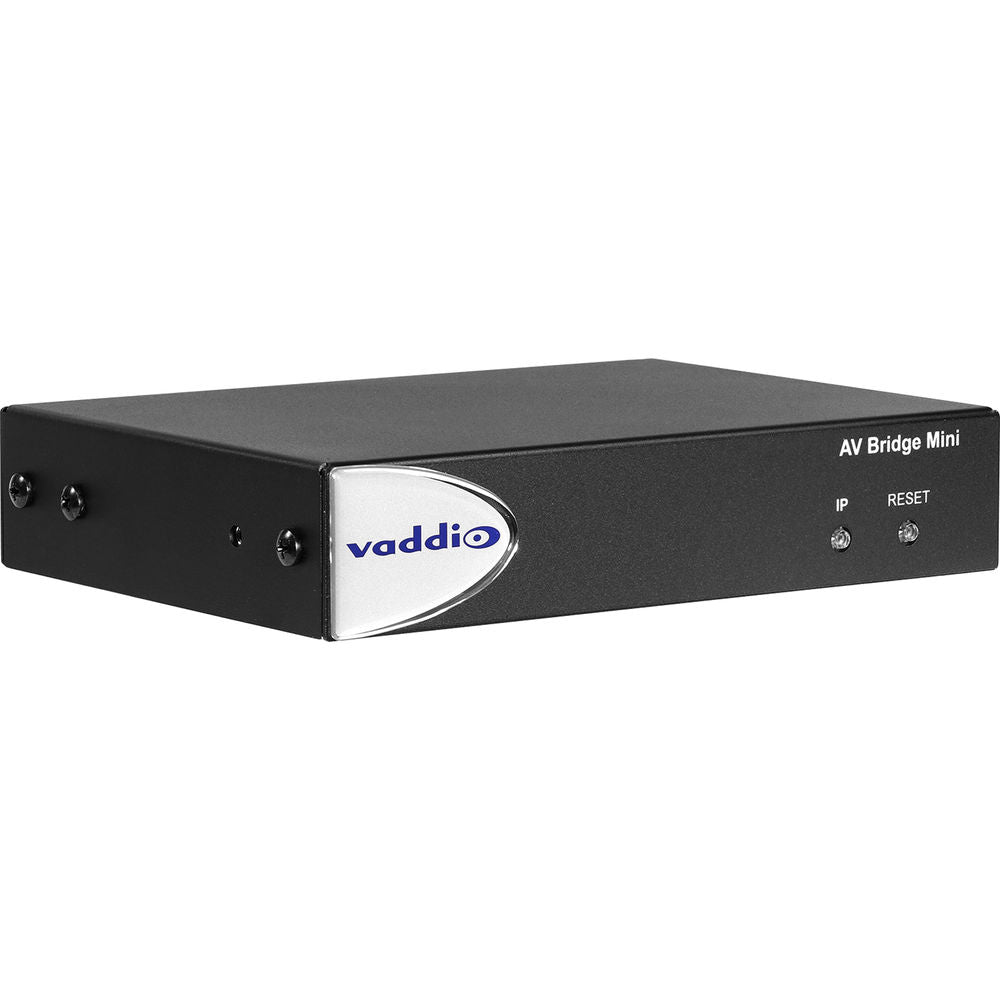

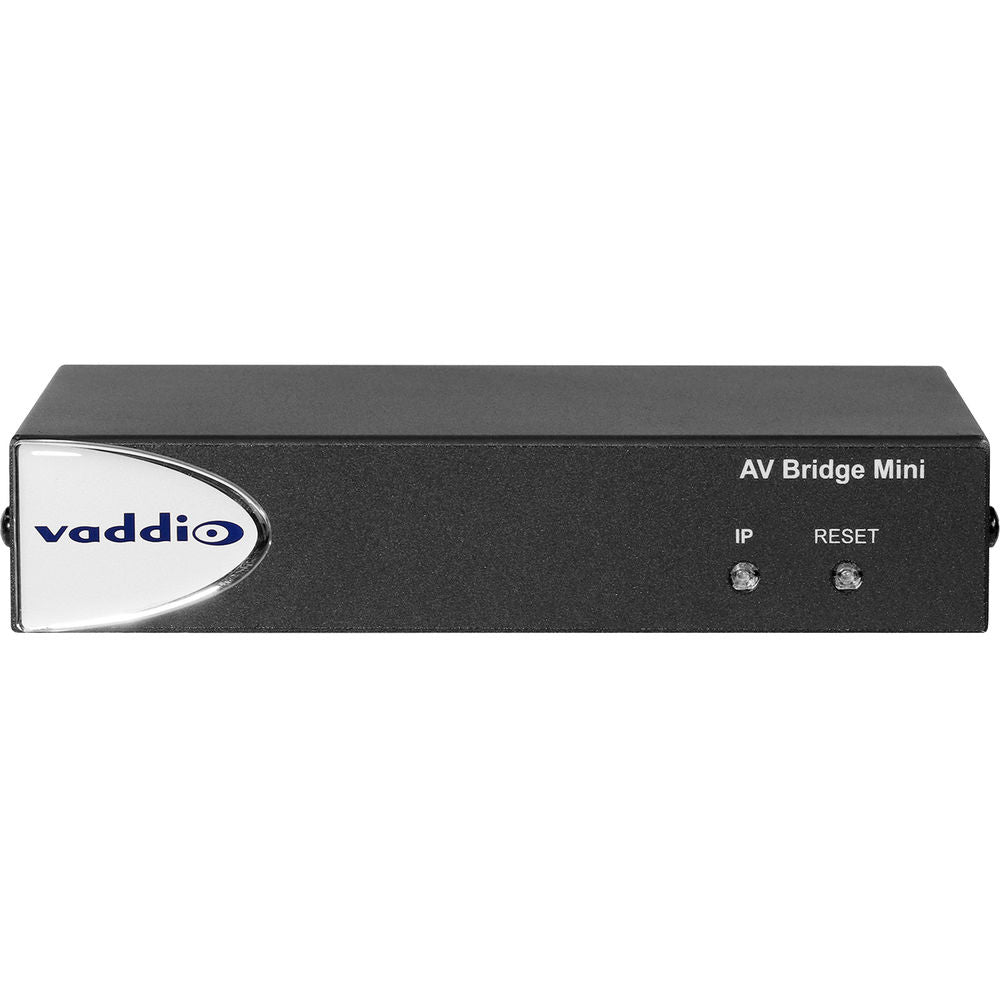

Encode, capture, and stream AV content at lectures and conference rooms with the AV Bridge Mini HD Audio/Video Encoder from Vaddio. With this AV encoder, you can bridge any high-definition HDMI and audio source into soft conferencing applications such as Skype for Business, Zoom, and WebEx through the standard USB 3.0 interface. With flexible RTMP capabilities, you can create production-quality live streams on platforms like YouTube Live, UStream, LiveStream and Panopto.

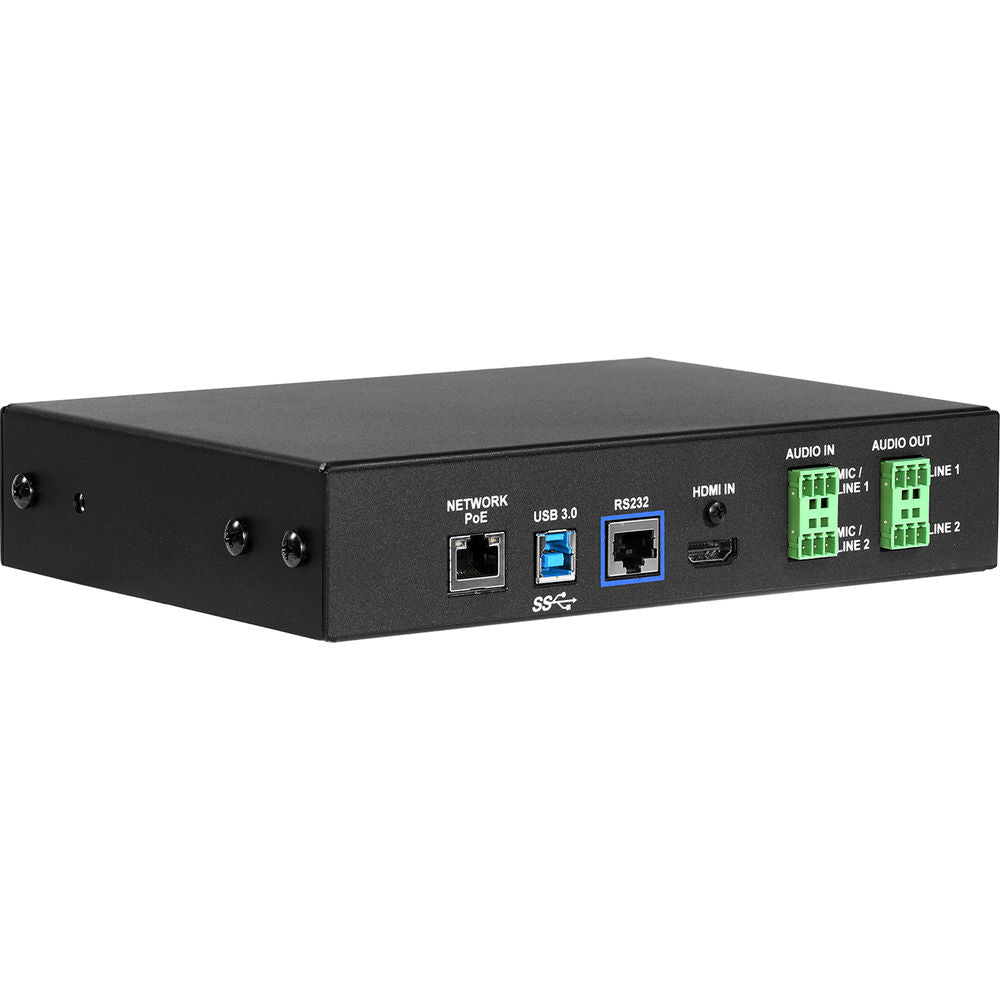

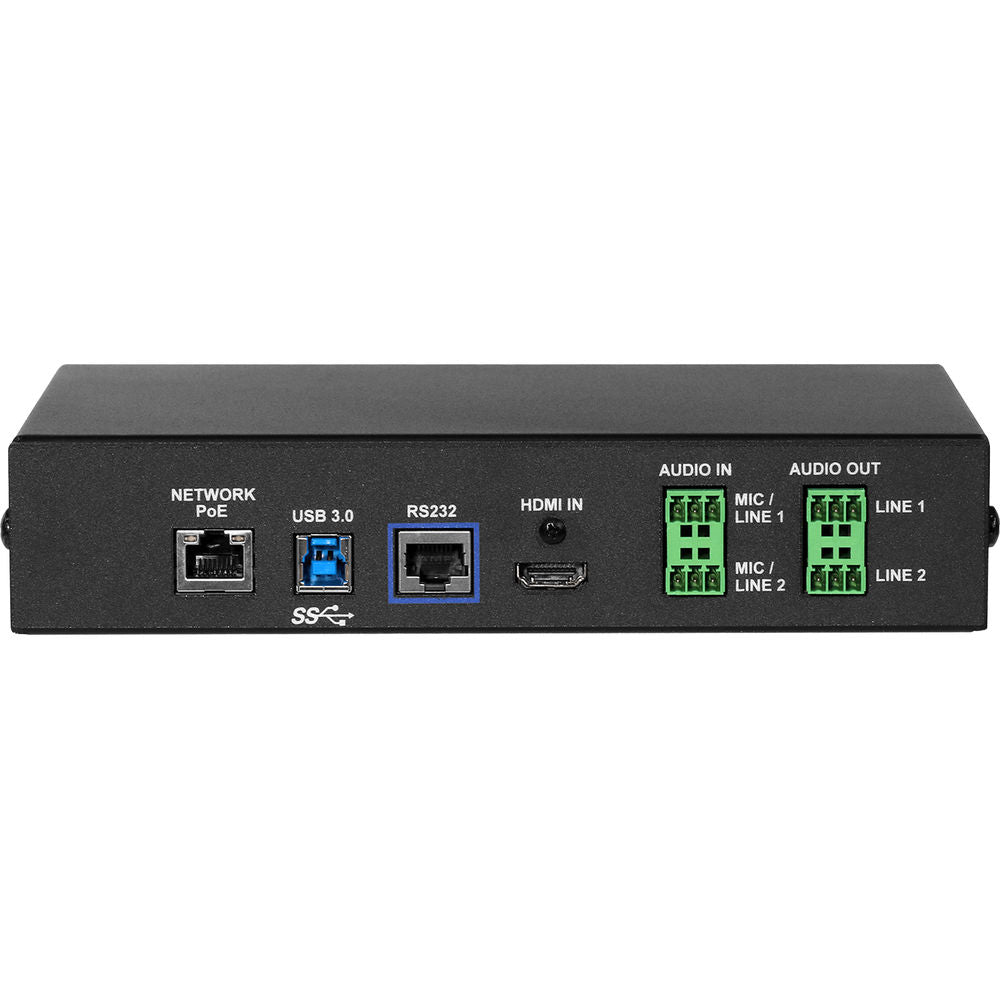

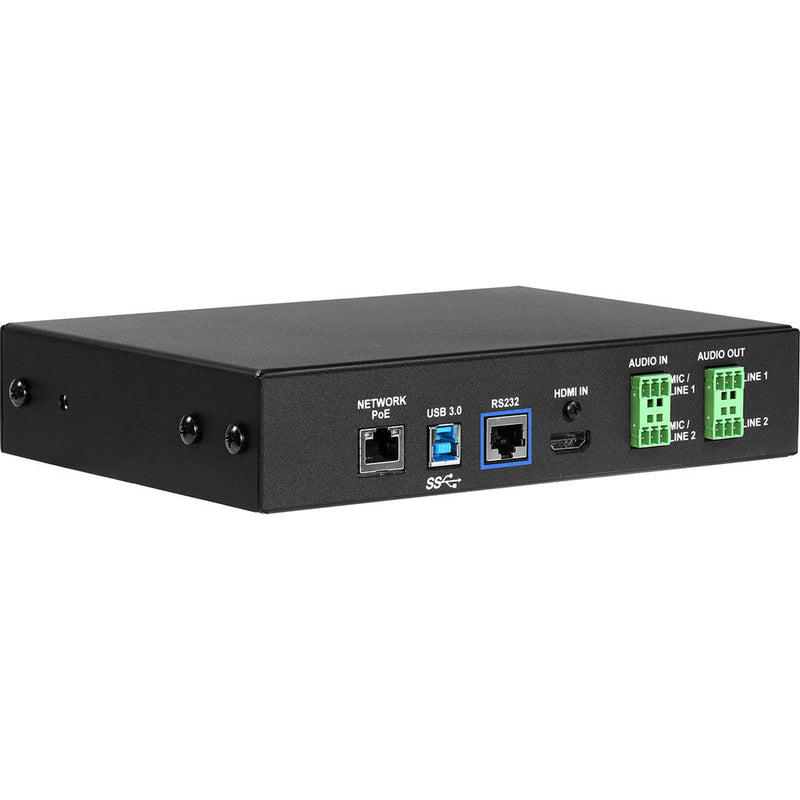

This encoder is equipped with a Network PoE with 1 GB Network connection for network, power, control, and IP streaming, a USB 3.0 port for uncompressed video output with PCM audio, an RS-232 port for control functions of the AV Bridge Mini, and an HDMI input to receive video from the connected camera. There is also an audio Mic/Line 1 and Mic/Line 2 for microphone or other audio inputs and audio Line 1 and Line 2 for audio output, from conferencing applications or as configured in the audio matrix. A 1RU rack mounting kit is included.
In the Box
- Vaddio AV Bridge Mini HD Audio/Video Encoder
- PoE Power Injector with AC Cord
- 3' Black Cat-5 cable
- 6' USB 3.0 Cable, Type-A to Type-B
- 4 x 3-Position Phoenix-Style Connectors

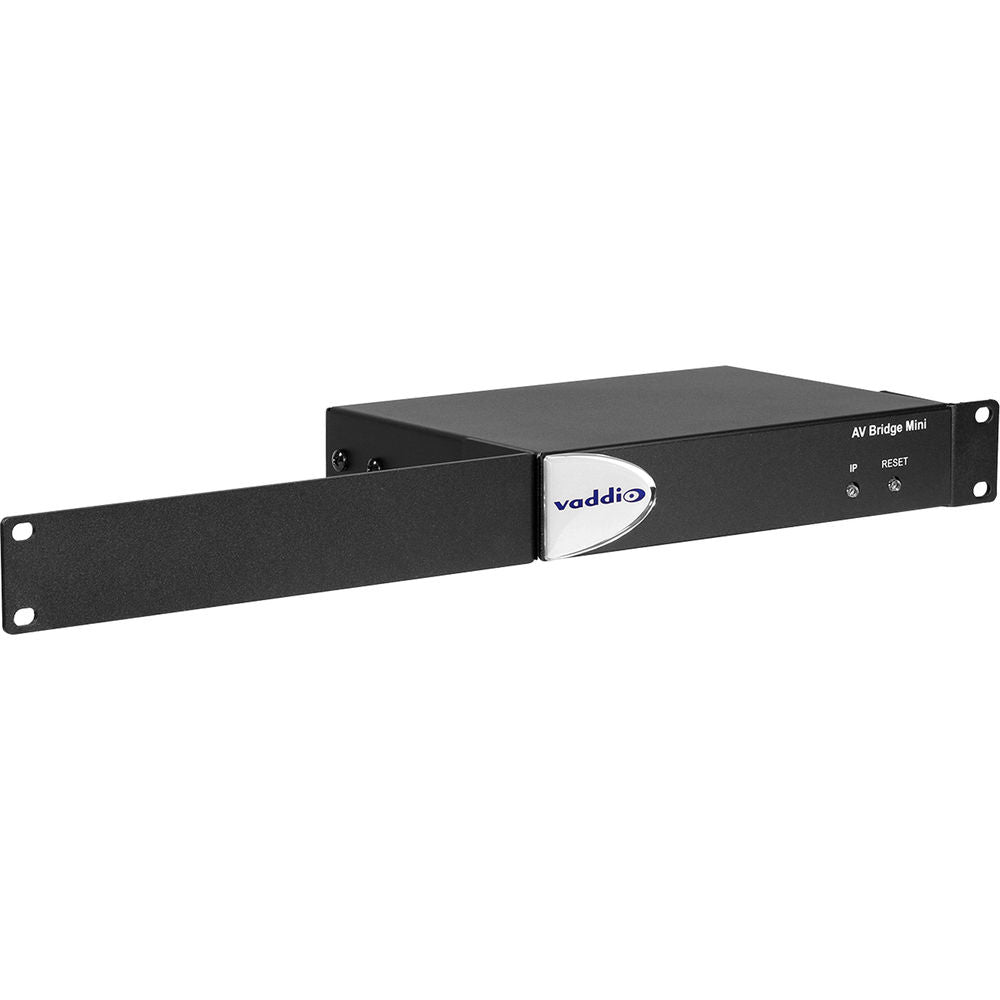

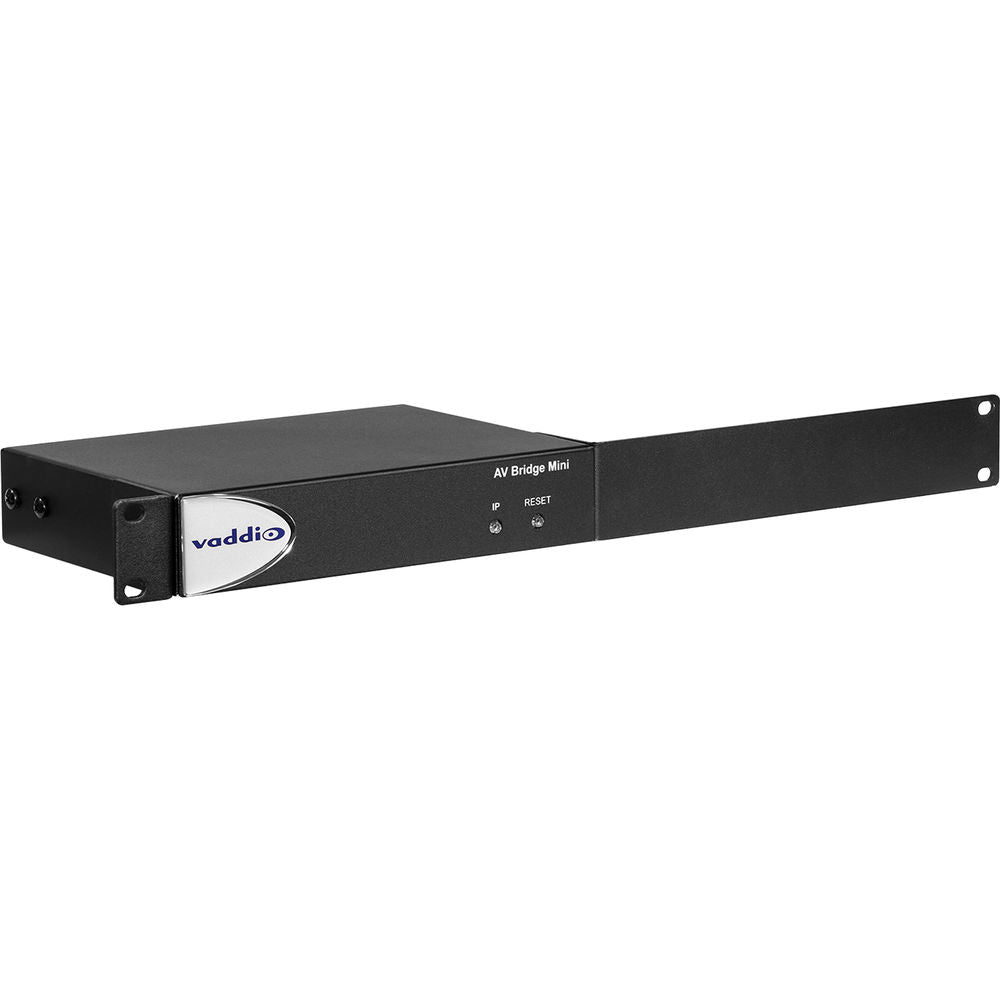

- Rack Mounting Kit
- Limited 2-Year Warranty
Vaddio 999-8240-000 Specs
| USB | 3.0 Type B |
| Resolution | 1080p/60 |
| IP Streaming | RTSP or RTMP up to 1080p/30 |
| PoE Standard | IEEE 802.3af-2003 |
| PoE Network Ports | 15.4 W Power and Network Connectivity |
| Control | RJ-45 Control Port 38400 Baud Rate Vaddio ASCII Command Protocol |
| Connectors | 1 x HDMI, Video Input 1 x 3.0 Type-B USB Port 1 x RJ45, RS232 Port 1 x RJ45, Ethernet PoE Port 1 x 3-Position Phoenix-style, Mic/Line input 1 1 x 3-Position Phoenix-style, Mic/Line input 2 1 x 3-Position Phoenix-style, Line output 1 1 x 3-Position Phoenix-style, Line output 2 |
| Indicators | 1 x Light, IP Status 1 x Light, RESET Status |
| Input Impedance | 10 Kohms |
| Output Impedance | < 50 Ohms |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Storage Humidity | 20 to 80% |
| Dimensions HxDxW | 1.72 x 6.0 x 8.375" / 4.4 x 15.2 x 21.3 cm |
| Package Weight | 5.31 lb |
| Box Dimensions (LxWxH) | 16.1 x 9.6 x 3.4" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 259391.3 |
| 3-5 | ₹ 256744.45 |
| 5-10 | ₹ 251450.75 |
| 10+ | ₹ 246157.05 |
Bulk discount will be automatically applied during checkout based on quantity.
