Description

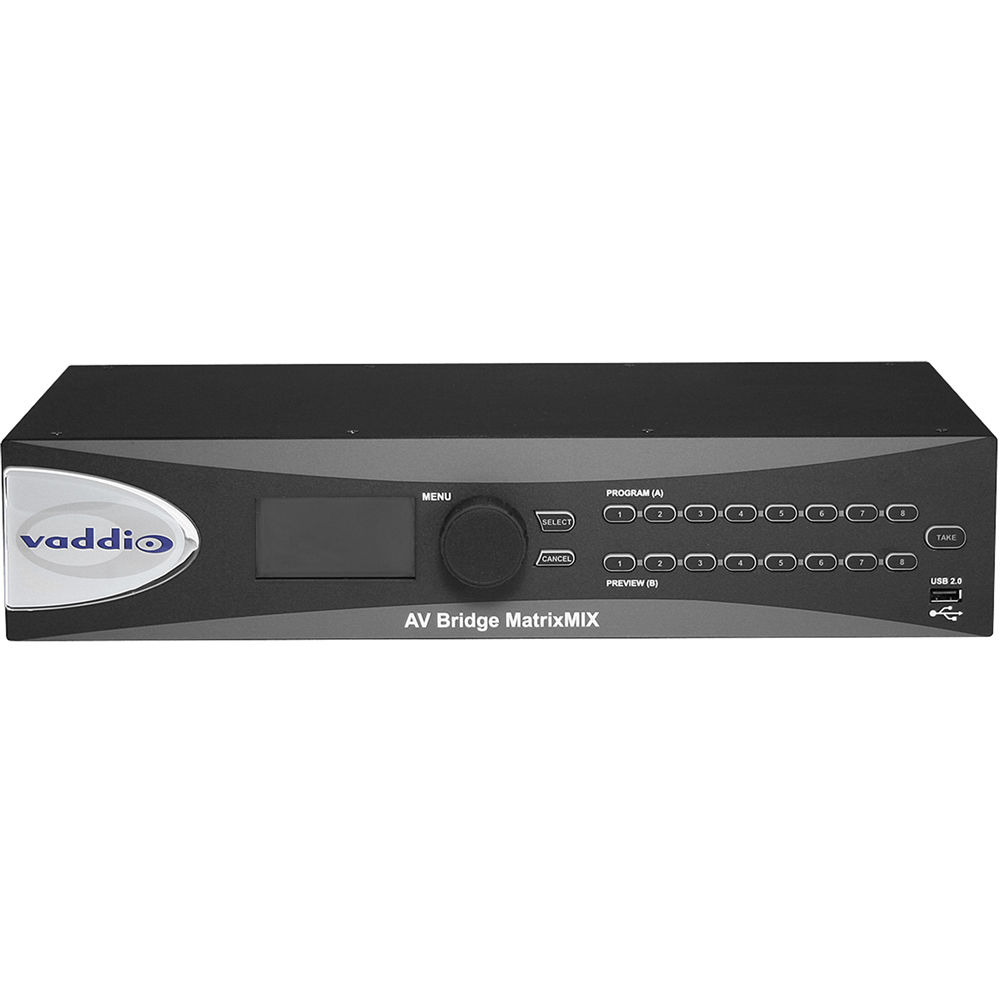

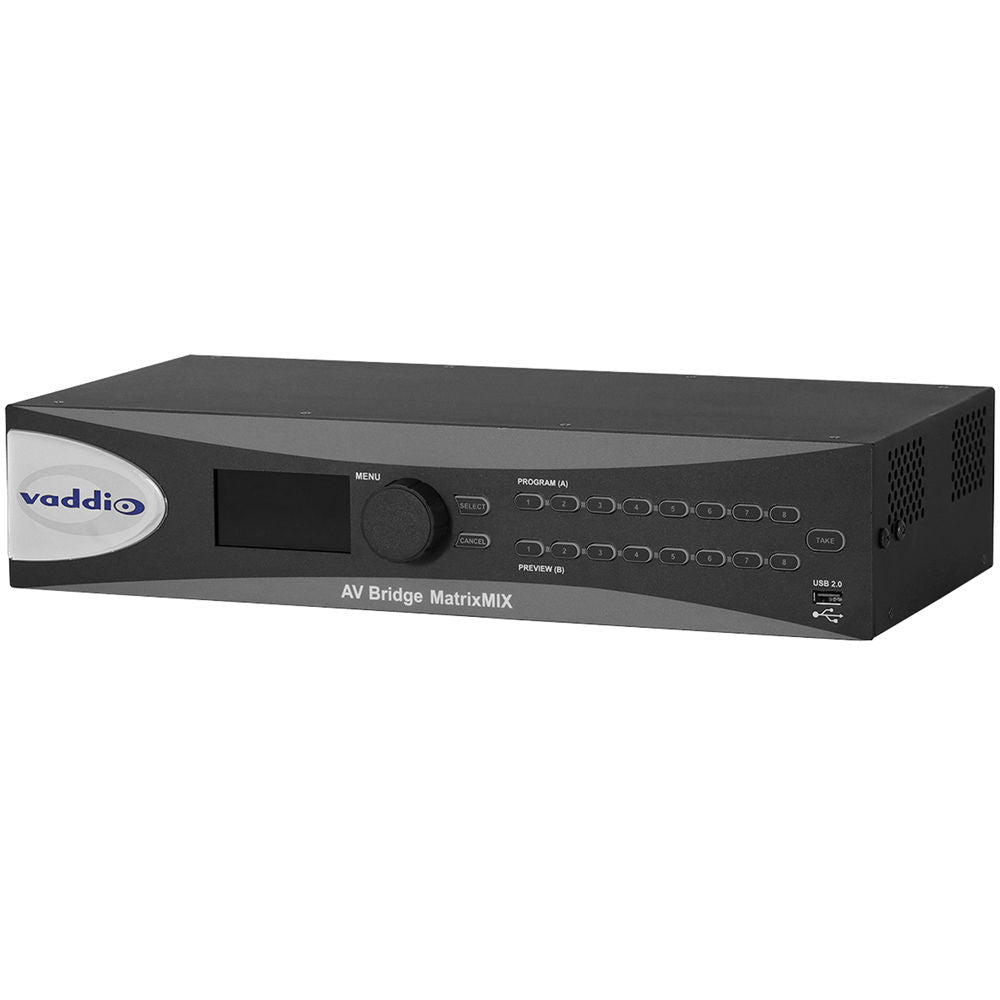

Vaddio AV Bridge MatrixMIX Overview
The AV Bridge MatrixMIX AV Switcher is an 8x2 video mixer that also provides multiviewer output. Its 11x7 audio mixer supports analog, HDMI, USB and IP audio channels. It offers embedded RTSP IP and USB 3.0 output streaming, plus two graphic keying layers per output channel.

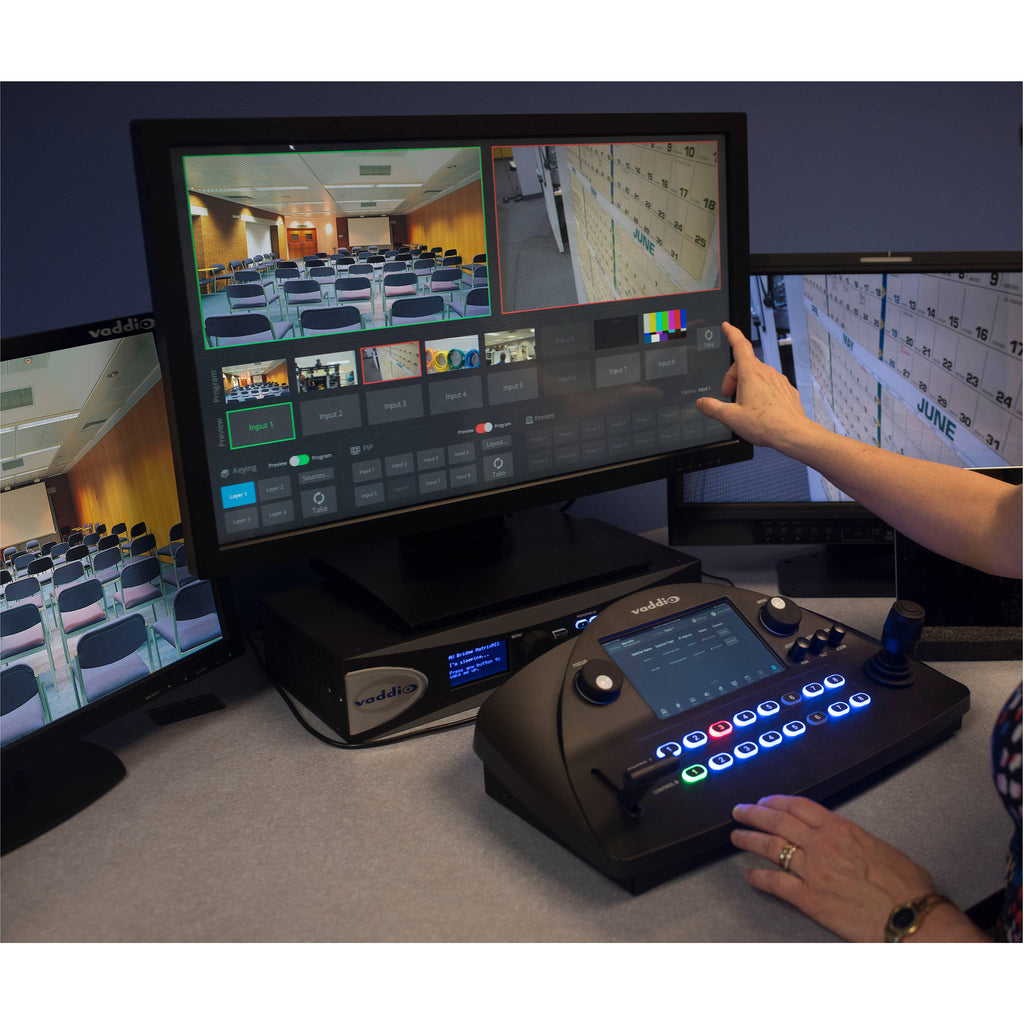

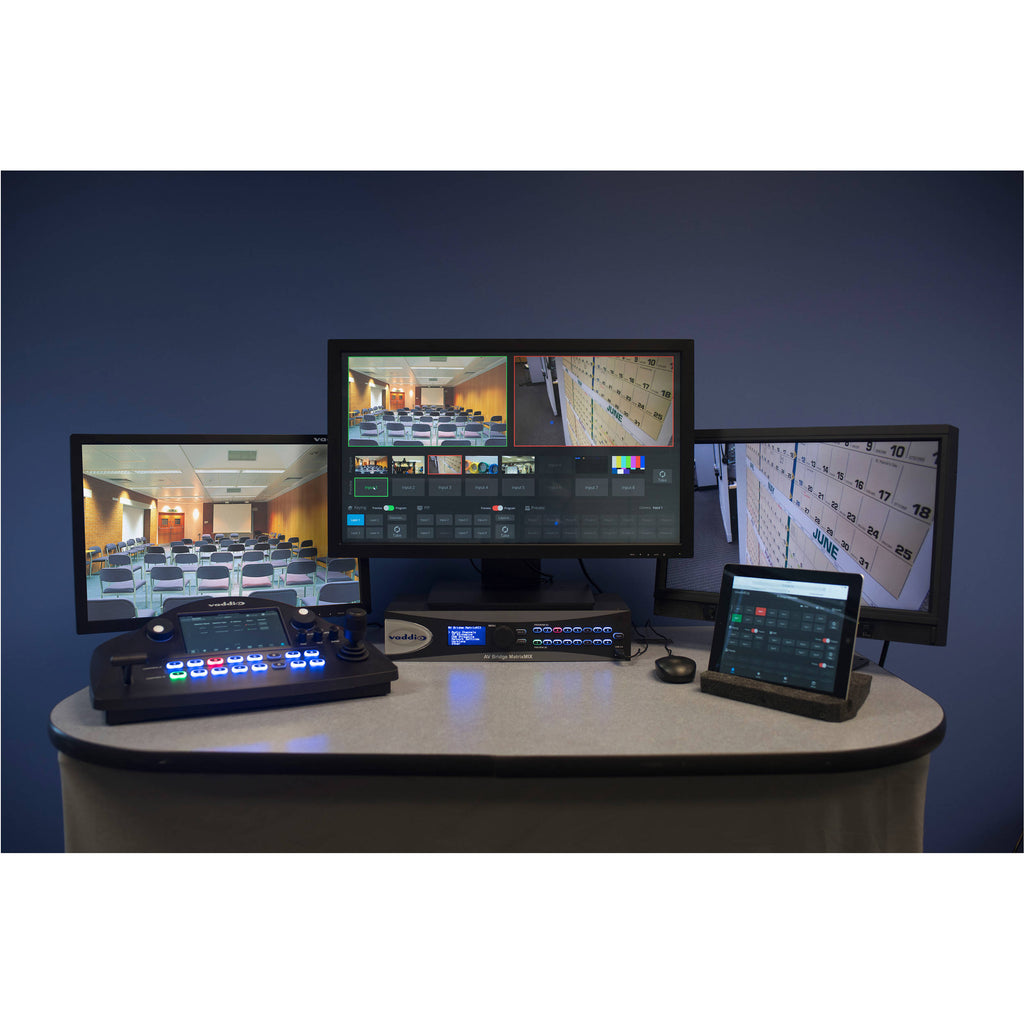

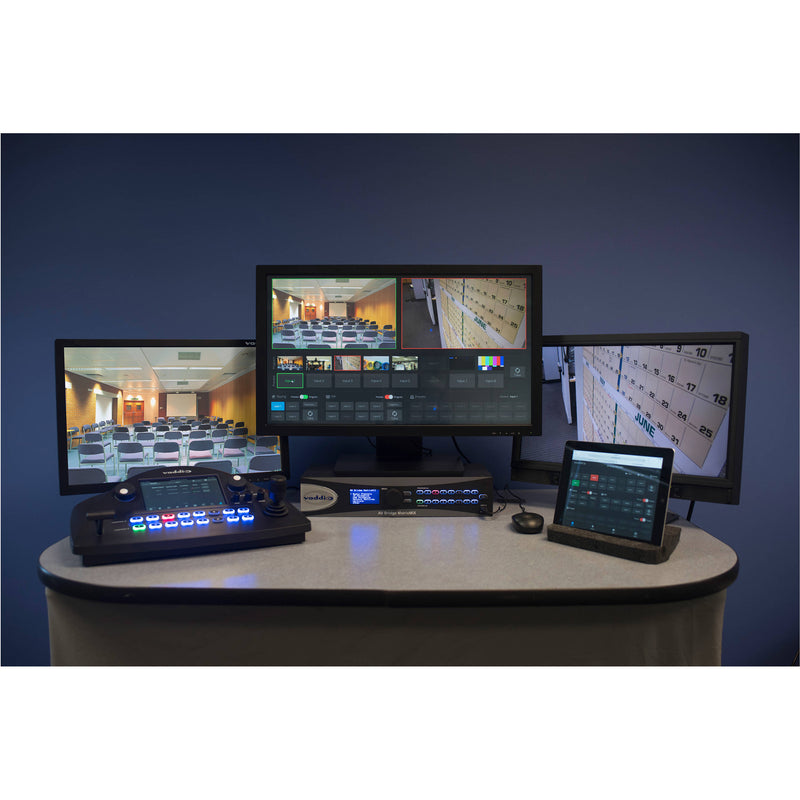

The system's PCC MatrixMIX Camera Controller and TeleTouch 27 USB Touch-Screen Multiviewer, plus Vaddio cameras, audio devices or trigger sensors, you can create customized solutions for a number of specific applications.
Key Features
- 8x2 video mixer that also provides multiviewer output
- 11x7 audio mixer supports analog, HDMI, USB and IP audio channels
- Embedded RTSP IP and USB 3.0 output streaming
- Two graphic keying layers per output channel
UPC: 840077501228
Vaddio AV Bridge MatrixMIX Specs
General
| Type | A/V switcher |
| Width | 16.7 in |
| Depth | 8 in |
| Height | 3.5 in |
| Weight | 9.15 lbs |
Studio & Production Equipment
| Features | HDCP compliant, picture-in-picture support, H.264 codec support, USB video/audio streaming |
Power
| Low Voltage Power | DC 12 V |
Kit Content
| Kit Content | (1) x power adapter |
Terminals

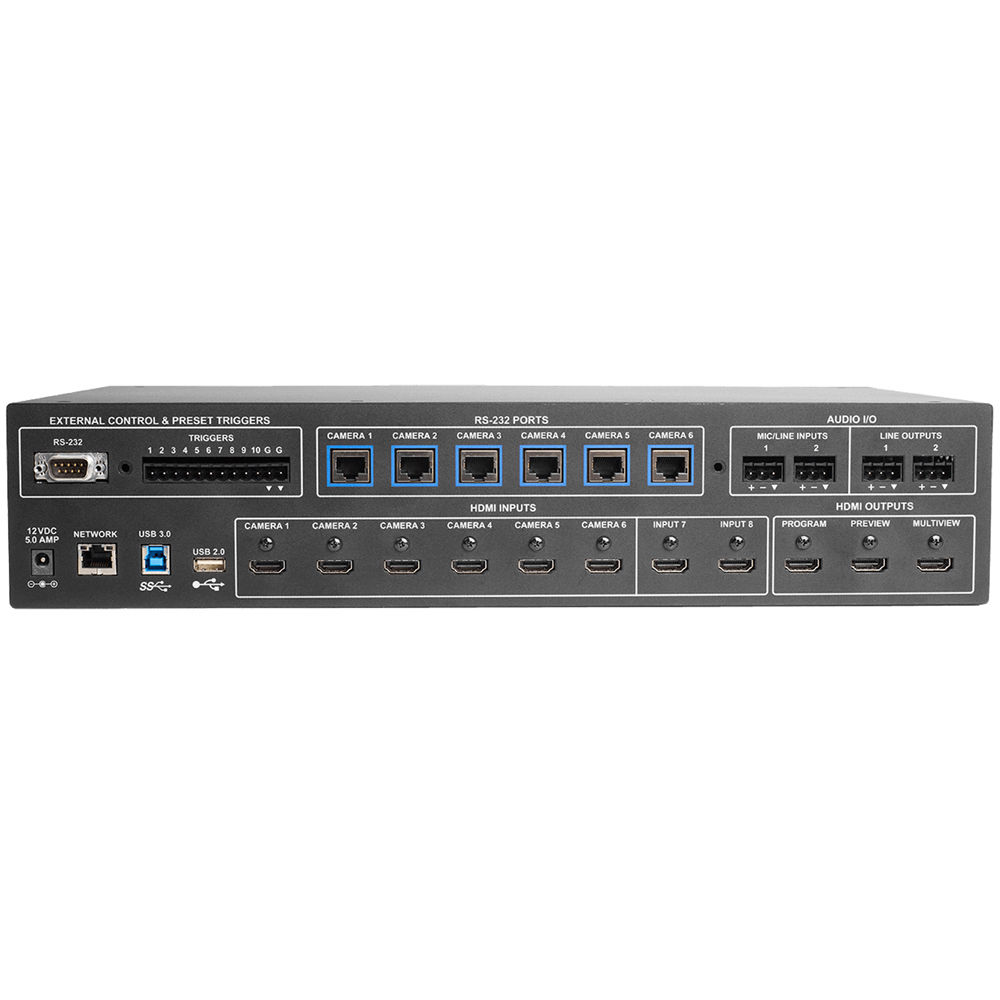

| Terminals | (2) x USB 2.0 - 4 pin USB type A (1) x USB 3.0 - 9 pin USB Type B (1) x network - RJ-45 (6) x serial - RJ-45 - RS-232 (8) x HDMI input - 19 pin HDMI Type A (3) x HDMI output - 19 pin HDMI Type A (2) x audio line-in / microphone - terminal block (2) x audio line-out - terminal block (10) x trigger - terminal block (1) x serial - 9 pin D-Sub (DB-9) - RS-232 |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
Packaging Info
| Package Weight | 13.28 lb |
| Box Dimensions (LxWxH) | 24.8 x 12.7 x 6.7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
