Description
Vaddio 999-8250-000 Overview

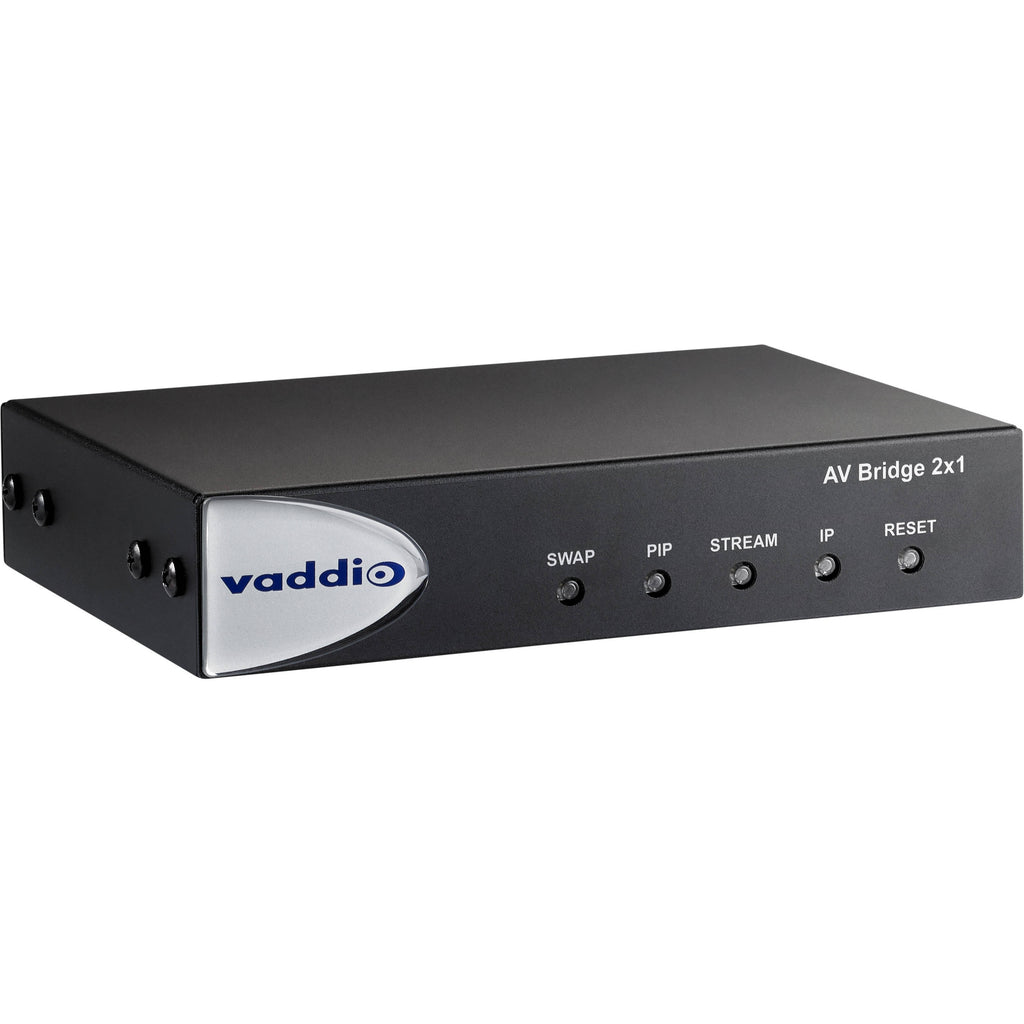

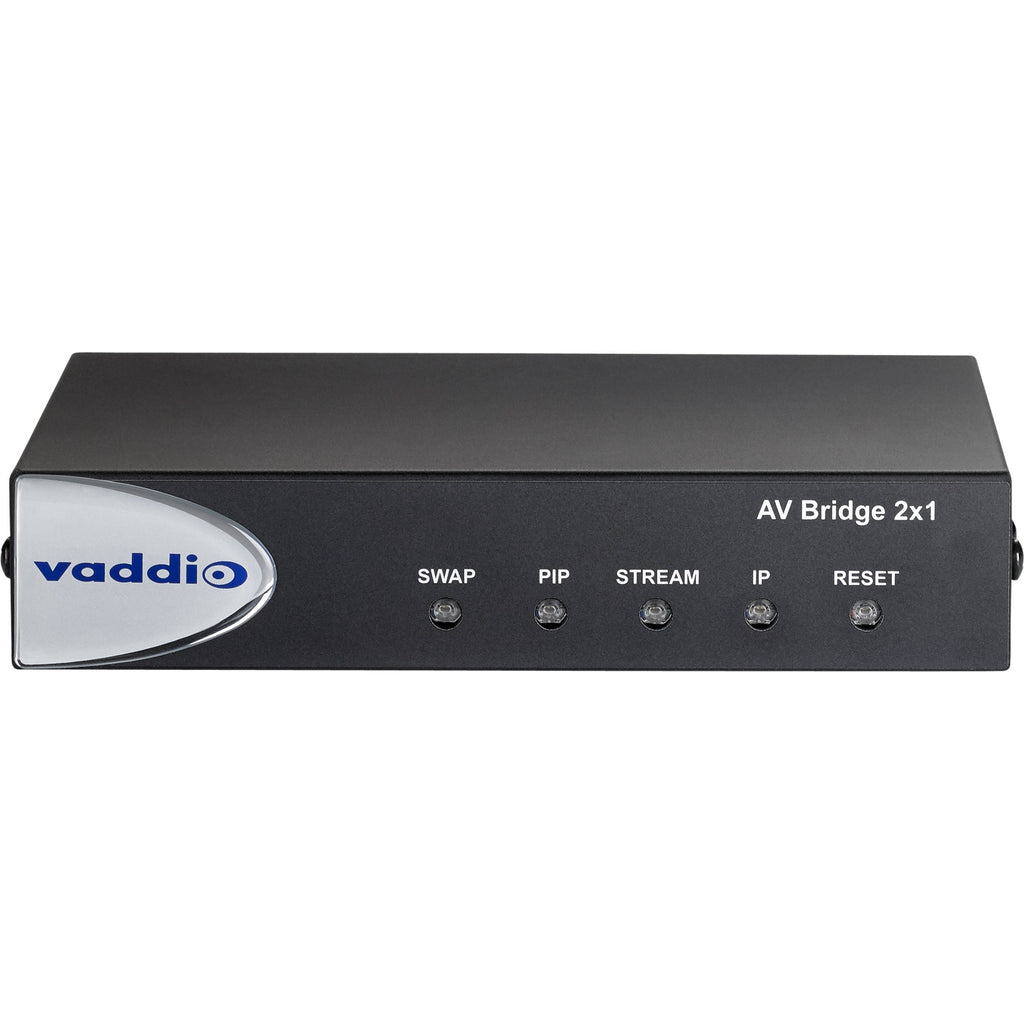

Display two video/audio sources onto one display while streaming simultaneously in lectures and conference rooms with the AV Bridge 2x1 Lecture Capture Device from Vaddio. With this multi-camera AV capture and distribution device, you can bridge any high-definition HDMI and audio source into conferencing applications such as Skype for Business, Zoom, and WebEx through the standard USB 3.0 interface, while locally viewing a Picture-in-Picture dual display.

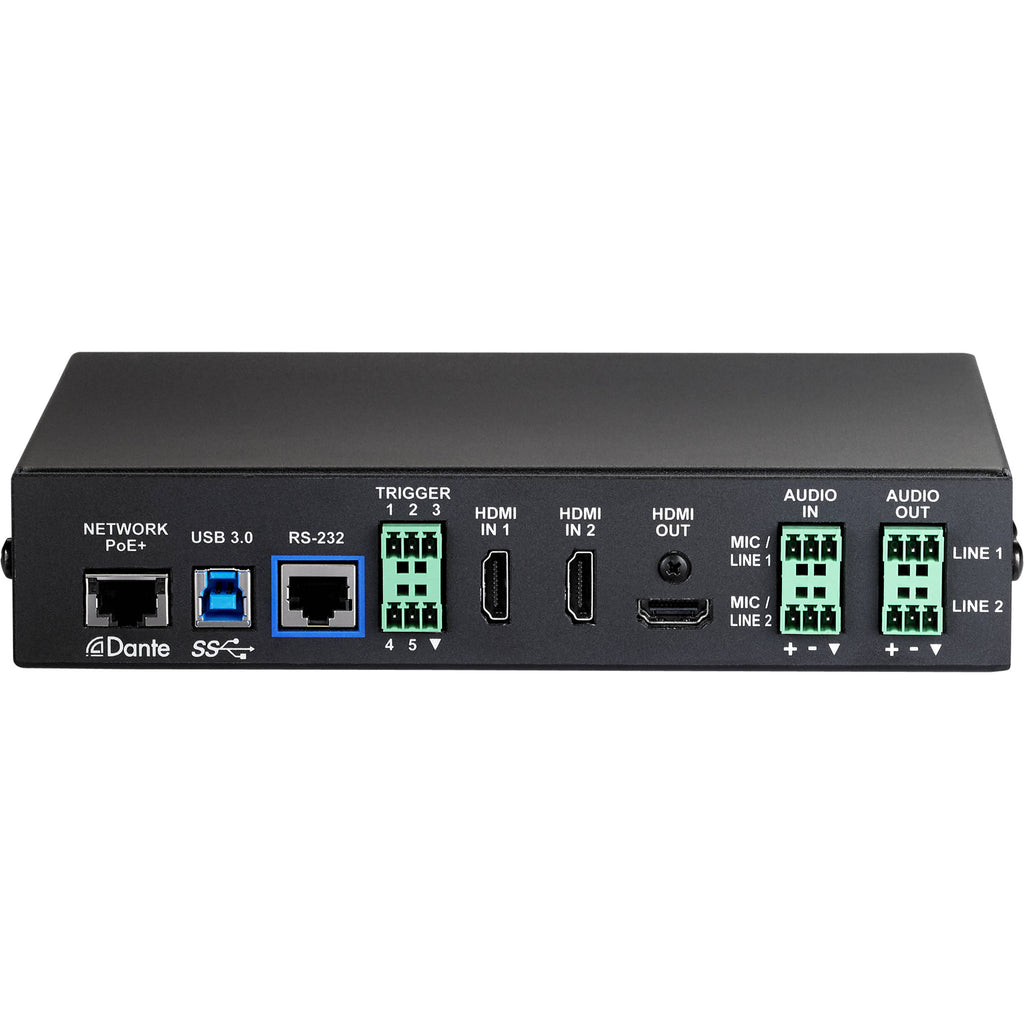

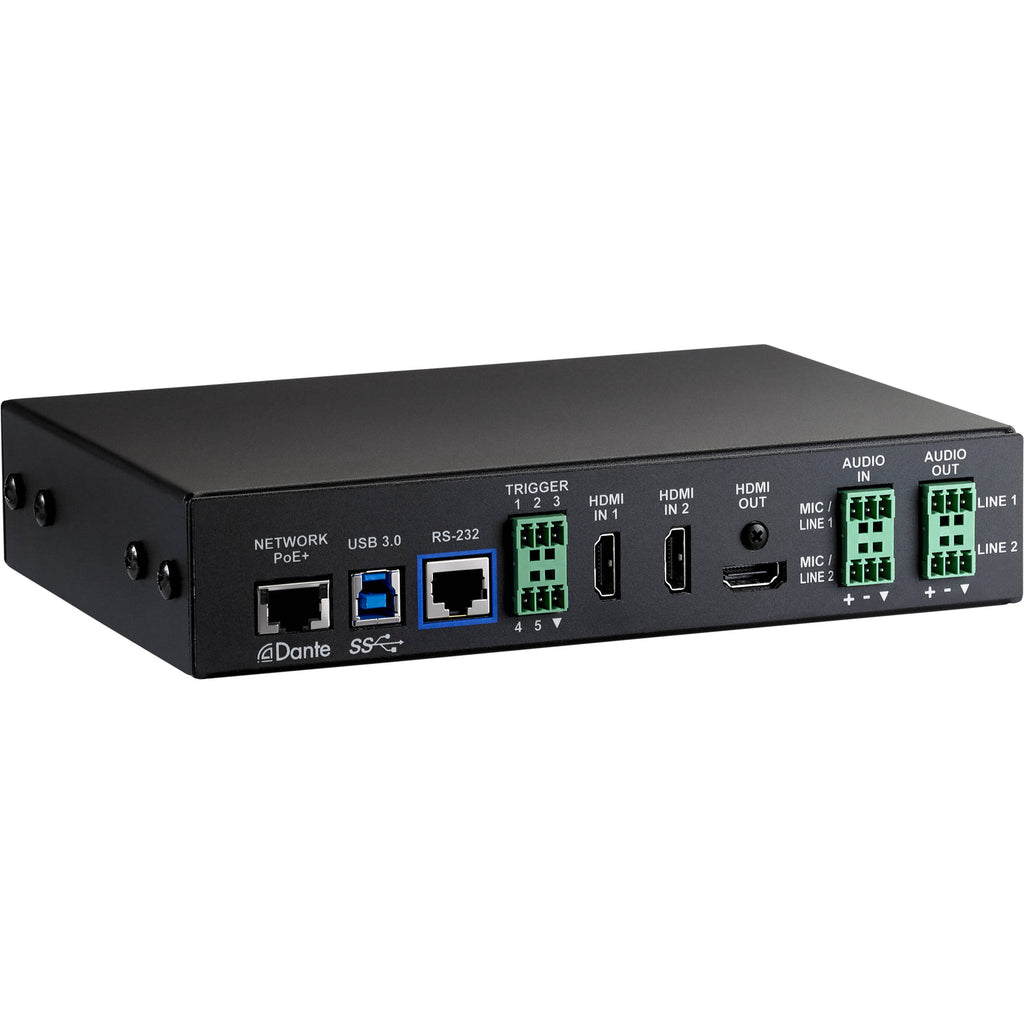

The bridge is enabled with PoE+ (Power-over-Ethernet) for network, power, control, and IP streaming over a single Ethernet cable, a USB 3.0 port for uncompressed video output with PCM audio, an RS-232 port for control functions via Vaddio trigger or other control devices using the Vaddio API, and an HDMI input to receive video from the connected camera or device. Other features include picture-in-picture control with multiple screen layouts, position presets, and graphic overlay support.
There are also audio Mic/Line 1 and Mic/Line 2 for microphone or other audio inputs and audio Line 1 and Line 2 for audio output, from conferencing applications or as configured in the audio matrix. The 4x4 Dante audio matrix supports a cross-point audio matrix up to 12x12. A 1 RU half-rack mounting kit is included to install the unit into a full rack space.
In the Box
- Vaddio AV Bridge 2x1 Lecture Capture Device
- PoE+ Power Injector
- Power Injector Cable
- Cat-5 Cable (3')
- USB 3.0 Type-A to Type-B Cable (6')
- 6 x 3-Pin Terminal Connector
- Half-Rack Mounting Kit
- Limited 3-Year Warranty
Vaddio 999-8250-000 Specs
| Video Format | Up to 1080p60 |
| IP Streaming | RTSP or RTMP up to 1080p30 |
| PoE Standard | PoE+ |
| Control | 1 x RJ45 Ethernet 1 x 3-Pin Terminal Block, Triggerbr> 1 x RJ45, RS-232 |
| Serial Communication | Vaddio ASCII Command Protocol |
| Video Input | 2 x HDMI Type A 1 x USB 3.0 Type-B |
| Video Output | 1 x HDMI Type A 1 x USB 3.0 Type-B |
| Audio Input | 2 x 3-Pin Terminal Block, Mic/Line Input |
| Audio Output | 2 x 3-Pin Terminal Block, Mic/Line Output |
| Phantom Power | 48 VDC, 10 mA |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 8.38 x 6 x 1.72" / 21.3 x 15.2 x 4.4 cm |
| Weight | 2.65 lb / 1.2 kg |
| Package Weight | 5.495 lb |
| Box Dimensions (LxWxH) | 16 x 9.8 x 3.4" |
