Description

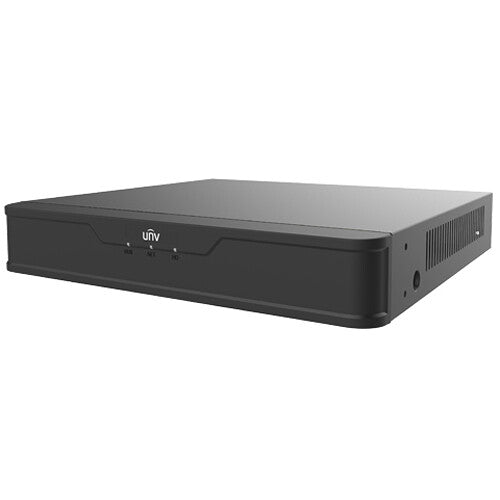

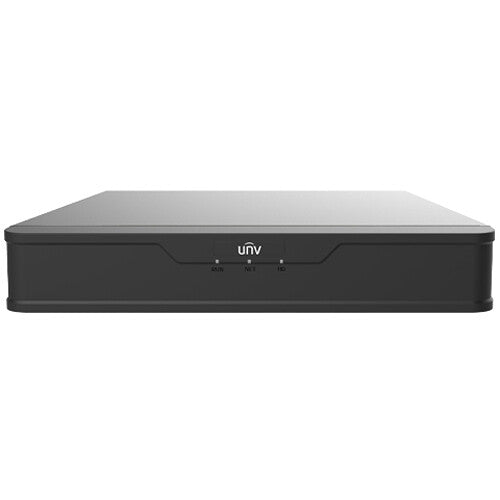

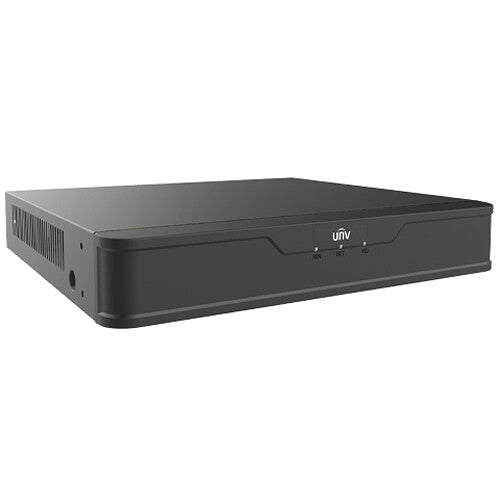

Uniview NVR501-08B-P8 Overview
Record from and manage up to 8 cameras with the NVR501-08B-P8 8-Channel 8MP NVR (No HDD) from Uniview at resolutions up to 8MP. This NVR is equipped with a SATA port that supports an HDD up to 8TB (HDD available separately). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This recorder supports up to 128 remote users and two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution (HDMI only). ONVIF compliance for profiles G, S, and T offers interoperability with ONVIF IP cameras.
Plug-and-play operation
4K UHD HDMI and 1080p VGA video output
8-channel synchronous playback
3/4/5/7/9 corridor mode screen
ANR technology enhances storage reliability when the network is disconnected
Can be upgraded via cloud
In the Box
- Uniview NVR501-08B-P8 8-Channel 8MP NVR (No HDD)
- Limited 3-Year Manufacturer Warranty
Guides & Manuals
Uniview NVR501-08B-P8 Specs
Key Specs
| Number of Channels |
8
|
| Playback Resolution |
HDMI:
3840 x 2160 at 30 Hz 1920 x 1080 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
|
| PTZ Support |
Yes
|
| Throughput |
80 Mb/s (Incoming)
64 Mb/s (Outgoing) |
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
8x RJ45 10/100 Mb/s Ethernet (Rear) PoE
1x RJ45 10/100 Mb/s Ethernet (Rear) 1x USB-A 2.0 (Front) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: EZView, EZLive |
| PoE Power Budget |
75 W
|
General
| Number of Channels |
8
|
| Playback Resolution |
HDMI:
3840 x 2160 at 30 Hz 1920 x 1080 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
|
| PTZ Support |
Yes
|
| Throughput |
80 Mb/s (Incoming)
64 Mb/s (Outgoing) |
| IP Camera Support |
8
|
| Decoding Resolution |
4 Channels:
4K at 30 fps 6 Channels: 5 MP at 30 fps 8 Channels: 4 MP at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x HDMI
1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
8x RJ45 10/100 Mb/s Ethernet (Rear) PoE
1x RJ45 10/100 Mb/s Ethernet (Rear) 1x USB-A 2.0 (Front) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) |
| Audio I/O |
1x Input
1x Output |
| System Connection |
1x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Maximum User Access |
128
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, NTP, P2P, PPPoE, SMTP, SNMP, TCP/IP, UPnP
|
Compatibility
| Supported Video Codecs |
H.265
|
| Supported Audio Codecs |
G.711A, G.711U
|
| Software Upgrade |
Network
|
| Supported IEEE Standards |
802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)
|
Computing
| Optical Drive |
No
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
8 TB (Total)
|
| Number of Bays |
1x Internal
|
Software System Requirements
| OS Compatibility |
Windows
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: EZView, EZLive |
| Web Browser Support |
Chrome, Edge, Firefox, Internet Explorer
|
Notifications
| Alarm I/O |
No
|
| Event Trigger |
Alarm, Disconnected, Disk Failure, Disk Full, Motion, Network Loss, Recording, Snapshot, Sound, Tampering, Tracking, Video Loss
|
| Notification Type |
Buzzer, Email, SNMP
|
System Functions
| Search Modes |
Event, Object, Smart Search, Snapshot
|
| Recording Modes |
Alarm, Analytics, Event, Motion, Schedule, Tampering, Video Loss
|
| Dual Streaming |
Yes
|
| Multi-Screen Configuration |
1, 4, 6, 8, 9
|
| Fisheye Dewarping |
No
|
Electrical
| Power Consumption |
10 W (Without HDD)
|
| Power Supply Type |
External
|
| PoE Power Budget |
75 W
|
| PoE per Port |
30 W
|
| DC Input Power |
52 VDC at 1.8 A
|
Environmental
| Operating Temperature |
14 to 131°F / -10 to 55°C
|
| Operating Humidity |
0 to 90% ()
|
Physical
| Built-In Display |
No
|
| Certifications |
CE, FCC, UL, RoHS, WEEE
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
10.2 x 8.7 x 1.9" / 260.0 x 222.0 x 47.0 mm
|
| Weight |
2.16 lb / 0.98 kg
|
Packaging Info
| Package Weight |
3.76 lb
|
| Box Dimensions (LxWxH) |
16.8 x 11.2 x 3"
|
