Description

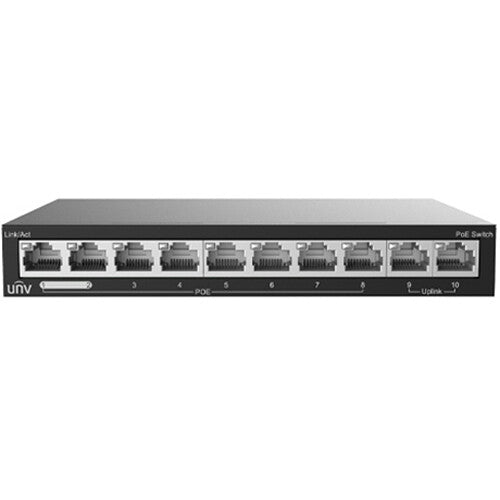

Uniview NSW2020-10T-POE-IN Overview
Expanding your business's network with the NSW2020-10T-POE-IN 10-Port 100 Mb/s PoE+ Compliant Unmanaged Switch from Uniview allows you to operate long-range surveillance cameras without the hassle of a complicated configuration. This entry-level desktop switch includes ten 10/100 Mb/s ports, eight of which can provide up to 30W of power to compatible devices with a total budget of 88W.
Enabling extend mode can increase transmission distances up to 820.2 feet. Enjoy smooth data transfers with a 2 Gb/s switching capacity and 1.49 Mpps forwarding rate. The fanless design allows the switch to operate silently in the background.
In the Box
- Uniview NSW2020-10T-POE-IN 10-Port 100 Mb/s PoE+ Compliant Unmanaged Switch
- Power Adapter
- Limited 2-Year Manufacturer Warranty
Uniview NSW2020-10T-POE-IN Specs
Key Specs
| Wi-Fi |
No
|
| Inputs/Outputs |
2 x 10/100 Mb/s Ethernet (RJ45)
8 x 10/100 Mb/s Ethernet (RJ45) PoE |
| PoE Power Budget |
120 W
|
Interfaces
| Inputs/Outputs |
2 x 10/100 Mb/s Ethernet (RJ45)
8 x 10/100 Mb/s Ethernet (RJ45) PoE |
Protocols
| MAC Address Table Size |
4K
|
Standards
| Supported IEEE Standards |
802.3, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x
|
Performance
| Forwarding Rate |
1.49 Mpps
|
| Switching Bandwidth |
2 Gb/s
|
| Packet Buffer |
1.62 Mb
|
Computer
| Flash Memory |
No
|
Electrical
| DC Input Power |
48 VDC
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
120 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
External
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
10 to 90% (Non-Condensing)
|
| Storage Humidity |
5 to 90% (Non-Condensing)
|
General
| Certifications |
No
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
8.7 x 5.9 x 1.7" / 220 x 150 x 44 mm
|
| Weight |
2.69 lb / 1.22 kg
|
