Description
Uniview IPC2324SE-ADZK-WL-I0 Overview

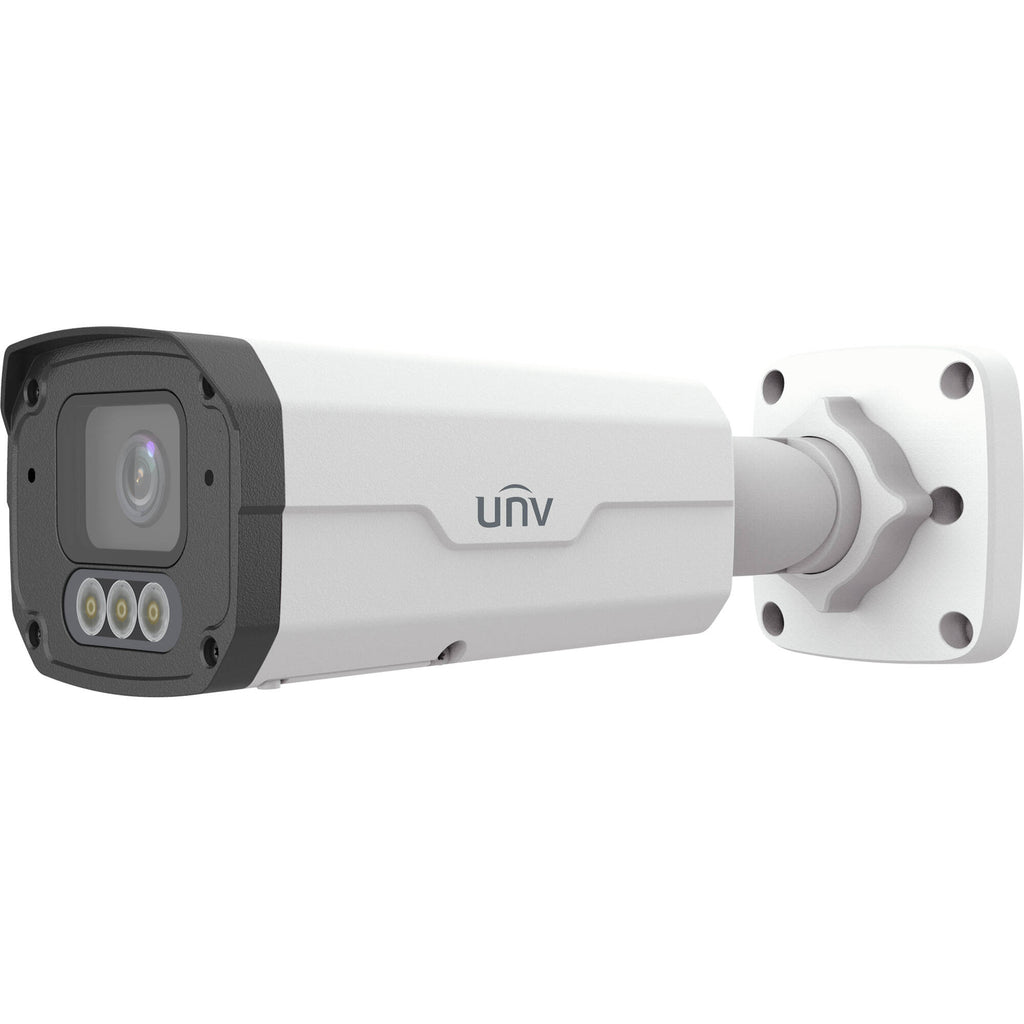

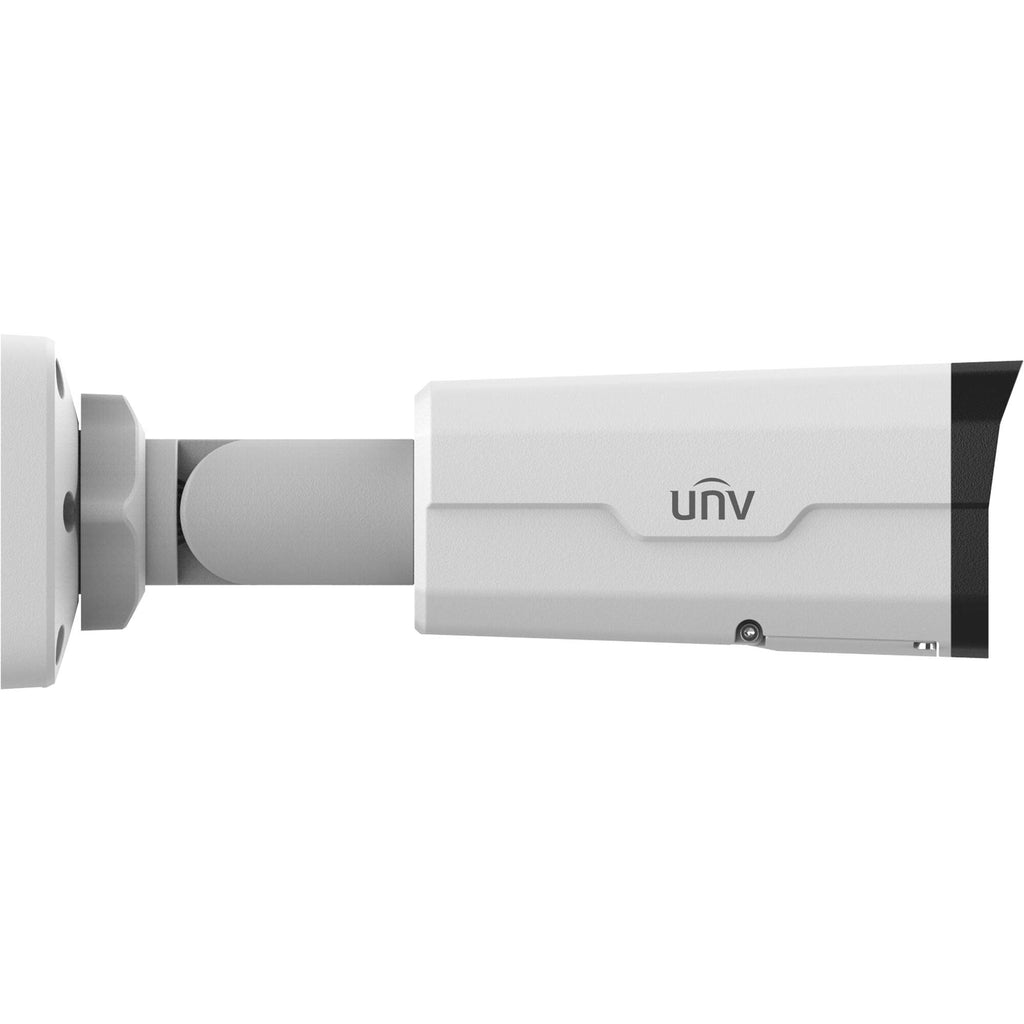

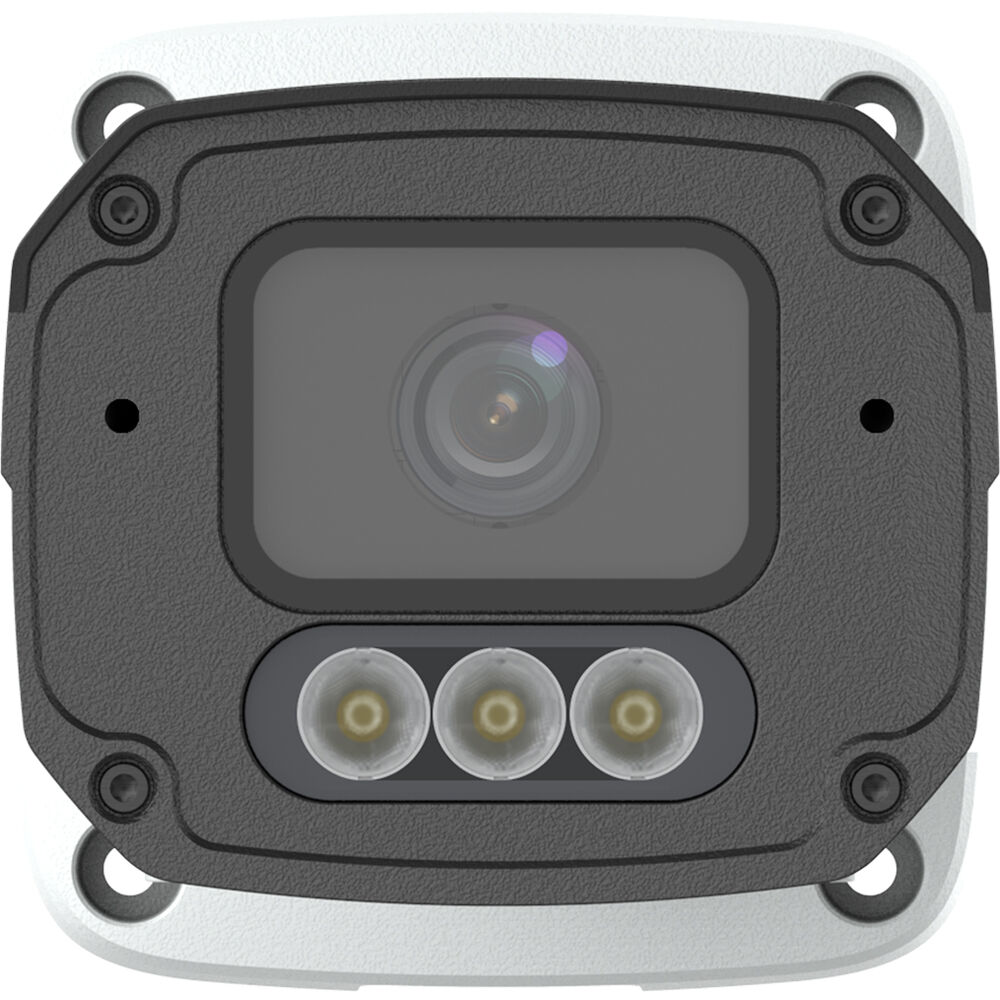

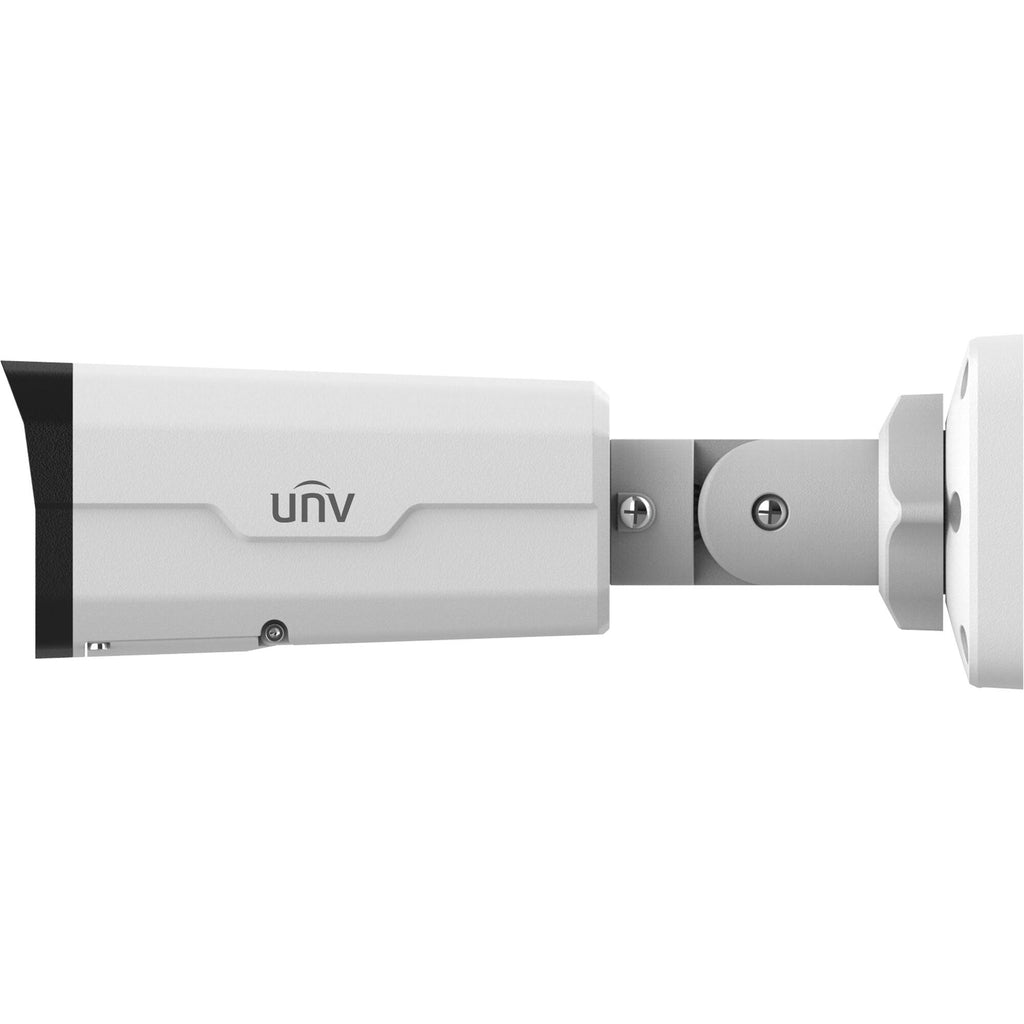

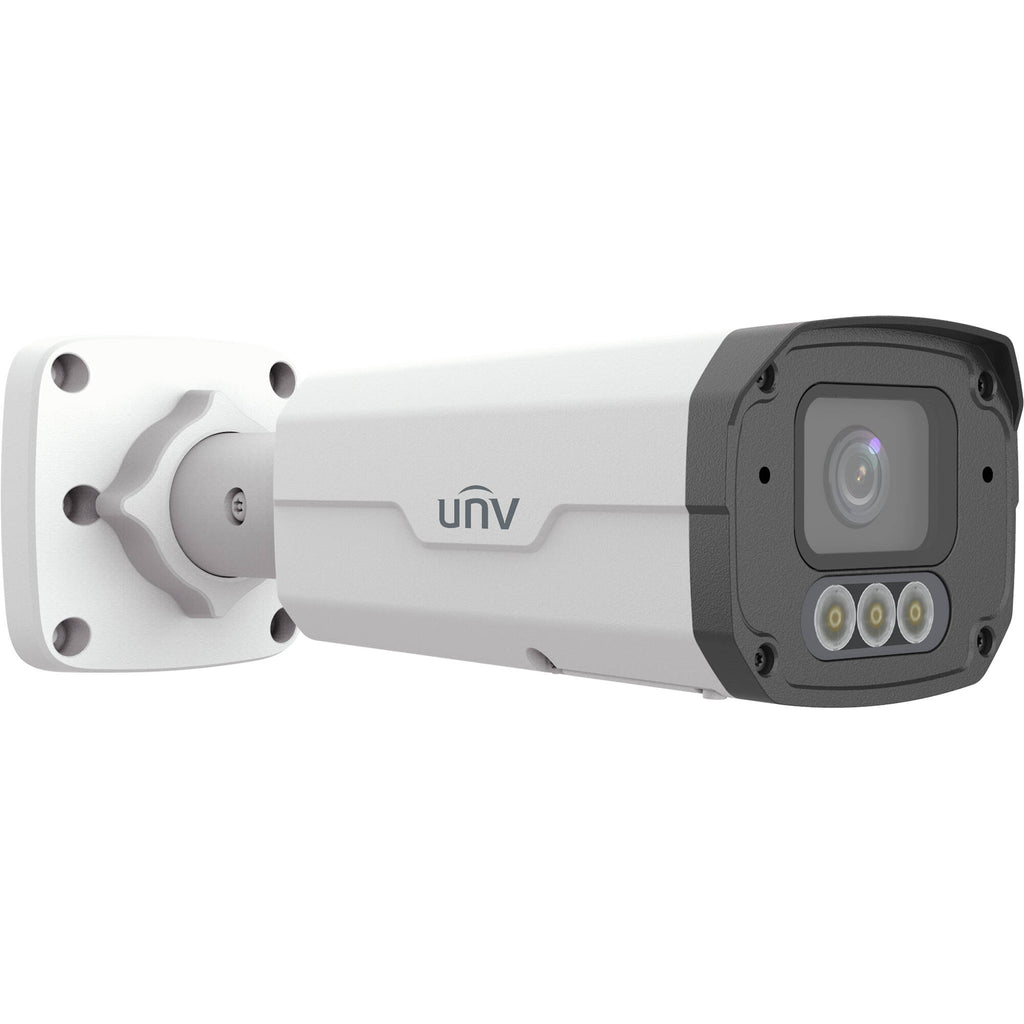

Securely monitor your surroundings with the ColorHunter IPC2324SE-ADZK-WL-I0 4MP Outdoor Network Bullet Camera from Uniview. This unit uses a 1/1.8" CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs and spotlights provide up to 98' of illumination for recording full color video 24/7. The camera's 2.8-12mm varifocal lens delivers a 102.4 to 49.2? horizontal angle of view. Two-way audio with noise suppression is possible thanks to two built-in microphones, along with an audio input and output. An onboard card slot supports microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
Additional Details
- Dual IR LED and spotlight illumination
- ColorHunter technology ensures 24/7 color visibility
- Auto and manual light on/off control
- Triple streaming
- Up to 8 OSDs
- Privacy masking for up to four areas
- Region of interest support
- Analytics include cross line detection, intrusion detection, enter area detection, leave area detection (supports false alarm filtering and classification of human, vehicle, and non-motor vehicle), face capture, people counting (supports people flow counting and crowd density monitoring), motion detection, ultra motion detection, tampering alarm, and audio detection
- Smart intrusion prevention minimizes false alarms caused by leaves, birds, and lights to accurately focus on human, motor vehicles, and non-motor vehicles
- Flipped perspectives include normal, vertical, horizontal, 180?, and 90? (clockwise and anti-clockwise)
- Supports 9:16 corridor mode
- Adjustable white balance, digital defog, 120 dB wide dynamic range, 2D-DNR/3D-DNR, >56 dB S/N ratio, backlight compensation, and highlight compensation
- Supports ANR and NAS
- Compatible with Internet Explorer, Chrome, Firefox, Edge, EZStation, UNV-Link, and UNV-Link Pro
- Up to 32 users (admin and common user host levels)
- Reset button
- 6kV surge protection
UPC: 810093328321
Items Included
- Uniview ColorHunter IPC2324SE-ADZK-WL-I0 4MP Outdoor Network Bullet Camera
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Uniview IPC2324SE-ADZK-WL-I0 Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
2.8 to 12mm
|
| Field of View |
Horizontal: 102.4 to 49.2?
Vertical: 54.7 to 27.8? Diagonal: 106.8 to 55? |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 (12VDC)
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| Day/Night |
Yes
|
| DORI Coverage |
With 2.8 to 12mm Lens:
Detect: 142.4 to 610.9' / 43.4 to 186.2 m Observe: 57.1 to 244.4' / 17.4 to 74.5 m Recognize: 28.5 to 122.1' / 8.7 to 37.2 m Identify: 14.1 to 61' / 4.3 to 18.6 m |
Exposure Control
| Shutter Speed |
1/100000 to 1 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
56 dB
|
| Minimum Illumination |
0.0005 Lux (Color)
|
Lens
| Focal Length |
2.8 to 12mm
|
| Max Optical Zoom |
4.3x
|
| Field of View |
Horizontal: 102.4 to 49.2?
Vertical: 54.7 to 27.8? Diagonal: 106.8 to 55? |
| Maximum Aperture |
f/1.2
|
Video
| Supported Protocols |
Video Streaming Protocol
API/ARP/DDNS/DHCP/DNS/FTP/HTTP/ICMP/IGMP/IPv4/v6/NTP/ONVIF Profile G/ONVIF Profile M/ONVIF Profile S/ONVIF Profile T/PPPoE/QoS Layer 3 DiffServ/RTCP/RTMP/RTP/RTSP/SDK/SMTP/SNMP v1/v2c/v3 (MIB-II)/SSH/SSL/TLS/TCP/UDP/UPnP |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2688 x 1520 up to 30.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 360?
Vertical: 0 to 90? Rotation: 0 to 360? |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log, Watermark
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type) [512 GB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| Built-In Microphone |
Yes
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Audio Detection, Camera Sabotage/Tampering, Crowd Gathering, Entering/Exiting, Intrusion Detection, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 (12VDC)
|
| Power Consumption |
11.5 W
|
Environmental
| Operating Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C up to 95% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP67)
|
General
| Materials |
Metal
|
| Certifications |
ANSI, CB, CE, EN, EU, FCC, IEC, REACH, RoHS, UL, WEEE
|
| Illumination |
850 nm IR LEDs up to 98.4' / 30 m
Spotlights up to 98.4' / 30 m |
| Supported Languages |
Brazilian Portuguese
Czech Dutch English French German Hungarian Italian Japanese Korean Latin American Spanish Polish Portuguese Russian Simplified Chinese Spanish Thai Traditional Chinese Turkish Vietnamese |
| OS Compatibility |
Android/iOS
|
| Dimensions (W x H x D) |
3.4 x 3.3 x 9.6" / 86 x 85 x 245 mm
|
| Weight |
2.0 lb / 0.9 kg (Body Only)
|
