Description

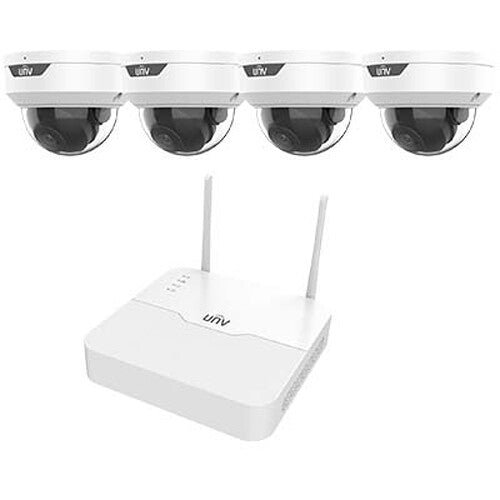

Uniview KIT/NVR301-04LS3-W 4IPC322LB-AF28WK-G Overview
Securely monitor your property with the 4-Channel 2MP Wi-Fi NVR with Four 2MP Wi-Fi Dome Cameras (No HDD) from Uniview. The 4-channel NVR can manage and record from up to four cameras. It is equipped with a SATA HDD port that has a 6TB capacity (available separately). Space-saving H.265 and H.264 video codecs reduce bandwidth requirements for efficient data storage while maintaining the best quality possible. Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices.
The included 2MP Wi-Fi cameras capture 1080p resolution video from 2.8mm fixed lenses with a 101.1° horizontal angle of view. The cameras feature a night vision range up to 98', a built-in microphone to pick up audio, and an enclosure that is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
NVR Features
HDMI and VGA video outputs
Two USB 2.0 ports
4-channel synchronous playback
Audio input
Supports cloud upgrade
Camera Features
Auto and manual IR on/off control
IR cut filter enables day and night switching
Dual streaming
Up to 4 OSDs
Privacy masking for up to 4 areas
Region of interest for up to 8 areas
Analytics include human body detection, motion detection, tampering alarm, and audio detection
Additional features include digital WDR, white balance, 3D-DNR/2D-DNR, flip perspectives (normal, vertical, horizontal, 180°), backlight/highlight compensation, and digital defog
Up to 32 users (admin and common user host levels)
Supports microSD cards up to 128GB
4kV surge protection
In the Box
- Uniview 4-Channel 2MP Wi-Fi NVR with Four 2MP Wi-Fi Dome Cameras (No HDD)
- Limited 3-Year Manufacturer Warranty
Not in the Box
- Essential Internal Hard Drives (Not Included)
Additional Resources
No additional resources available
Uniview KIT/NVR301-04LS3-W 4IPC322LB-AF28WK-GSpecs
NVR
| IP Video Input |
4 Channels
|
| Bandwidth |
Incoming: 40 Mb/s
Outgoing: 40 Mb/s |
| Number of Remote Users Supported |
128
|
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS
|
| HDMI Output |
1920 x 1080p at 60/50 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
|
| VGA Output |
1920 x 1080p at 60/50 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
|
| Recording Resolution |
1080p, 960p, 720p, D1, 2CIF, CIF
|
| Audio Output |
1-Channel, RCA
|
| Audio Compression |
G.711A, G.711U
|
| Sync Playback |
4-Channel Synchronous Playback
|
| Live View |
Live View Display: 1/4
|
| Mode |
Corridor Mode Screen: 3/4
|
| Snapshot |
Event Snapshot: 1-Channel Snapshot, up to D1 Resolution
|
| Decoding Formats |
Ultra 265/H.265/H.264
|
| Live View / Playback Resolutions |
1080p, 960p, 720p, D1, 2CIF, CIF
|
| Capability |
4 x 1080p at 30 fps
|
| SATA |
1 SATA Interface
|
| SATA Capacity |
Up to 6 TB
|
| Alarms |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
|
| Alerts |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
|
| Network Interface |
100M Self-Adaptive RJ45 Ethernet Interface
|
| USB Interface |
2 x USB 2.0 (Rear)
|
| Wi-Fi |
2.4 GHz
|
| Transmission Rate |
150 Mb/s
|
| Wireless Standards |
802.11b/g/n
|
| Power Supply |
12 VDC
|
| Power Consumption |
?9 W (without HDD)
|
| Operating Conditions |
Temperature: 14 to 131°F / 10 to 55°C
Humidity: ?90% RH (Non-Condensing) |
| Certifications |
UL, CE, FCC, RoHS, WEEE
|
| Dimensions (W x D x H) |
8.1 x 8.1 x 1.9" / 205 x 205 x 47 mm
|
| Weight |
1.28 lb / ?0.58 kg
|
Camera
| Sensor |
1/2.9" 2MP Progressive Scan CMOS
|
| Minimum Illumination |
Color: 0.01 Lux (f/2.0 with AGC)
B&W: 0 Lux with IR |
| Day/Night |
IR Cut Filter with Auto Switch
|
| Shutter |
Auto/Manual, 1/100,000 to 1
|
| 3-Axis Angle |
Horizontal: 0 to 352°
Tilt: 0 to 70° Rotate: 0 to 350° |
| S/N Ratio |
>52 dB
|
| WDR |
Digital WDR
|
| Lens |
2.8mm f/2.0
|
| Lens Mount |
M12
|
| Angle of View |
Horizontal: 101.1°
Vertical: 55° Diagonal: 111° |
| DORI Distance |
Detect: 147.6' / 45 m
Observe: 59' / 18 m Recognize 29.5' / 9 m Identify: 15' / 4.5 m |
| IR Range |
98' / 30 m
|
| Wavelength |
850 nm
|
| IR Control |
Auto/Manual
|
| Video Compression |
Ultra 265, H.265, H.264, MJPEG
|
| H.264 Profile |
Baseline Profile, Main Profile, High Profile
|
| Frame Rate |
Main Stream: 1920 x 1080, 1280 x 720 at 30 fps
Sub-Stream: 1280 x 720, 720 x 576, 640 x 360, 704 x 288, 352 x 288 at 30 fps |
| Video Bit Rate |
128 kb/s to 6 Mb/s
|
| Video Support |
U-Code
Up to 4 OSDs Privacy Masking for up to 4 Areas Region of Interest for up to 8 Areas |
| Dual Stream |
Yes
|
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
|
| Digital Noise Reduction |
3D-DNR, 2D-DNR
|
| Smart IR |
Supported
|
| Flip |
Normal, Vertical, Horizontal, 180°
|
| Backlight Compensation |
Supported
|
| Highlight Compensation |
Supported
|
| Defogging |
Digital Defog
|
| Analytics |
Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection
|
| General Functions |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
| Audio Compression |
G.711U, G.711A
|
| Audio Bit Rate |
64 kb/s
|
| Suppression Modes |
Audio Suppression Aupported
|
| Audio Sampling Rate |
8 kHz
|
| microSD Support |
Up to 128 GB
|
| Network Storage |
ANR, NAS (NFS)
|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
|
| API |
ONVIF Profiles G, S & T, API, SDK
|
| User/Host |
Up to 32 Users (Admin & Common User Host Levels)
|
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
|
| Client |
EZStation, EZView, EZLive
|
| Web Browser |
Plug-In Required Live View: Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+
Plug-In Free Live View: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Wireless Standards |
802.11b/g/n
|
| Frequency Range |
2.4 to 2.4835 GHz
|
| Channel Bandwidth |
20 MHz Support
|
| Modulation Mode |
