Description

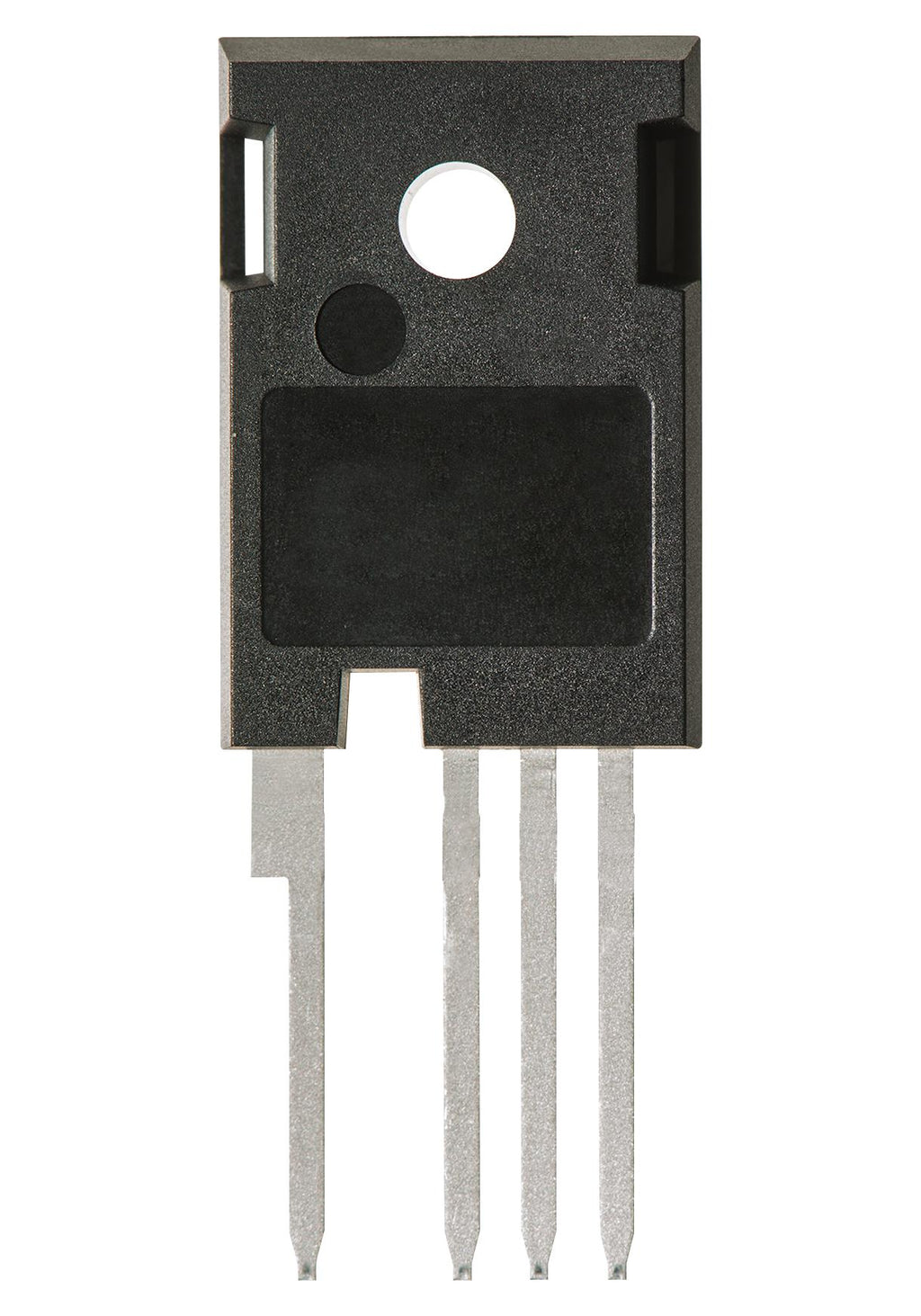

This is a UF3C065080K4S Silicon Carbide MOSFET , Single, N Channel, 31 A, 650 V, 0.08 ohm, TO-247 product from UNITEDSIC with the model number UF3C065080K4S
Product details
| MOSFET Module Configuration | Single |
| Channel Type | N Channel |
| Continuous Drain Current Id | 31A |
| Drain Source Voltage Vds | 650V |
| Drain Source On State Resistance | 0.08ohm |
| Transistor Case Style | TO-247 |
| No. of Pins | 4Pins |
| Rds(on) Test Voltage | 12V |
| Gate Source Threshold Voltage Max | 5V |
| Power Dissipation | 190W |
| Operating Temperature Max | 175°C |
| Product Range | - |
Other details
| Brand | UNITEDSIC |
| Part Number | UF3C065080K4S |
| Quantity | Each |
| Technical Data Sheet EN |  |
