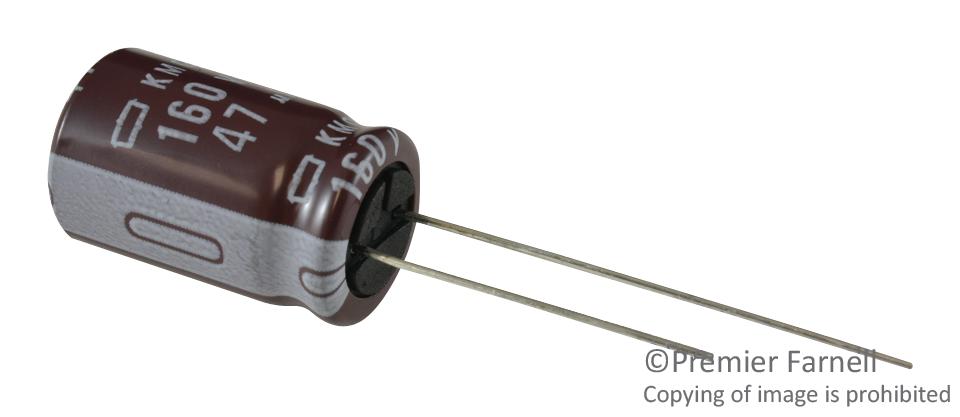

The KYB series capacitors from United Chemi-Con are radial leaded miniature aluminium electrolytic capacitors. These capacitors are perfect solution for applications which require low impedance, high ripple current and long life.
- Capacitance values ranges from 6.8µF to 22000µF
- Voltage rating available from 6.3VDC to 100VDC
- Capacitor size varies from 5mm x 11mm to 18mm x 40mm
- Capacitance tolerance is ±20%
- Operating temperature range from -40?C to 105?C
- Endurance with ripple current is 4000hours to 10000hours at 105?C
- Non solvent resistant type
- Newly innovative electrolyte is employed to minimize impedance
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Capacitance |
5600µF |
| Voltage Rating |
35V |
| Product Range |
KYB Series |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Radial Leaded |
| Diameter |
18mm |
| Lead Spacing |
7.5mm |
| Height |
35.5mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Lifetime @ Temperature |
10000 hours @ 105°C |
| ESR |
- |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
UNITED CHEMI-CON |
| Part Number |
EKYB350ELL562MMP1S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
