The KMW series capacitors from United Chemi-Con are snap-in type large capacitance aluminium electrolytic capacitors.
- Capacitance values ranges from 120µF to 1000µF
- Voltage rating available from 400VDC to 450VDC
- Capacitor size varies from 22mm x 25mm to 35mm x 50mm
- Capacitance tolerance is ±20%
- Operating temperature range from -25?C to 105?C
- Endurance with ripple current is 2000hours at 105?C
- Non solvent resistant type
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Capacitance |
560µF |
| Voltage Rating |
450V |
| Product Range |
KMW Series |
| Lifetime @ Temperature |
2000 hours @ 105°C |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Quick Connect, Snap-In |
| Diameter |
30mm |
| Lead Spacing |
10mm |
| Operating Temperature Min |
-25°C |
| Operating Temperature Max |
105°C |
| Height |
50mm |
| ESR |
- |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
UNITED CHEMI-CON |
| Part Number |
EKMW451VSN561MR50S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

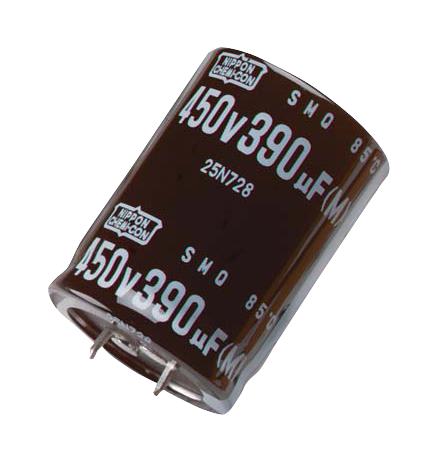

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
