Description
UGREEN 40896 Overview
- 1Description
- 2Charging Configurations
- 3Device Protection
- 4Fast Charging

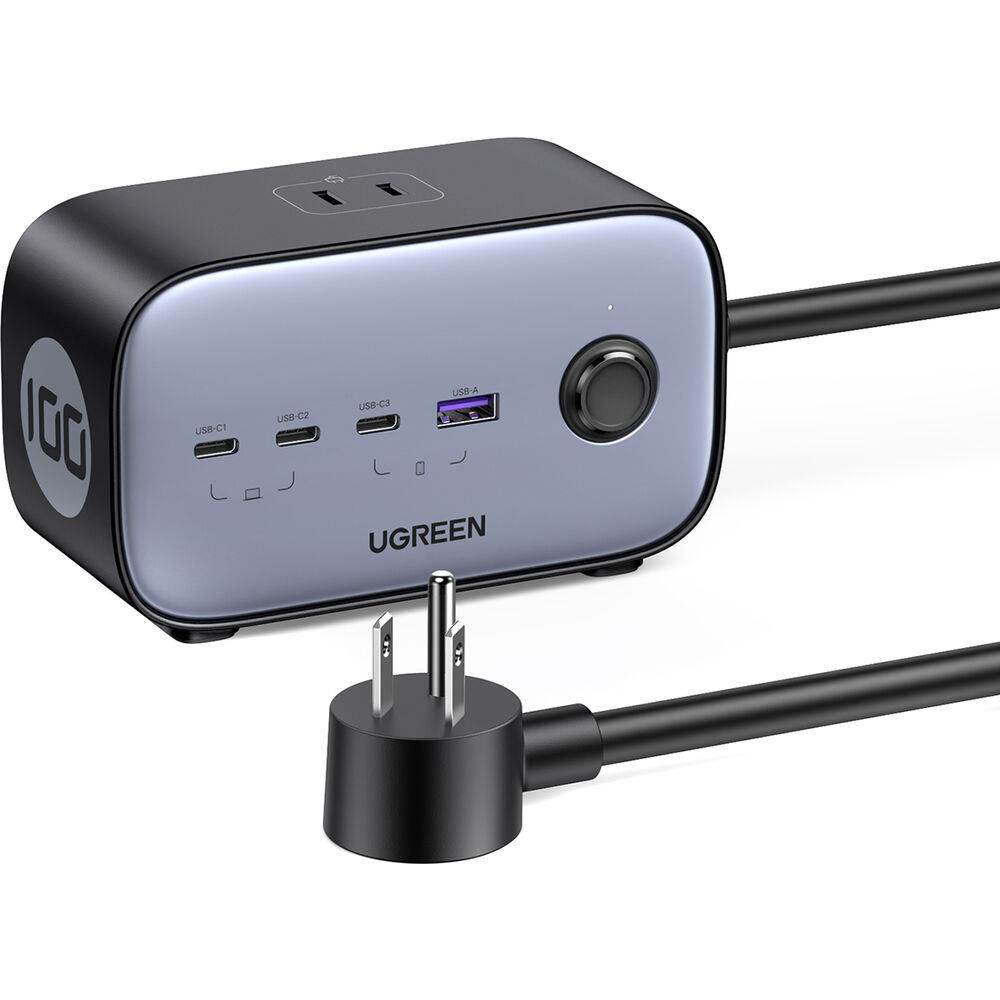

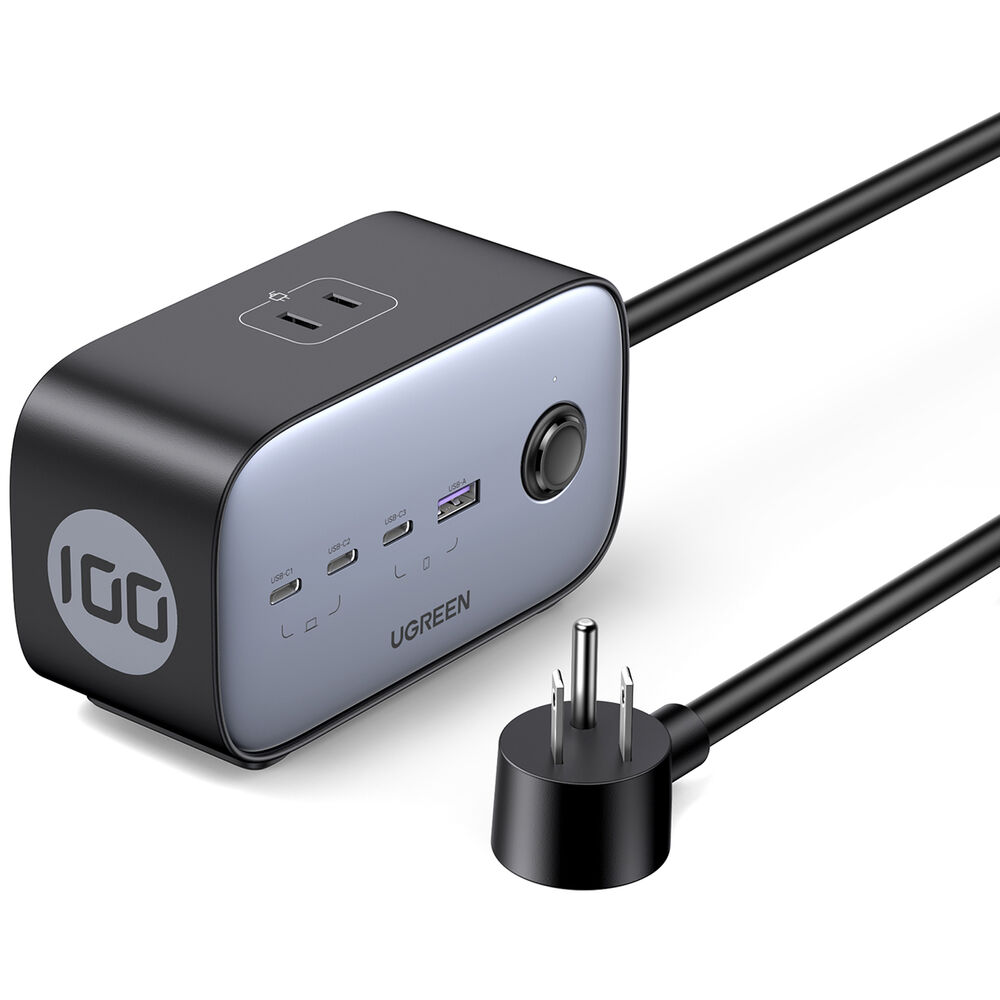

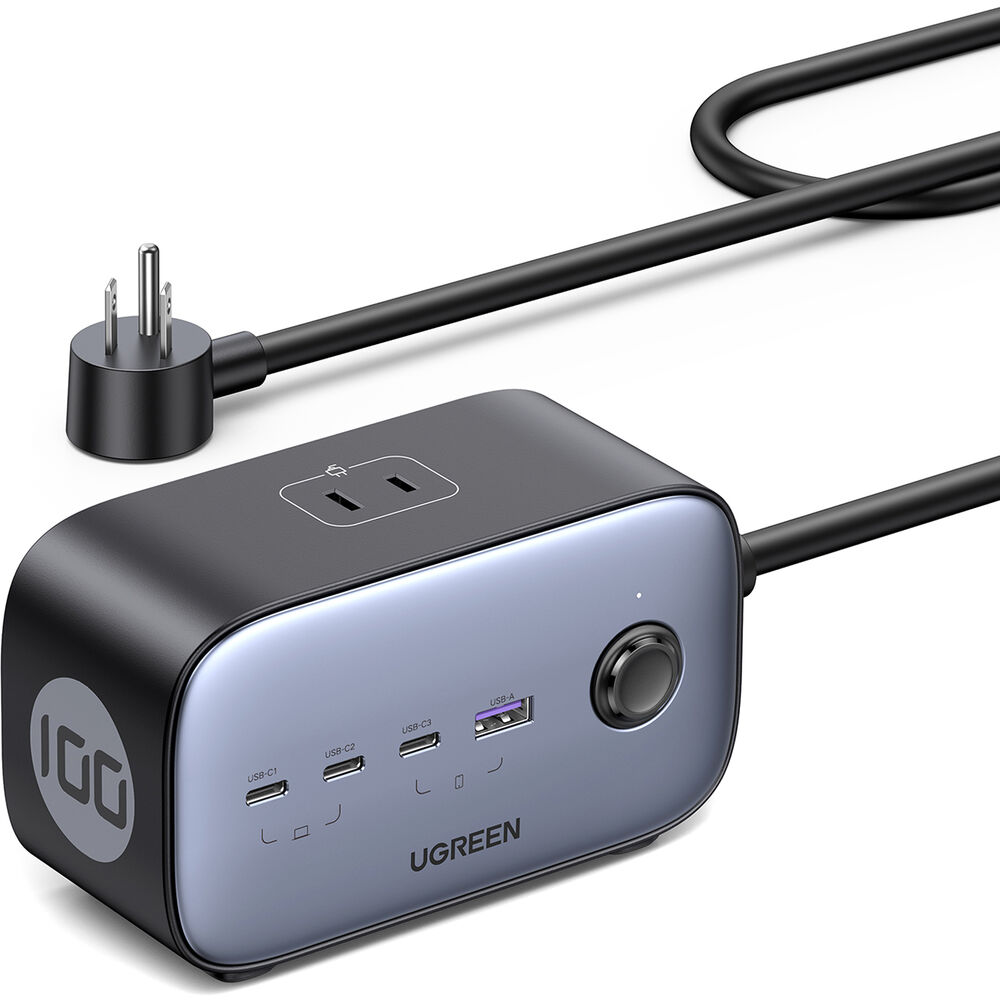

Part power strip and part charging dock, the 100W USB-C GaN 7-in-1 Desktop Charging Station from UGREEN is a 7-in-1 charging solution that can handle everything from phones to gaming laptops to desk lamps. For TVs, lamps, gaming consoles, and more, you can use the two rear 3-prong or one top 2-prong AC outlets. Together, the three outlets provide 1875W/15A of power. More powerful USB devices, such as notebooks, can use two of the USB-C ports, which provide up to 100W each when used individually. The third USB-C and USB-A port provide up to 22.5W individually for phones, tablets, and headphones. All power is supplied via the integrated 6' power cord and built-in technology helps to protect everything during charging.
Charging Configurations
The charger provides three USB-C ports (C1, C2 & C3), one USB-A port (A1), and three AC ports (two 3-prong and one 2-prong). The AC outlets deliver up to 1875W/15A of power for devices and appliances, but USB power output varies based on how the ports are used, whether that be a single port, all four, or any combination in between.
Single Port
- C1 or C2: Up to 100W PD
- C3: Up to 22.5W PD
- A1: Up to 22.5W SCP
Two Ports
- C1 + C2: Up to 65W + 30W PD
- C1 + C2: Up to 30W + 65W PD
- C1 + C3: Up to 65W + 22.5W PD
- C1 + A1: Up to 65W PD + 22.5W SCP
- C2 + C3: Up to 65W + 22.5W PD
- C2 + A1: Up to 65W PD + 22.5W SCP
- C3 + A1: Up to 5V/1.2A per Port
Three Ports
- C1 + C2 + C3: Up to 45W + 30W + 22.5W PD
- C1 + C2 + C3: Up to 30W + 45W + 22.5W PD
- C1 + C2 + A1: Up to 45W PD + 30W PD + 22.5W SCP
- C1 + C2 + A1: Up to 30W PD + 45W PD + 22.5W SCP
- C1 + C3 + A1: Up to 65W PD + 5V/2.1A + 5V/2.1A
- C2 + C3 + A1: Up to 65W PD + 5V/2.1A + 5V/2.1A
All Four Ports
- C1 + C2 + C3 + A1: Up to 45W PD + 30W PD + 5V/2.1A + 5V/2.1A
- C1 + C2 + C3 + A1: Up to 30W PD + 45W PF + 5V/2.1A + 5V/2.1A
Device Protection
As your devices recharge, built-in circuitry keeps them safe with protection from overvoltage, overcurrent, overheat, overload, and short circuits.
Fast Charging
To get your devices recharging quickly, the charging station supports Power Delivery 3.0, Quick Charge 4.0+, PPS, SCP, FCP, and AFC fast-charging protocols.
UPC: 850050704287
In the Box
- UGREEN 100W USB-C GaN 7-in-1 Desktop Charging Station
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Charging Configurations
- Device Protection
- Fast Charging
UGREEN 40896 Specs
Key Specs
| Power Outputs |
2x USB-C: 5 VDC at 3 A (15 W) / 9 VDC at 3 A (27 W) / 12 VDC at 3 A (36 W) / 15 VDC at 3 A (45 W) / 20 VDC at 5 A (100 W)
1x USB-C: 5 VDC at 3 A (15 W) / 9 VDC at 2.5 A (22.5 W) / 12 VDC at 1.88 A (22.56 W) 1x USB-A: 5 VDC at 4.5 A (22.5 W) / 5 VDC at 3 A (15 W) / 9 VDC at 2 A (18 W) / 12 VDC at 1.5 A (18 W) 2x 3-Prong Edison: 120 VAC at 15 A (1875 W) Shared 1x 2-Prong Edison: 120 VAC at 15 A (1875 W) Shared |
| Max Combined Power Output |
1875 W (15 A)
|
| Fast Charging Technology |
PPS, Qualcomm Quick Charge 3.0, Qualcomm Quick Charge 4+, Samsung Adaptive Fast Charger, USB Power Delivery
|
Power Output
| Power Outputs |
2x USB-C: 5 VDC at 3 A (15 W) / 9 VDC at 3 A (27 W) / 12 VDC at 3 A (36 W) / 15 VDC at 3 A (45 W) / 20 VDC at 5 A (100 W)
1x USB-C: 5 VDC at 3 A (15 W) / 9 VDC at 2.5 A (22.5 W) / 12 VDC at 1.88 A (22.56 W) 1x USB-A: 5 VDC at 4.5 A (22.5 W) / 5 VDC at 3 A (15 W) / 9 VDC at 2 A (18 W) / 12 VDC at 1.5 A (18 W) 2x 3-Prong Edison: 120 VAC at 15 A (1875 W) Shared 1x 2-Prong Edison: 120 VAC at 15 A (1875 W) Shared |
| Max Combined Power Output |
1875 W (15 A)
|
| Included Cable |
No
|
| Fast Charging Technology |
PPS, Qualcomm Quick Charge 3.0, Qualcomm Quick Charge 4+, Samsung Adaptive Fast Charger, USB Power Delivery
|
Power Input
| Plug Type |
Type B via Integrated Power Cable
|
| AC Input Power |
125 VAC, 50 / 60 Hz at 15 A
|
| Protections |
Overcurrent Protection, Overvoltage Protection, Short-Circuit Protection, Overheating Protection, Overcharge Protection
|
General
| Cable Length |
6' / 1.8 m
|
| Dimensions |
5 x 3 x 2" / 12.7 x 7.6 x 5.1 cm
|
| Weight |
1.31 lb / 0.59 kg
|
Packaging Info
| Package Weight |
1.74 lb
|
| Box Dimensions (LxWxH) |
7 x 5.6 x 2.9"
|
