Description
- Optimized for 802.11ac Wi-Fi Standard
- Dual-Band / Dual-Polarity
- Three-Axis Ball Joint Mount
- Encased in UV-Stabilized Plastic
- For Indoor or Outdoor Use
Designed to be used with the Ubiquiti Networks UAP-AC-M Access Point, the Ubiquiti Networks UniFi Directional Antenna features dual-band, dual-polarity operation along with support for the 802.11ac Wi-Fi networking standard. Installation is simple, as this antenna can be installed to work in a variety of environments, thanks to the included installation kits. It is even possible to aim the antenna in a specified direction thanks to the three-axis ball joint. Once installed, the UV stabilized plastic enclosure ensures this antenna will stand up against the elements.
- Antenna Features
- Optimized for 802.11ac, the UMA-D offers a high-efficiency directional radiation pattern with dual polarity.
- Weather-Resistant Enclosure
- Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
- Versatile Mounting

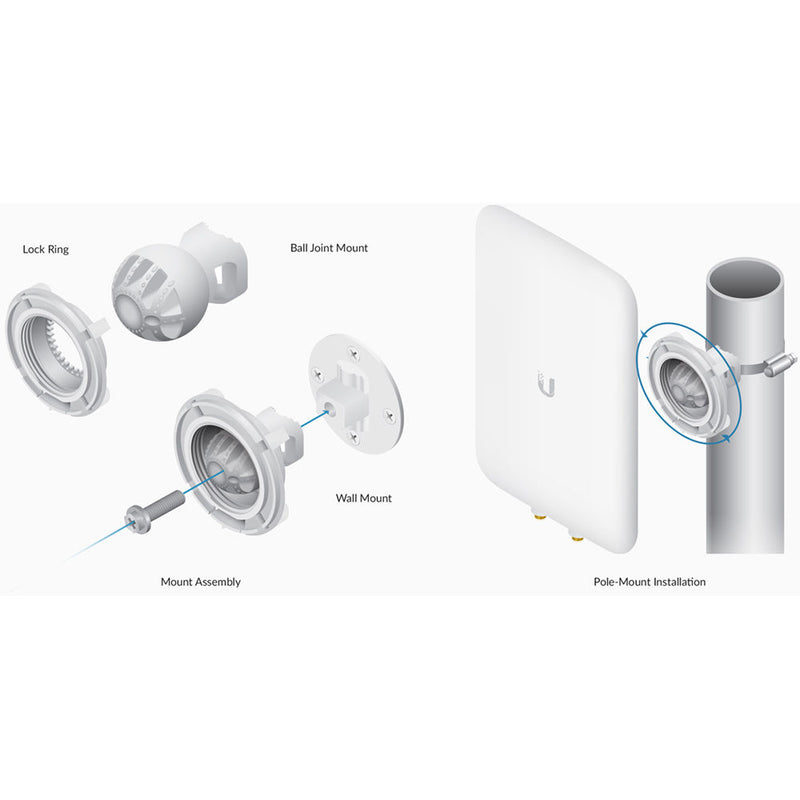

- The UMA-D has a ball-joint mount designed for precise aiming and can be mounted on a pole or wall.
- Compatibility
- The UMA-D antenna is compatible with the UAP-AC-M.
UPC: 817882022736
In the Box
Ubiquiti Networks UniFi Directional Dual-Band Antenna for UAP-AC-M
| Enclosure | Outdoor UV stabilized plastic |
| RF Connectors | 2 x RP-SMA |
| Frequency Range | 2.4 - 2.5 GHz, 5.1 - 5.9 GHz |
| Hpol Beamwidth | 2.4 GHz: 90° 5 GHz: 45° |
| Vpol Beamwidth | 2.4 GHz: 90° 5 GHz: 45° |
| Elevation Beamwidth | 2.4 GHz: 90° 5 GHz: 45° |
| VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-Pol Isolation | 2.4 GHz: 25 dB 5 GHz: 30 dB |
| Antenna Gain | 2.4 GHz: 10 dBi 5 GHz: 15 dBi |
| Mounting | Wall/pole (kits included) |
| Dimensions | 7.93 x 5.04 x 1.28" / 201.3 x 128.0 x 32.5 mm |
| Weight | With Mount: 16.93 oz / 480 g Without Mount: 14.11 oz / 400 g |
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 10.1 x 6.3 x 2.6" |
