Ubiquiti Networks UAP-AC-LITE-5 UniFi Access Point Enterprise Wi-Fi System (5-Pack)

The UAP-AC-LITE-5 UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 867 Mb/s in the 5 GHz radio band, and up to 300 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 2 x 2 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.

The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

UniFi AP

Save Money and Save Time

The UniFi AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine, in a private cloud, or using a public cloud service.

Wi-Fi 802.11ac MIMO Technology

The 802.11ac MIMO Technology offers Gigabit speeds and range up to 400'.

Intuitive UniFi Controller Software

Install, configure, and manage all of the UniFi APs with the intuitive and user-friendly UniFi controller user interface.

Expandable

Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.

Controller

UniFi Controller

Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

Analytics

You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Guest Portal/Hotspot Support

Easy customization options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customization, and branding of hotspot portal pages.

Multi-Site Management

A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.

WLAN Groups

The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.

Maps

Upload map images of your location for a visual representation of each wireless network.

Statistics

UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.

Extend Your Coverage

With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.

Easy Mounting

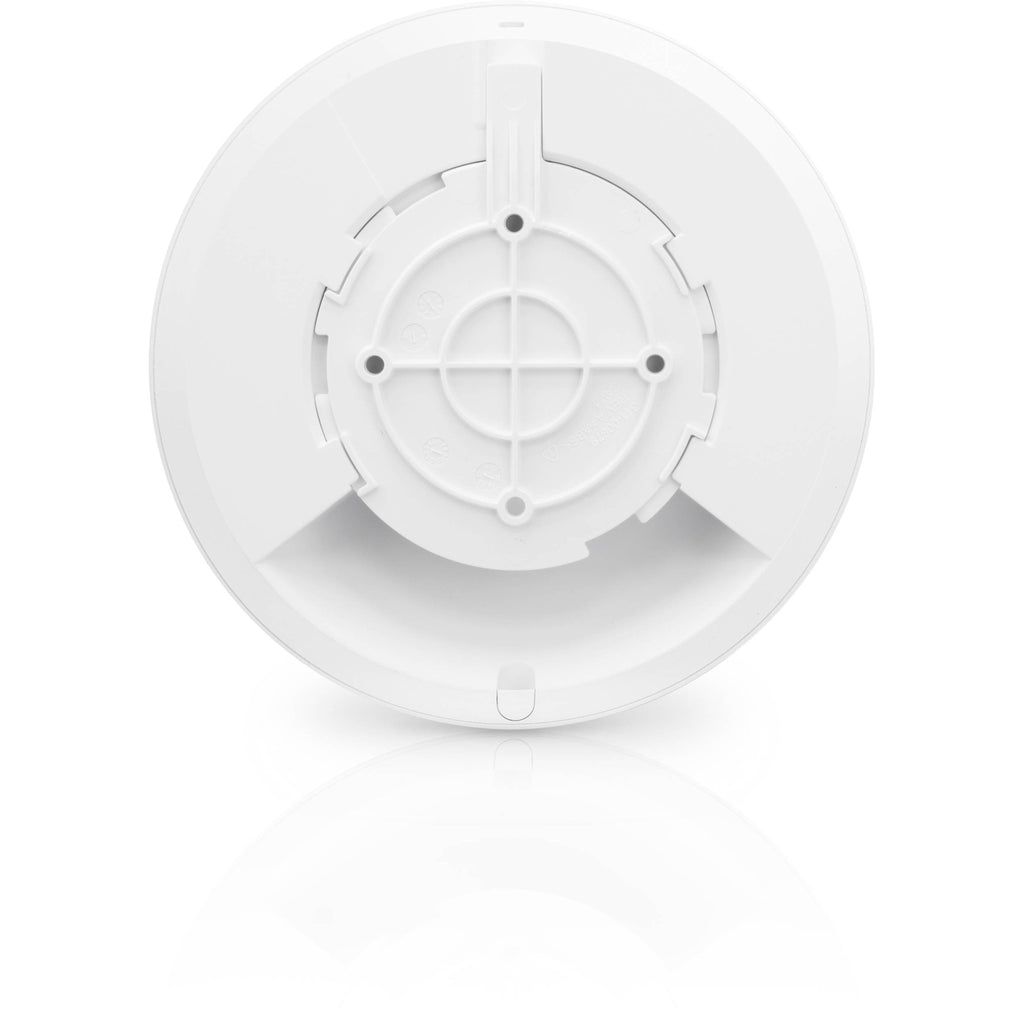

Sleek wall or ceiling mount design (all accessories included).

Design

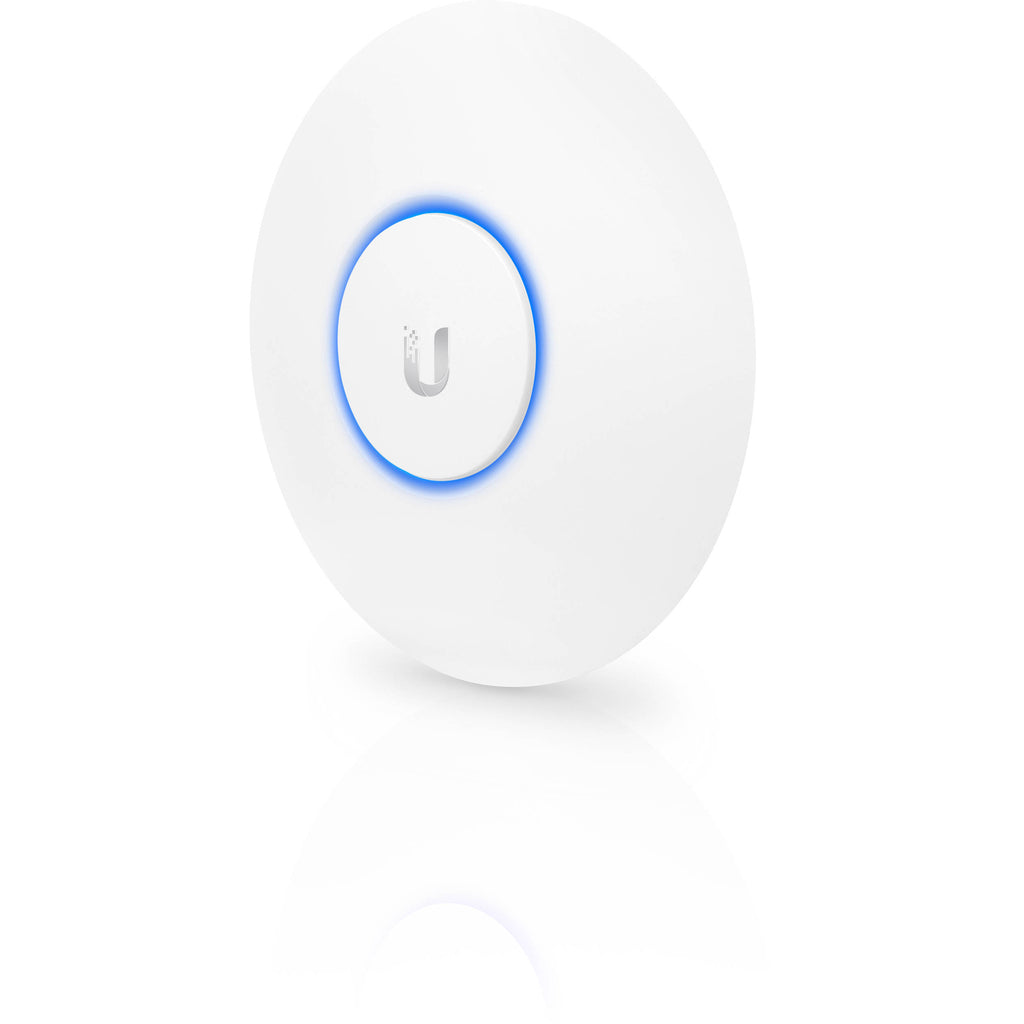

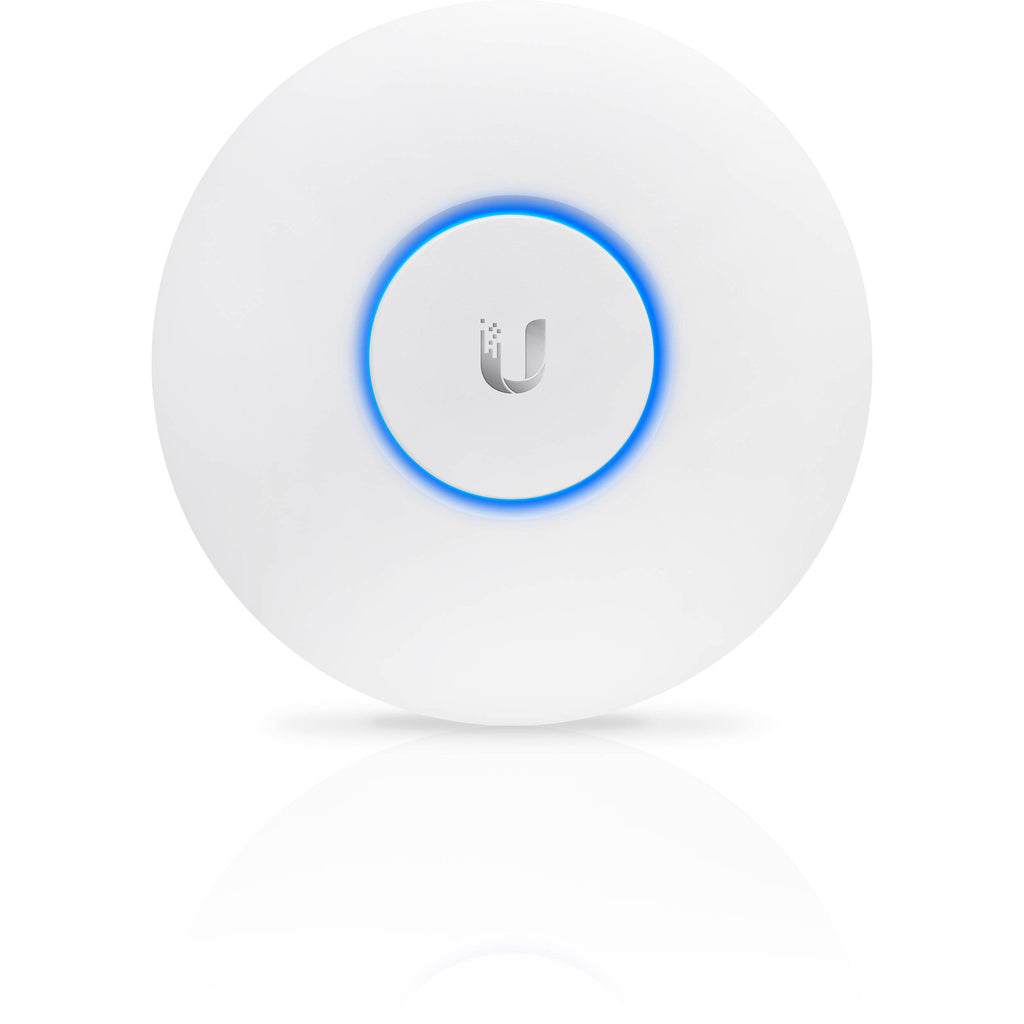

It has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.

Power over Ethernet (PoE)

Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device. The unit can also be powered from the Ubiquiti TOUGHSwitch PoE PRO (sold separately).

General

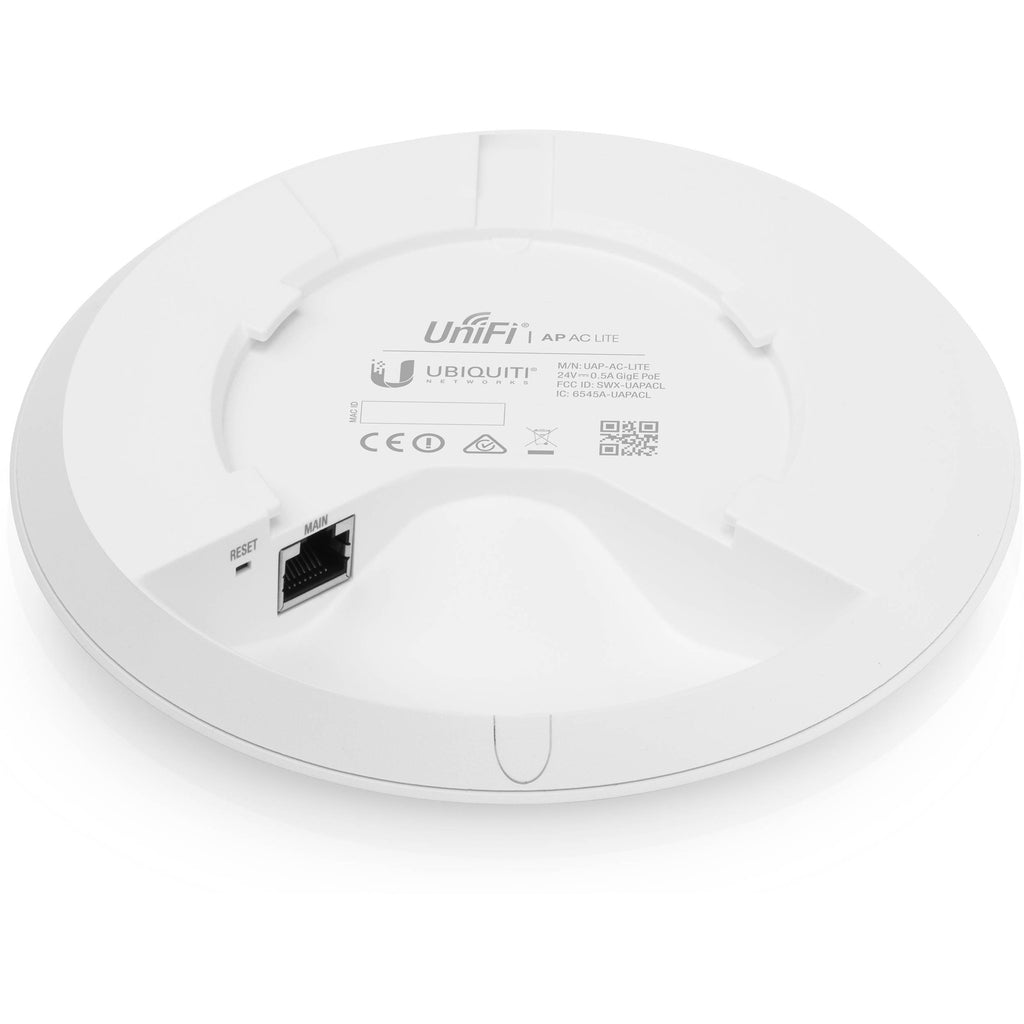

Networking Interface	1 x 10/100/1000 Ethernet ports
Button	Reset
Antennas	2 x Dual-band antennas, 3 dBi each
Wi-Fi Standards	802.11a/b/g/n/ac
Power Method	Passive Power over Ethernet (24 V), (Pairs 4, 5+; 7, 8 Return)
Power Supply	N/A
Maximum Power Consumption	6.5 W
Maximum TX Power	2.4 GHz: 20 dBm 5 GHz: 20 dBm
BSSID	Up to 4 per radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Ceiling (kits included)

Advanced Traffic Management
VLAN	802.1Q
Advanced QoS	Per user rate limiting
Guest Traffic Isolation	Supported
WMM (Wi-Fi Multimedia)	Voice, video, best effort, and background
Concurrent Clients	200+

Supported Data Rates (Mb/s)
Standards	802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mb/s 802.11n 6.5 to 450 Mb/s (MCS0 - MCS23, HT 20/40) 802.11ac 6.5 to 1300 Mb/s (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) 802.11b 1, 2, 5.5, 11 Mb/s 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mb/s

Physical Characteristics
Dimensions	6.30 x 6.30 x 1.24" / 160.00 x 160.00 x 31.45 mm
Weight	Without Mounting Kit: 6.0 oz / 170 g With Mounting Kit: 6.5 oz / 185 g

Packaging Info
Package Weight	4.0 lb
Box Dimensions (LxWxH)	8.5 x 7.8 x 7.5"
