Ubiquiti Networks UOC-3 Overview

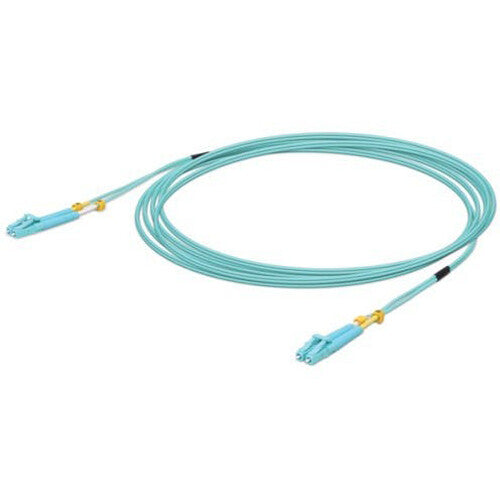

Quickly expand your network with the flexible and lightweight 9.8' Multimode LC Fiber Optic Patch Cable from Ubiquiti Networks. Designed primarily for indoor 10G data and telecommunications networks, this aqua-colored multimode (OM3) LC cable features a 50 / 125µm fiber mode, an 850 / 1310nm wavelength, and a standard UPC polish. Its 2mm PVC jacket provides a high bend radius, allowing the cable to fit most installations.
Ubiquiti Networks UOC-3 Specs
General
Connector 1 |
LC |
Connector 2 |
LC |
Cable Length |
9.8' / 3 m |
Fiber Type |
OM3 Multimode |
Core Size |
50 µm |
Return Loss |
0.3 dB |
Attenuation |
< 50 dB/km @ 850 nm < 50 dB/km @ 1310 nm |
Physical and Environmental
Outer Diameter |
0.1" / 2 mm |
Jacket Type |
Polyvinyl Chloride (PVC) |
Operating Temperature |
-40 to 167°F / -40 to 75°C |
Safety Certification |
None |
Packaging Info
Package Weight |
0.09 lb |
Box Dimensions (LxWxH) |
14.35 x 14.25 x 0.65" |
