Description

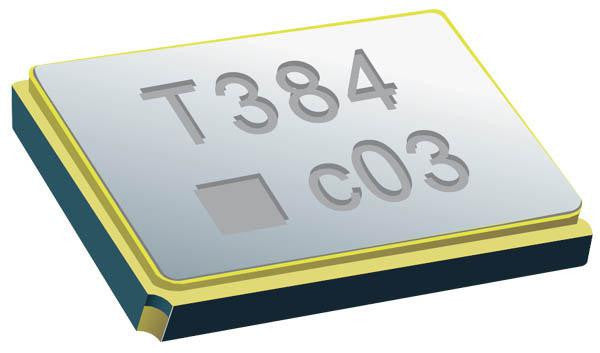

This is a CRYSTAL, 48MHZ, 12PF, 3.2 X 2.5MM product from TXC with the model number AM-48.000MAGE-T
Product details
| Frequency Nom | 48MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 12pF |
| Frequency Tolerance + / - | 30ppm |
| Product Range | AM Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
Other details
| Brand | TXC |
| Part Number | AM-48.000MAGE-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
