Description

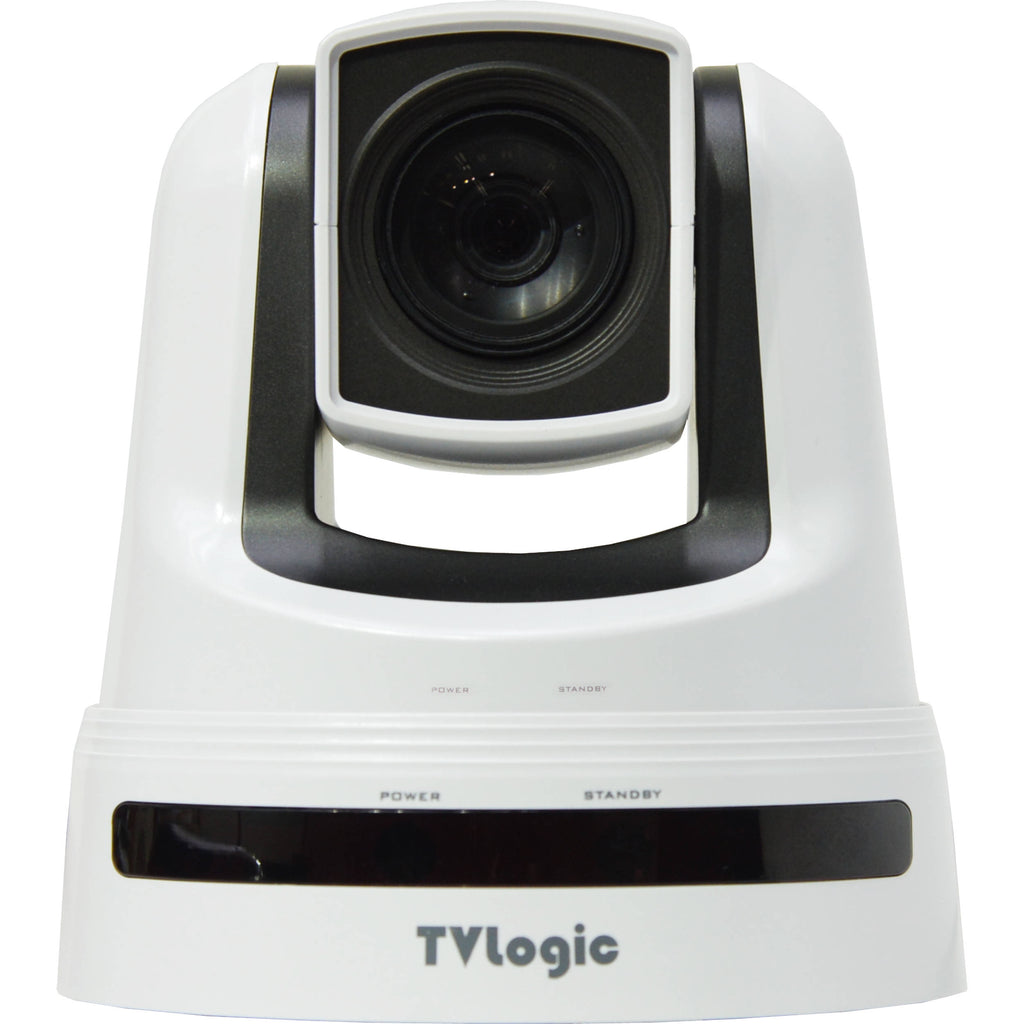

TVLogic TVC-FA301N Overview
The TVC-FA301N Full HD Professional PTZ Camera from TVLogic features a 1/2.8" Exmor CMOS sensor and outputs over 3G-SDI, HDMI, DVI-I, and composite CVBS. It provides low-light sensitivity of 1.4 lux at 1/30 seconds. Equipped with a 4.3 to 129mm zoom lens with 30x optical zoom and 12x digital zoom, this PTZ camera gives you a wide viewing range and allows you to zoom in for a closer look. The camera supports VISCA control protocols, as well as RS-232, RS-422, and RS-485. You can program the camera with up to 225 assignable preset positions.
1/2.8" Exmor CMOS sensor
Maximum resolution of 1920 x 1080p60
30x optical zoom, 12x digital zoom
Maximum number of 225 assignable presets enables you to save various settings
Slow shutter, day & night, smart flip, swing, pattern, and group functions
IR cut filter
In the Box
- TVLogic TVC-FA301N Full HD Professional PTZ Camera
- IR Remote with Battery
- AC Adapter
- 9-Pin Connector
- Camera Body Bracket
- Ceiling Bracket
- RS-232C to UTP Cable
- Mounting Hardware
TVLogic TVC-FA301N Specs
| Sensor | 1/2.8" Exmor CMOS |
| Resolution | 1920 x 1080 (approximately 2.38 million pixels) |
| Video Output Format | 1920 x 1080p 60/59.94/50/30/25 1920 x 1080i 60/59.94/50 1280 x 720p 60/59.94/50 720 x 576i (PAL), composite only 720 x 480i (NTSC), composite only |
| Video Output | 1 x HD-SDI 1 x HDMI 1 x DVI-I 1 x Composite |
| Zoom | Optical Zoom: 30x Digital Zoom: 12x |
| Lens | 4.3 to 129mm f/1.6 to f/4.7 |
| Viewing Angle | 63.7° (W) 2.3° (T) |
| Minimum Luminance | 0.35 lux (1/30 sec, high-sensitivity on) 1.4 lux (1/30 sec, high-sensitivity off) 0.05 lux (1/4 sec, high-sensitivity on) 0.19 lux (1/4 sec, high-sensitivity off) |
| Day & Night | AGC, TDN (ICR) |
| Focus | Semi-auto / Auto / Manual |
| Image Flip | On / Off |
| Zoom Speed | 0 to 7 |
| AF Sensitivity | Normal / Low |
| Defog | Off / Low / Mid / High |
| Sensitivity | High: Off / On |
| Noise Reduction | Off / 1 to 5 |
| Aperture | 10, 0 to 15 |
| White Balance | Auto / Indoor / Outdoor / One-Push / ATW / Manual / Outdoor Auto / Sodium Auto / Sodium / Sodium Out Auto |
| Auto Exposure | Full Auto / Bright / Shutter Pri / Iris Pri / Manual |
| WDR Mode | Off / On / VE |
| BLC | Off / On |
| Pan / Tilt | Moving Angle: Pan -172° to 172° (non-endless) Tilt -30° to 210° (auto flip), -30° to 95° Jogging Speed: Manual 0.002°/sec to 360°/sec (zoom scale interlocked) Preset 360°/sec, Swing 1°/sec to 180°/sec Preset Setup: 254 preset (label setup, each display setup) (Pelco) 255 preset (VISCA) Swing Setup: 8 Pattern Setup: 8 Group Setup: 8 group (20 movements/group) |
| Camera ID | Pelco: 1 to 15 VISCA: 1 to 14 setting |
| Communication | RS-422/485, RS-232C, IR remote |
| Protocol | Pelco-D/P, VISCA |
| OSD | Menu, position, and more |
| Power | 12 VDC, ± 10% (1 A maximum) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 4.33 x 5.75 x 0.63" / 110 x 146.2 x 16.2 mm |
| Weight | Approximately 2.97 lb / 1.35 kg |
