Description

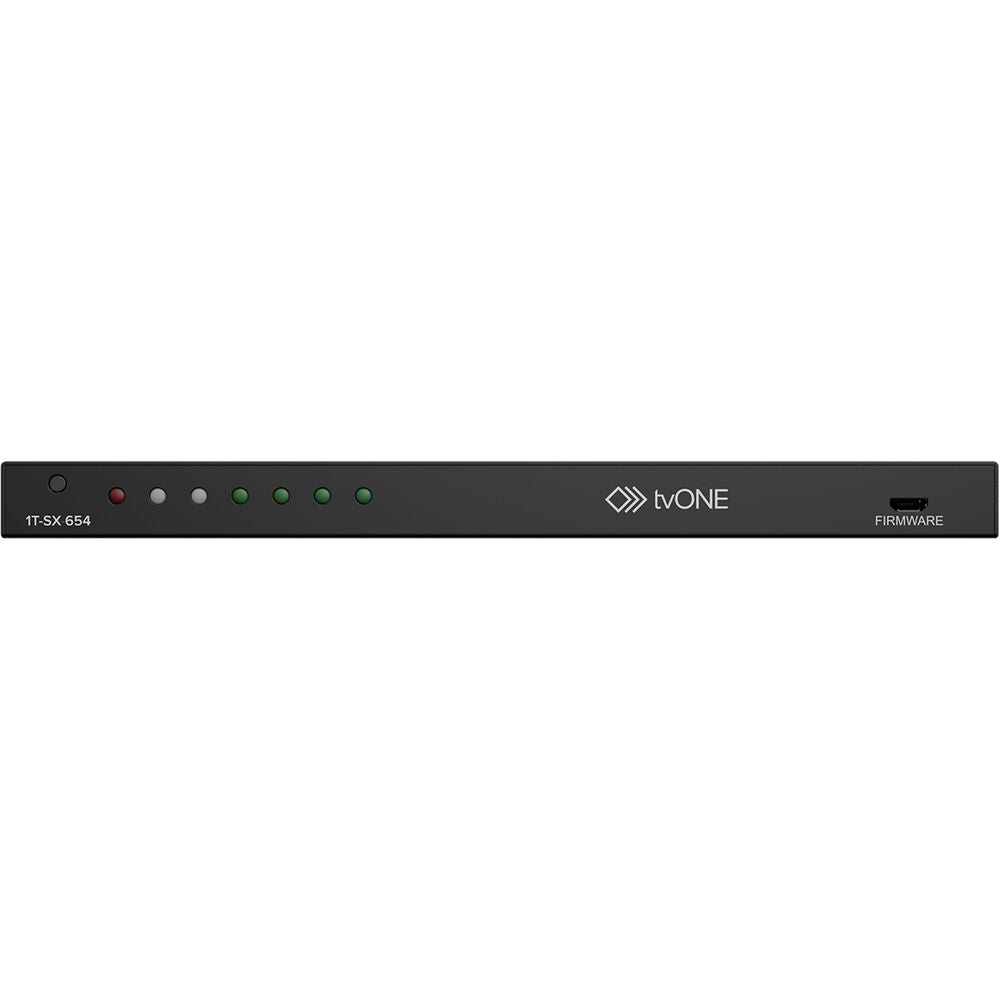

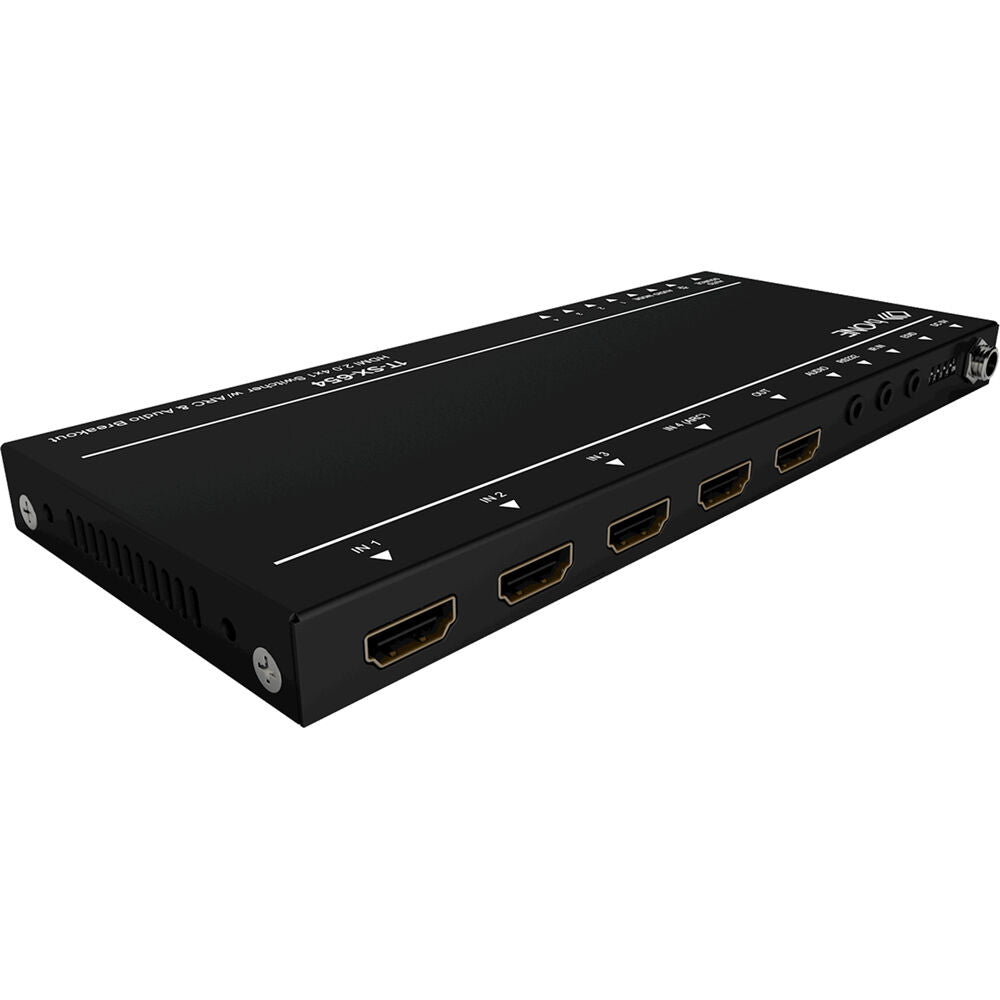

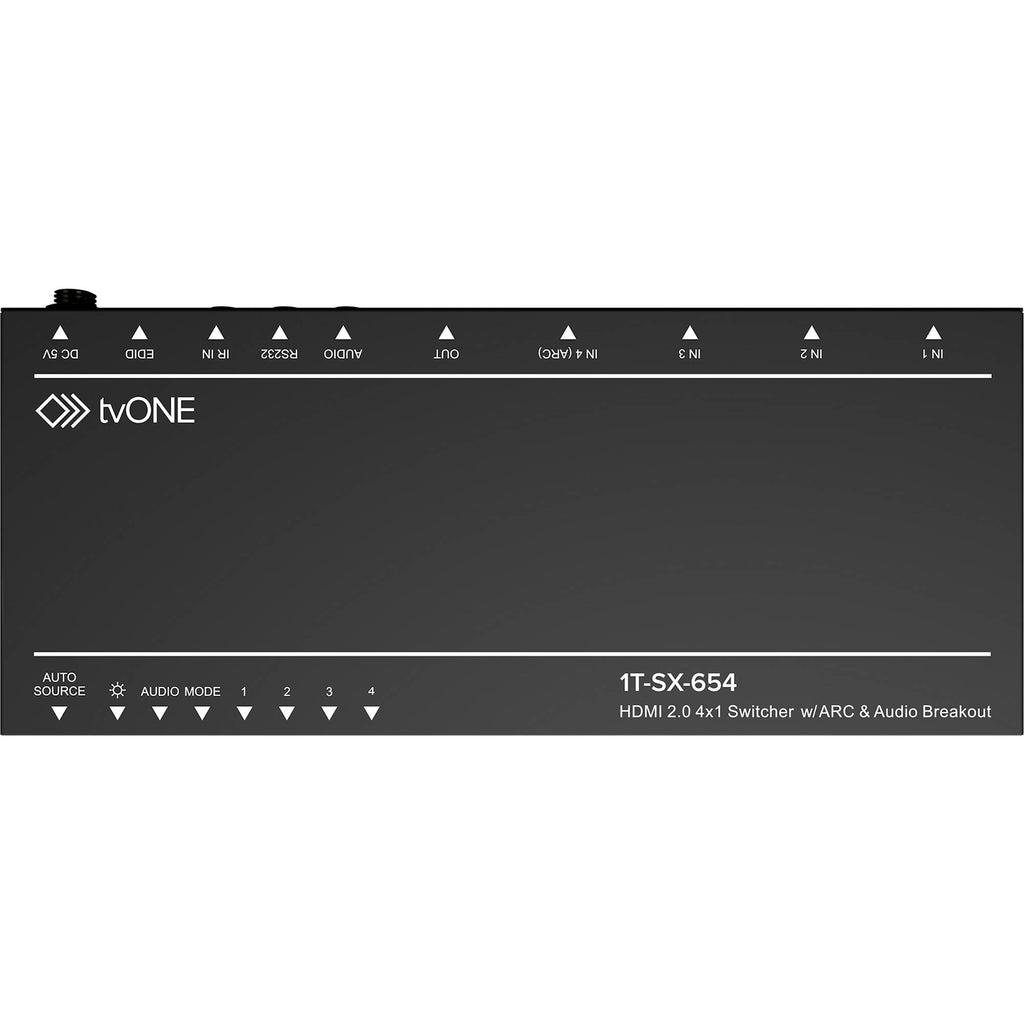

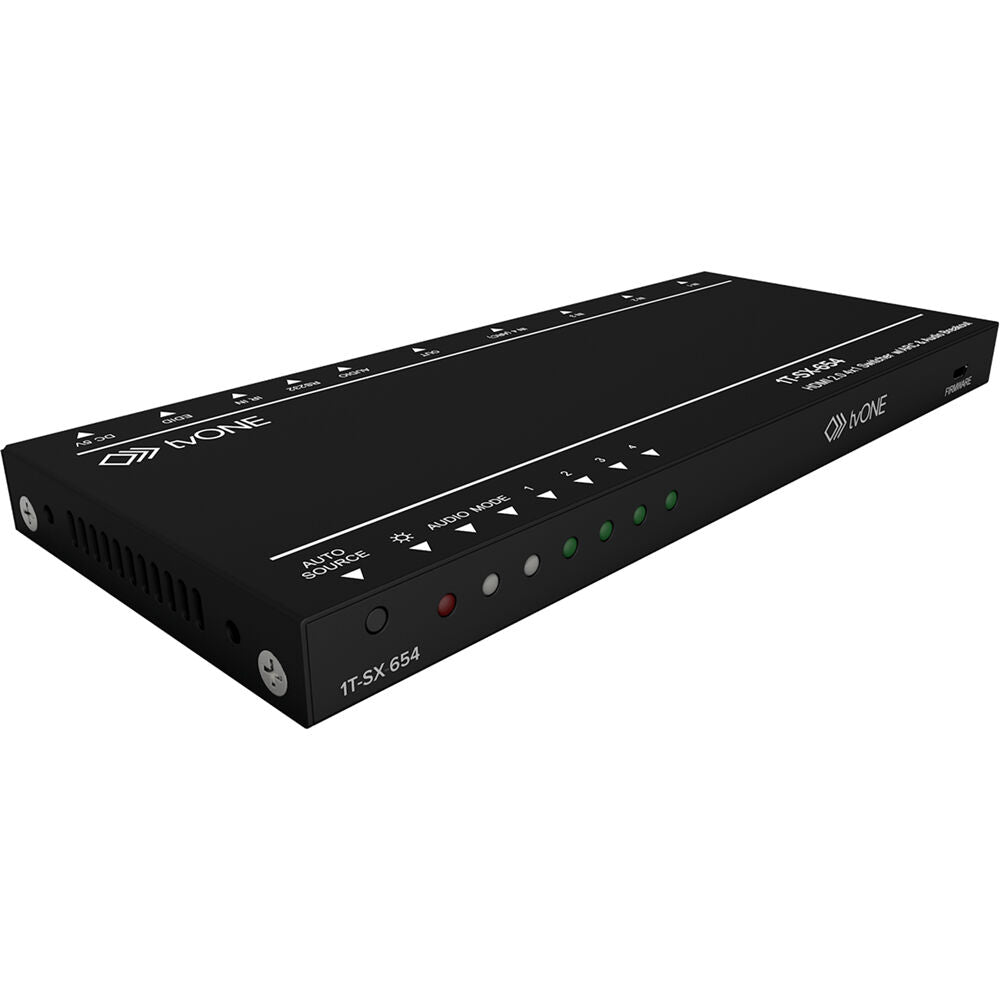

TV One 1T-SX Overview
Switch four HDMI inputs onto one HDMI display using this Ultra Slim 4x1 4K60 HDMI 2.0 Video Switcher with HDCP 2.2 from TV One. The switcher supports input and output of up to UHD 4K60 video with embedded audio for display from multiple sources such as a computer, Blu-ray, camera for display on a monitor, TV, switcher, recorder, live broadcast/stream, or digital signage. It fits right into your classroom, conference room, showroom, lecture hall, retail display, and wherever you need a display with multiple sources.
Video features include support for HDCP 2.2, advanced EDID management, and ARC (audio return channel). It can input and pass through embedded PCM and Dolby digital audio, and you can de-embed the audio over the 3.5mm line output to a speaker system or mixer.
The switcher can be set to auto-switching or can be controlled using the front toggle button, remotely by the included IR remote, and you can also control it via the RS-232 port with a separately available serial controller. A universal USB power supply is included as well as a 3.5mm to DB-9 serial adapter cable, an IR receiver cable, rubber feet, and rack ears.
In the Box
- TV One Ultra Slim 4x1 4K60 HDMI 2.0 Video Switcher with HDCP 2.2
- TV One 5V, 1A Replacement Locking Power Supply for 1T-SX-654, MG-DA-612, MG-DA-614
- IR Remote
- IR RX Cable
- 4 x Rubber Feet
- 2 x Rack Ear
- Limited 1-Year Warranty
TV One 1T-SX Specs
| Switching Type | Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 4:4:4 |
| Video Input Connectors | 4 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (4:4:4) UHD 4K: 60 fps DCI 2K: 60 fps |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Connectors | 1 x HDMI (HDMI 2.0) Female |
| Output Video Format | HDMI (4:4:4) UHD 4K: 60 fps DCI 2K: 60 fps |
| Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Embedded Audio Output | HDMI: 2-Channel |
| Other I/O | 1 x 3.5 mm IR Input 1 x 3.5 mm RS-232 Input 1 x USB Micro-B Firmware Input |
| HDCP Support | Version 2.2 |
| Power Connector | 1 x Barrel (5 VDC at 1 A) Input |
| Power Consumption | Device: 100 to 240 VAC (5 W) Power Supply: 5 VDC at 1 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Weight | 6.3 oz / 180 g |
| Package Weight | 1.675 lb |
| Box Dimensions (LxWxH) | 9.3 x 5.2 x 4.6" |
