Description
TV One C2-6104 Overview

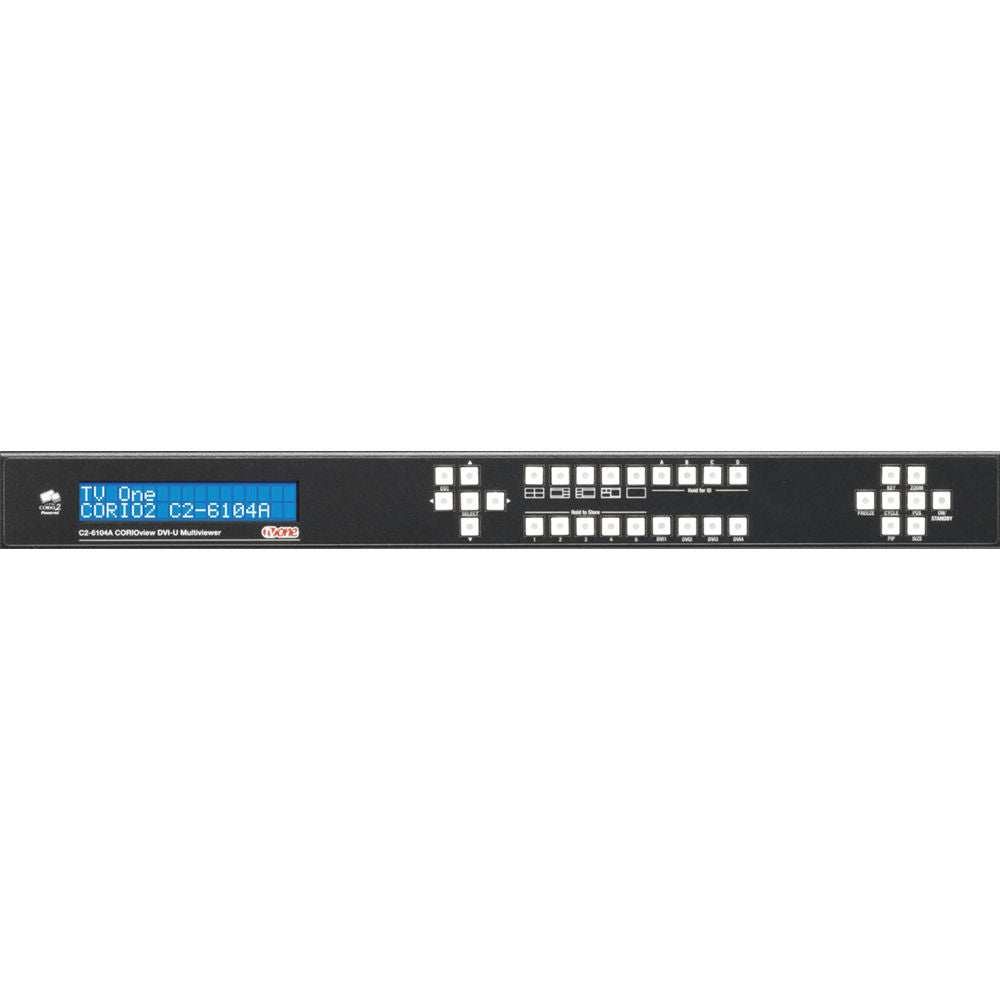

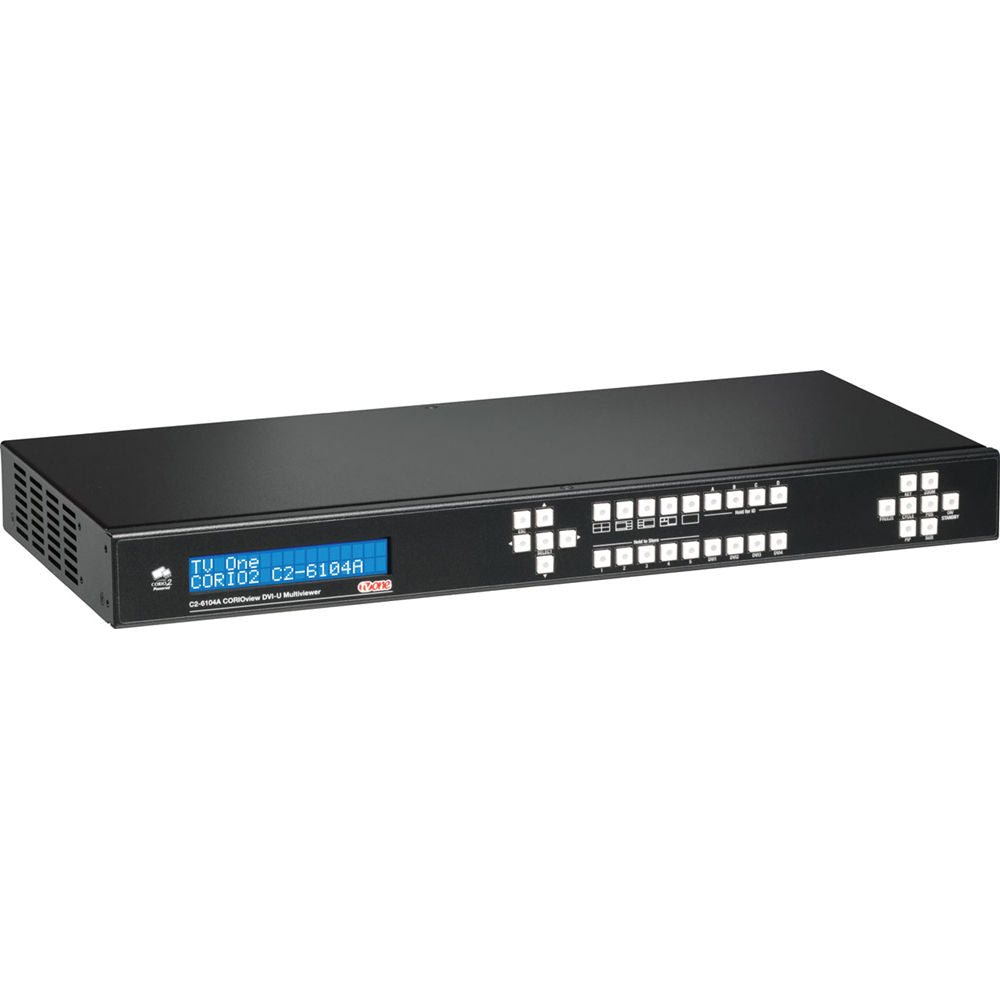

The TV One CORIOview C2-6104A 4-window DVI-I Processor is a multi-window video processor that allows display of up to 4 substantially sized windows on a single DVI-I output. Four, high performance CORIO2 Scaling Engines power the 4 windows respectively, providing complete PIP flexibility. CORIO2 is a proprietary technology integrated into chipsets to allow for freedom from constraints imposed by third-party chipsets.
Conditions of obsolescence can be eliminated as firmware can be upgraded from the support website. Five DVI-U inputs, sustained by the exclusive CORIO2 technology, offer similar features as DVI-I inputs, with the additional capability of accepting composite video signals. The fifth input is reserved only for reference, background usage or cascading of multiple units.
Four internal still image stores are incorporated into the CORIOview C2-6104A Processor, each allowing the display of one of ten user loadable images in place of an input. DVI-D resolution of 1920x1200@60Hz and 1080p, along with a DVI-A analog resolution of 2048x2048@60Hz is possible at any refresh rate. A wide range of analog inputs such as RGBHV/RGBS/RGsB/YPbPr/CV are supported by the CORIOview C2-6104A 4-window DVI-I Processor, providing a high measure of flexibility.
Ten user defined presets, accessible and directly controllable from the front panel, allow easy customization of settings for a variety of applications. YUV, YPbPr and CV source input compatibility is possible due to high performance de-interlacing and motion-adaptive noise reduction. Variable zoom/shrink feature allows the graphic image to be enlarged up to 10X or to be shrunk to 10% to fit multiple images together.
In the Box
- TV One CORIOview 4-window DVI-I Processor
- 6' (2m) AC Power Cord
- VGA to DVI Adapter (ZDH-2040)
- BNC to DVI Adapter (ZDC-2050)
- Operations Manual
- Rackmount Kit (2 ears and 4 screws)
- Control Software (downloadable from website)
- 1 Year Parts & Labor Warranty
TV One C2-6104 Specs

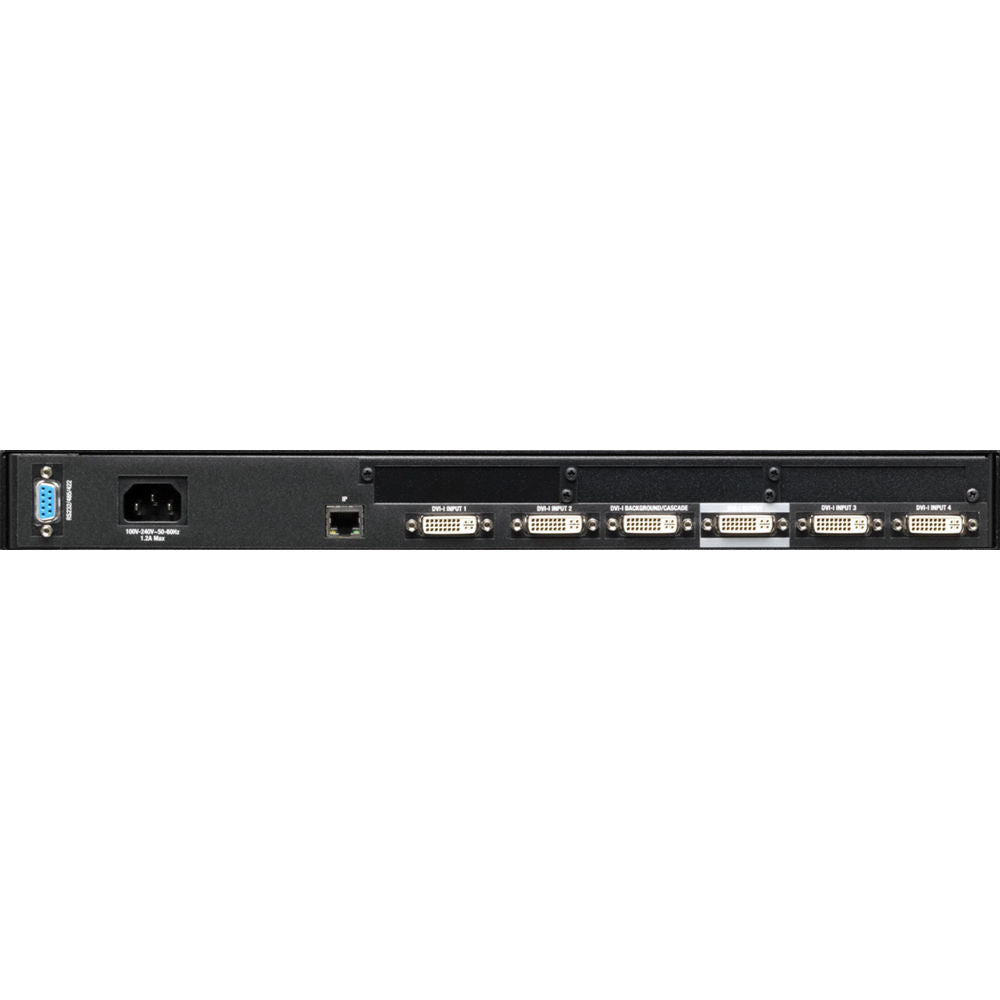

| Input Connectors | 5 x DVI-I |
| Output Connectors | 1 x DVI-I |
| Other I/O | 1 x RJ45 1 x DE-9/DB-9 RS-232, RS-422, RS-485 |
| Video Format | DVI (4:4:4 RGB, RGBHV) 1080p: 60 fps |
| PC Resolutions | DVI: 1920 x 1200 at 60 Hz |
| Impedance | 75 Ohms (Video, Input) |
| Signal Level | 0.5 to 2 Vp-p (Video, Input) |
| Power Consumption | Power Supply: 100 to 240 VAC (50 W) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Operating Humidity | 10 to 85% |
| Storage Humidity | 10 to 85% |
| Rack Form Factor | 1 RU |
| Certifications | CE, FCC, GS, PSE, RoHS, UL, as per Manufacturer |
| Dimensions | 17.0 x 7.9 x 1.8" / 420.0 x 200.0 x 44.0 mm 19.0 x 7.9 x 1.8" / 482.0 x 200.0 x 44.0 mm (Including Rack Ears) |
| Package Weight | 10.65 lb |
| Box Dimensions (LxWxH) | 22.9 x 18.4 x 4.9" |
