Description
- Up / Down / Cross Conversion
- Frame Rate Conversion & Pulldown Support
- 3G-SDI, DVI, HDMI and Analog In / Out
- Keying and Custom Resizing Possible
- Genlock for Seamless Video Switching
- Auto-Switching with Input Detection
- Audio Embedding / De-Embedding
- OSD, IP, and RS-232 Control Options
- Seamless Cut, Fade or Wipe Transitions
- Rack-Moutable with Optional Kit

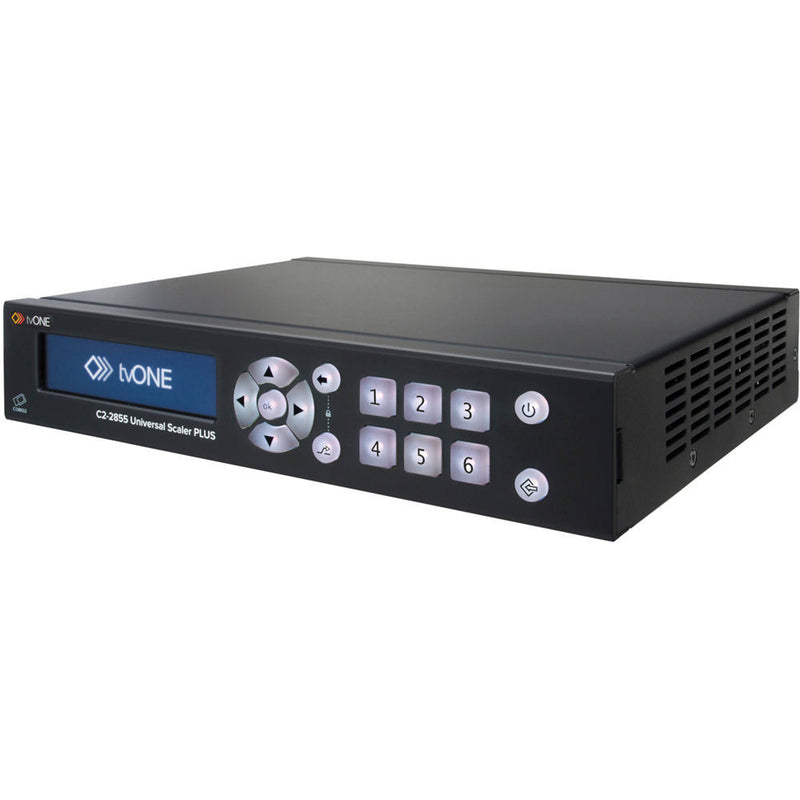

The C2-2855 Universal Scaler PLUS from TV One allows you to convert just about any type of video signal to just about any other signal with less than two frames of latency. It can support resolutions up to 1920 x 1200 at 60 Hz and will accept as well as output composite, component, VGA, DVI, HDMI, and SDI. Additionally, analog audio inputs and outputs allow stereo audio to be embedded or de-embedded from digital video signals. On top of scaling and frame rate conversion, the C2-2855 can also act as a 3 x 3 matrix switcher allowing you to route any of the inputs to any of the outputs.
- Flexible Inputs and Outputs
- The C2-2855 features inputs and outputs to cover just about any scenario:
- Inputs: SDI with 3G-SDI, HD-SDI, and SD-SDI support, HDMI, VGA , composite, DVI-U, a stereo 3.5 mm mini jack audio input, and three analog audio inputs on terminal connectors
- Outputs: SDI with 3G-SDI, HD-SDI, and SD-SDI support, HDMI, composite, DVI-U, and one analog audio on a terminal connector
- DVI-U: DVI-U is a combo connector that will pass HDMI, DVI, VGA, component, or composite video signals as well as embedded audio where applicable. An adapter will be required to connect any devices that do not use DVI connectors
- Auto-Switching
- The Auto-Switching function allows the user to connect video source and have its image automatically displayed on screen without having to press any buttons. The incoming resolution is quickly detected and analyzed, meaning within a few seconds the user is up and running and ready to present. This is particularly useful in situations where there is little or no technical supervision, such as in meeting rooms, medical environments, teaching spaces, or live staging events
Note: Please ensure you are updated to the latest firmware to enable this feature
- Remote Control Options
- In addition the built-in OLED screen and OSD menu system provided for local operation, RS-232 and IP control are supported by C2-2855. RS-232 allows third-party wired remotes and control systems to be used; while IP control allows the device to be operate from a computer connected to the same network. Control and configuration software for Windows is included
- Advanced Features
-
- Keying: Allows one input to be keyed over a second input. The keyed image may be faded in and out. Precise keying at the pixel level is possible due to 4:4:4 sampling format when using RGB video sources
- Transitions: Permits Seamless Cut, Fade or Wipe transitions when switching between input sources
- Picture-In-Picture (PIP): y allows an input to be inset in a window over a second input or vice versa; the PIP window may be placed anywhere on the screen
- Genlock: Synchronizes video sources internally to ensure seamless switching
- Audio Features
-
- Switching: An internal routing switcher allows any one of the four analog audio inputs to be routed to the analog audio output regardless of impedance. Each audio input is assigned to a video input allowing audio to follow video when switching
- Embedding and De-embedding: Embedded Audio Support allows any audio input to be embedded on all outputs which support embedded audio data (HDMI, DVI-U, and SDI)
- Image Processing Features
-
- Size and Position: Automatic via Calibrate or Manual
- Image Size: User-definable presets
- Image Freeze: One video frame
- Settings Memory: Non-Volatile
- Zoom Range: Variable to 10x Zoom
- Shrink Range: Variable to 10%
- Image Mirroring: Horizontal and/or vertical
- Horizontal Filtering: Full digital
- Conversion Technology: CORIO2
- Framerate Conversion: Temporal
- Color Resolution: 24-bit (16.8 million colors)
- Sampling Rate: 162 MHz
- Digital Sampling: 24-bit, 4:4:4 or 4:2:2 format depending on input source
- Firmware Memory: Flash upgradeable via RS-232 or IP
- Video Encoder and Decoder: 8-bit digital
- De-Interlacing (NTSC/PAL): Pixel-level motion adaptive, diagonal Interpolation
- Film Mode (NTSC): 3:2 pulldown
- Maximum Latency: 1 to 2 frames
- Video Adjustments CV/YC: Contrast, Brightness, >Saturation, Hue (NTSC), Analog RGB/YPbPr levels
Additional Features
- Non-volatile setting memory: settings survive even if device is unplugged
- 24-bit internal color resolution
- 8-bit video encoder / decoder
- Motion compensation and 3:2 pulldown
- Temporal and diagonal interpolation
- Automatic incoming resolution detection
- Less than two frames latency
- 4:4:4 full bandwidth chroma sampling of RGB sources; 4:2:2 sampling of SDI, YC, and CV sources; HDMI and component support for either 4:4:4 or 4:2:2 sampling
- Rackmoutable form factor with rackmouting kits sold separately. One or two units can be placed in a single rack space
| Inputs | Video 1 x Composite on BNC 1 x S-video (Y/C) on 4-pin DIN 1 x HDMI 1 x 3G-SDI on BNC 1 x VGA 1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required Audio 3 x Unbalanced audio on terminal connectors 1 x Stereo 3.5 mm mini jack Note: HDMI, SDI, and DVI-U pass embedded audio |
| Outputs | Video 1 x Composite on BNC 1 x S-video (Y/C) on 4-pin DIN 1 x HDMI 1 x 3G-SDI on BNC 1 x DVI-U: Supports composite, component (YPbPr, YUV), HDMI, DVI, VGA (RGBHV, RGBS, RGsB) - adapters required Audio 1 x Unbalanced audio on terminal connectors Note: HDMI, SDI, and DVI-U pass embedded audio |
| Maximum Resolution | Analog Computer: 1920 x 1080 Analog Video: 1080p60 HDMI and DVI Computer: 1920 x 1200 HDMI and DVI Video: 1080p60 |
| Supported Resolutions | Video: NSTC, PAL, 720p,1080i,1080p Computer: 800 x 600 (SVGA) to 1920 x 1200 (WUXGA) |
| Supported Frame Rates | SD-SDI 525i (NTSC) 59.94 Hz 625i (PAL) 50 Hz HD-SDI 720p: 29.97, 30, 50, 59.94, 60 Hz 1080i: 50, 59.94, 60 Hz 1080p: 23.98, 24, 25, 29.97, 30 Hz 1080p: 50, 59.94, 60 Hz |
| Latency | 1 to 2 frames |
| Standards | |
|---|---|
| Supported Standards | Analog Video NTSC, PAL, PAL-M, PAL-N, SECAM Component Video RGBHV, RGBS, RGsB, YPbPr, YUV HDMI and DVI DVI 1.0, HDCP; CEC pass-through SDI SMPTE259M-C (SD-SDI; 270 Mbps; 525/625Line) SMPTE292M (HD-SDI; 1.485/1.4835 Gbps: 720p, 1035i, 1080i, 1080p) SMPTE424M (3G-SDI) Audio De-embedding Support: 1 x Stereo pair at 32, 44.1, or 48 kHz from HDMI / 48 kHz from SDI Embedding Support: 1 x Stereo pair at 48 kHz |
| SDI Jitter | SD-SDI: < 0. 1 UI HD-SDI < 0.2 UI 3G-SDI: < 0.3 UI |
| SDI Cable Equalization | Input SMPTE259M-C (SD-SDI) 984.3' / 300 m (under optimal conditions) SMPTE292M (HD-SDI) 544.6' / 166 m (under optimal conditions) SMPTE424M (3G-SDI) 328.1' / 100 m (under optimal conditions) |
| General | |
|---|---|
| Control Method | Local: Front Panel Buttons and OSD 1 x RS-232 on DB9 female 1 x Ethernet on RJ-45 connector |
| Power Requirements | External Power Supply: 12 VDC at 1.5 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C Humidity: 10 to 85%, non-condensing |
| Storage Temperature | 14 to 158°F / -10 to 70°C Humidity: 10 to 85%, non-condensing |
| Dimensions | 1.6 x 8.6 x 7.4" / 42 x 218 x 189 mm |
| Weight | 2.8 lb / 1.3 kg (excluding PSU) |
| Packaging Info | |
|---|---|
| Package Weight | 4.85 lb |
| Box Dimensions (LxWxH) | 13.4 x 12.8 x 3.8" |
In the Box
TV One C2-2855 Universal Scaler PLUS
- Universal Power Supply (Brick Type)
- Power Cord
- Control Software For Windows (Vista and Above)
- Limited 5-Year Warranty
