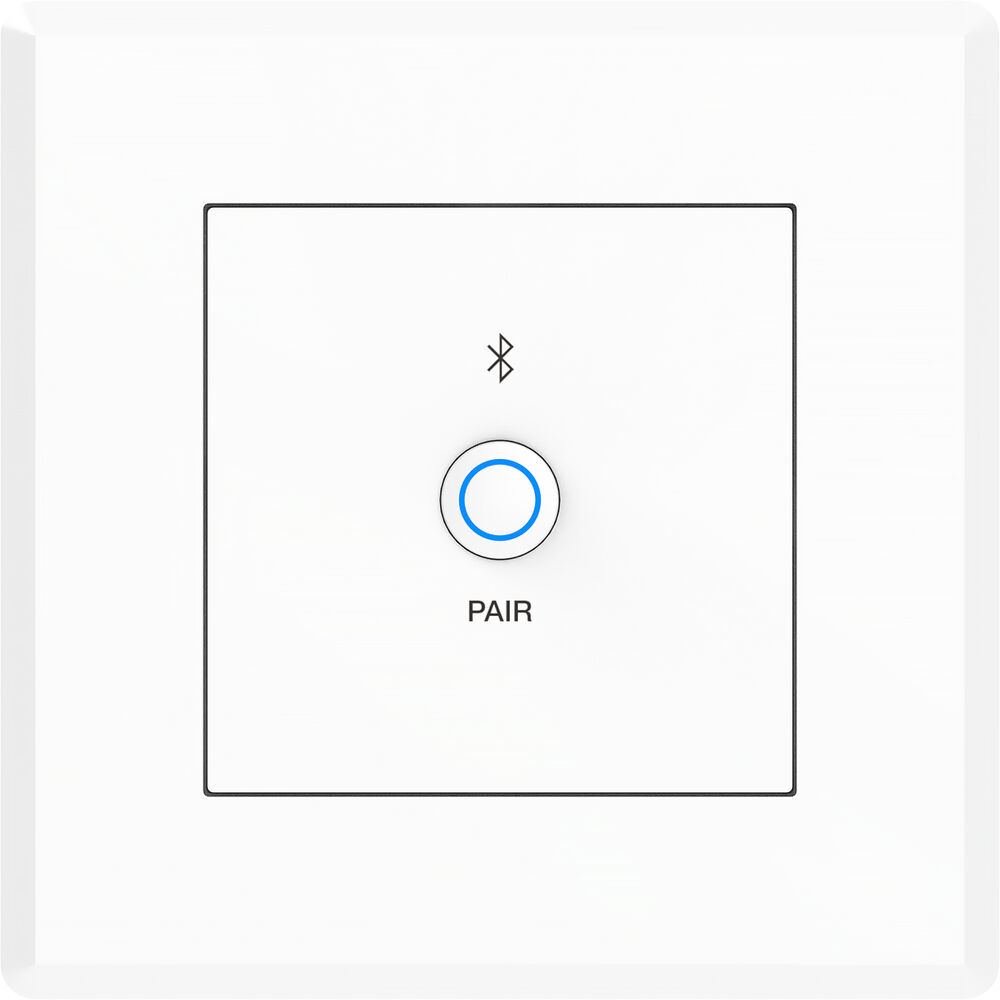

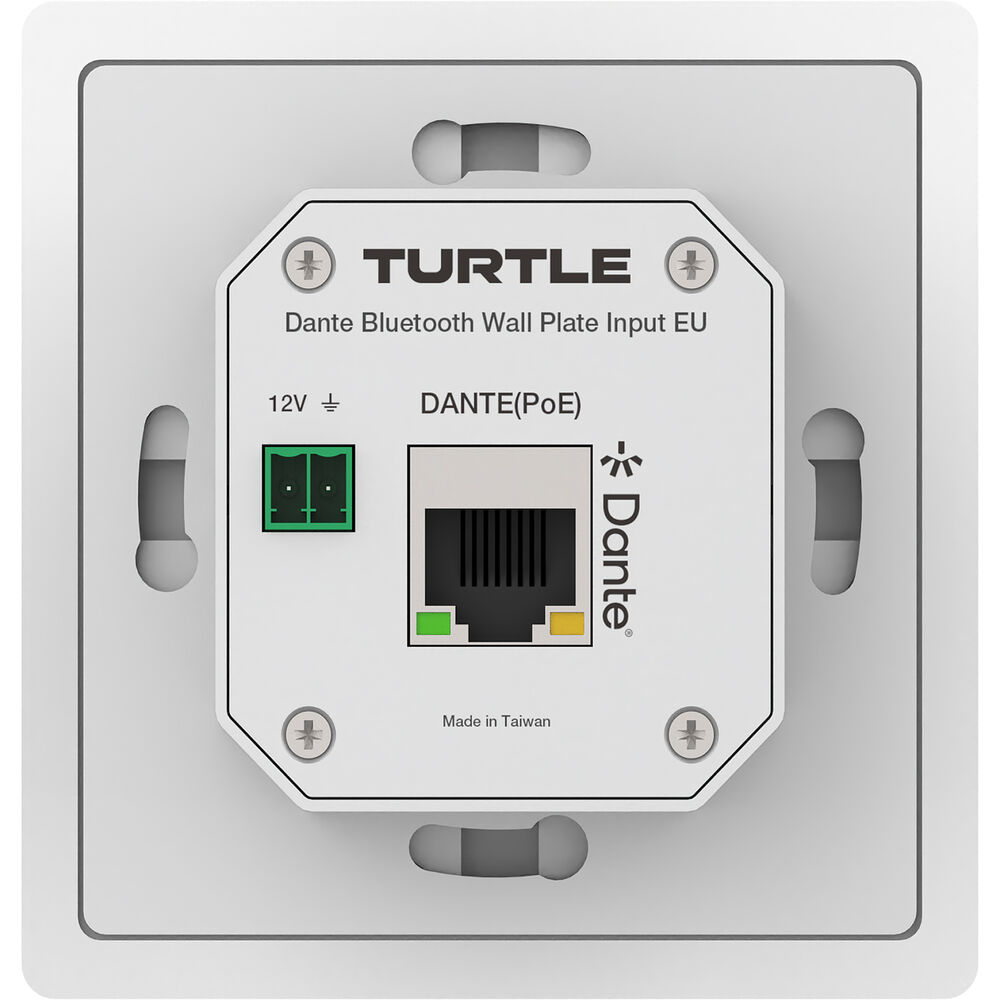

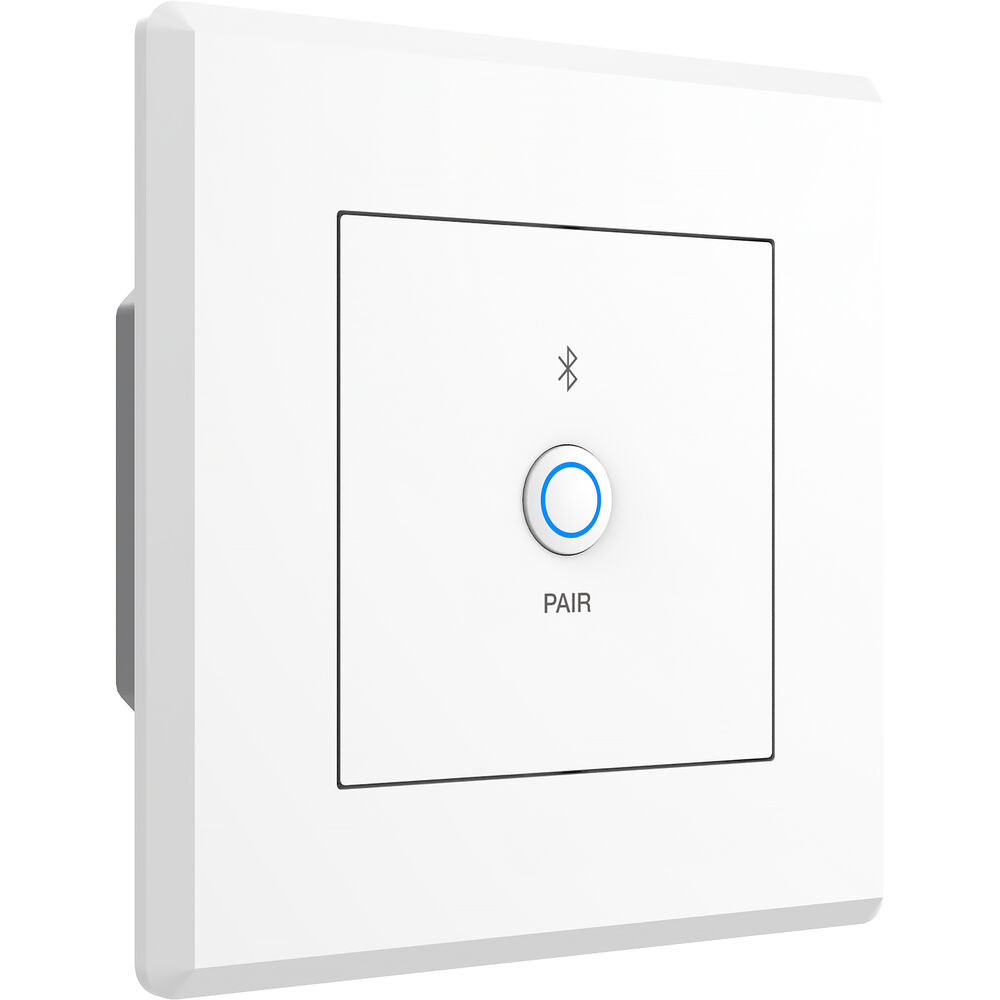

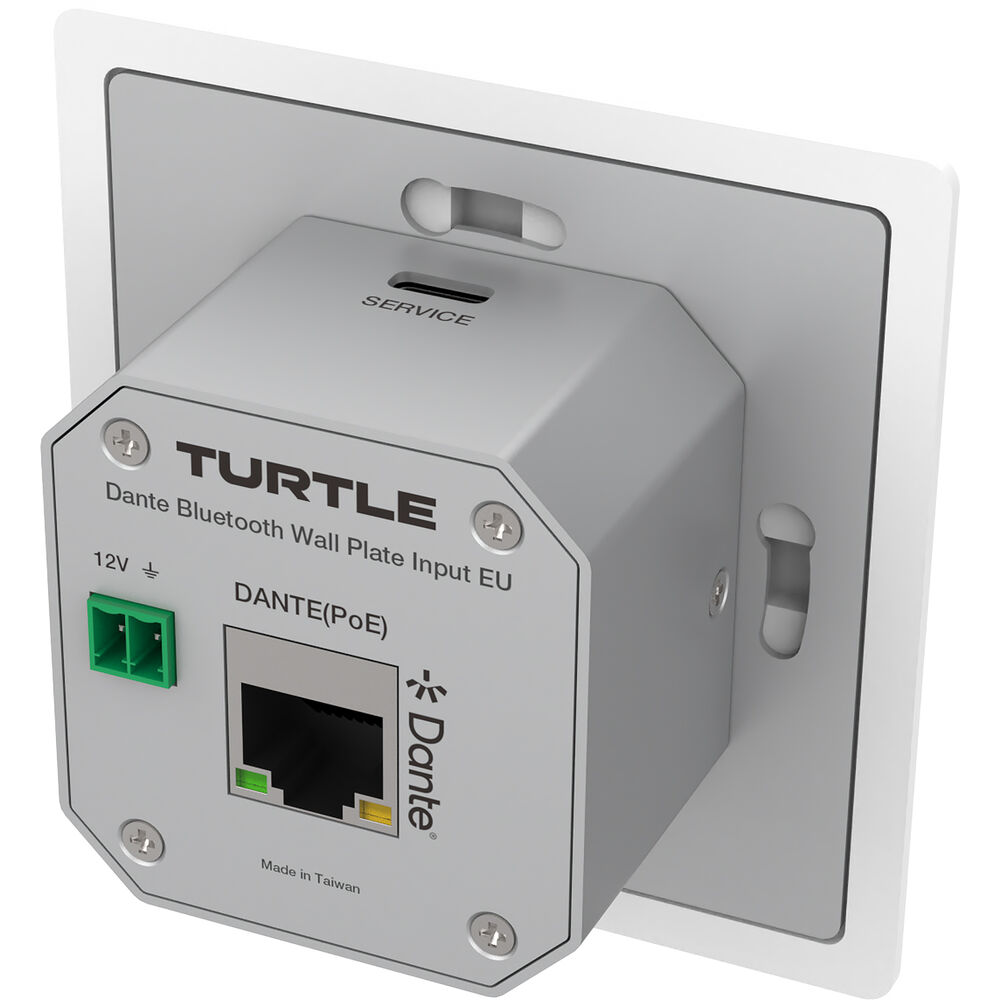

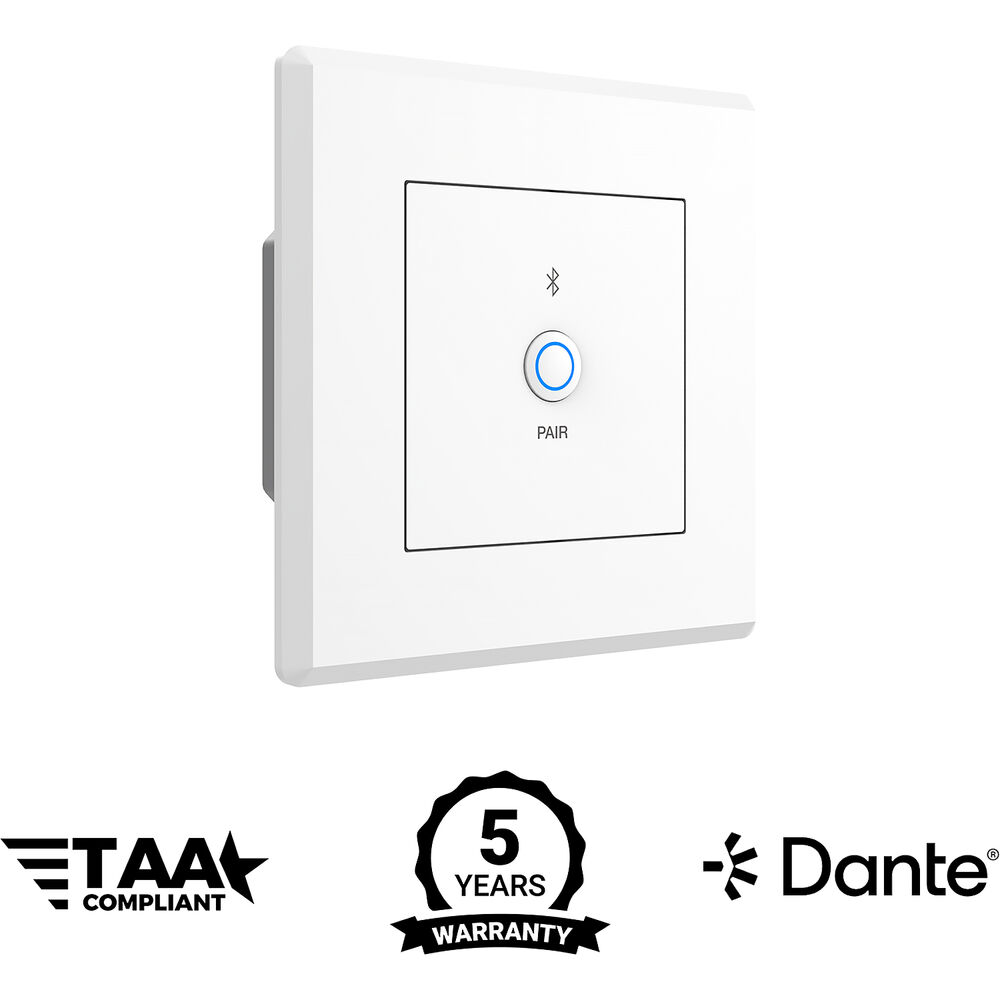

Turtle AV Dante Bluetooth Wall Plate for EU Wall Boxes (White)

Application Programming Interface

The comprehensive networked API grants control systems full command over connection states, including programmable discovery, pairing authorization, and forced disconnection. The API supports bidirectional control for playback management and provides real-time metadata extraction for artist and track information.

High-Quality Audio

This Wall Plate delivers high-quality 2-channel Bluetooth audio to Dante 2-channel digital audio. It supports Bluetooth 5.0 with advanced codecs like SBC, AAC, APTX, APTX-LL, and APTX-HD, and audio up to 24-bit/192kHz. The Dante audio output is sampled up to 24-bit/96kHz, ensuring clear, professional-grade sound. Additionally, configurable Dante audio delay options of 2, 3, 5, or 10 milliseconds provide precise timing and low-latency performance.

DSP Control via Web GUI

The built-in DSP web GUI makes managing your Dante Wall Plate super easy and delivers even more value to this little powerhouse. With the web GUI, you can?

• Adjust output settings, manage EQ profiles, and control audio delay for analog and Dante outputs
• Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups
• Switch between DHCP and static IP modes, configure Telnet ports, and use the domain name for quick access
• Modify passwords, reboot the system, update firmware, and export/import settings with ease
• Control everything from input sources to auto-standby times, all through an easy-to-use interface.

Additional Details

• Map transport controls like Play, Pause, and Skip directly to your networked touch panels or keypads
• Use real-time metadata to pull artist names, song titles, and album info
• Fully compatible with Dante Controller, Dante Domain Manager, and all Dante software applications

General

Inputs/Outputs

Wireless

Power

Physical
