| ₹ 23664.97 includes GST and import duties. | |
| B2B customers can avail ₹ 3608.91 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

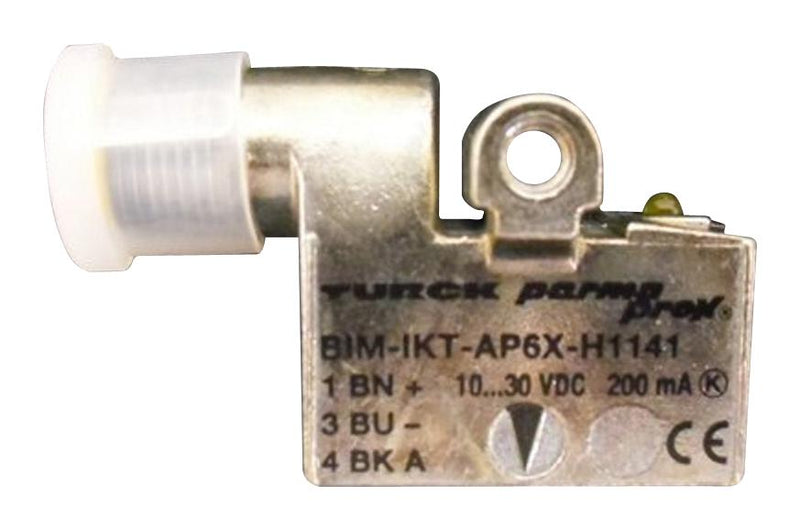

BIM-IKT-AP6X-H1141 W/KLI3 is a magnetic field sensor. It is activated by magnetic fields and is especially suited for piston position detection in pneumatic cylinders. Based on the fact that magnetic fields can permeate non-magnetizable metals, it is possible to detect a permanent magnet attached to the piston through the aluminium wall of the cylinder.
- ? 10m/s pass speed, ? ±0.1mm repeatability
- ? 0.1mm temperature drift, ? 1mm hysteresis
- 10VDC to 30VDC operating voltage, ? 200mA DC rated operational current
- 15mA no-load current, ? 0.1mA residual current
- ? 0.5kV isolation test voltage, 3-wire, NO contact, PNP output function
- 1KHz switching frequency, rectangular, IKT design
- Dimension is 30 x 14.6 x 28mm (lxdxh), metal, GD-Zn housing material
- Connector, M12 × 1 (electrical connection), IP67 protection class
- 55Hz (1mm) vibration resistance, 30g (11ms) shock resistance
- Operating temperature range from -25°C +70°C
Product details
Other details
| Brand | TURCK |
| Part Number | BIM-IKT-AP6X-H1141 W/KLI3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 23191.67 |
| 3-5 | ₹ 22955.02 |
| 5-10 | ₹ 22481.72 |
| 10+ | ₹ 22008.42 |
Bulk discount will be automatically applied during checkout based on quantity.
