Description

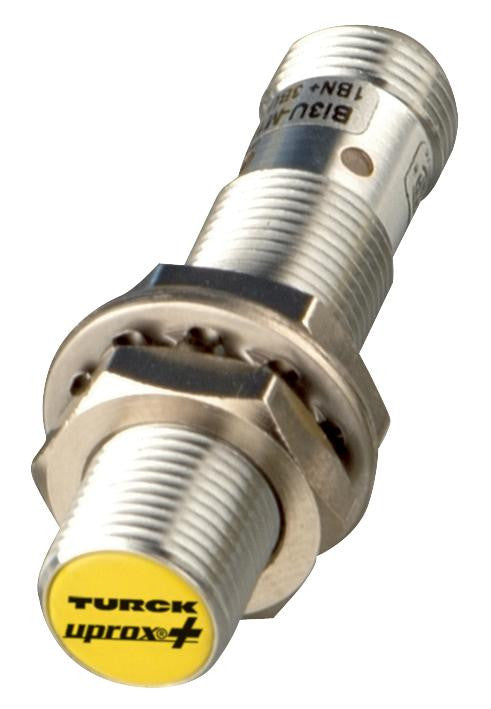

The BI4U-M12-AP6X-H1141 from Turck is an inductive proximity sensor. It is a cylindrical, flush mountable, 3wire DC solid state output inductive proximity sensor for non contact sensing of metal objects up to 4mm distance.
- Discrete output function is 1NO
- Discrete output type is PNP
- Male connector M12 x 1
- Rated supply voltage range from 10VDC to 30VDC
- Operating current of 200mA
- Operating temperature range from -30�C to 85�C
- 52mm size
- Brass, PTFE coated
- Protection class IP68
- M12 x 1 threaded barrel
Applications
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices
Product details
| Sensor Output | PNP |
| Sensing Range Max | 4mm |
| Supply Voltage DC Max | 30V |
| Thread Size - Metric | M12 |
| Product Range | uprox� |
| Supply Voltage DC Min | 10V |
Other details
| Brand | TURCK |
| Part Number | BI4U-M12-AP6X-H1141 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
