Description
Product Overview

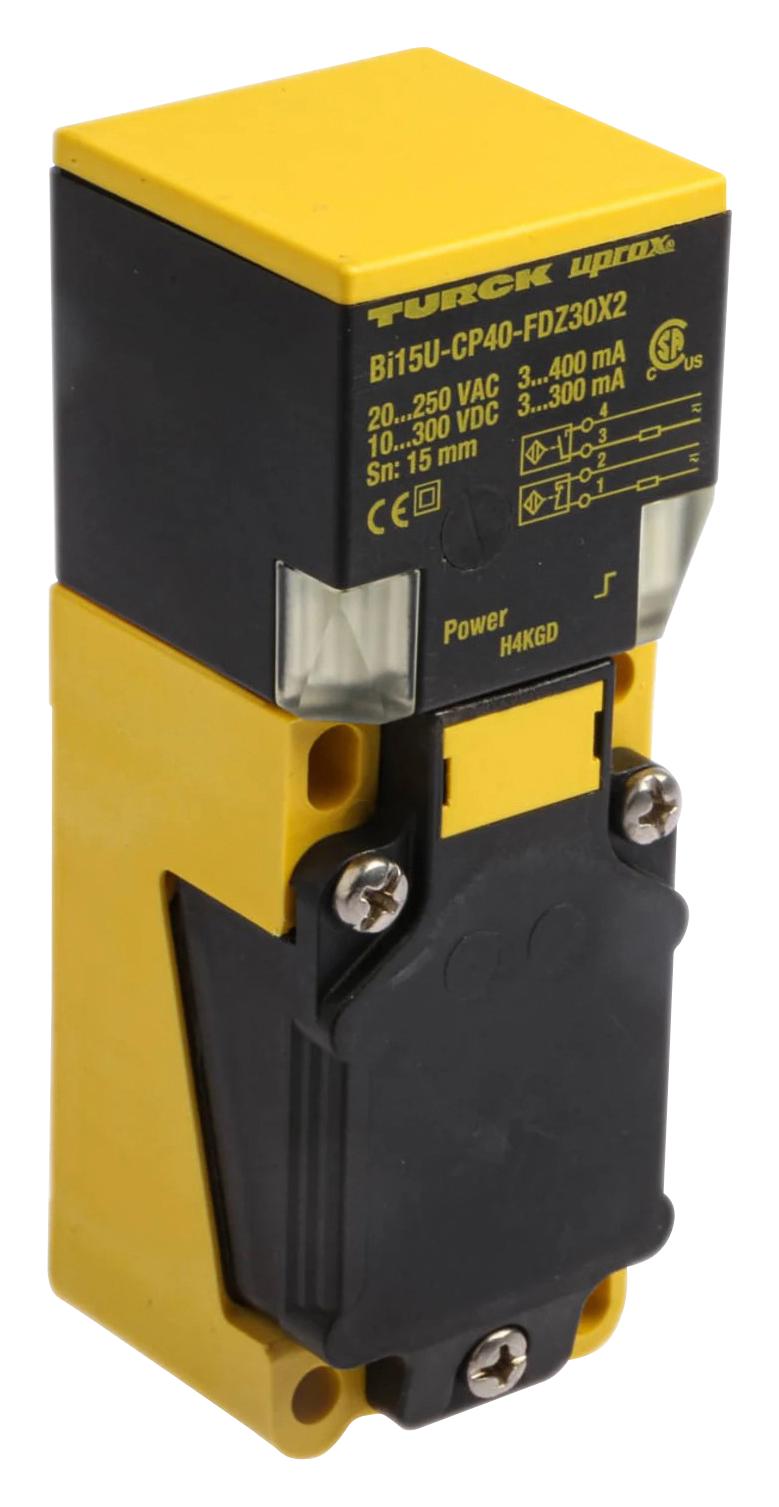

BI15U-CP40-FDZ30X2 is an inductive sensor. It is designed for wear-free and contactless detection of metal objects. uprox factor 1 sensor has significant advantages due to its patented ferrite coreless multi-coil system. It detects all metals at the same large switching distance and are resistant to magnetic fields.
- Rectangular design, height 40mm
- Plastic, PBT-GF30-V0, black housing material
- (20 to 250VAC, 10 to 300VDC) operating voltage
- 2-wire, connection programmable, 2-wire output connection
- Flush mounting connection, ? 2% of full scale repeat accuracy
- ? ±10% temperature drift, 3 to 15% hysteresis, ? 1.7mA residual current
- ? 50Hz to ? 60Hz frequency, ? 1.5kV isolation test voltage
- ? 400mA AC rated operational current, ? 300mA DC rated operational current
- 0.01KHz switching frequency, dimensions is 114 x 40 x 40mm
- Operating ambient temperature range from -30°C to +85°C
Product details
Other details
| Brand | TURCK |
| Part Number | BI15U-CP40-FDZ30X2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
