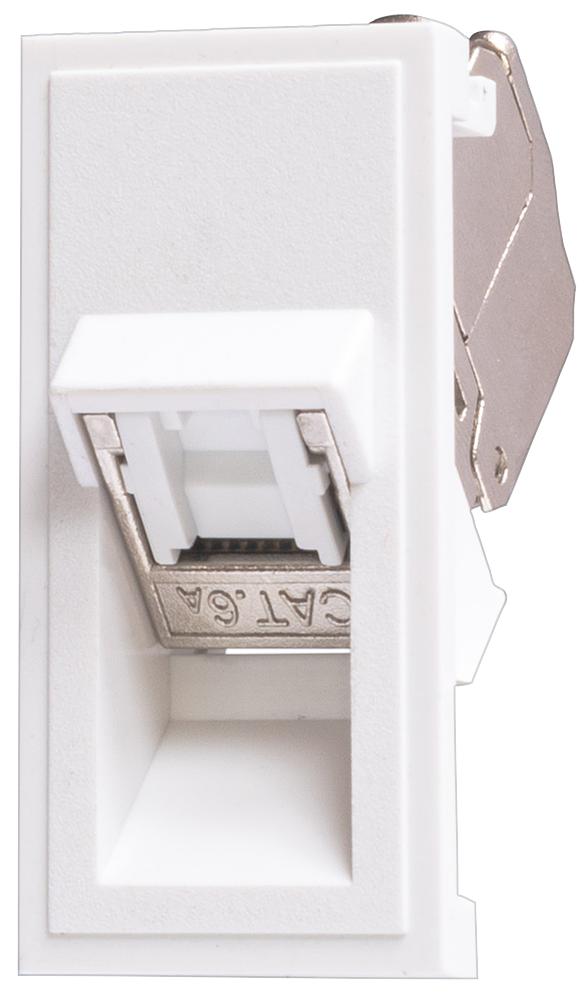

Fully shielded, diecast socket with toolless installation designed for use in Euro-style STP applications. The angled design reduces cable stress and avoids dust and is fitted in a standard 50x25mm module size for installation into faceplates and panels.
- Compliant with ANSI/TIA 568 C.2 standard at permanent link level
- Compliant with IEC60512-99-001 and compatible with PoE+ (IEEE 802.3at) applications
- Fully shielded die-cast zinc alloy socket in polycarbonate housing
- Suitable for 23-26AWG stranded and solid wire (0.4-0.57mm)
- Toolless butterfly style termination
- Angled design reduces cable stress
- Built-in dust cover
- Dimensions (HxWxD): 55x25x36mm
Other details
| Brand |
TUK |
| Part Number |
SGKS45WHAX |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
