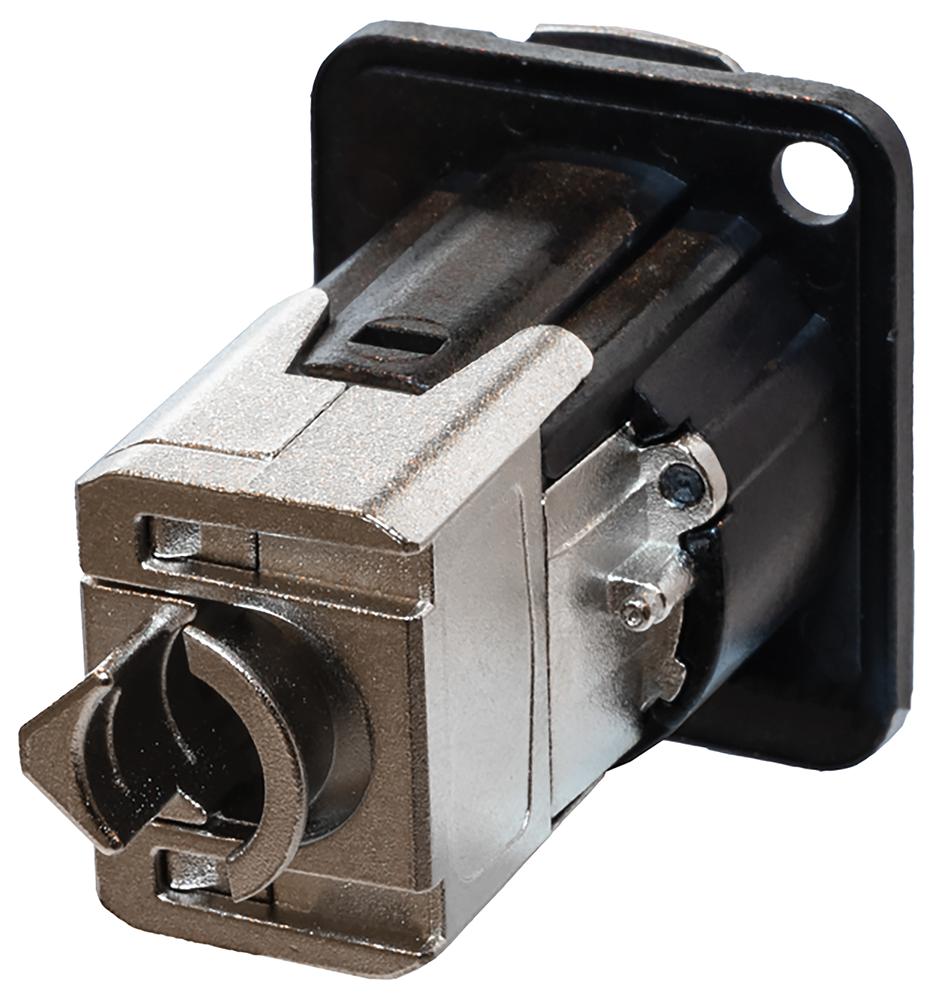

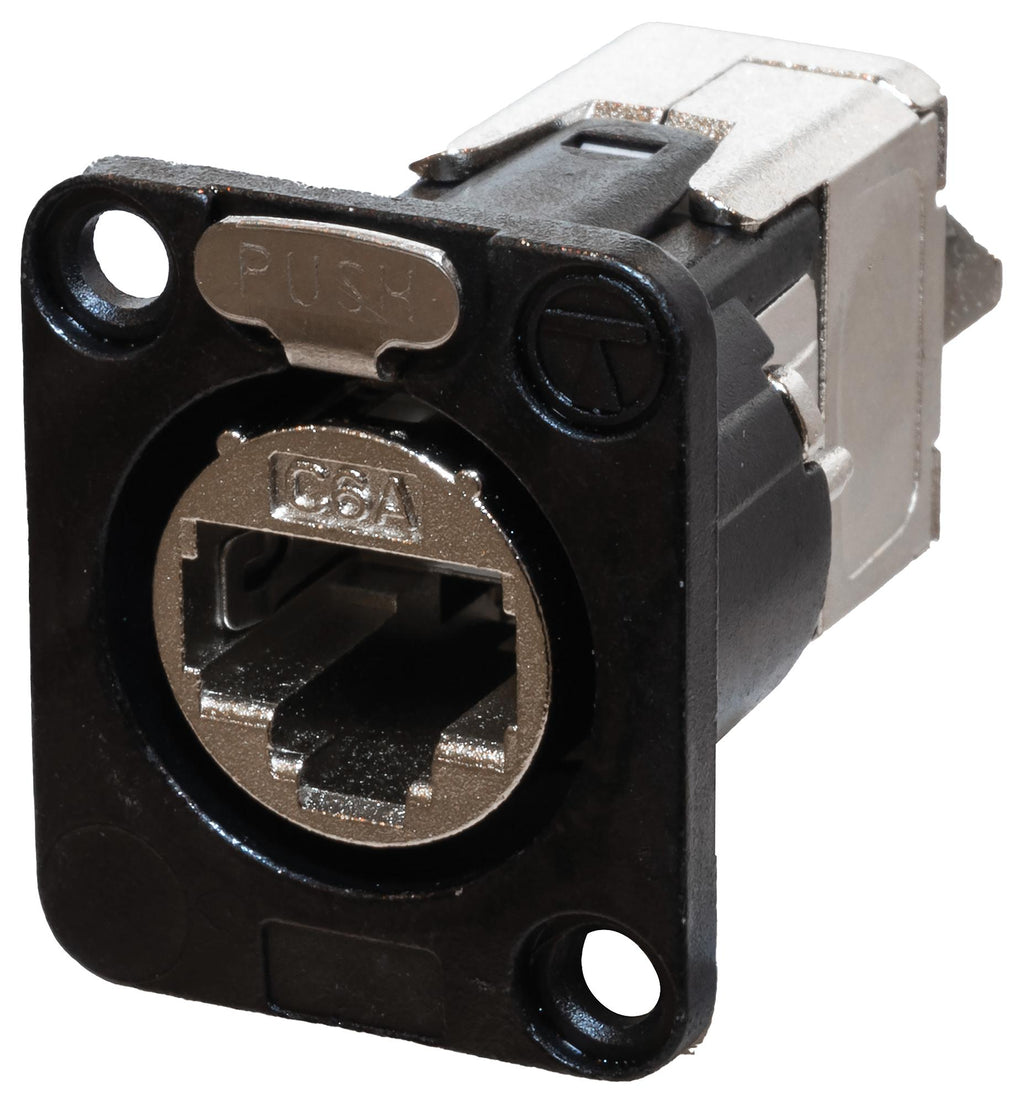

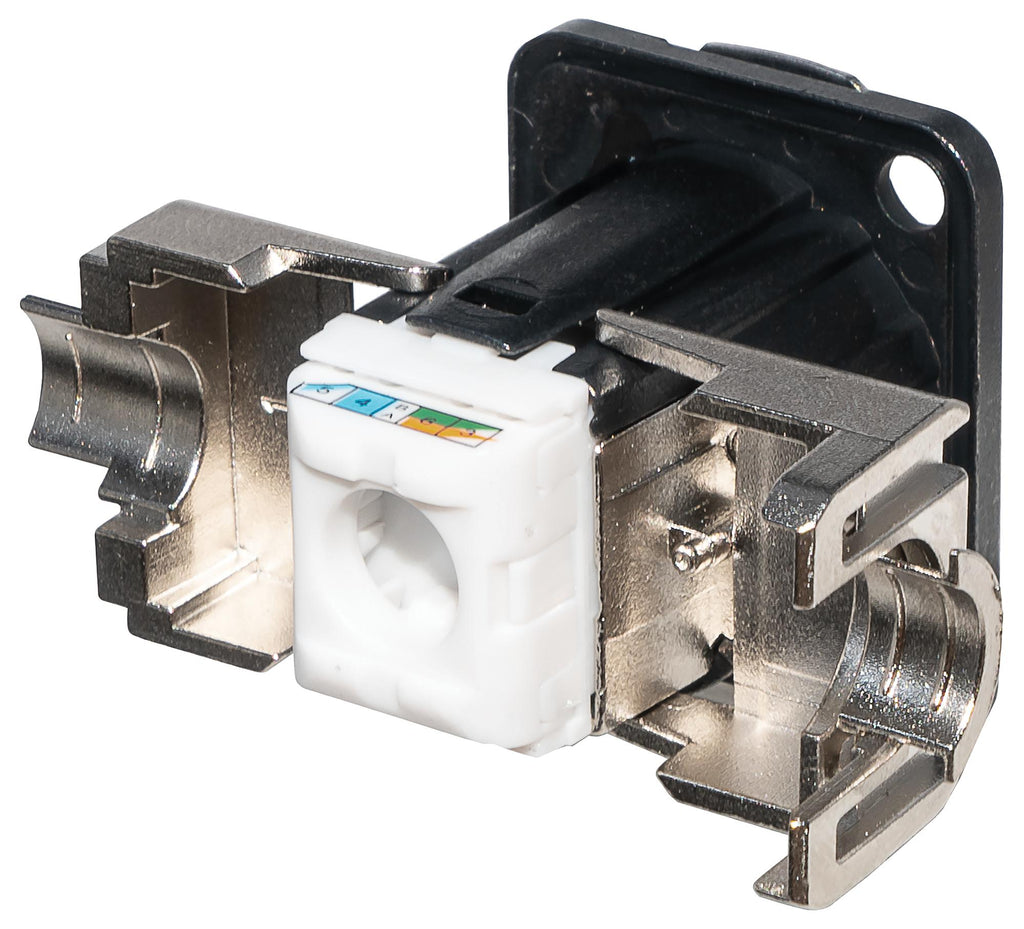

This die-cast, ruggedised XLR style STP socket is built to be used in a wide range of challenging environments. Using the industry standard, XLR latch-locking mechanism, it offers a secure connection that comfortably performs to Cat6A. Designed to be easily mounted into XLR style cut-outs, this high quality jack boasts tool-less "butterfly style" levers which enable quick and easy terminations.
- STP socket with dual 568 A/B wiring
- Fully shielded, die-cast body offers a durable, sturdy design with outstanding performance in eliminating alien cross-talk
- Industry standard XLR latch-locking mechanism
- Suitable for 22 - 26 AWG solid wire, core diameter: 0.6mm - 1.52mm, cable OD: 6mm - 8.5mm
- Dimensions: 26.18x31.18x41.38mm
Other details
| Brand |
TUK |
| Part Number |
SGDPMBK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
