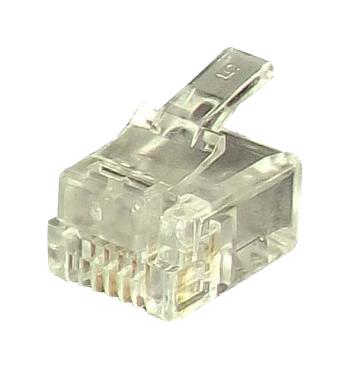

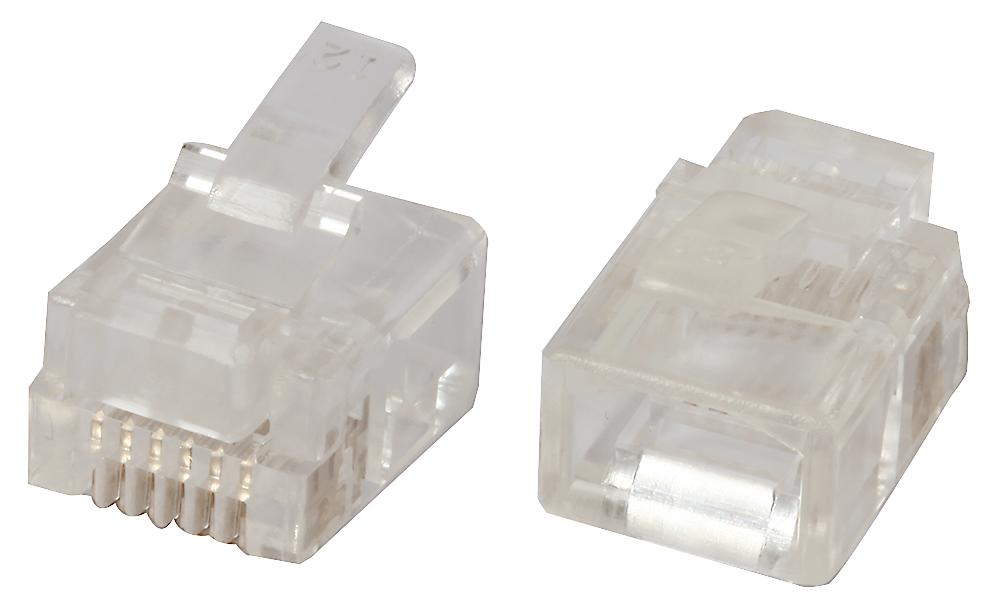

The PXSPDY12#10 plugs from Tuk are designed to simplify terminations by allowing the wire pairs to be easily inserted through the plug and out of the front. This allows the installer to easily check the wiring order before crimping the connector. Waste is minimised and the plugs are suitable for either stranded or solid wires.
- Each plug allows wires to be inserted through the body and pulled out of the front to ensure the correct wiring order before crimping
- Contact blades are suitable for stranded or solid wire cores from 22?26 AWG (0.65 - 0.40mm), with insulation up to 1.0mm O.D.
- Perfect solution for rapid termination
- Faults and failures minimised
- Less cable scrap and wastage
- Materials: Housing: Polycarbonate UL 90?V0 , Contact: 50µ"/1.27µm gold plated over nickel phosphor bronze
- Working temperature: 25?C - 55?C
- Contact resistance: 30 milliR max.
- Insulation resistance: DC 300V, 100 megaR minimum
- Supplied in packs of 10
Other details
| Brand |
TUK |
| Part Number |
PXSPDY12#10 |
| Quantity |
Pack of 10 |
| Technical Data Sheet EN |
 |
