TT Electronics / Welwyn HVC2512-1M0FT18 SMD Chip Resistor 1 Mohm ± 1% W 2512 [6432 Metric] Thick Film High Voltage

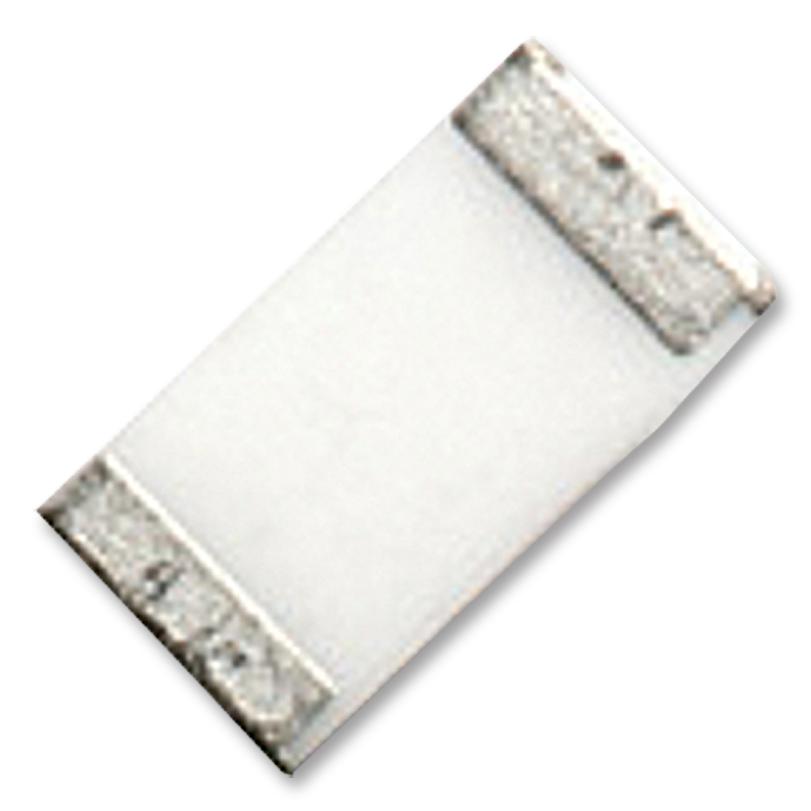

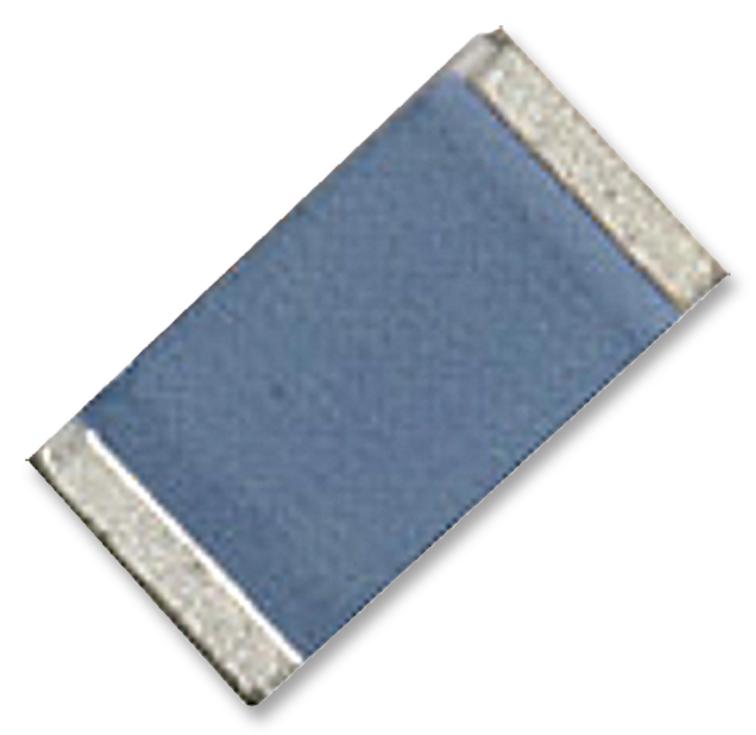

The HVC2512-1M0FT18 is a 1MR 1W surface-mounting high voltage Chip Resistor with 2512 case. Resistive thick film material, over-glaze and organic protection are screen printed on a 96% alumina substrate. The design and laser adjustment of the resistive element optimizes the limiting element voltage of the resistor. The chip is supplied with wrap-around terminations suitable for soldering. The terminations have an electro-plated nickel barrier and tin finish. This ensures excellent leach resistance properties and solderability.

• Values up to 100M
• Robust thick lm construction
• Zero at 155°C derating from rated power at 70°C

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	TT ELECTRONICS / WELWYN
Part Number	HVC2512-1M0FT18
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
