Description

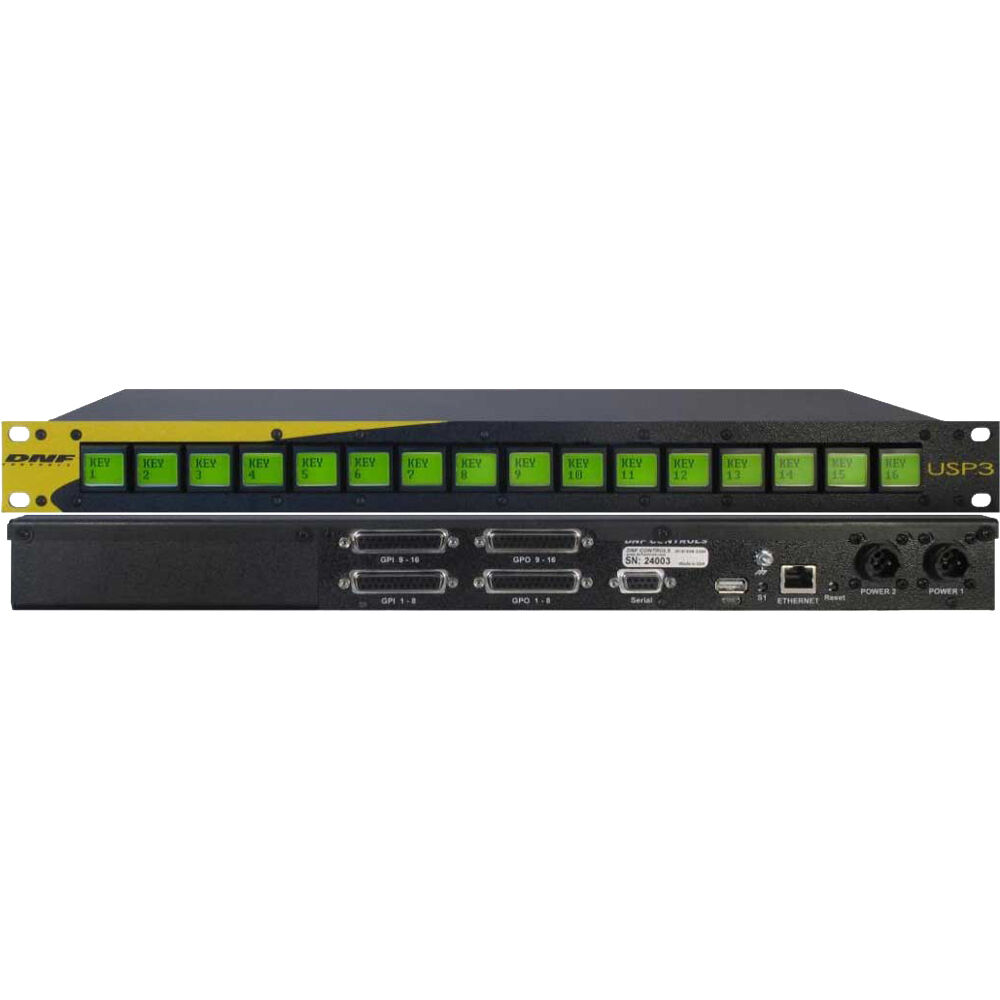

TSL FG-USP3-16 Overview
Make your complex IP or serial operation control easy with the Universal Switch Panel with 16 LCD Push Buttons from TSL. This 1 RU unit features 16 configurable buttons that provide control of IP, GPIO, and RS-232/422 serial operations on hundreds of devices. Monitor and control servers and devices such as routers, multiviewers, DDRs, IP streaming functions, and more.
The unit is easily configurable using a web-based management system and provides SNMP traps, trigger alarms, RESTful API compatibility, keepalive functions, scheduled actions, and automation. There are virtual buttons and web keys in the management interface to control the unit remotely.
- Configurable button text/color
- Web keys and virtual buttons are accessible via a web browser when operators can?t physically press the button
- Configurable logic AND, OR, NOT
- IP, serial, GPIO, SNMP, RESTful API
- Define your own IP/serial commands (ASCII, HEX)
- Trigger keyboard shortcuts on Windows computers over IP
- TSL Universal Switch Panel with 16 LCD Push Buttons (1 RU)
- Power Adapter
- Power Cable
- Limited 1-Year Manufacturer Warranty
TSL FG-USP3-16 Specs
| USB I/O |
1 x USB-A (Firmware Only) Female Input
|
| Input and Output Connectors |
1 x DB-25 (GPI 1-8)
1 x DB-25 (GPI 9-16) 1 x DB-25 (GPO 1-8) 1 x DB-25 (GPO 9-16) 1 x DB-9 Serial (RS-232/RS-422) 1 x RJ45 Ethernet (10/100 Mb/s) |
| Buttons |
16 x Configurable, Backlit
|
| Rack Units |
1 RU
|
| Power Input |
2 x 2-Pin Inputs (Proprietary)
|
| Power Source |
DC Input
|
| DC Input Power |
12 VDC at 3 A
|
| Color |
Black
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 745980.9 |
| 3-5 | ₹ 738368.85 |
| 5-10 | ₹ 723144.75 |
| 10+ | ₹ 707920.65 |
Bulk discount will be automatically applied during checkout based on quantity.
