Description
TSL FG-EB-44-RH Overview

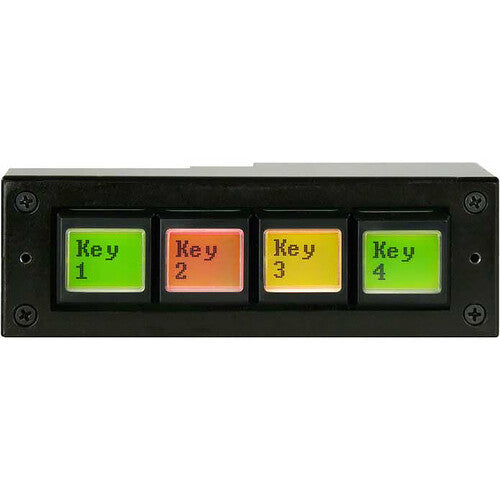

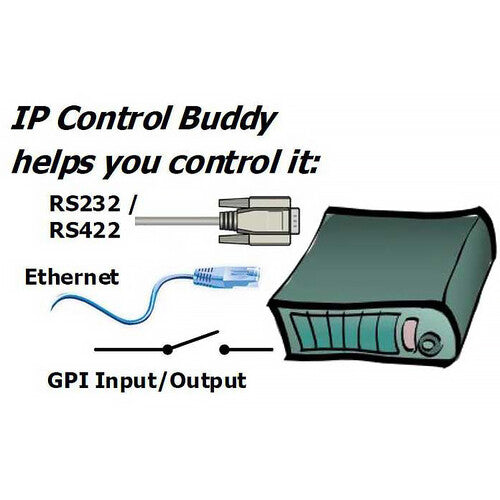

Make your complex IP or serial operation control easy with the IP Control Buddy with 4 Ethernet Buttons & 4 GPI/Serial Ports from TSL. This compact, horizontal-mount unit features four configurable buttons that provide simple, one-button control via IP, GPIO, or RS-232/422 serial operations on hundreds of devices. Monitor and control servers and devices such as routers, multiviewers, DDRs, IP streaming functions, and more.
The unit is easily configurable using a web-based management system and can turn a GPI output on/off, send a serial (RS-232/422) or IP (TCP, UDP, SNMP, or HTTP) command, or control tally. It can be mounted in a rack, console, or optional EB4X-RP rackmount panel. The unit is powered via PoE.
- Configurable button text/color
- Web keys and virtual buttons accessible via a web browser when operators can?t physically press the button
- Configurable logic AND, OR, NOT
- IP, serial, GPIO, SNMP, RESTful API
- Define your own IP/serial commands (ASCII, HEX)
- Trigger keyboard shortcuts on Windows computers over IP
- TSL IP Control Buddy with 4 Ethernet Buttons & 4 GPI/Serial Ports (Horizontal)
- Limited 1-Year Manufacturer Warranty
No additional resources available
TSL FG-EB-44-RH Specs
| Compatibility |
TSL Rackmount Panel EB4X-RP
Ensemble Design BrightEye NXT Router |
| Other I/O |

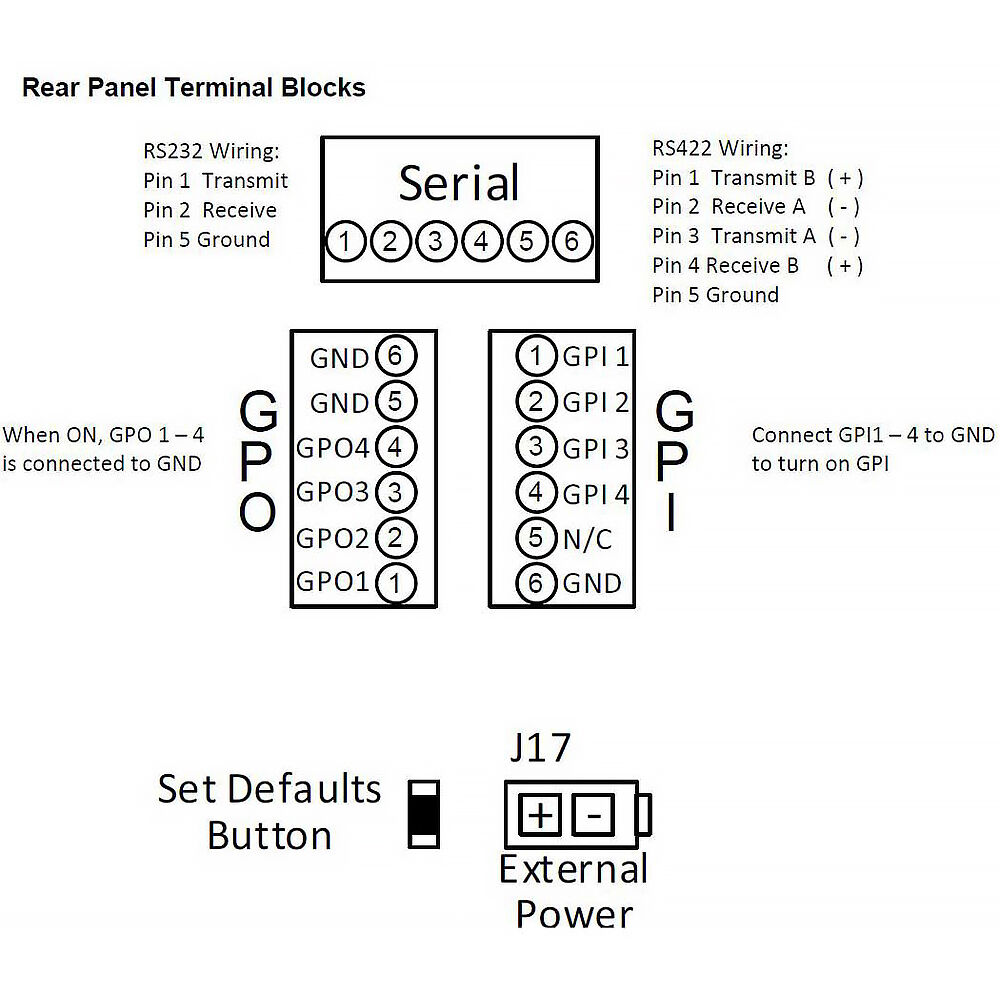

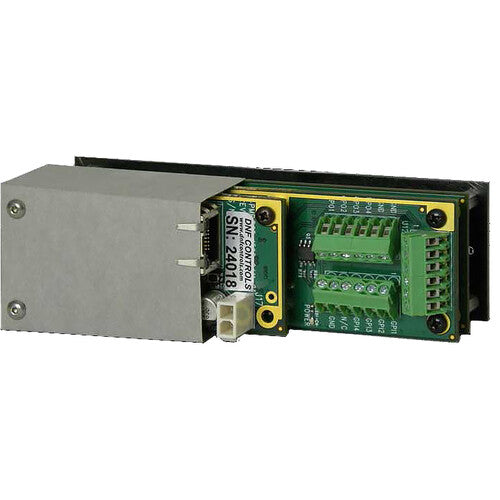

4 x 6-Pin Terminal Block (GPI 1-4, GND)
4 x 6-Pin Terminal Block (GPO 1-4, GND) 4 x 6-Pin Terminal Block (RS-232/RS-422, GND) 1 x RJ45 Ethernet (10/100 Mb/s) |
| Power Source |
PoE, Proprietary Interface
|
| DC Input Power |
12 VDC
|
| Power Input |
1 x 2-Pin Terminal Block
|
| Color |
Black
|
| Dimensions |
4.75 x 2 x 1.5" / 12.06 x 5.1 x 3.8 cm
|
| Package Weight |
0.845 lb
|
| Box Dimensions (LxWxH) |
6.3 x 4.5 x 4.4"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
