Description

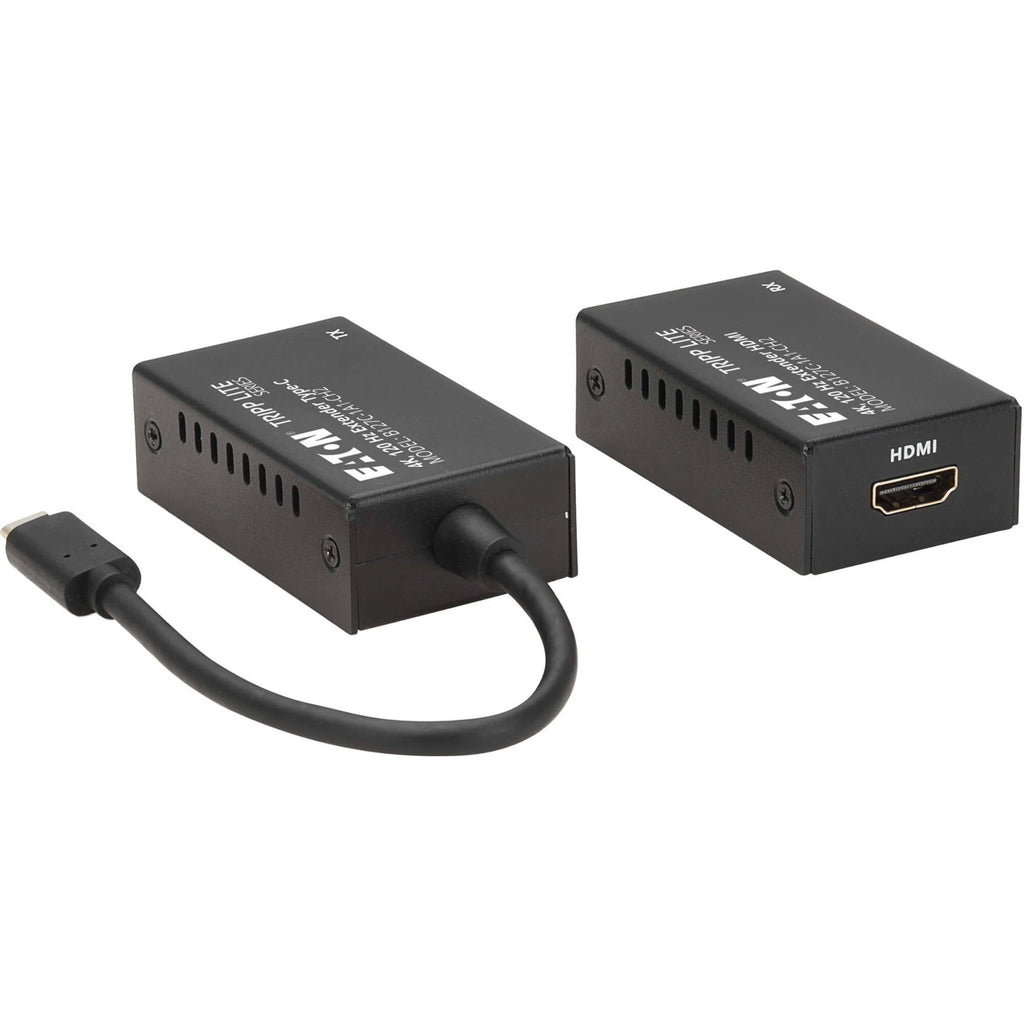

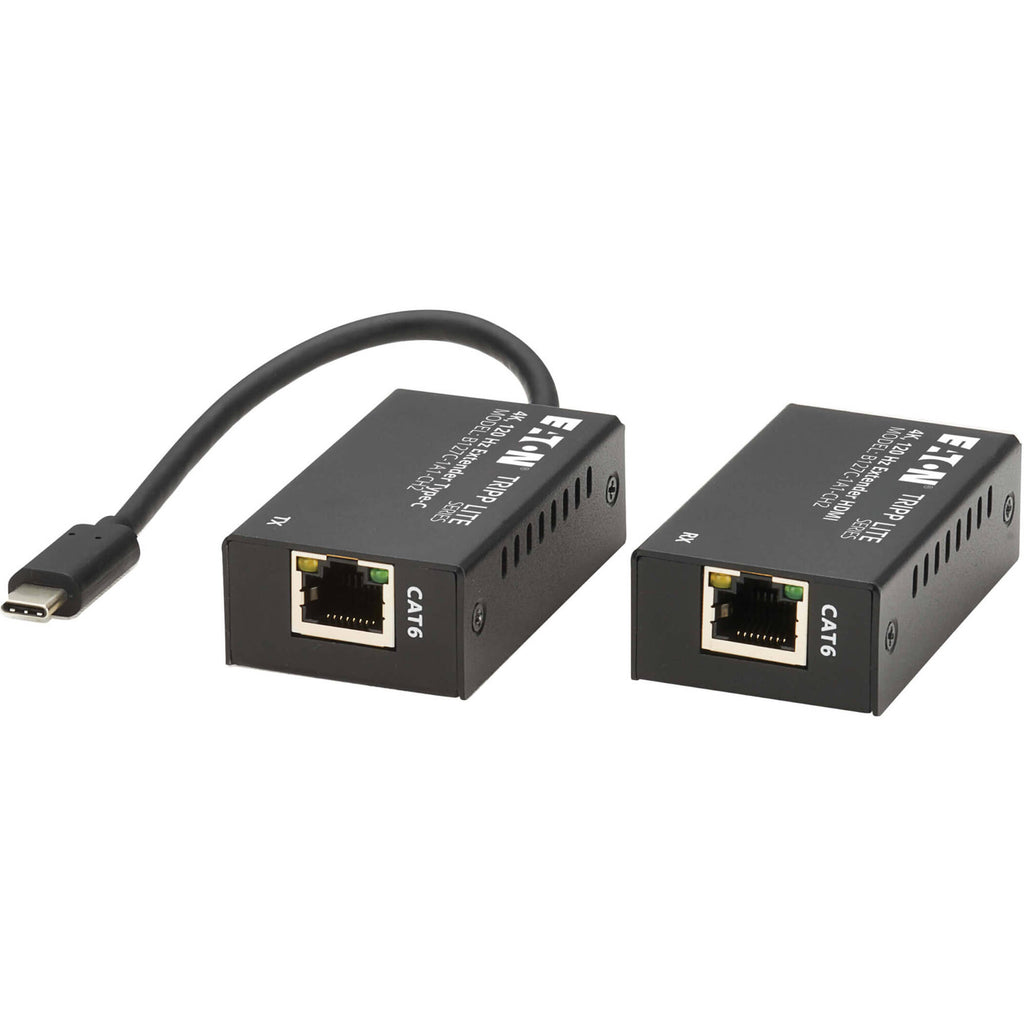

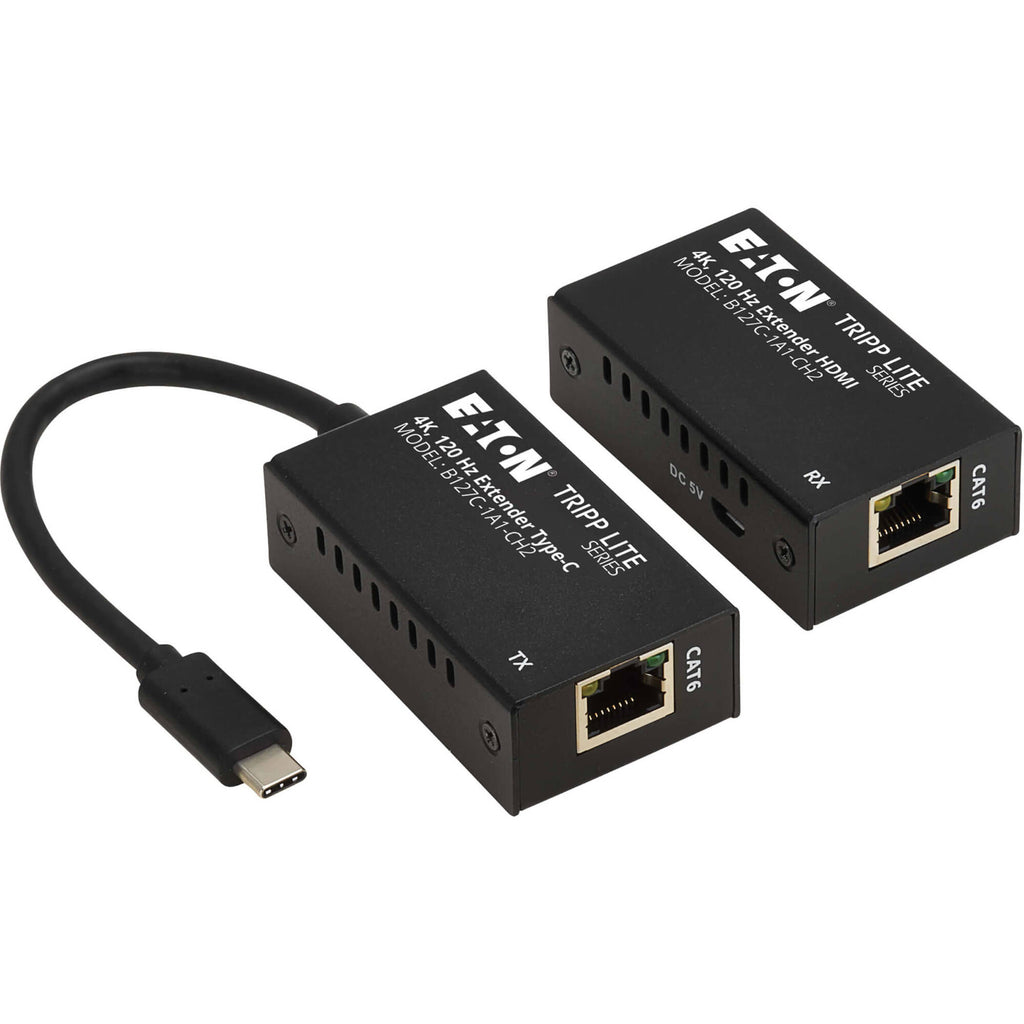

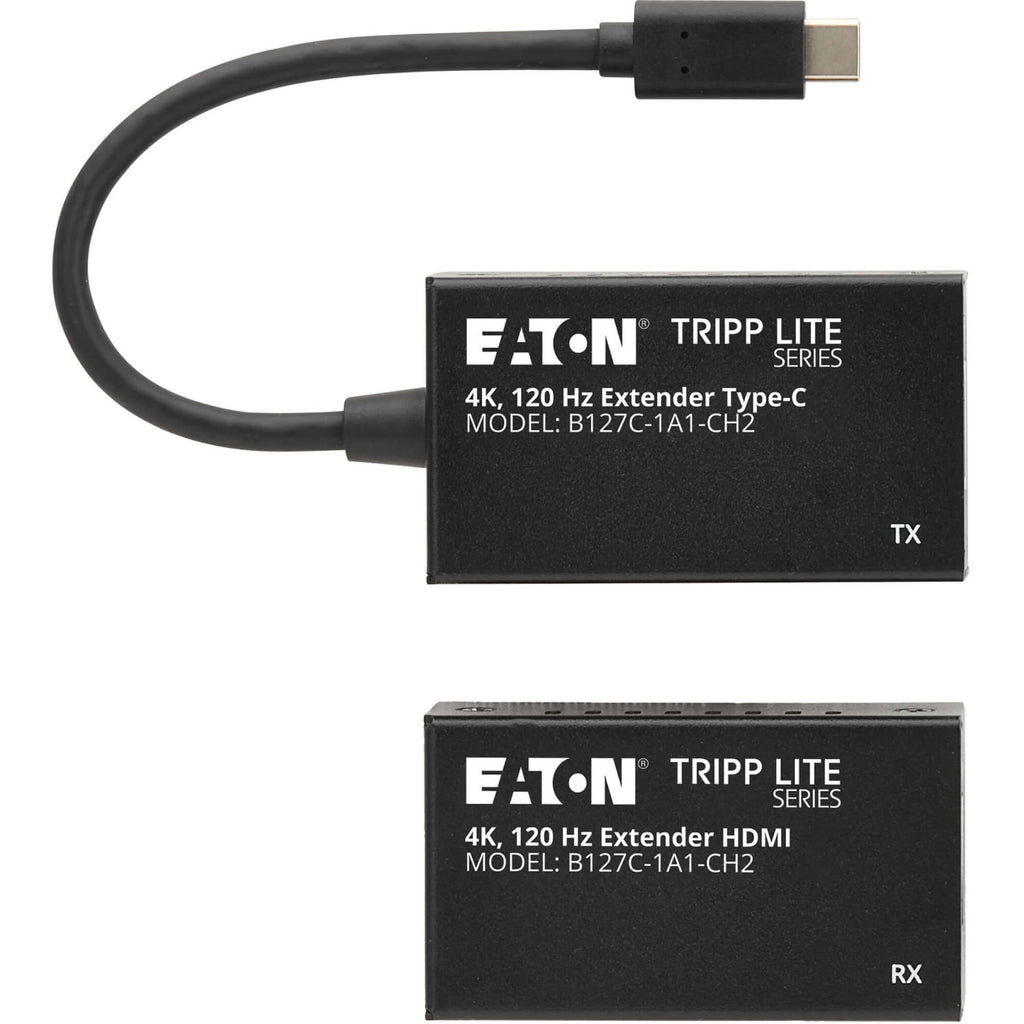

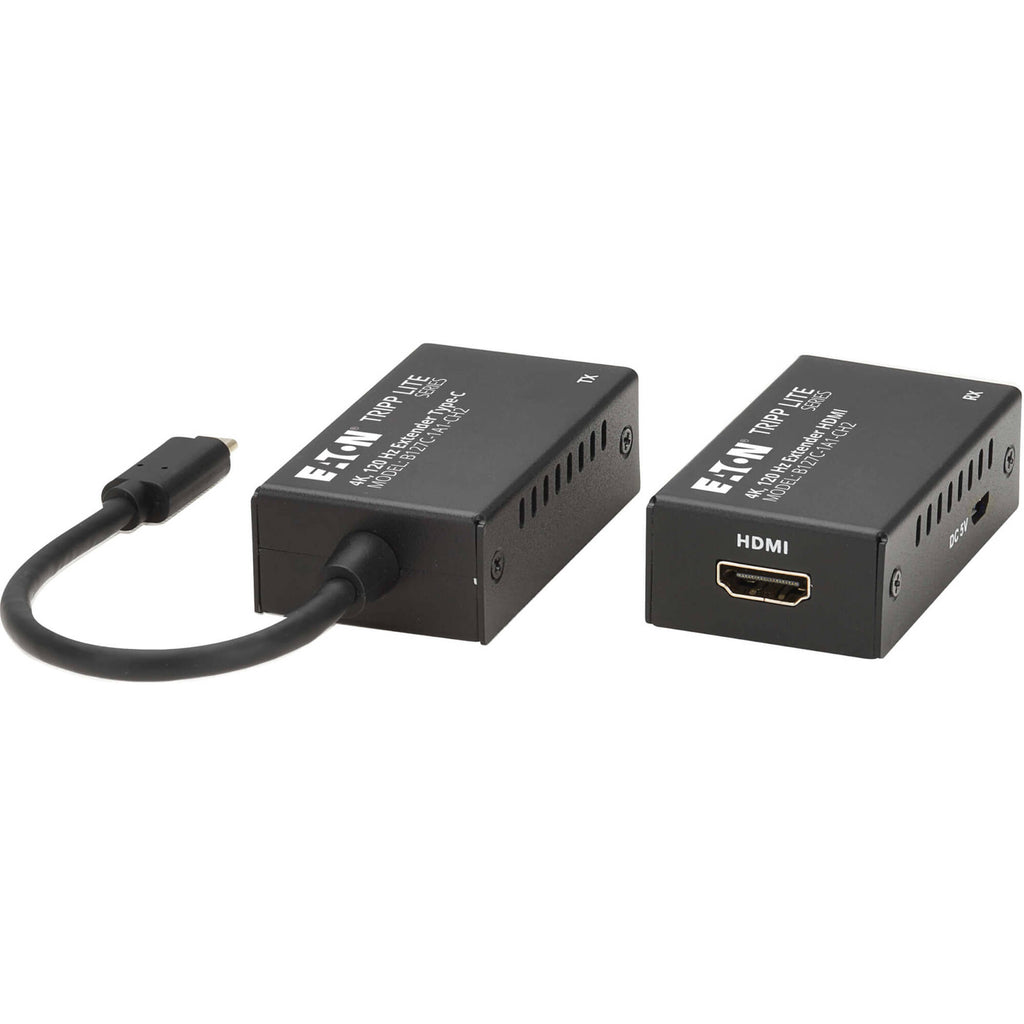

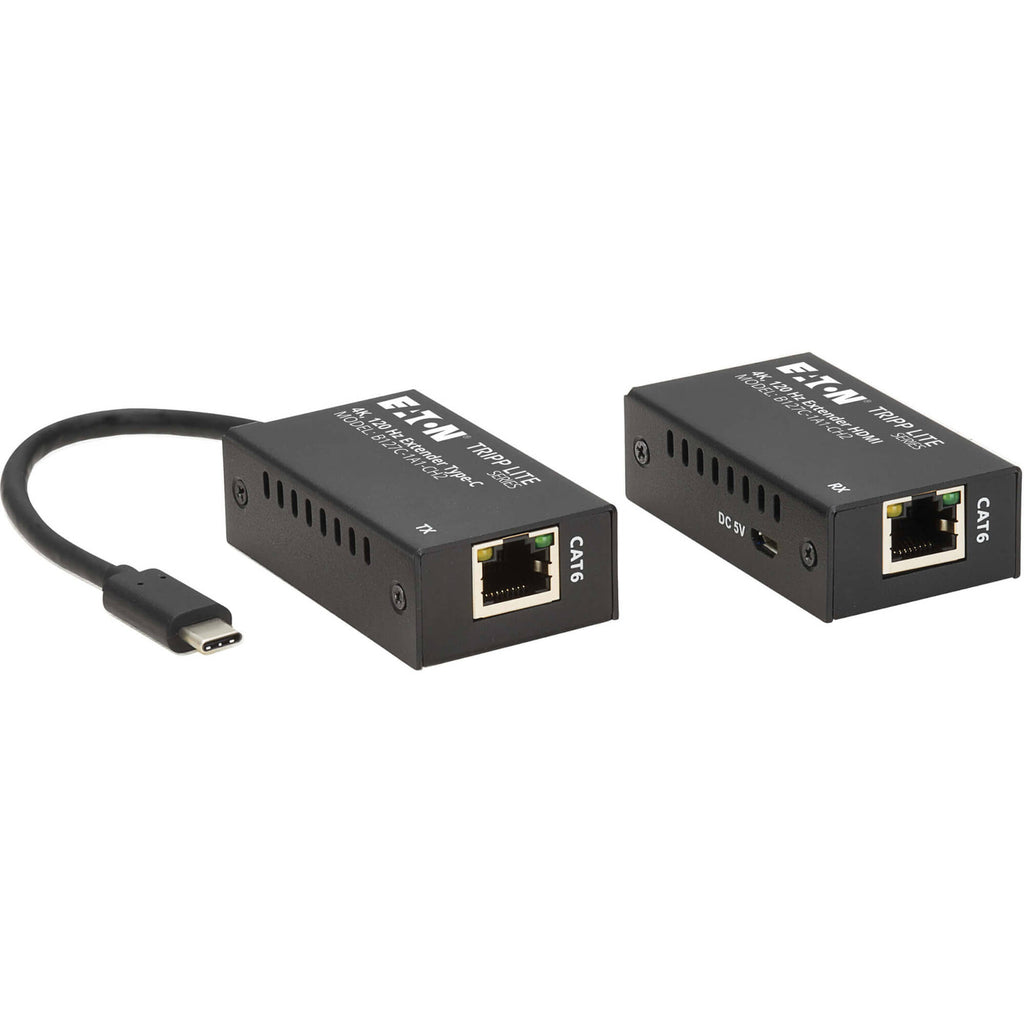

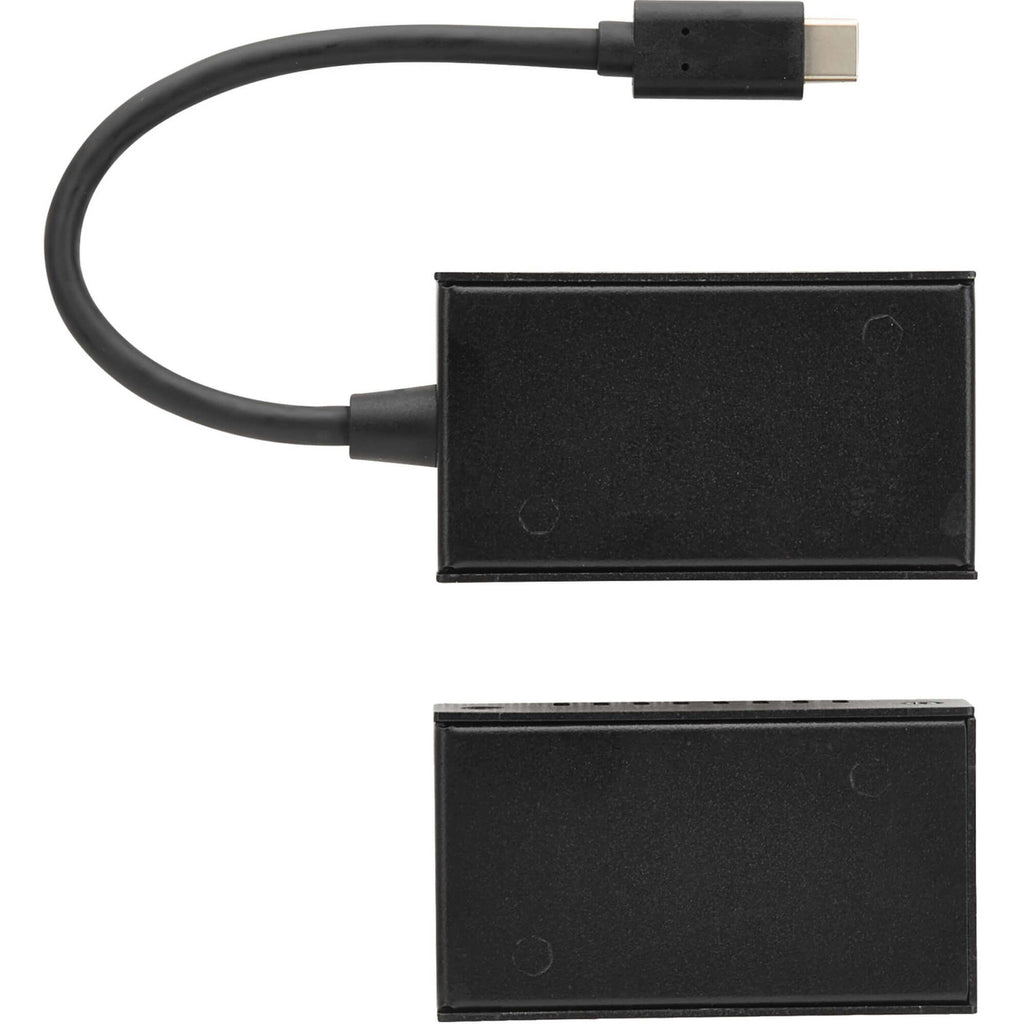

Tripp Lite B127C-1A1-CH2 Overview
The USB-C to HDMI over Cat 6 Extender Transmitter/Receiver Kit from Tripp Lite is designed to extend a USB-C video signal up to 196' away for output on an HDMI display for AV environments in classrooms, TV carts, and presentation rooms. The kit includes a transmitter with a USB-C input and an RJ45 category cable output. The included receiver features an RJ45 category cable input and an HDMI output. You can utilize the USB-C input from a variety of devices, including a smartphone, tablet, laptop, and computer, and it supports DisplayPort mode.
The units support up to 4K120 video transmission up to 82' and up to 4K60 video transmission up to 196' away when using cat 6 or better cable. Other features include plug-and-play operation, HDR10 support, EDID passthrough, HDCP 2.2 support, and zero latency. The transmitter is powered via the USB-C source, and a micro-USB cable is included for the receiver with an optional power supply.
Items Included
- Tripp Lite USB-C to HDMI over Cat 6 Extender Transmitter/Receiver Kit
- Transmitter
- Receiver
- Micro-USB Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
Tripp Lite B127C-1A1-CH2 Specs
| Inputs |
1x USB-C
|
| Embedded Audio Input |
USB-C
|
| Outputs |
1x RJ45
|
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 2.0)
|
| Embedded Audio Output |
HDMI
|
| HDR Support |
Yes: HDR10
|
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
Yes
|
| Max Transmission Distance |
UHD 4K at 60 Hz:
196.9' / 60 m (via Cat 6) UHD 4K at 120 Hz: 82' / 25 m (via Cat 6) |
| Video Format |
HDMI (4:4:4):
4096 x 2160: 25/29.97/30/50/59.94/60/23.98/24 fps 3840 x 2160: 120/25/29.97/30/50/59.94/60/100/119.88/23.98/24 fps 1920 x 1080p: 120/25/29.97/30/50/59.94/60/23.98/24 fps 1920 x 1080i: 50/59.94/60 fps 1280 x 720p: 50/59.94/60 fps |
| PC Resolutions |
1920 x 1200
1680 x 1050 1440 x 900 1366 x 768 1280 x 960 |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS, Dolby Digital
|
| Supported Cable Types |
Cat 6
|
| Receiver Power I/O |
1x Micro-USB (5 VDC at 0.5 A) Input
|
| Transmitter Power Consumption |
(6 W)
|
| Receiver Power Consumption |
(4 W)
|
| Certifications |
CE, FCC, IEC 61000, REACH, RoHS, UKCA, WEEE
|
| Operating Conditions |
-4 to 131?F / -20 to 55?C at 0 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 0 to 90% Humidity
|
| Transmitter Dimensions |
2.81 x 1 x 0.6" / 7.15 x 2.6 x 1.5 cm
|
| Receiver Dimensions |
2.81 x 1 x 0.6" / 7.15 x 2.6 x 1.5 cm
|
| Transmitter Weight |
0.6 oz / 17 g
|
| Receiver Weight |
0.6 oz / 17 g
|
| Package Weight |
0.71 lb
|
| Box Dimensions (LxWxH) |
6.6 x 5 x 3.1"
|
