Description
- 4" TFT Screen with 800 x 480 Resolution
- Tests Network, AHD, and HD-TVI Cameras
- Built-In DHCP Server
- Discover, View, and Configure Cameras
- TDR Cable Testing
- RS-485 PTZ Control Test
- RJ45 PoE Injector
- ONVIF-Compliant, 2.4.1 or Higher
- 8GB Internal Flash Storage

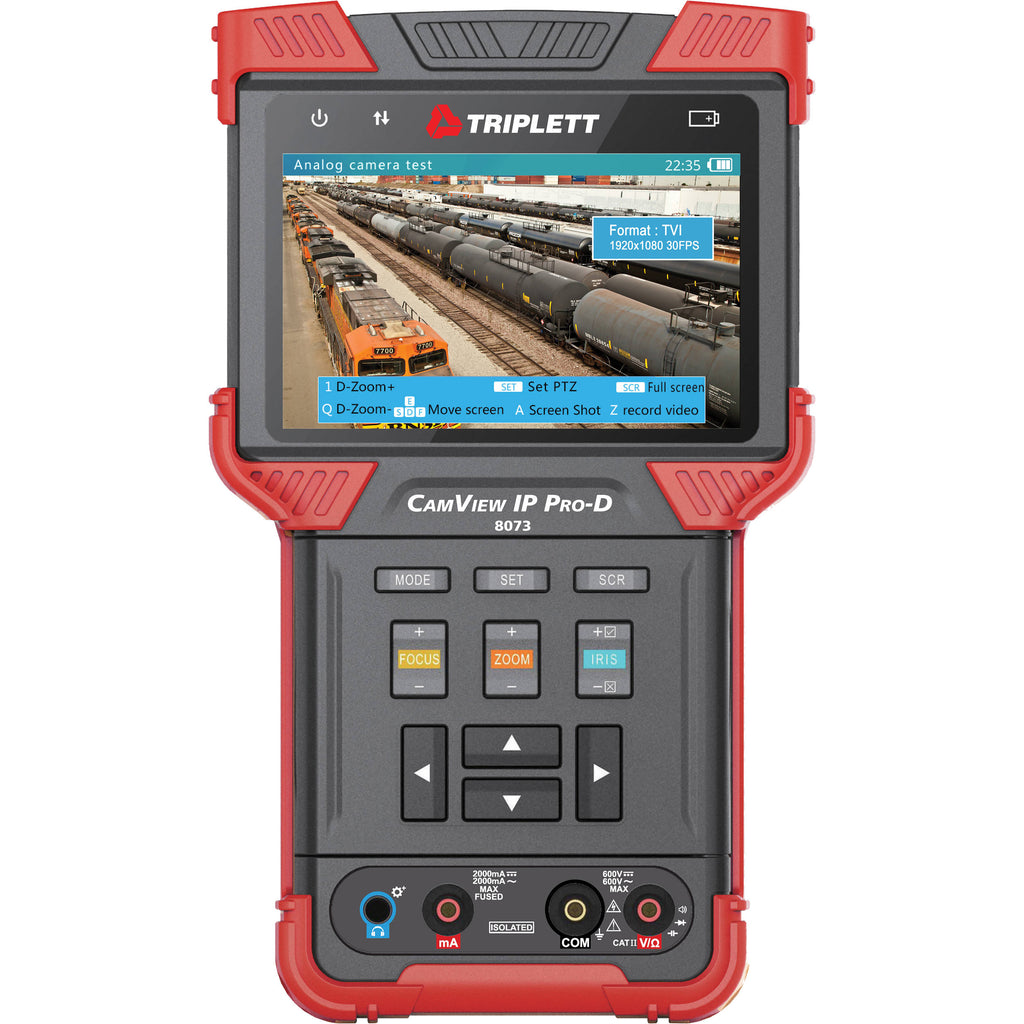

Test your network, AHD, and HD-TVI cameras with the CamView IP Pro+ 8073 Camera Tester with DHCP Server from Triplett . This device features a 4" TFT display for seamless navigation. A built-in DHCP server enables this camera tester to work with or without a network connection. Additionally, the DHCP server allows you to set and assign IP addresses to cameras, auto-detect IP settings on networks, and ping, sniff, and list subnets.
This device can perform RS-485 PTZ control tests, as well as power network cameras via PoE, and analog cameras via 12 VDC power. It also performs TDR cable tests, Ethernet link tests, packet loss tests, and Ethernet loop detection. The tester is ONVIF-compliant for version 2.4.1 or higher to improve interoperability across devices and is equipped with 8GB internal flash storage.
- Powers both network and analog cameras
- Works with most popular network and analog cameras up to 8MP
- Built-in DMM (digital multimeter)
- More than 30 PTZ protocols including Dahua, Pelco D/P, Samsung, Panasonic, Lilin, and others
- Analog NTSC/PAL and HD video generator
- Screenshot, video recording, playback & reports
UPC: 614395001872
Triplett CamView IP Pro+ specs
| General Specifications | |
|---|---|
| Compatible Cameras | Network, AHD, HD-TVI, HD-CVI |
| Signal Format | NTSC/PAL |
| HD Video Format Options | AHD 2.0, HD-TVI 3.0, and HD-CVI 3.0 |
| Resolutions | Analog: 704 x 480 (D1), 1280 x 720 (720p), 1920 x 1080 (1080p) |
| Signal Level | 1 V p-p |
| Camera Test | Analog: Real-time video, PTZ control, audio test, full-screen preview, and 8x digital zoom; snapshot, record video |
| Network Protocols | ONVIF 2.4.1 or higher, RTSP, RTP |
| Ethernet | Tests: 10M/100M/1G Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test |
| IP Configuration | Static IP, DHCP client, DHCP server |
| IP Camera Test | Discover camera, real-time video, camera configuration, PTZ control, audio test, full screen preview, 8x digital zoom, snapshot, record video (recording original data stream), store ONVIF camera reports |
| PTZ Protocols | More than 30 protocols including Dahua, Pelco D/P, Samsung, Panasonic, Lilin, Yaan |
| Baud Rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19,200 bps |
| Detection | TDR Tests: 0-492' / 0-150 m network cable length measurement (resolution 1 m), cable pair status PTZ Test: Data monitor to detect RS-485 communication from control room console to camera PoE Tests: PD test (tester accepts PoE power, displays voltage) PSE test (tester provides PoE power, displays power) Network Analysis: Sniff, list subnet, ping Video Generator: Generate NTSC/PAL and 1080p video signals of various test patterns Record Playback: Support local playback of recorded video and view screenshots |
| Screen | 4" / 102 mm TFT 800 x 480 (WVGA) resolution, 16.7M color, backlight brightness adjustable |

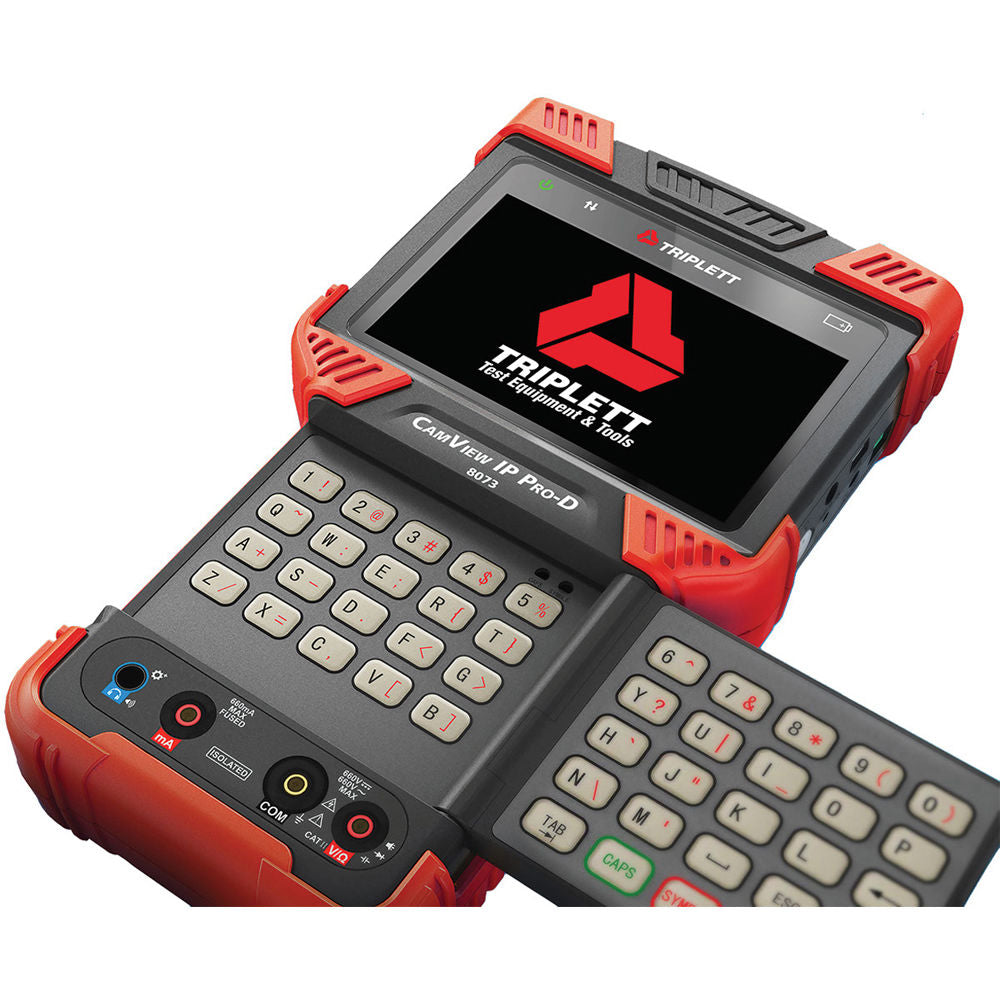

| Operation | Power key, 12 control keys, QWERTY flip-open keyboard with 45 keys |
| Auto Power Off | Disable, 5-60 minutes |
| Keyboard | Enable/Disable tone |
| Software | Supports online upgrades |
| Network Ports | 2 x 10M/100M/1G RJ45 (blue is PoE out, green is PoE in) |
| I/O Ports | 2 x BNC (video in/out) 1 x RS-485 1 x audio in 1 x USB 1 x reset button |
| Power Input | PoE source or PoE injector (green RJ45 port) |
| PoE Power | Input: 100-230 VAC, 50-60 Hz Output: 48 V / 15 W |
| Power Output | PoE (802.3af, 802.3at) (blue RJ45 port), 12 VDC / 2 A |
| Battery | Dedicated battery, user replaceable 7.4 V lithium-ion polymer battery Capacity: 22.2 Wh |
| Battery Charging Time | 3-4 hours, max working time 10 hours |
| Internal Storage | 8 GB flash |
| LED | 2 x 35-lumen LED lights |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 30-90% |
| Dimensions | 7.5 x 4.4 x 1.5" / 190 x 113 x 37 mm |
| Weight | 3.5 lb / 1.6 kg |
| Digital Specifications | |
|---|---|
| VDC | Range: 2/20/200/600 V Reading Range: ±19999 Minimum Resolution: 0.1 mV Accuracy: ±0.1% +8 Note: For the range of 2 VDC, no load reading should be subtracted |
| VAC True RMS | Range: 2/200/600 V Reading Range: ±1999 Minimum Resolution: 1 V Accuracy: ±1.2% +3 |
| DC Current | Range: 20/200/2000 mA Reading Range: ±19999 Minimum Resolution: 1 uA Accuracy: ±0.1% +8 Note: For the range of 20 mA, no load reading should be subtracted |
| AC Current | True RMS Range: 20/200/2000 mA Reading Range: ±1999 Minimum Resolution: 1 uA Accuracy: ±1.2% +3 |
| Resistance | Range: 2/20/200 kOhms, 2/20 MOhms Reading Range: 0-19999 Minimum Resolution: 0.1 Ohms Accuracy: ±0.1% +8 Note: When measuring small resistors, resistance of the probes should be subtracted |
| Capacitance | Range: 2/20/200 nF, 2/20/200 uF, 2/20 mF Reading Range: 0-1999 Minimum Resolution: 1 pF Accuracy: ±4% +5 |
| Diode Forward Voltage | Range: 2 V Reading Range: 0-1999.9 Minimum Resolution: 0.1 mV Accuracy: ±0.1% +20 |
| Continuity | Range: 2 kOhms Reading Range: 0-1999.9 Minimum Resolution: 0.1 Ohms Accuracy: ±0.1%+20 |
| Voltage Rating | Resistance, Capacitance, Diode Measurement Protection: <400 V Connecting to voltage beyond the range will cause the meter to be damaged permanently |
| Fuse | 2A / 250 V Size: 0.2 x 0.8" / 5 x 20 mm |
| Electrical Insulation | >1.5 kV mA, COM, V/W are electronic measurement connectors, which are insulated from all other interfaces |
| Factory Calibration | Temperature: 25 ±5°C |
| Temperature Stability | <100 ppm per °C, except for large current measurements |
| Self-Calibration | User Self-Calibration Range: ±1% |
| Data Rate | 5 readings per second (DC voltage, DC current, resistance measurement, diode testing, continuity) 2 readings per second (AC voltage & AC current testing, capacitance testing) 0.1-5 readings per second (AC voltage & AC current testing, capacitance testing) |
| Refresh Rate | Analog Meter Refresh Rate: 20-40 fps, except for capacitance testing |
| Data History | Chart X Axis: 1/5/25 seconds per division Automatic adapt |
| Waveform | Display Mode X Axis: 10 ms per division Refresh Rate: 1 per second No synchronization |
| AC Measurement | Frequency Range: 0-1000 Hz Harmonics above 1 kHz will induce error |
| Diode Current Measurement | 1 mA ±5% |
| Threshold | Breakdown Prompt Threshold: 30 mV |
| Conductivity | Test Current: 1 mA ±5% Beeper Threshold: 30 Ohms Beeper Response Time: <2 ms |
| Current | Measurement Resistance: 20 mA Grade: 5 W ±5% 200 mA Grade: 1 W ±10% 2000 mA Grade: 0.1-0.2 W |
| Data | Recording Frequency: 2 records per second Record Length: 0.5 sec to 9999 hours |
| Packaging Info xqdbzqfrzvxvrrfsfcvedreuwwu | |
|---|---|
| Package Weight | 3.45 lb |
| Box Dimensions (LxWxH) | 10.8 x 6.7 x 4.5" |
In the Box
Triplett CamView IP Pro+ 8073 Camera Tester with DHCP Server
- Limited 1-Year Warranty
