Description

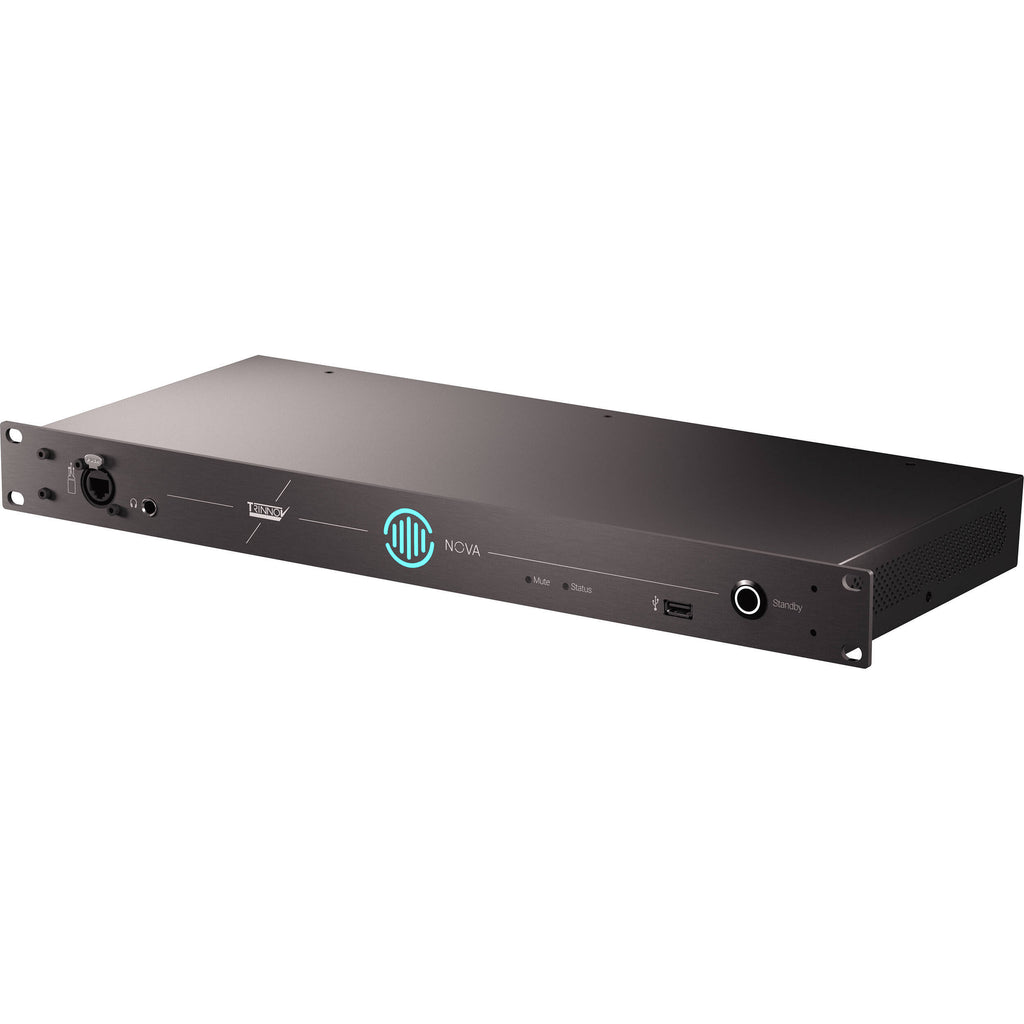

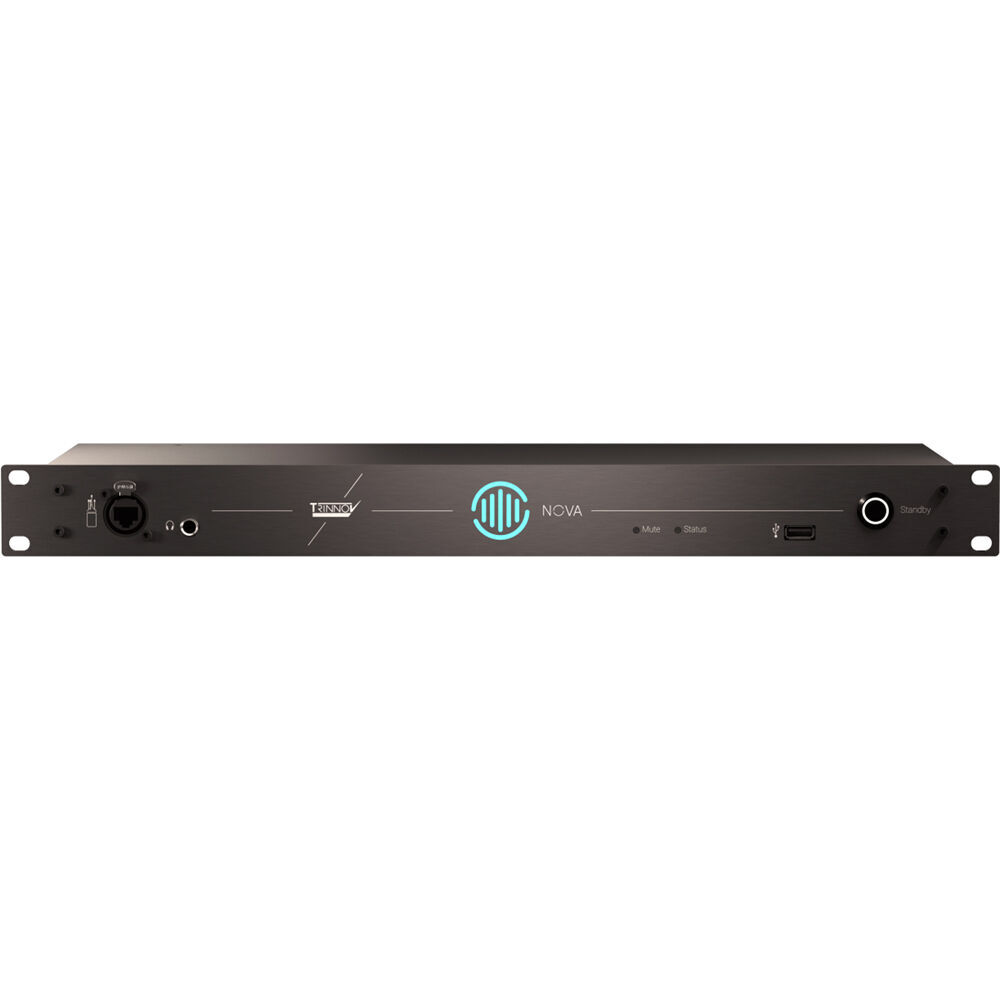

Trinnov NOVA Overview
Utilizing state-of-the-art technology to correct room and speaker inefficiencies, the Trinnov Nova Room Correction Audio Interface acts as both a sophisticated audio interface and monitor controller. Using the included 3D measurement microphone connected via Ethernet, Trinnov's Optimizer technology corrects amplitude inconsistencies to create a flat and transparent listening environment. With a single Ethernet cable via a Dante network, you can enjoy multi-channel audio as a standalone interface.
On the rear of the Nova are two 3-pin XLR and four 1/4" TRS input connectors to incorporate other audio players into the system. A total of six 3-pin XLR outputs are available to connect to your favorite loudspeakers, with four being active. A separate paid software upgrade will allow you to access the other two outputs. Or, alternatively, the separately available NOVA6M has all six XLRs active. Other input connections for AES/EBU, ADAT, S/PDIF, and a 1/4" TRS headphone port make for an ultra-versatile monitoring system.

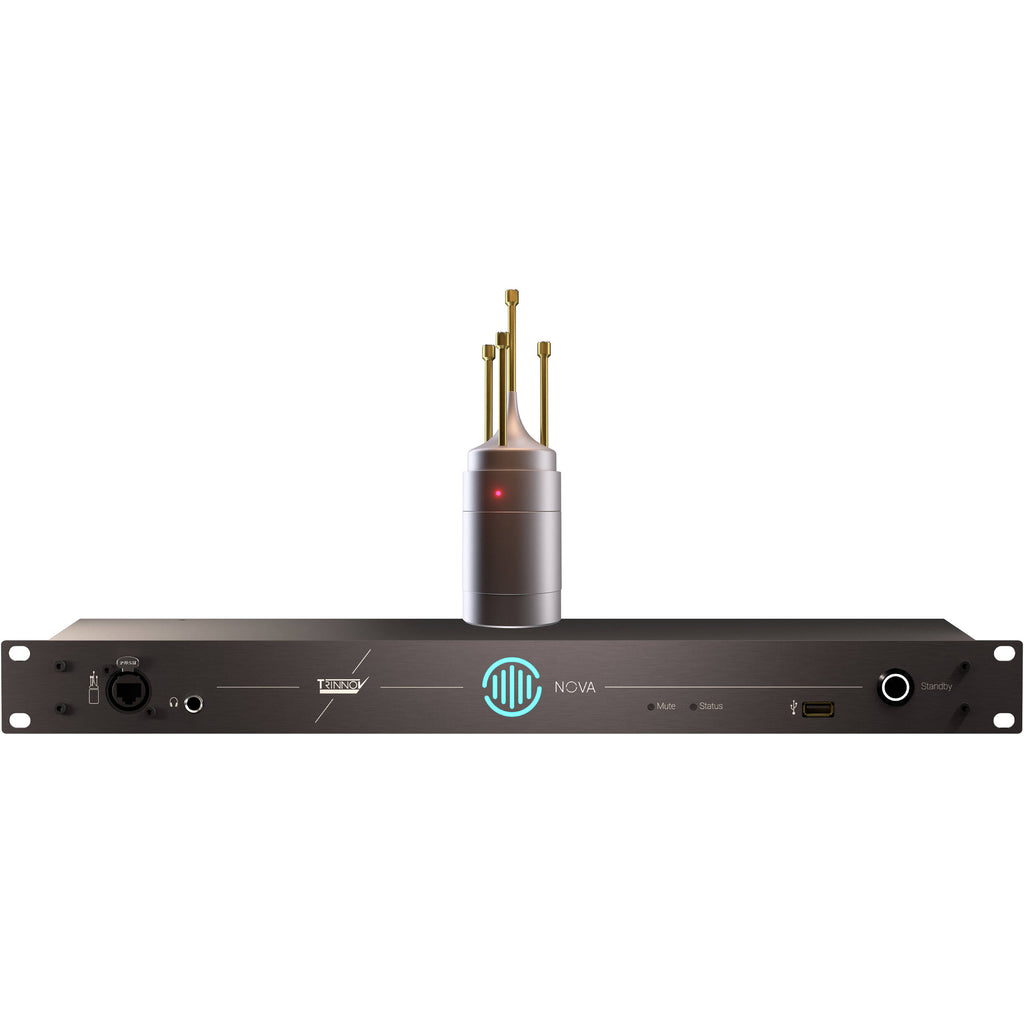

- Trinnov Nova Room Correction Audio Interface with 3D Measurement Microphone (Four Channels)

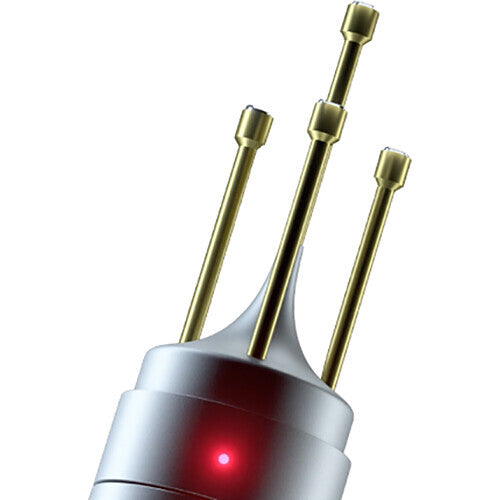

- 3D Measurement Microphone
- IEC Power Cable
- Ethernet Cable
- Limited 5-Year Manufacturer Warranty
No additional resources available
Trinnov NOVA Specs
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
1
|
| Analog Audio I/O |
2x XLR 3-Pin Line Input
4x 1/4" TRS Line Input 6x XLR 3-Pin Line Output |
| Digital Audio I/O |
RCA Coaxial S/PDIF Input
TOSLINK Optical ADAT Input XLR 3-Pin AES3 Output |
| Host Connection |
No
|
| Power Requirements |
AC Input
|
| Display |
No
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
1
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
via Software
|
| Analog Audio I/O |
2x XLR 3-Pin Balanced Line Input
4x 1/4" TRS Balanced Line Input 6x XLR 3-Pin Balanced Line Output |
| Digital Audio I/O |
1x RCA Coaxial S/PDIF Input
1x TOSLINK Optical ADAT Input 1x XLR 3-Pin AES3 Output |
| Host Connection / USB |
No
|
| Host Connection Protocol |
Not Specified by Manufacturer
|
| USB (Non-Host) |
1x USB-B (Remote, Service)
|
| Sync I/O |
No
|
| Network I/O |
2x etherCON/RJ45 Dante
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Other I/O |
1x etherCON/RJ45 Mic Module Input (Front Panel)
|
| Wireless |
No
|
| Dynamic Range |
AD/DA Converters:
115 dB (A-Weighted) |
| Sample Rates |
Up to 192 kHz
|
| Bit Depths |
24-Bit
|
| Sync Sources |
Dante
|
| Clocking |
Dante:
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
macOS / Windows
|
| Mobile Device Compatibility |
iPhone
|
| Power Requirements |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz (T 500 mA)
|
| Power Consumption |
15 W
|
| Rackmount Size |
1 U
|
| Dimensions |
19 x 7.5 x 1.7" / 482.6 x 190.5 x 43.2 mm
|
| Weight |
5.5 lb / 2.5 kg
|
| Package Weight |
12.475 lb
|
| Box Dimensions (LxWxH) |
23.9 x 12.4 x 6.9"
|
