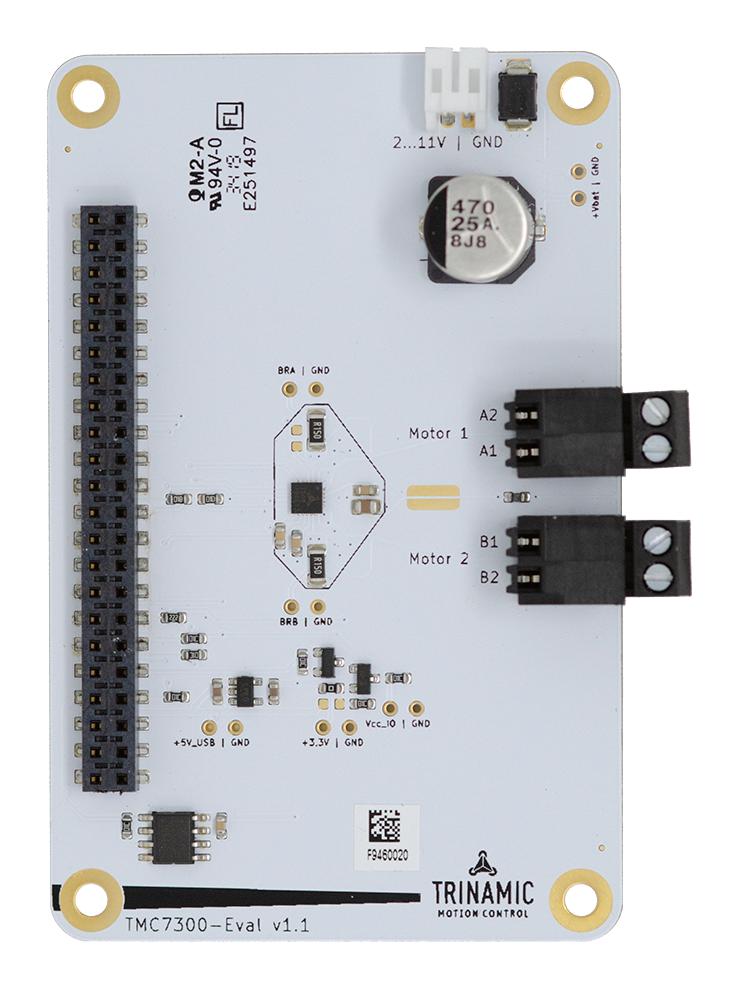

Evaluation board allows evaluation of the TMC7300-LA low voltage DC motor driver in combination with the TRINAMIC evaluation board system or as stand-alone-board. It uses the standard schematic and offers several options in order to test different modes of operation. Typical applications includes IoT & handheld devices, battery operated equipment, printers, POS, miniature 3D printers, toys, office and home automation, CCTV, security, HVAC and mobile medical devices.
- 2 DC motors with up to 2A current
- Single DC motor with up to 2.4A current
- Supply voltage range from 2V (1.8V) to 11VDC
- Standby current of < 50nA typical current draw
- UART for advanced configuration and control
- Parallel operation for single DC motor
- Motor load feedback
- Full protection and diagnostic
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
TRINAMIC |
| Part Number |
TMC7300-EVAL |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
