| ₹ 390.86 includes GST and import duties. | |
| B2B customers can avail ₹ 59.61 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

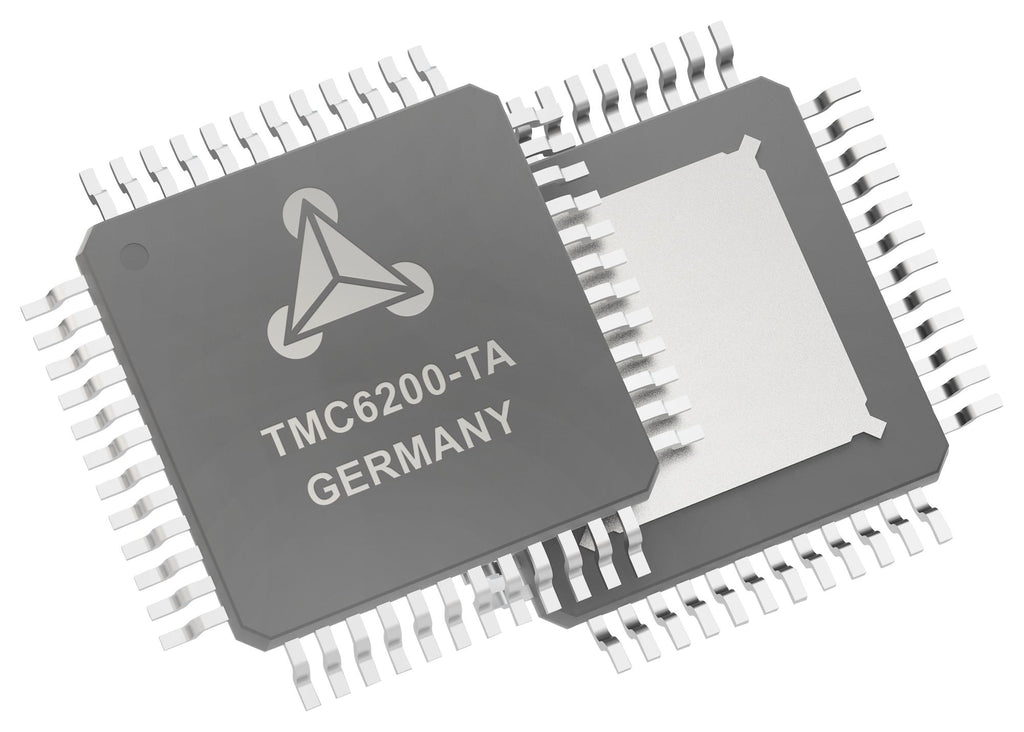

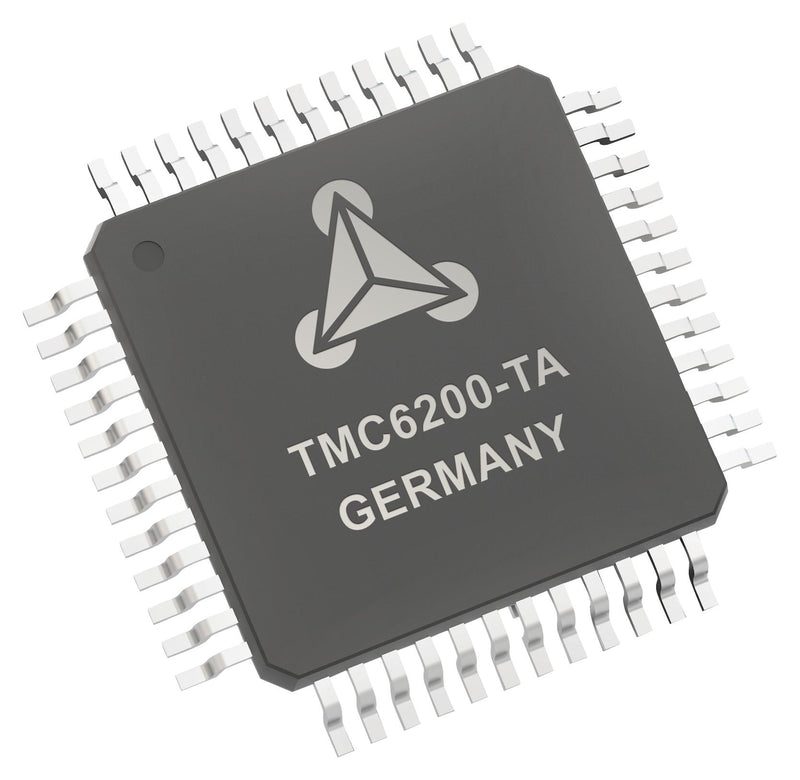

The TMC6200 is a high-power gate-driver for PMSM servo or BLDC motors. Using six external MOSFETs and two or three sense resistors, it integrates the full high voltage part of a PMSM drive system for 12V, 24V or 48V, including in-line current sense amplifiers with programmable amplification. It can drive a wide range of motors from Watt to Kilowatt.
- 3-phase motors up to 100A coil current (external MOSFETs)
- Voltage Range 8 � 60V DC
- Gate Drive Programmable 0.5A / 1A / 1.5A
- Full Protection and Diagnostics via SPI interface
- 3 Floating Sense Amplifiers with programmable gain (5, 10, 20)
- Gate Off Drive with 1R (LS) / 1.3R (HS) safe hold off resistance
- SPI & Stand-Alone operation
- Charge Pump for 100% Duty Cycle operation
- Optional BBM break-before-make logic for single line control
- Programmable Short and Overload current threshold and retry
- Programmable Control Interface with 3 line or 6 line drive
Industrial Automation, Automation & Process Control
Other details
| Brand | TRINAMIC |
| Part Number | TMC6200-TA |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 383.04 |
| 3-5 | ₹ 379.13 |
| 5-10 | ₹ 371.32 |
| 10+ | ₹ 363.5 |
Bulk discount will be automatically applied during checkout based on quantity.
