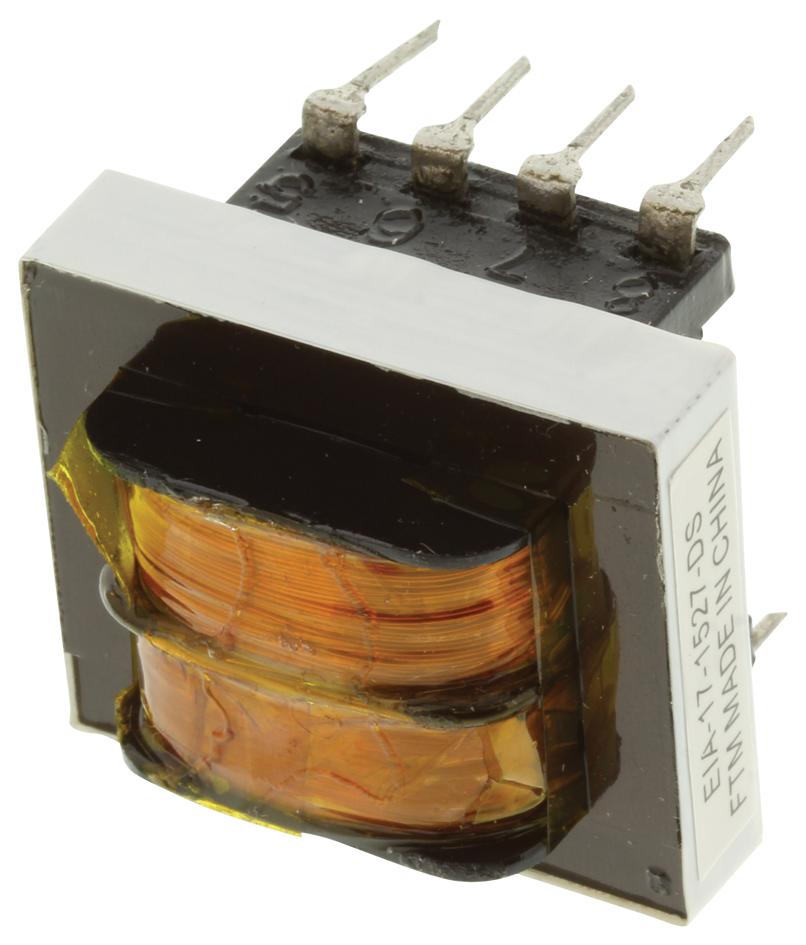

FS28-200-C2 POWER XFMR 28 Vct @ 200 mA UL/cUL - Class 2/3 , TUV, 115/230V SPLIT PACK PCB MOUNT / FS28-200-C2 55X4537 New product from TRIAD MAGNETICS with the model number FS28-200-C2
Product details
| PCB Transformer Type |
Split Bobbin |
| Primary Voltages |
115V, 230V |
| Secondary Voltages |
14V |
| Power Rating |
6VA |
| Frequency Range |
50Hz / 60Hz |
| Winding Type |
Dual Primary, Dual Secondary |
| Current Rating |
200mA |
| Isolation Voltage |
4.2kVrms |
| Transformer Mounting |
Through Hole |
| Product Range |
- |
Other details
| Brand |
TRIAD MAGNETICS |
| Part Number |
FS28-200-C2 |
| Quantity |
Each |
