| ₹ 75.0 includes GST and import duties. | |
| B2B customers can avail ₹ 11.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

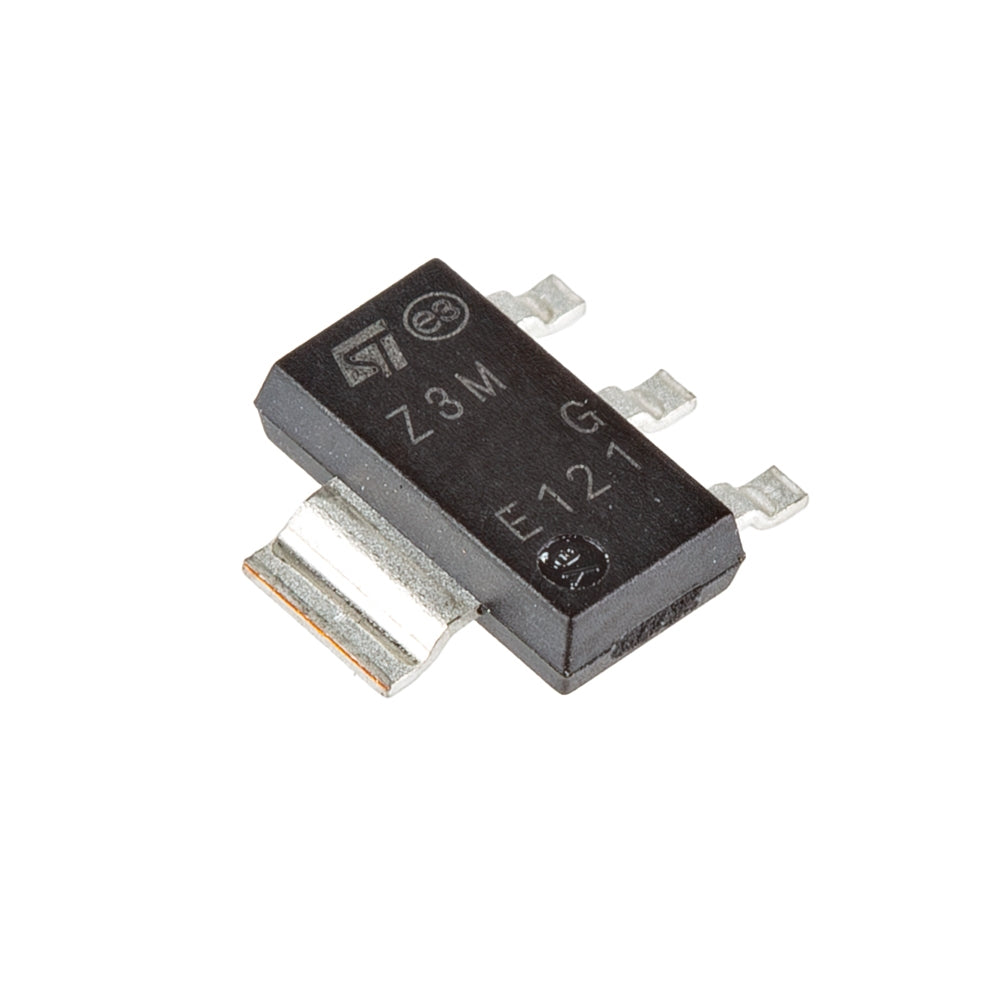

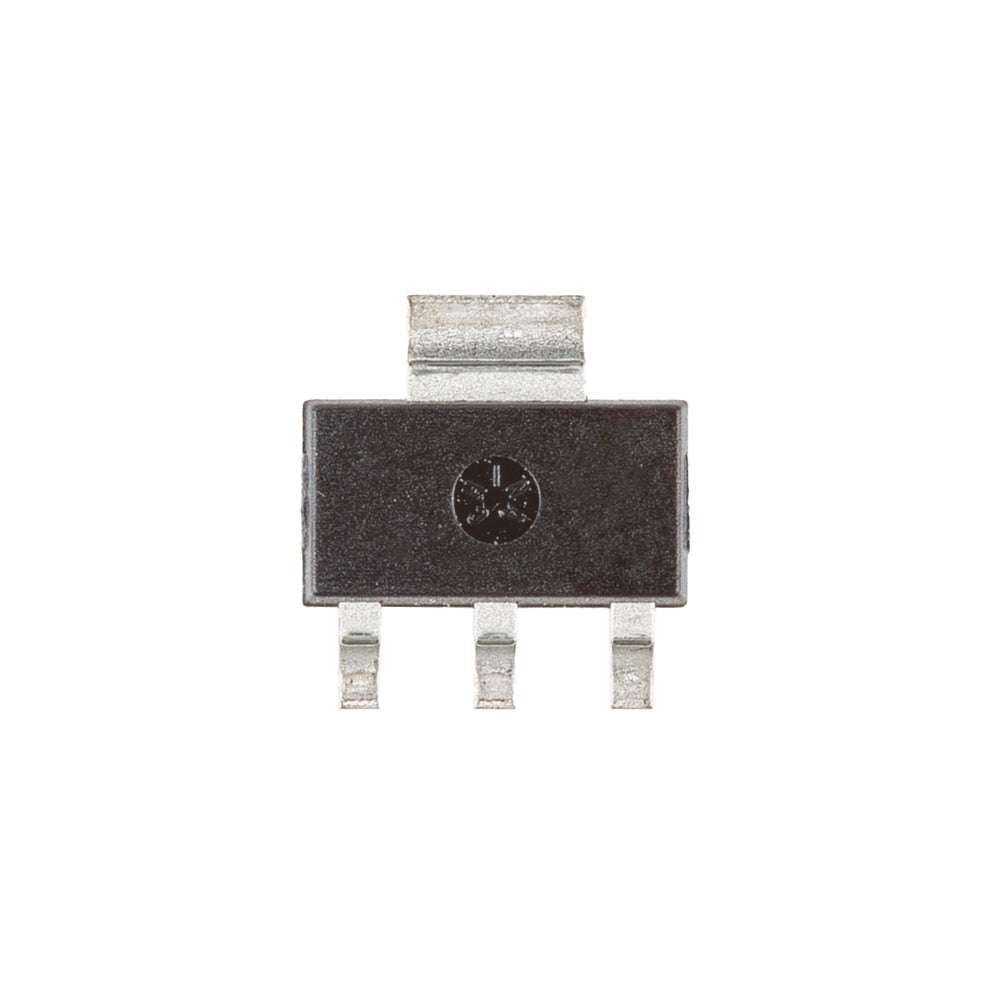

Simplify your AC switching circuits and reduce component count with this sensitive-gate triac, designed for direct logic-level control in a compact SOT223 package.
Features & Specs
- Triac Type: Logic - Sensitive Gate
- Voltage - Off State: 600V
- Current - On State (It (RMS)) (Max): 1A
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 8A, 8.5A
- Current - Gate Trigger (Igt) (Max): 3mA
- Current - Hold (Ih) (Max): 7mA
- Configuration: Single
- Operating Temperature: 125°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: Z0103MN,135
Features & Specs
- Triac Type: Logic - Sensitive Gate
- Voltage - Off State: 600V
- Current - On State (It (RMS)) (Max): 1A
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 8A, 8.5A
- Current - Gate Trigger (Igt) (Max): 3mA
- Current - Hold (Ih) (Max): 7mA
- Configuration: Single
- Operating Temperature: 125°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: Z0103MN,135
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 73.5 |
| 3-5 | ₹ 72.75 |
| 5-10 | ₹ 71.25 |
| 10+ | ₹ 69.75 |
Bulk discount will be automatically applied during checkout based on quantity.
