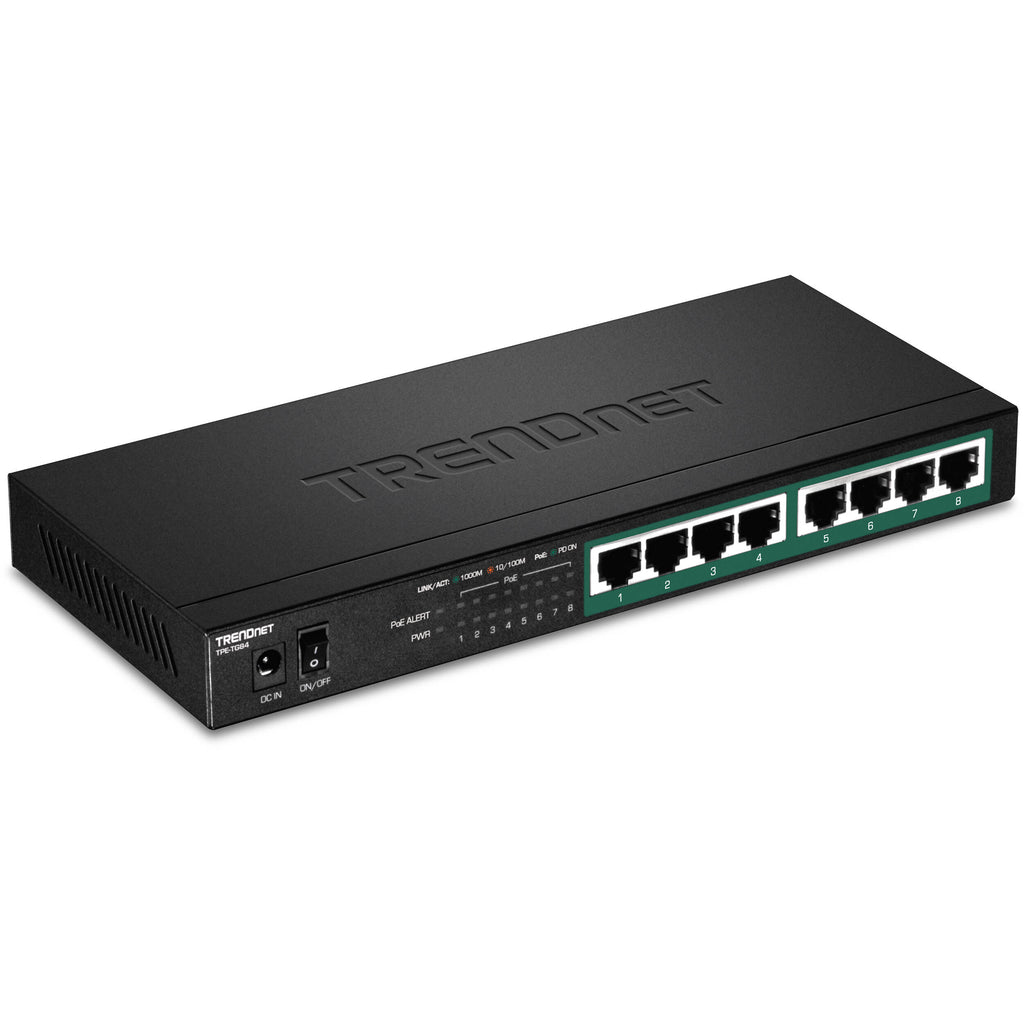

TRENDnet TPE-TG84 Overview
Quickly connect power-over-Ethernet (PoE) compatible devices such as security cameras, VoIP phones, and wireless access points to your network with the TPE-TG84 8-Port Gigabit PoE+ Compliant Unmanaged Network Switch from TRENDnet. This budget-friendly and compact unmanaged network switch features eight PoE+ compliant Gigabit Ethernet ports with a 120W power budget that provide high-speed data connections to compatible devices. With its plug-and-play design, the TPE-TG84 delivers smooth data transfers with a 16 Gb/s switching capacity and 11.9 Mpps forwarding rate without any additional configuration, drivers, or licenses. Additionally, the passively cooled TRENDnet TPE-TG84 may be mounted on either a desktop or wall in your office or home, where it will operate silently in the background.

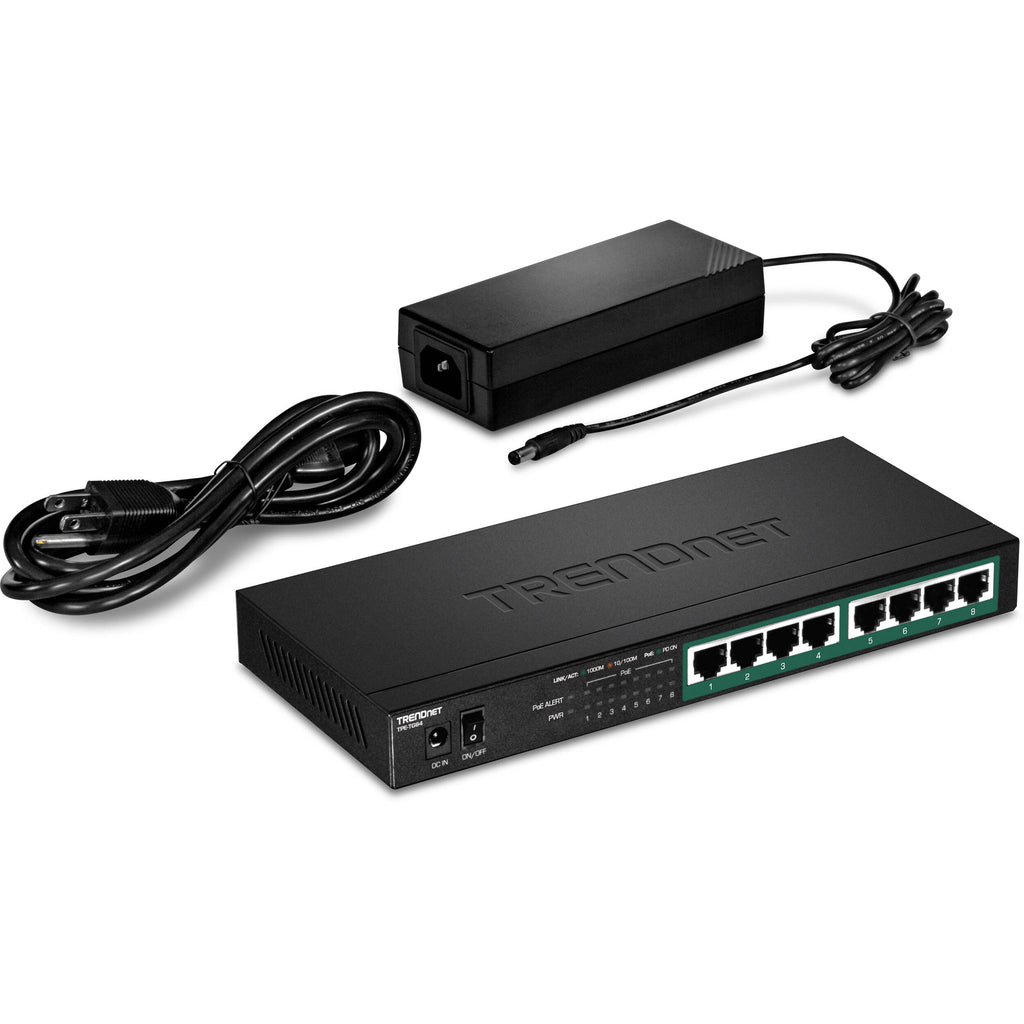

In the Box
- TRENDnet TPE-TG84 8-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Power Adapter
TRENDnet TPE-TG84 Specs
Interfaces
| Inputs/Outputs |
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
Protocols
| Jumbo Frames Support |
9000 Bytes |
| MAC Address Table Size |
4K |
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3af, 802.3at, 802.3bz, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate |
11.9 Mpps |
| Switching Bandwidth |
16 Gb/s |
Computer
| RAM Buffer |
192 kB per Device |
Electrical
| Power Draw |
126.00 W (Max) |
| DC Input Power |
55 VDC at 2.55 A |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.5 A |
| PoE Power Budget |
120 W |
| Power Supply Type |
External |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
90% |
General
| Cooling System |
Passive |
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity, PoE, Power |
| Dimensions |
9.4 x 4.1 x 1.1" / 240 x 105 x 27 mm |
| Weight |
1.3 lb / 580 g |
Packaging Info
| Package Weight |
3.05 lb |
| Box Dimensions (LxWxH) |
10.5 x 5.5 x 3.1" |
