Description

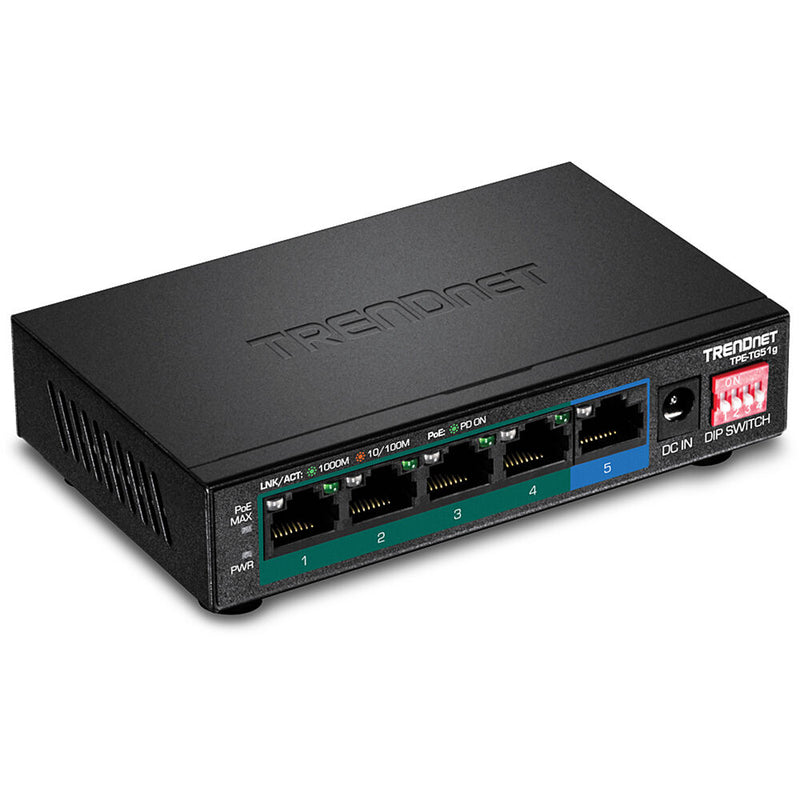

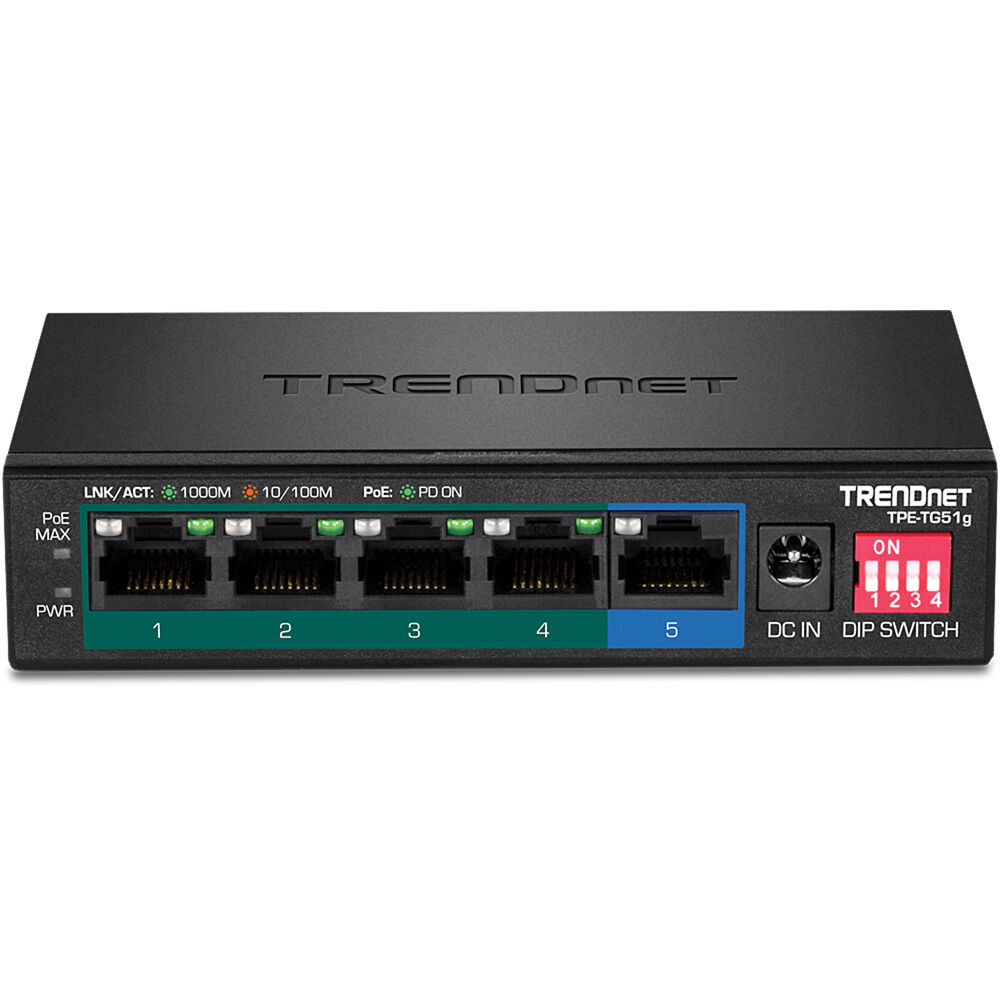

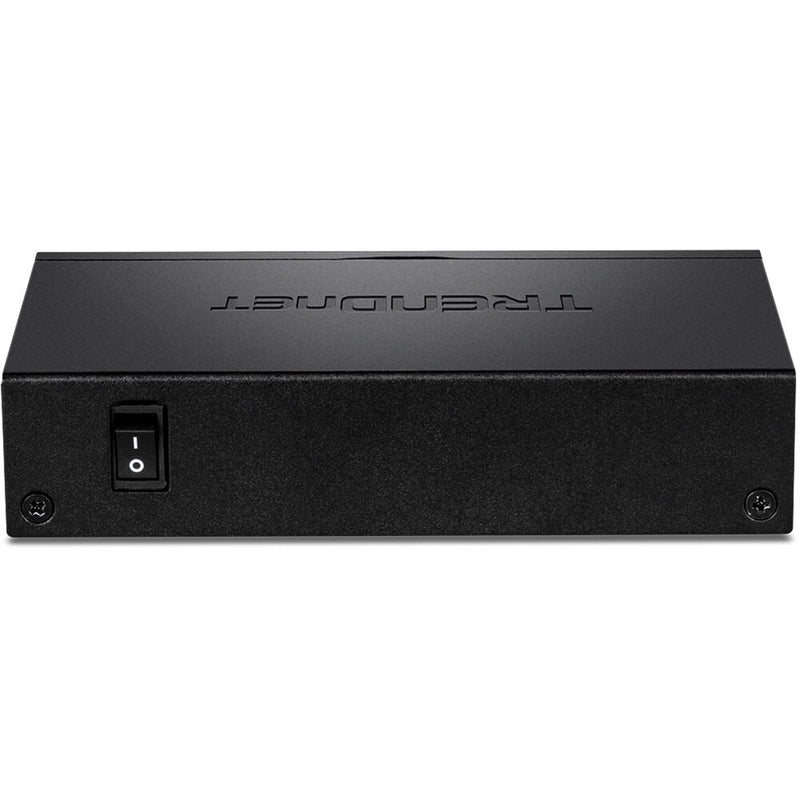

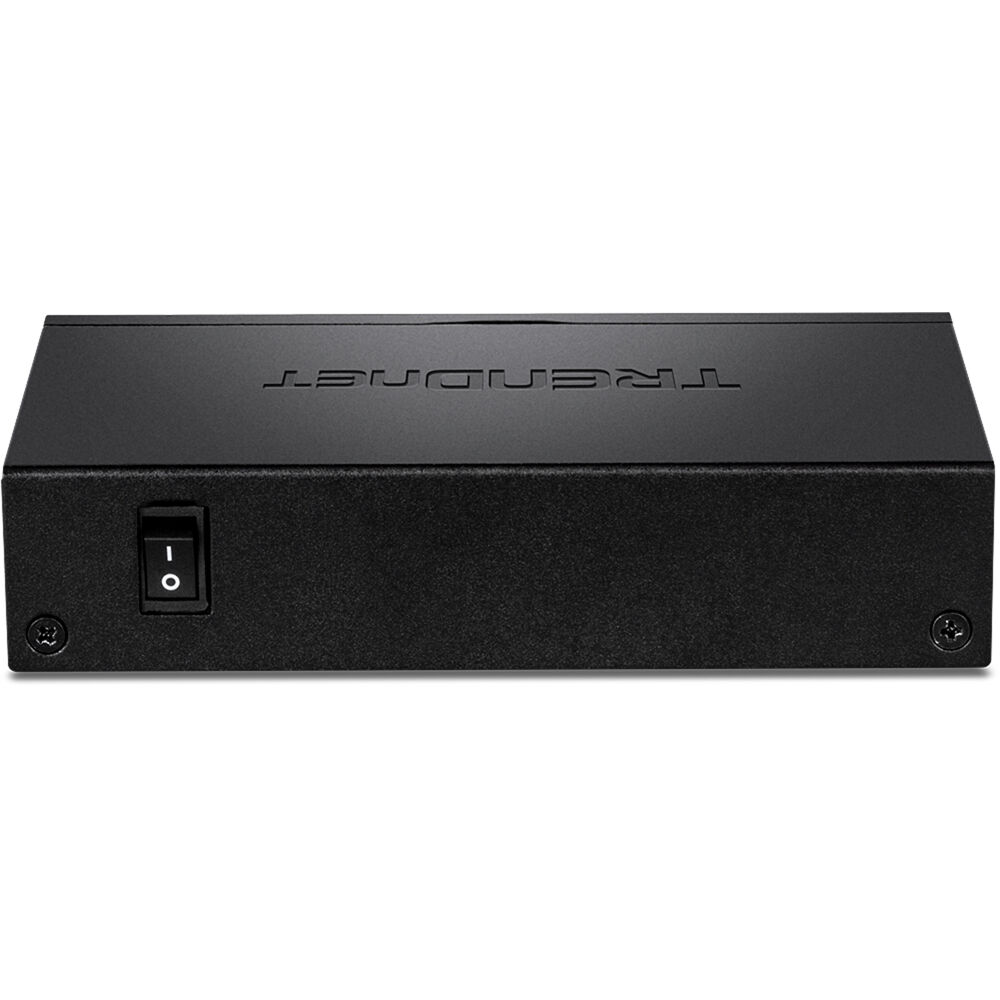

TRENDnet TPE-TG51G Overview
- 1Description
- 2Smooth Performance
- 3Long Range PoE+
- 4Port Isolation
- 5Rugged Design
Quickly expand your network to support access points, VoIP phones, and IP cameras with the TPE-TG51g 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch from TRENDnet. This desk and wall mountable switch includes five Gigabit Ethernet ports, four of which provide up to 30W to PoE+ compatible devices with a 60W budget.
Use the front-facing DIP switches to configure your switch, including enabling extend mode to transfer power and up to 10 MB/s of data to devices up to 656' away. Features such as port isolation make the TPE-TG51g ideal for surveillance applications.
Smooth Performance
Gigabit ports provide high-speed network connections to five devices, and a 10 GB/s switching capacity and 7.44 Mpps forwarding rate allow data traffic to flow smoothly, reducing traffic bottlenecks.
Long Range PoE+
Enable the DIP switch to extend the PoE+ signal up to 656' at up to 10 MB/s.
Port Isolation
Ideal for surveillance networking applications, the DIP switches also enable port isolation on ports 1 to 4.
Rugged Design
With its metal housing and fanless design, this switch operates silently in the background while mounted onto a wall or desktop.
UPC: 710931162080
In the Box

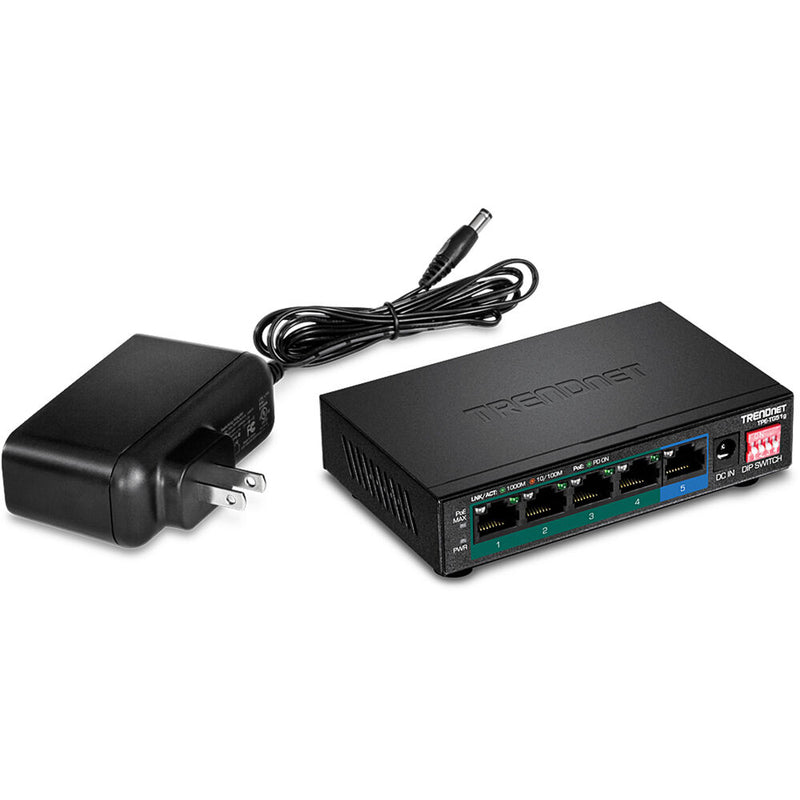

- TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Power Adapter (55V, 1.3A)
- Limited Lifetime Warranty
Table of Contents
- Description
- Smooth Performance
- Long Range PoE+
- Port Isolation
- Rugged Design
TRENDnet TPE-TG51G Specs
Key Specs
| Inputs/Outputs |
4 x RJ45 Gigabit Ethernet PoE+
1 x RJ45 Gigabit Ethernet |
| PoE Power Budget |
60 W
|
Interfaces
| Inputs/Outputs |
4 x RJ45 Gigabit Ethernet PoE+
1 x RJ45 Gigabit Ethernet |
Protocols
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
2000K
|
Standards
| Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3p, 802.3u, 802.3x
|
Performance
| Forwarding Rate |
7.44 Mpps
|
| Switching Bandwidth |
10 Gb/s
|
Computer
| RAM Buffer |
128 kB per Device
|
Electrical
| Power Draw |
64.3 W (Max)
|
| DC Input Power |
54 VDC at 1.3 A
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.5 A
|
| PoE Power Budget |
60 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
External
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
90%
|
General
| Certifications |
FCC, CE
|
| Cooling System |
Passive
|
| Material of Construction |
Metal
|
| Indicator Lights |
Link/Activity, PoE, Power
|
| Dimensions |
4.8 x 3 x 1" / 121 x 75 x 26 mm
|
| Weight |
8.7 oz / 246 g
|
Packaging Info
| Package Weight |
1.815 lb
|
| Box Dimensions (LxWxH) |
8.9 x 5.1 x 3.1"
|
