Description

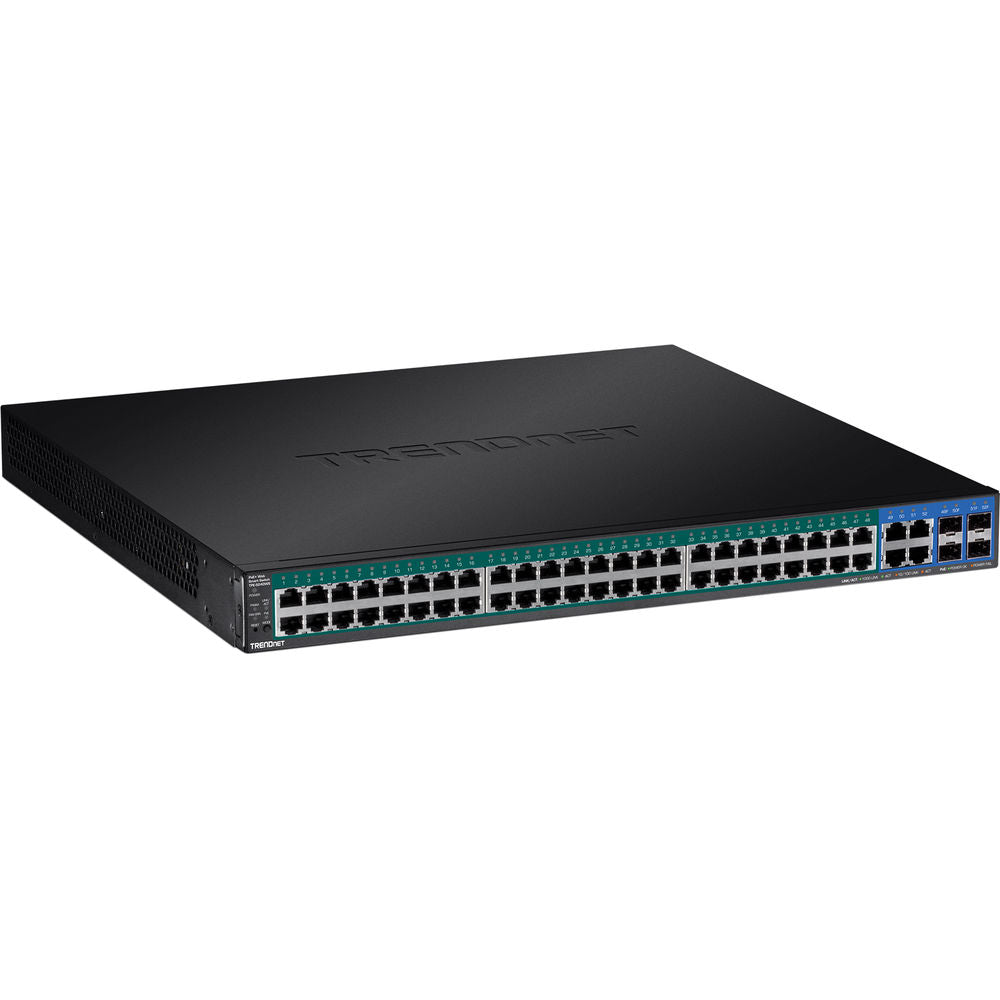

Manage multiple VLANs with the TPE-5240WS 52 Port Gigabit Managed Web Smart PoE+ Switch from TRENDnet , as it supports up to 256 VLAN groups, private VLANs, and voice VLANs.
This TRENDnet Web Smart Switch comes equipped with a total of 52 network ports, 48 of which are standard Gigabit Ethernet PoE+ ports and 4 that are shared RJ45/SFP Gigabit network ports. In addition to the number of network ports, this switch supports a 104 Gbps switching capacity, a 1.5 MB RAM buffer, a 16K MAC address table, and a 77.4 Mpps forwarding rate for optimal network performance. Once configured, network administrators can easily manage connected devices and other network resources including the ability to control bandwidth on a per port basis, configure both private and voice VLANs, and more all through the web-based management interface.
- Web Smart Management
- Provides an easy-to-use web-based interface for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment
- Integration Flexibility
- Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration
- PoE Power
- Supplies up to 30W of PoE+ power per port with a total power budget of 370W
- Hardware Design
- Provides 48 gigabit (RJ-45) ports, 4 shared gigabit ports (RJ-45 or SFP), a 104 Gbps switching capacity, a built-in power supply, and rackmount brackets
- IPv6 Ready
- This switch supports IPv6 configuration and IPv6 neighbor discovery
- Traffic Management
- A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
- Troubleshooting
- A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
- Access Control
- Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls
- Monitoring
- RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
- Power Saving
- Enhanced power saving capabilities with support for the 802.3az network standard
UPC: 710931161144
- 48 x Gigabit Ethernet PoE+ Ports
- 4 x Shared Gigabit Ports (RJ45/SF)
- 370W PoE Power Budget
- 104 Gbps Switching Capacity
- 77.4 Mpps Forwarding Rate
- Rack-Mountable Design
- 802.1p QoS with Scheduling Support
- Bandwidth Control per Port
- Private and Voice VLAN Support
- Easy-to-Use Management Interface
In the Box
TRENDnet TPE-5240WS 52 Port Gigabit Managed Web Smart PoE+ Switch
- Power Cord
- Rackmount Kit
- Limited Lifetime Warranty
| Standards | IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3az IEEE 802.3af IEEE 802.3at |
| Device Interface | 48 x Gigabit PoE+ ports 4 x Shared Gigabit ports (RJ-45/SFP) LED indicators |
| Data Transfer Rate | Ethernet 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet 100 Mbps (half duplex) 200 Mbps (full duplex) Gigabit Ethernet 2000 Mbps (full duplex) |
| Performance | Switch Fabric 104 Gbps RAM Buffer 1.5 MB MAC Address Table 16 K entries Jumbo Frames 10 KB HOL Blocking Prevention Forwarding Rate 77.4 Mpps (64-byte packet size) |
| Management | HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration |
| MIB | IP FORWARD TABLE MIB RFC 1354 RMON MIB RFC 1271 IPV4 MIB RFC 1213 IPV6 MIB RFC 2465 GVRP MIB IEEE 802.1Q-VLAN LA MIB IEEE 802.3ad LLDP MIB IEEE 802.1AB IGMP SNOOPING MIB RFC 2933 MLD SNOOPING MIB RFC 3019 PRIVATE VLAN MIB IEEE 802.1Q DHCPSNOOP MIB RFC 2026 QOS MIB RFC 4323 SNMP MIB RFC 3415 STP MIB RFC 4318 PNAC MIB IEEE 802.1x VLAN MIB IEEE 802.1q DNS MIB RFC 1611 ACL MIB BANDWIDTH CTRL MIB LBD MIB MIRROR MIB IPV6 NEIGHBOR MIB SNTP MIB STORM CTRL MIB STATISTICS MIB Tool MIB VOICE VLAN MIB DOS MIB |
| Spanning Tree | IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol) |
| Link Aggregation | Static Link Aggregation 802.3ad Dynamic LACP |
| Quality of Service (QoS) | 802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) |
| VLAN | Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs) |
| Multicast | IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries |
| Port Mirroring | RX, TX, or Both One to one |
| Encryption | 802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS) |
| ACL IPv4 L2-L4 and IPv6 | MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only) |
| Compatibility | Optional Software Utility: Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server |
| Power | Input 100 - 240V AC, 50/60 Hz, internal power supply Consumption 479 W (max.) Power Budget 370 W |
| Fans | 3 |
| Acoustics | 52.4 dBA (max.) |
| MTBF | 239,897 hours |
| Temperature & Humidity | Operating Temperature 23 to 122°F (-5 to 50°C) Operating Humidity Max. 95% non-condensing |
| Certifications | CE, FCC |
| Dimensions | 17.30 x 17.00 x 1.74" (440 x 210 x 44 mm) |
| Weight | 13.5 lb (6.12 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 17.8 lb |
| Box Dimensions (LxWxH) | 21.2 x 20.5 x 4.1" |
