Description
TRENDnet TI-G160I Overview
- 1Description
- 2Shock & Vibration Resistant
- 3Integration Flexibility
- 4Traffic Management
- 5Grounding Point

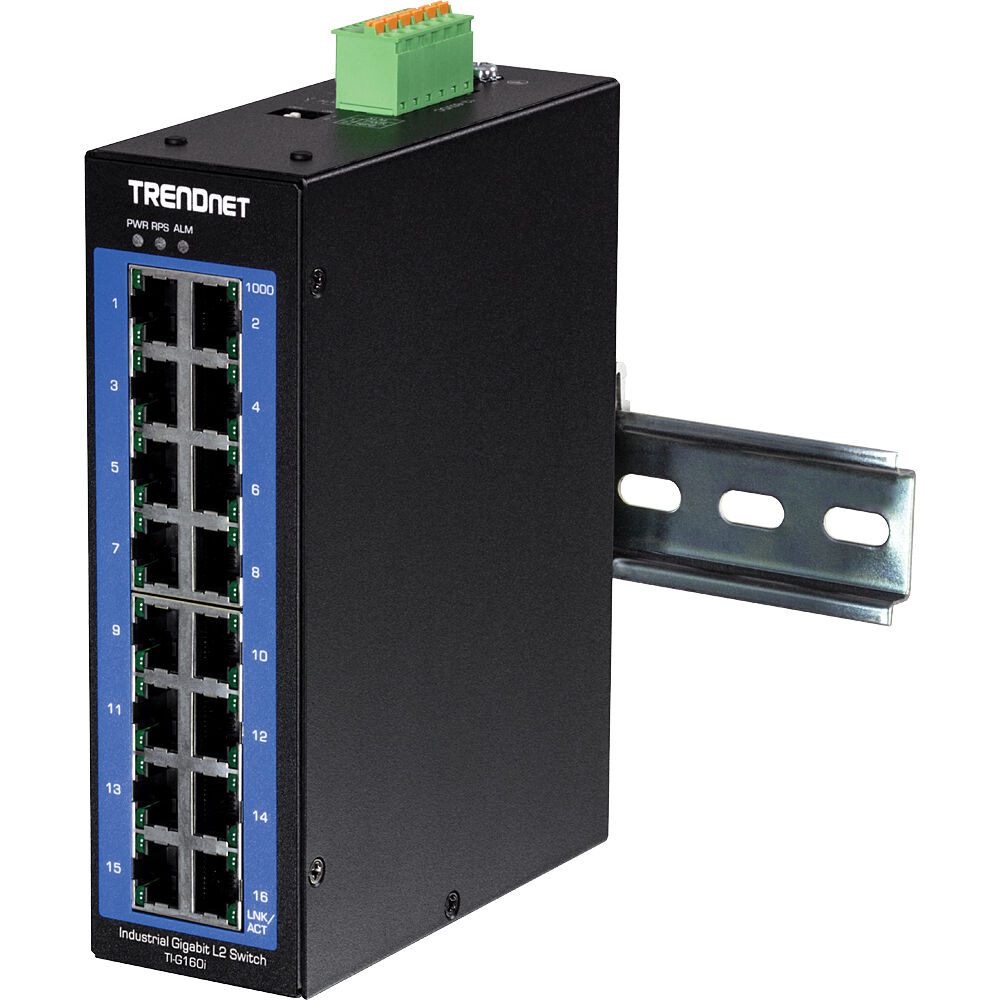

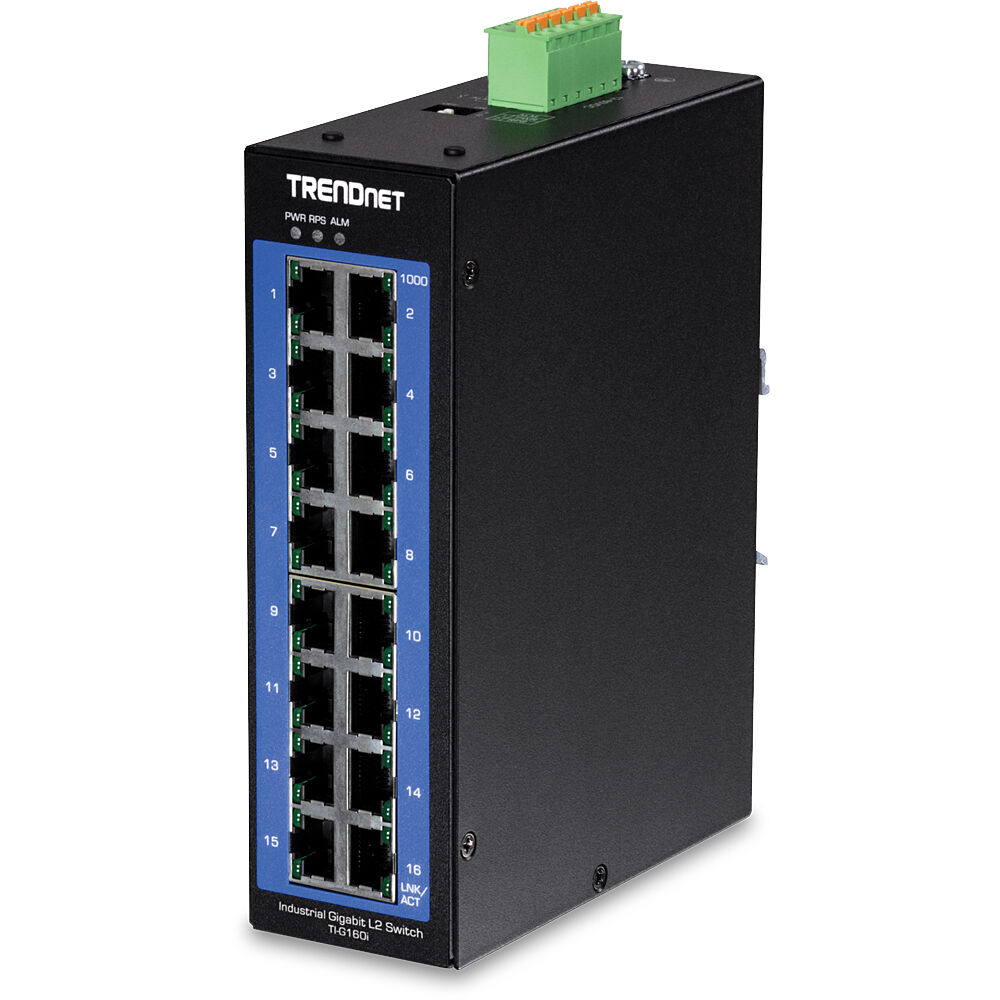

Featuring a hardened IP30 rated metal housing, the TI-G160i 16-Port Gigabit Industrial Managed Network Switch from TRENDnet lets you network devices in harsh environments. In addition to being shock and vibration resistant, this Layer 2 switch can operate in temperatures between -40 and 167°F while delivering data smooth transmissions with a 32 GB/s switching capacity and 23.8 Mpps forwarding rate.

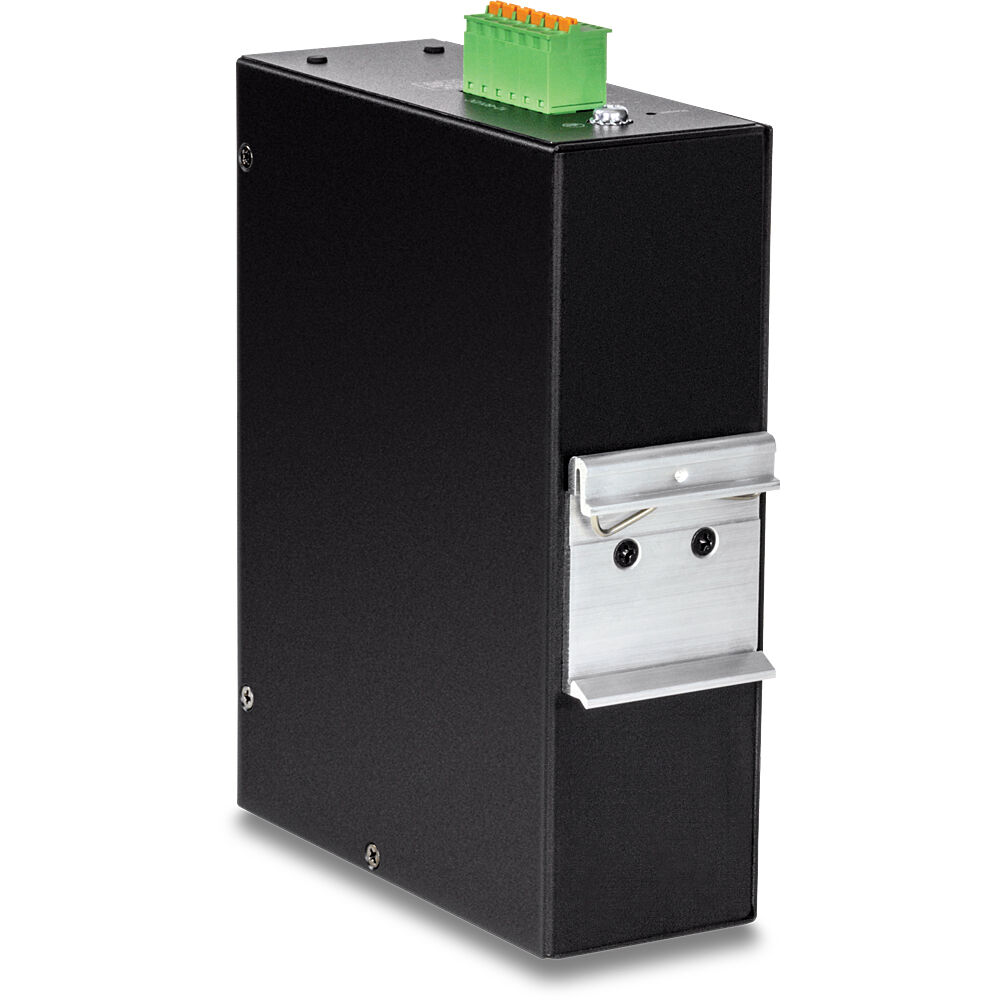

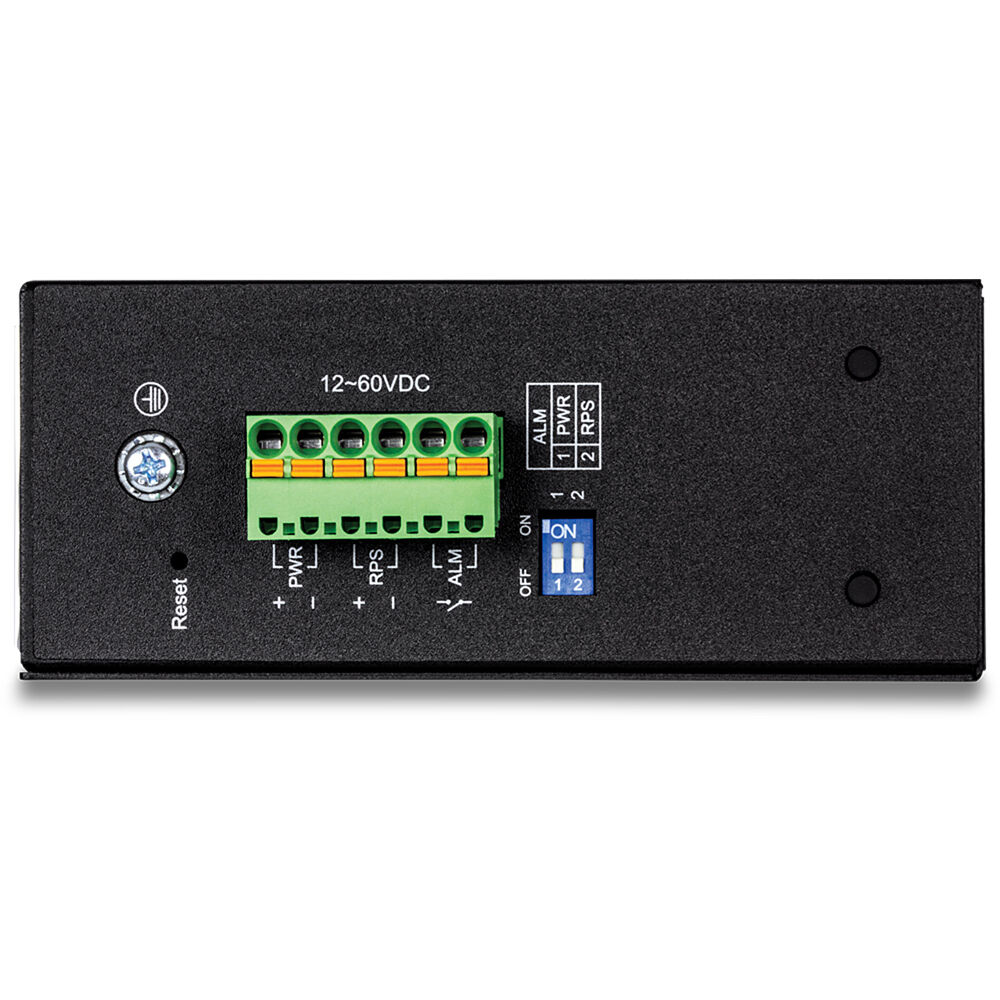

Use the management tools to configure a variety of settings, including bandwidth limits for each of the 16 Gigabit Ethernet RJ45 ports. The TI-G160i may be mounted onto a DIN rail and it has a 6-pin removable terminal block that works with separately purchased power supplies. This switch includes support for redundant power inputs with overload current protection.
In the Box
- TRENDnet TI-G160i 16-Port Gigabit Industrial Managed Network Switch
- DIN Rail Mounting Kit
- Limited 3-Year Manufacturer Warranty
- Description
- Shock & Vibration Resistant
- Integration Flexibility
- Traffic Management
- Grounding Point
TRENDnet TI-G160I Specs
| Wi-Fi | None |
| Inputs/Outputs | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Supported Protocols | DHCP Server IGMP Snooping Link Aggregation Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 10,000 Bytes |
| MAC Address Table Size | 8K |
| Multicast Groups | 256 |
| VLAN Groups | 256 |
| VLAN IDs | 4094 |
| Security Features | DHCP Snooping RADIUS Authentication Storm Control |
| SNMP Support | 1, 2c, 3 |
| Supported IEEE Standards | 802.1ab, 802.1ax, 802.1d, 802.1p, 802.1q, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3az, 802.3u, 802.3x |
| Forwarding Rate | 23.8 Mpps |
| Switching Bandwidth | 32 Gb/s |
| Packet Buffer | 128 MB |
| Power Draw | 12.00 W (Max) |
| DC Input Power | 12 to 60 VDC |
| AC Input Power | None |
| Power Supply Type | External |
| Operating Temperature | -40 to 167°F / -40 to 75°C |
| Operating Humidity | 95% (Non-Condensing) |
| Certifications | CE, FCC, IEC *as per Manufacturer |
| Cooling System | Passive |
| Mean Time Between Failures (MTBF) | 1,072,674 Hours |
| Material of Construction | Metal |
| Dimensions | 6.3 x 4.7 x 2" / 160 x 120 x 50 mm |
| Weight | 1.9 lb / 884 g |
| Package Weight | 2.61 lb |
| Box Dimensions (LxWxH) | 9.5 x 7.3 x 2.7" |
